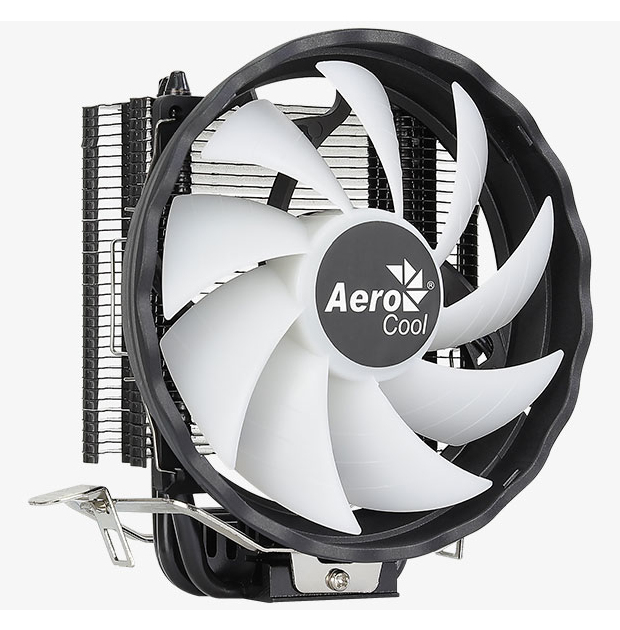

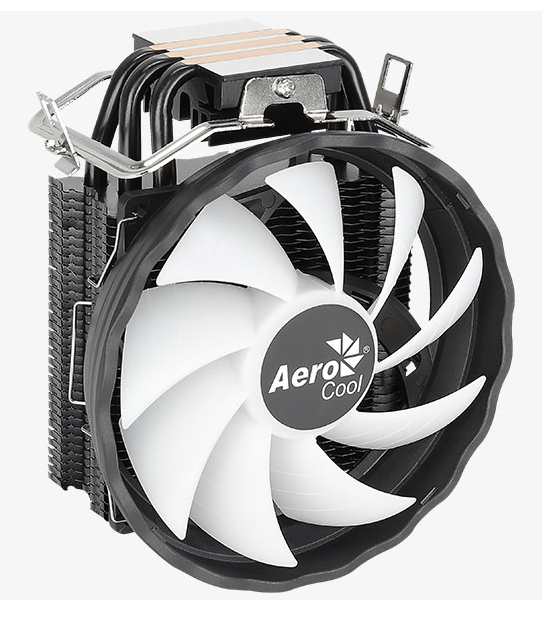

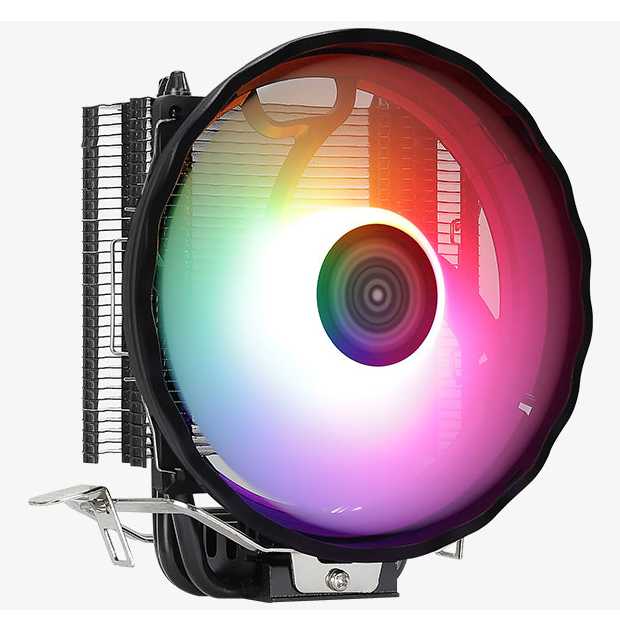

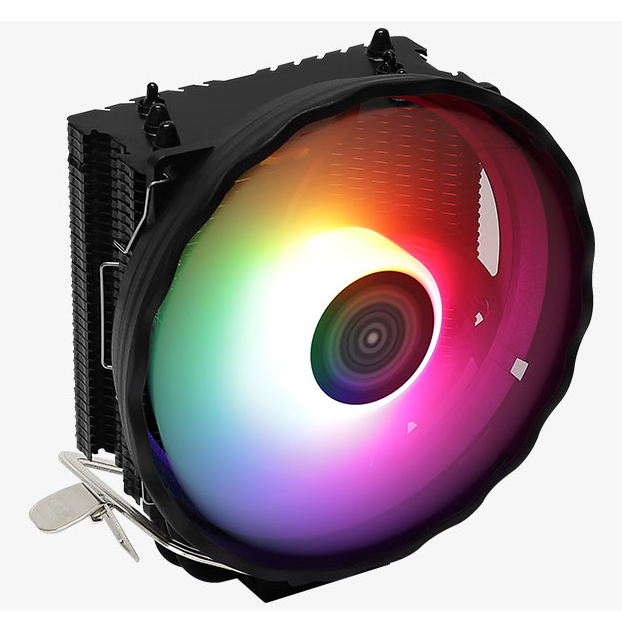

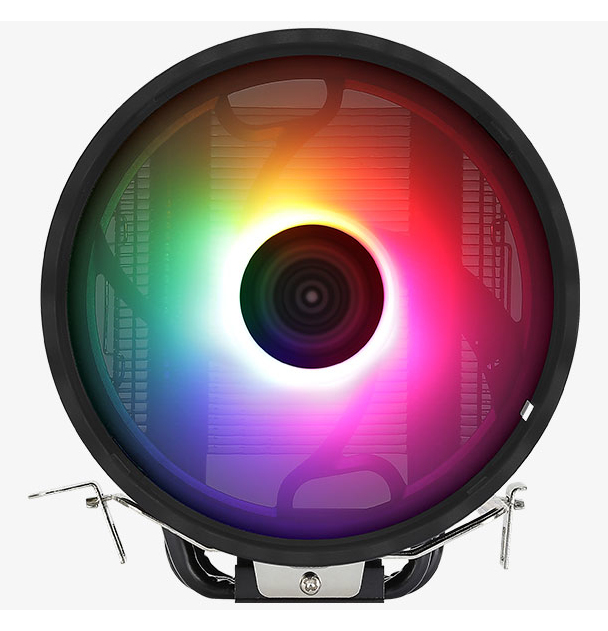

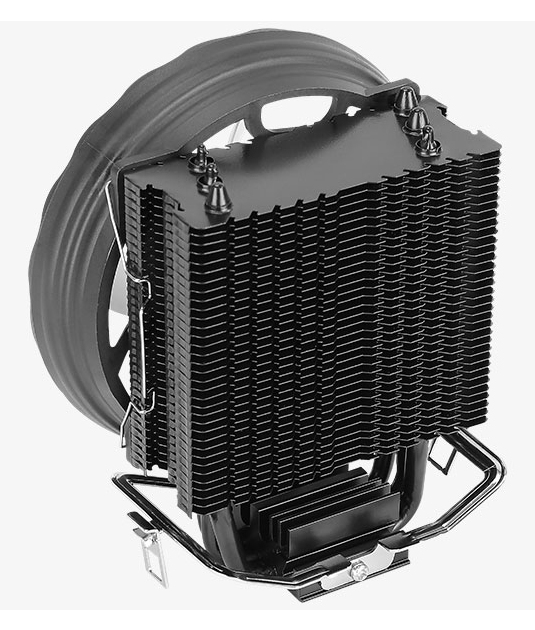

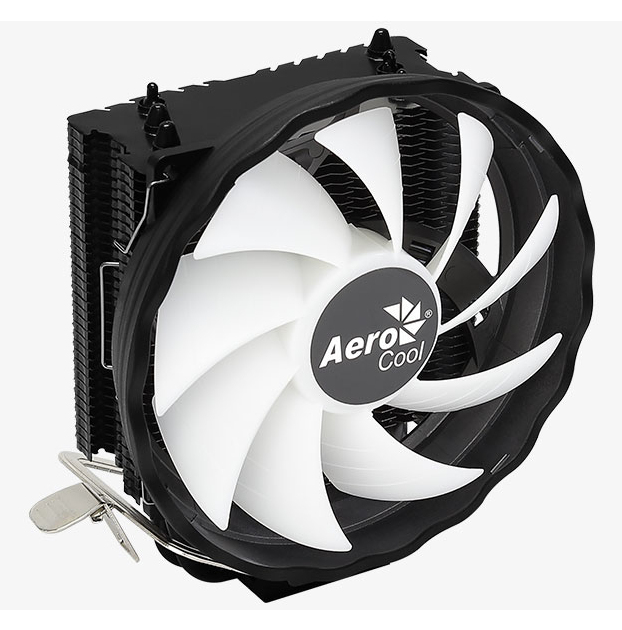

Rave 3 FRGB
Model Rave 3 FRGBPart no. AEROPGSRAVE3-FRGB-4PEAN 4711099472222
38 specifications
- TypeAir cooler
- ColourBlack, White
- Suitable locationProcessor
- Power consumption (typical)6 W
- Width125 mm
Overview
- Type
- Air cooler
- Colour
- Black, White
- Suitable location
- Processor
- Power consumption (typical)
- 6 W
- Width
- 125 mm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Rave 3 FRGB
- Part number
- AEROPGSRAVE3-FRGB-4P
- EAN / UPC
- 4711099472222
- Also known as
- Aerocool Rave 3 FRGB Processor Air cooler 12 cm Black, White 1 pc(s)
Specifications
38 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket 755, Socket AM2, Socket AM2+, Socket AM3, Socket AM4, Socket AM5, Socket FM1, Socket FM2 |
| Maximum airflow | 58 cfm |
| Minimum air pressure | 0.6 mmH2O |
| Maximum air pressure | 1.6 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Fan noise level (min) | 18 dB |
| Fan noise level (max) | 27 dB |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 900 RPM |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Radiator material | Aluminum |
| Base plate material | Aluminium |
| Number of fans | 1 fan(s) |
| Number of fan blades | 9 |
| Fins material | Aluminium |
| Number of heat pipes | 3 |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Rated current | 0.5 A |
| Thermal Design Power (TDP) | 130 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 75 mm |
| Height | 135 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
Packaging content
| Specification | Value |
|---|---|
| Package type | Hanging box |
| Mounting kit | Yes |
| CPU bracket(s) | Yes |
