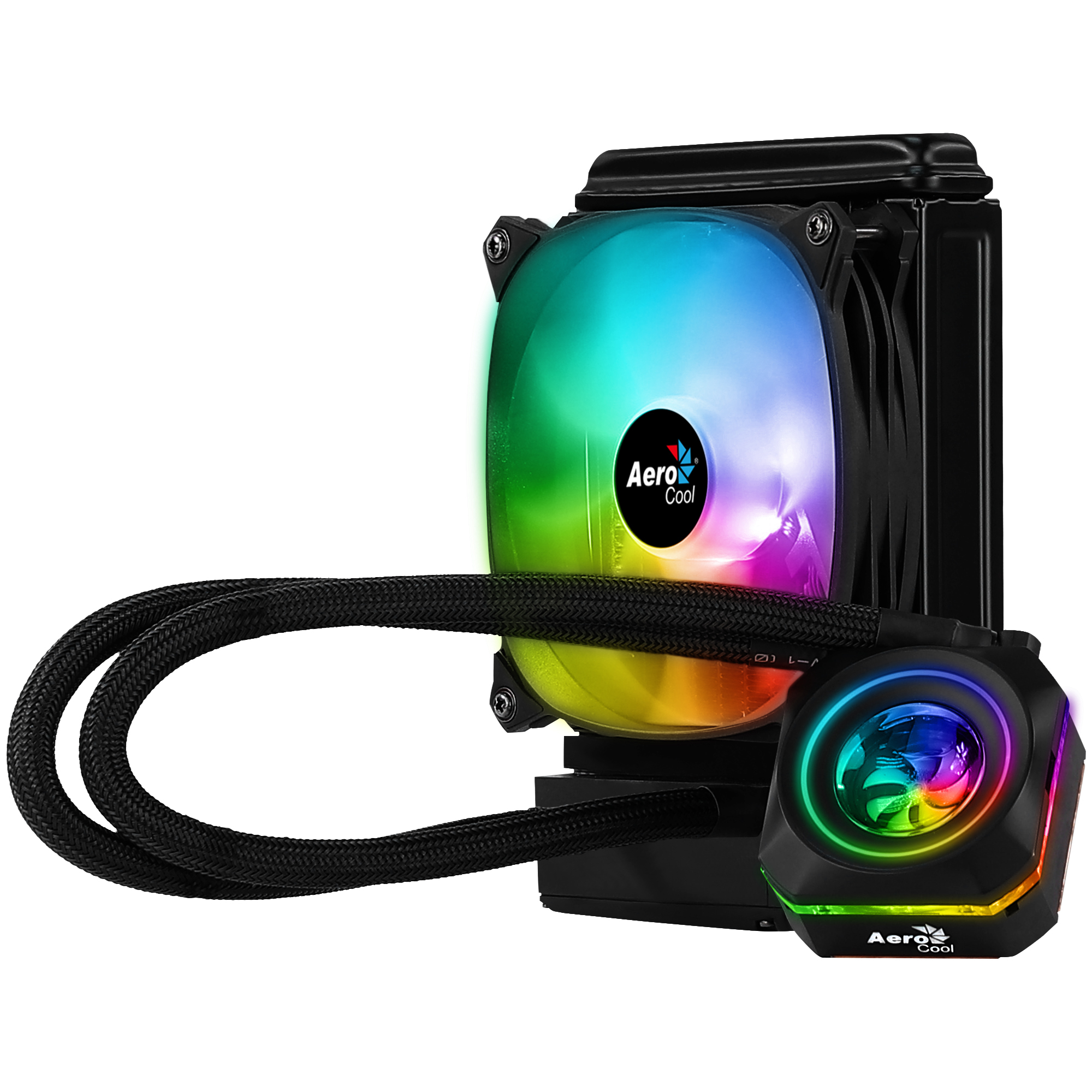

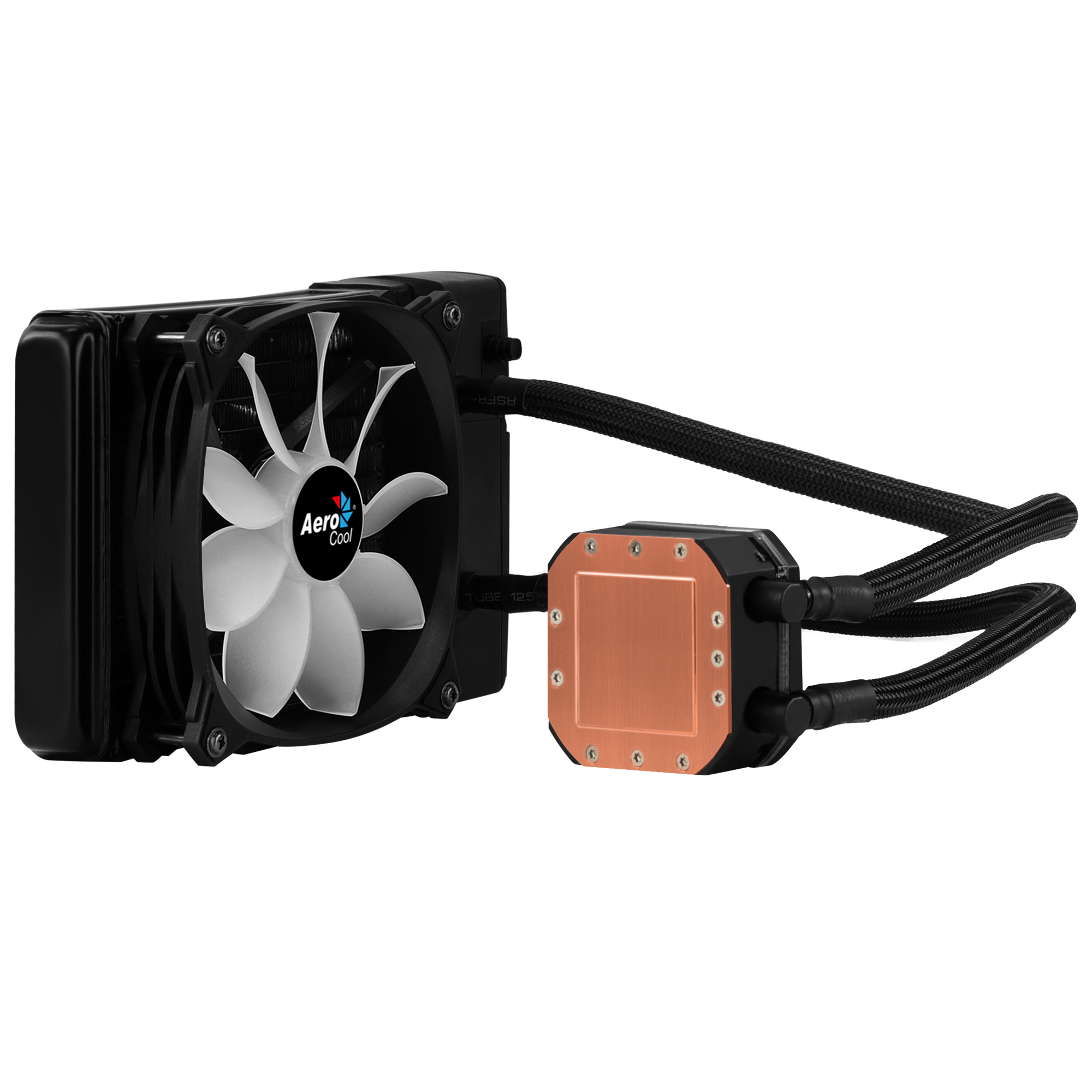

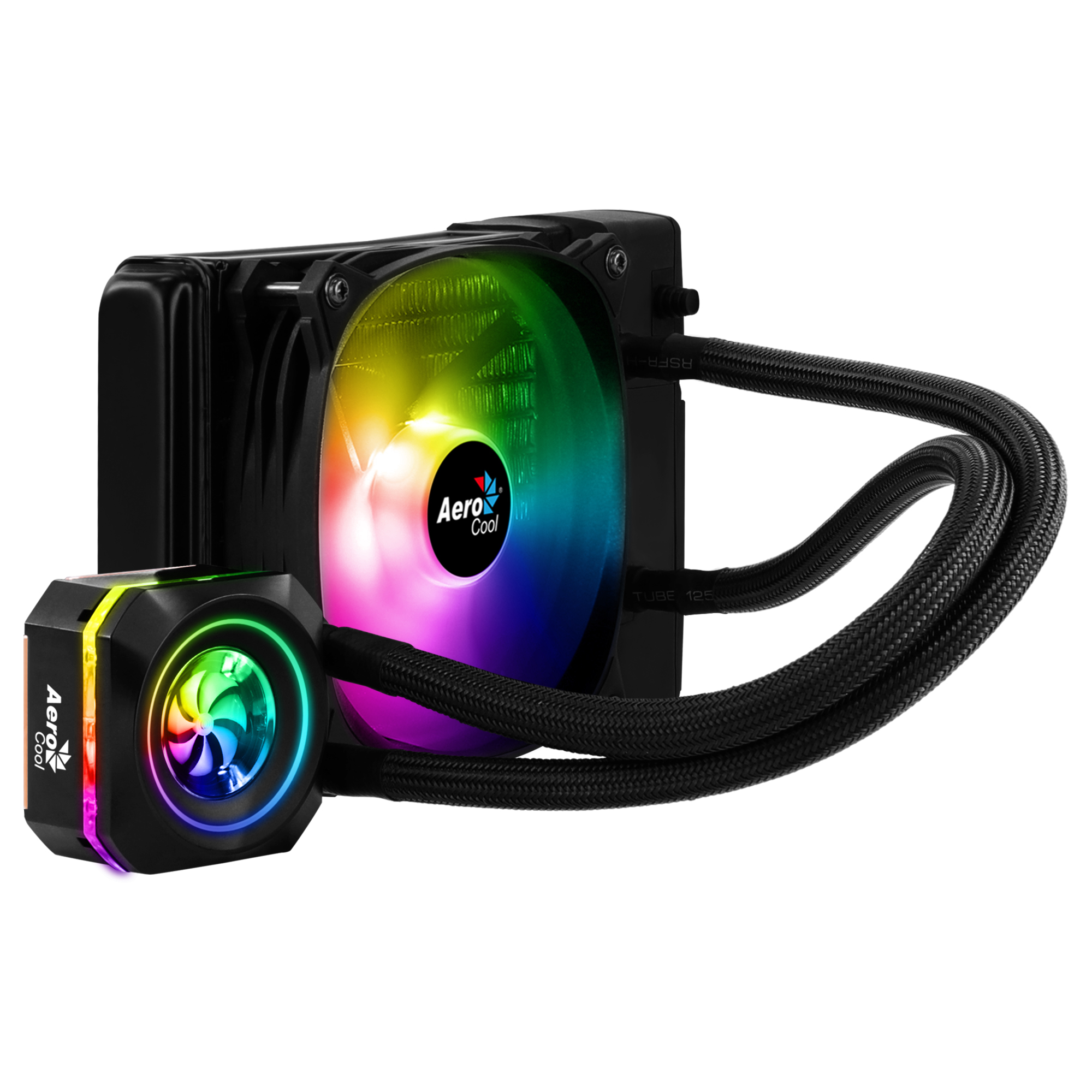

Pulse L120F
Model Pulse L120FPart no. PULSEL120FEAN 4718009157668
36 specifications
- TypeAll-in-one liquid cooler
- ColourBlack
- Suitable locationProcessor
- Fan power consumption1.92 W
- Width176 mm
Overview
- Type
- All-in-one liquid cooler
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 1.92 W
- Width
- 176 mm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Pulse L120F
- Part number
- PULSEL120F
- EAN / UPC
- 4718009157668
- Also known as
- Aerocool Pulse L120F Processor All-in-one liquid cooler Black 1 pc(s)
Specifications
36 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Minimum airflow (imperial) | 29.84 cfm |
| Maximum airflow | 71.65 cfm |
| Minimum air pressure | 0.59 mmH2O |
| Maximum air pressure | 1.34 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (min) | 10.5 dB |
| Fan noise level (max) | 31.8 dB |
| Pump noise level | 25 dB |
| Fan bearing technology | Hydraulic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1800 RPM |
| Fan speed (min) | 600 RPM |
| Pump motor speed | 2800 RPM |
| Mean time between failures (MTBF) | 80000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Base plate material | Aluminium |
| Number of fans | 1 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Lighting effects quantity | 8 |
| Water block material | Copper |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 1.92 W |
| Pump power consumption | 8.4 W |
| Fan current | 0.16 A |
| Fan voltage | 12 V |
| Pump voltage | 12 V |
| Thermal Design Power (TDP) | 200 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 176 mm |
| Depth | 123.5 mm |
| Height | 40.5 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
