Mirage L360
Model Mirage L360Part no. MIRAGEL360EAN 4710562757958
30 specifications
- TypeAll-in-one liquid cooler
- ColourBlack
- Suitable locationProcessor
- Fan power consumption3.36 W
- Radiator width39.4 cm
Overview
- Type
- All-in-one liquid cooler
- Colour
- Black
- Suitable location
- Processor
- Fan power consumption
- 3.36 W
- Radiator width
- 39.4 cm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Mirage L360
- Part numbers
- MIRAGEL360, MIRAGEL360W
- EAN / UPC
- 4710562757958, 4710562759167
- Also known as
- Aerocool MIRAGEL360 Liquid CPU Cooling 3x12cm ARGB Fan TDP 550W Black
Specifications
30 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | All-in-one liquid cooler |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Maximum air pressure | 1.62 mmH2O |
| Fan noise level (max) | 26.8 dB |
| Pump noise level | 20.2 dB |
| Fan bearing technology | Hydraulic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2000 RPM |
| Fan speed (min) | 600 RPM |
| Pump motor speed | 2300 RPM |
| Pump's mean time to failure (MTTF) | 80000 h |
| Fan's mean time to failure (MTTF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminium |
| Illumination LED | Yes |
| Illumination colour | Multi |
| Fan connector | 4-pin |
| Water block material | Copper |
Power
| Specification | Value |
|---|---|
| Fan power consumption | 3.36 W |
| Pump power consumption | 2.64 W |
| Fan current | 0.28 A |
| Fan voltage | 12 V |
| Pump voltage | 12 V |
| Thermal Design Power (TDP) | 550 W |
Weight & dimensions
| Specification | Value |
|---|---|

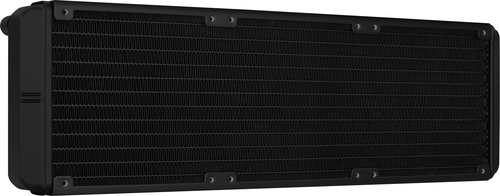

| Radiator width | 39.4 cm |
| Radiator depth | 12 cm |
| Radiator height | 2.7 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
