Mirage 5
Model Mirage 5Part no. MIRAGE5EAN 4710562756036
33 specifications
- Noise18 dB
- TypeAir cooler
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)9.6 W
- Width100 mm
Overview
- Noise
- 18 dB
- Type
- Air cooler
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 9.6 W
- Width
- 100 mm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Mirage 5
- Part number
- MIRAGE5
- EAN / UPC
- 4710562756036
- Also known as
- Aerocool Mirage 5 Processor Air cooler 6 cm Black 1 pc(s)
Specifications
33 specifications in 5 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 6 cm |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Compatible processor series | Not supported |
| Rotational speed (min) | 1200 RPM |
| Rotational speed (max) | 3000 RPM |
| Noise level (low speed) | 18 dB |
| Noise level (high speed) | 30 dB |
| Minimum airflow (imperial) | 39.7 cfm |
| Maximum airflow | 74.3 cfm |
| Minimum air pressure | 0.91 mmH2O |
| Maximum air pressure | 2.13 mmH2O |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium |
| Fins material | Aluminium |

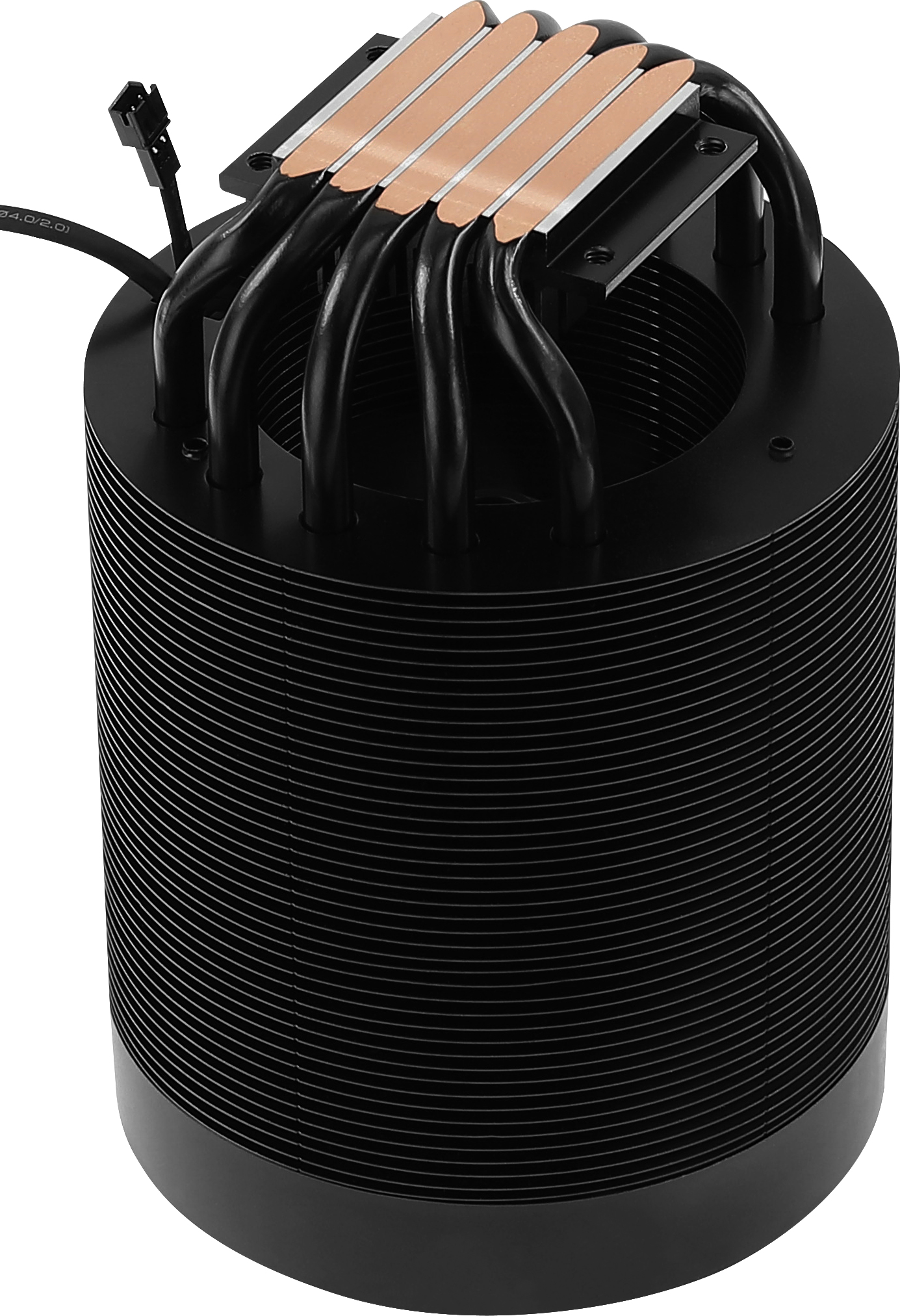

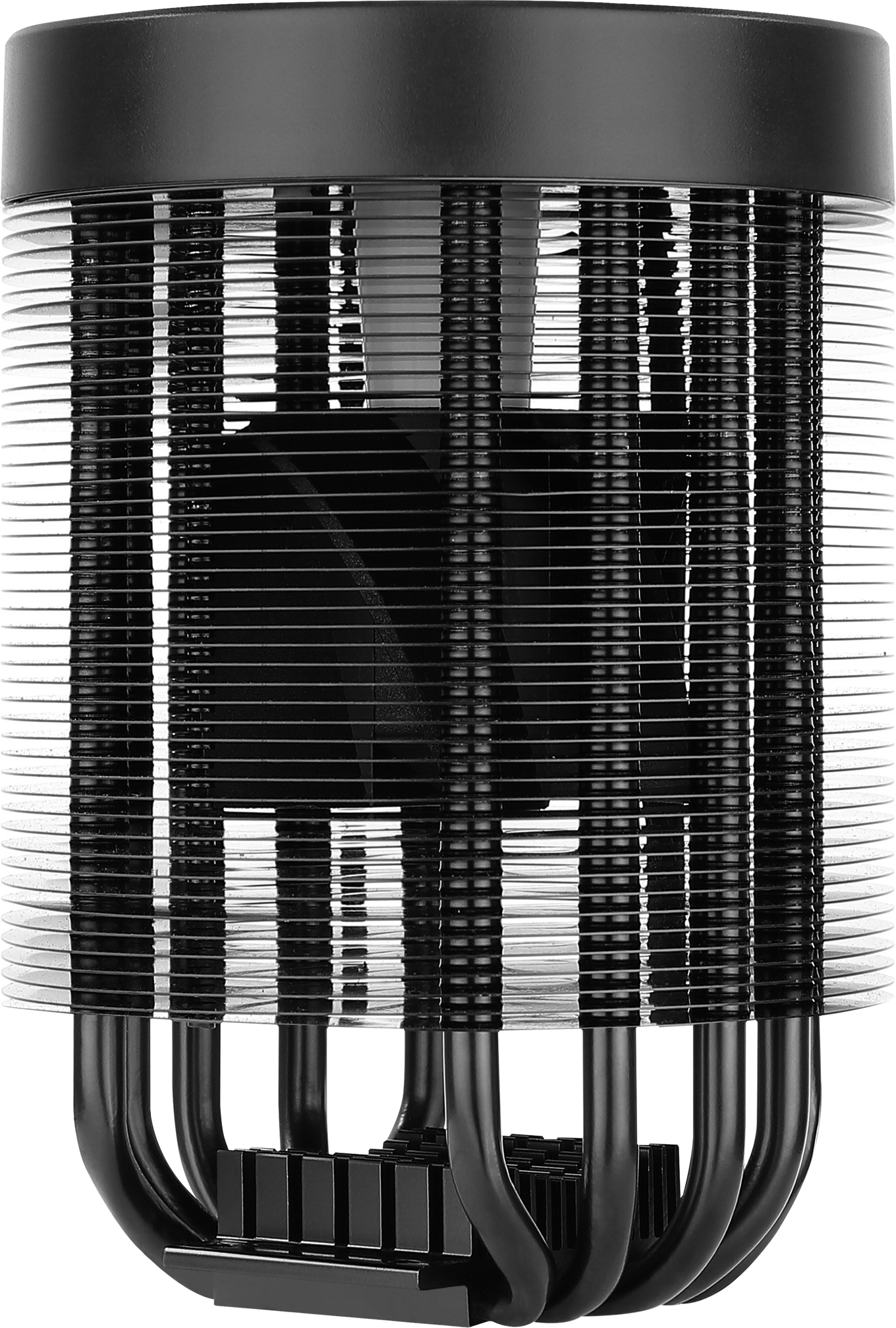

| Number of heat pipes | 5 |

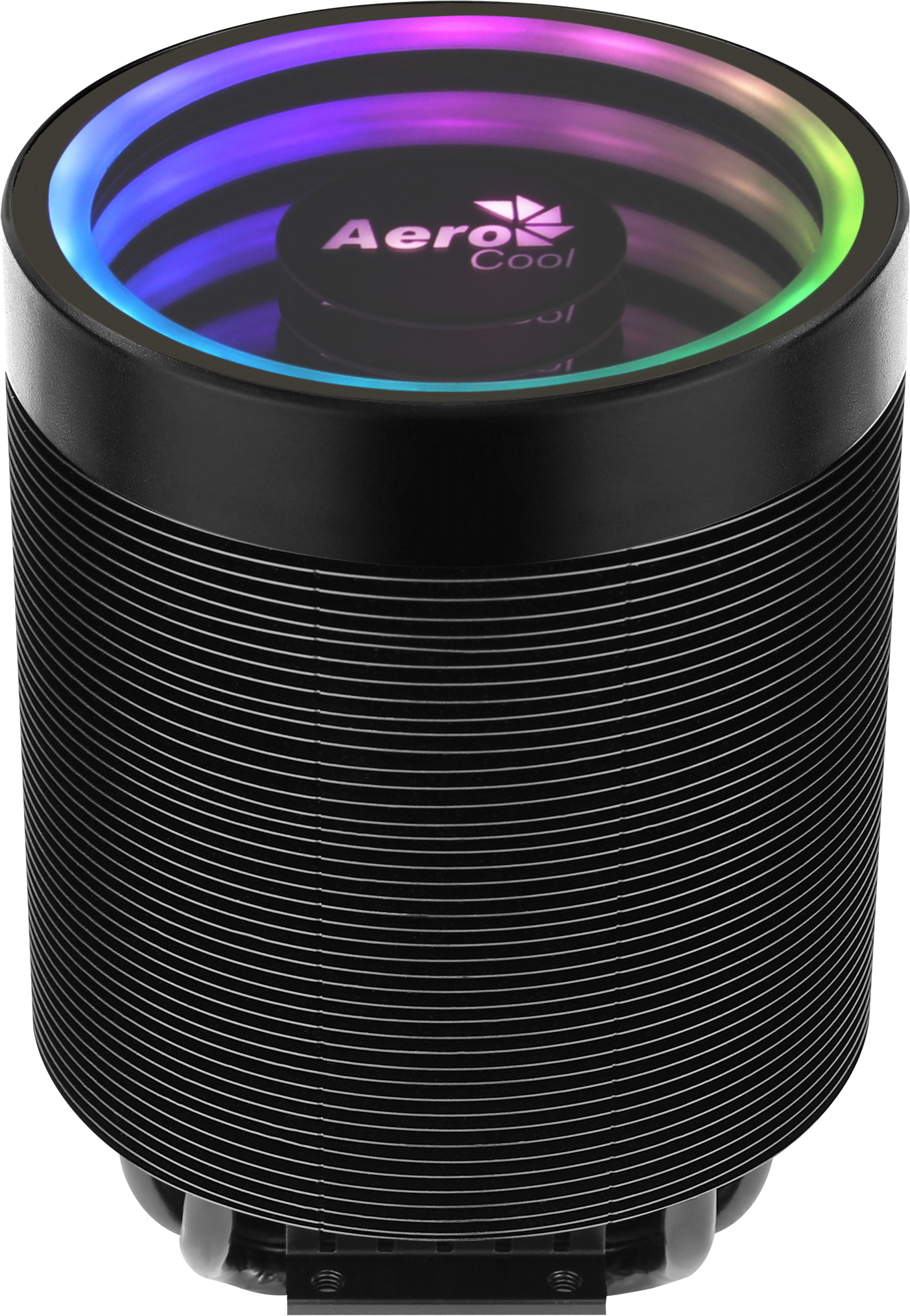

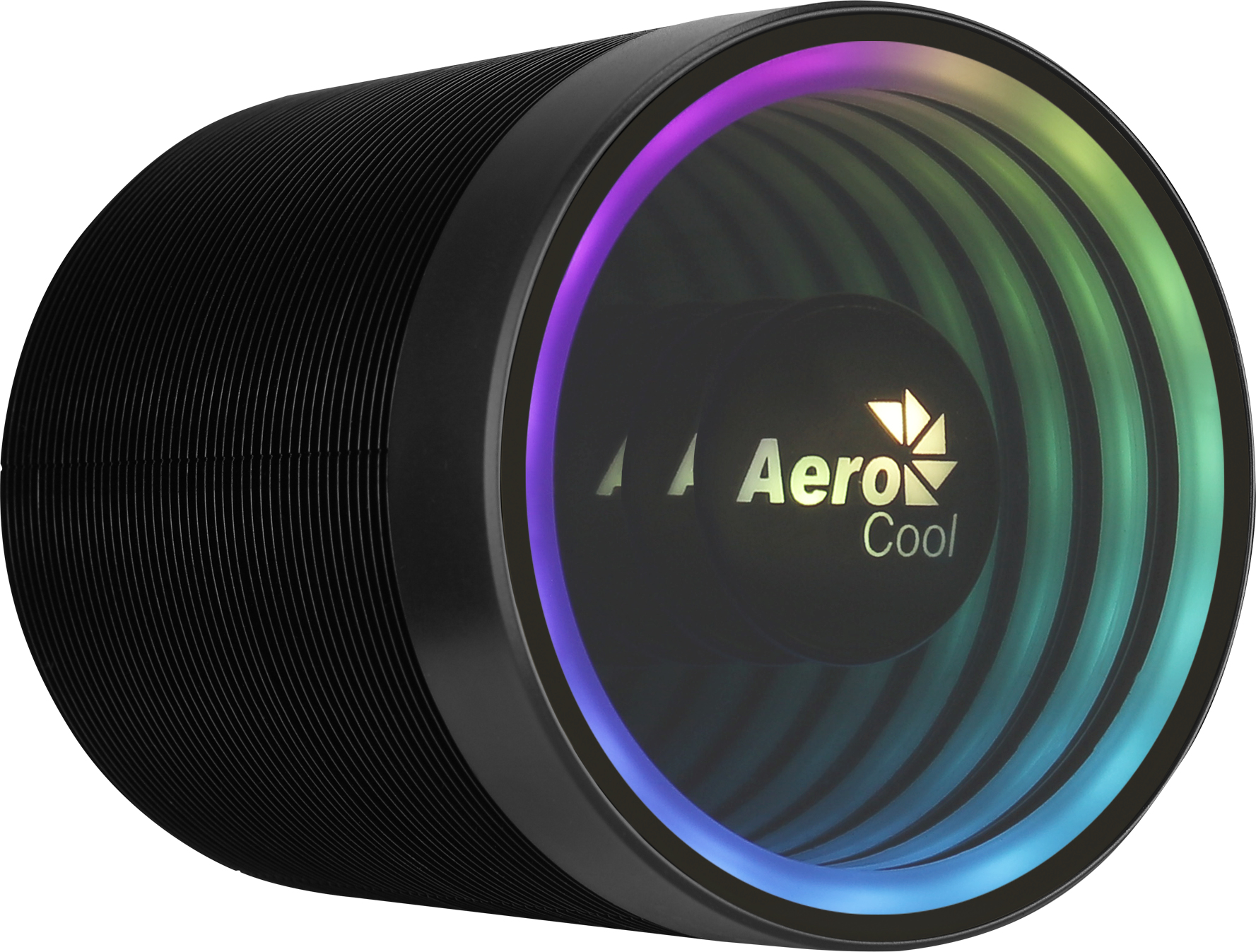

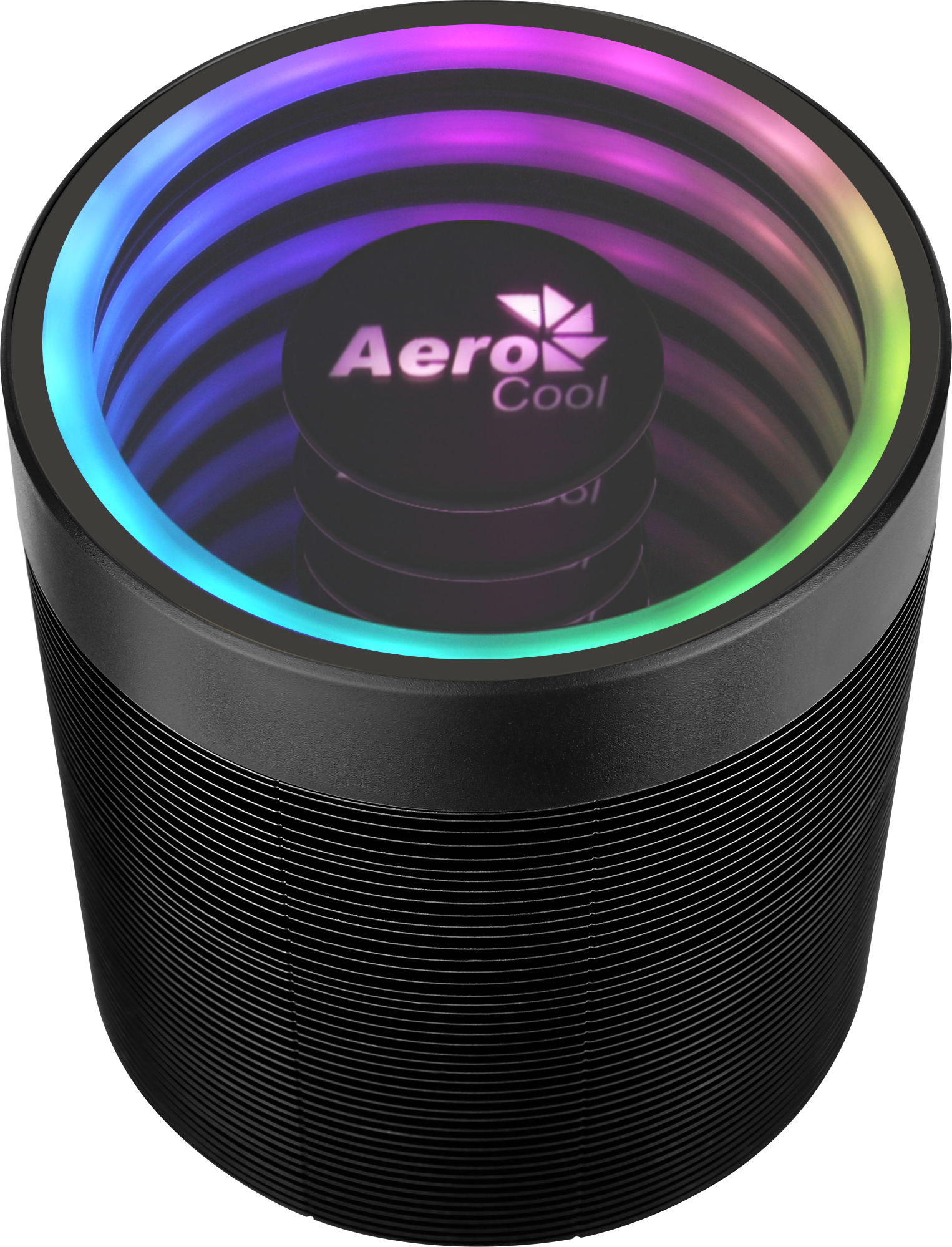

| Illumination LED | Yes |
| Illumination colour | Multi |

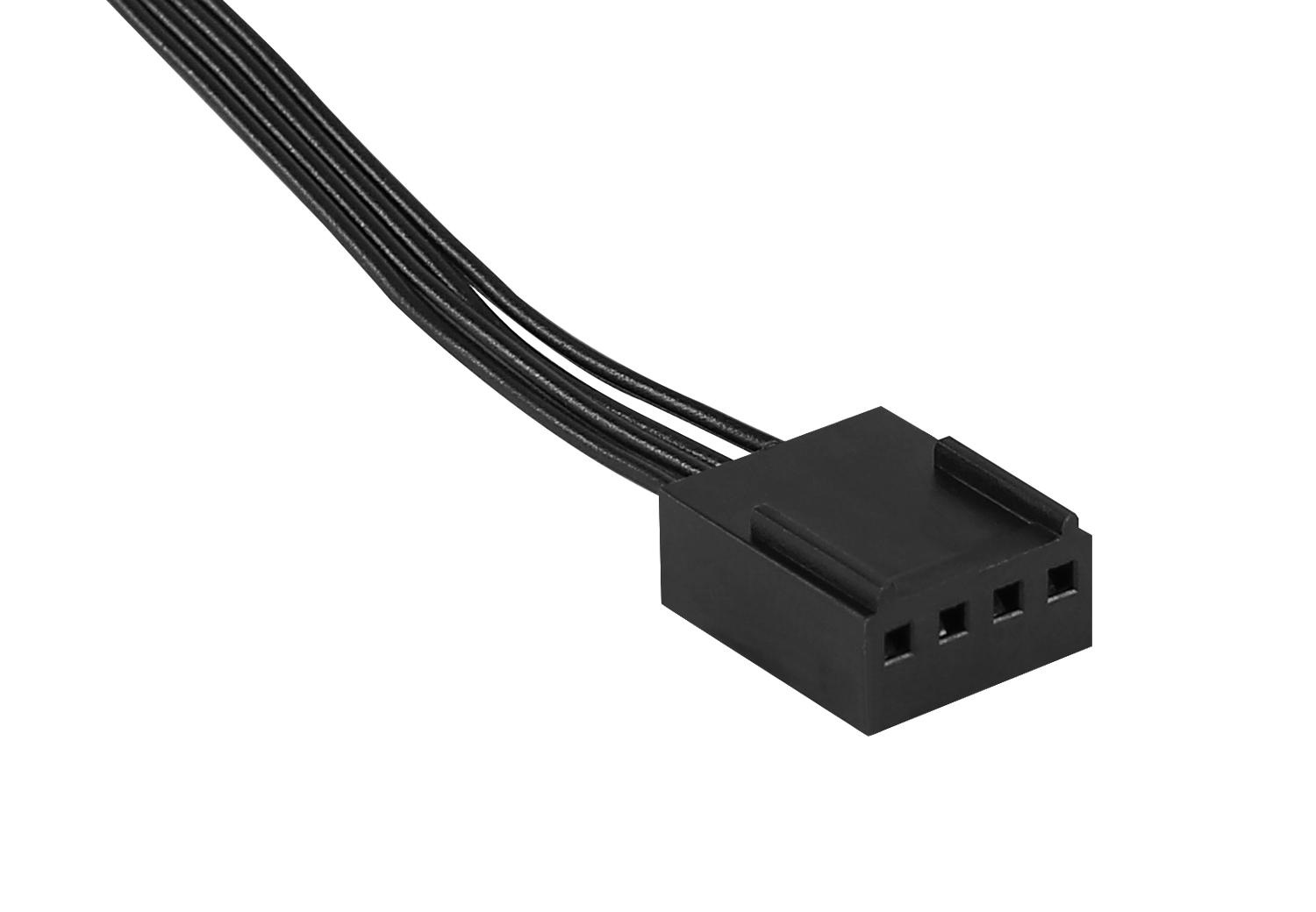

| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 9.6 W |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Rated current | 0.8 A |
| Thermal Design Power (TDP) | 150 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Height | 145 mm |
| Fan dimensions (W x D x H) | 60 x 60 x 45 mm |
| Heat pipes diameter | 6 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
