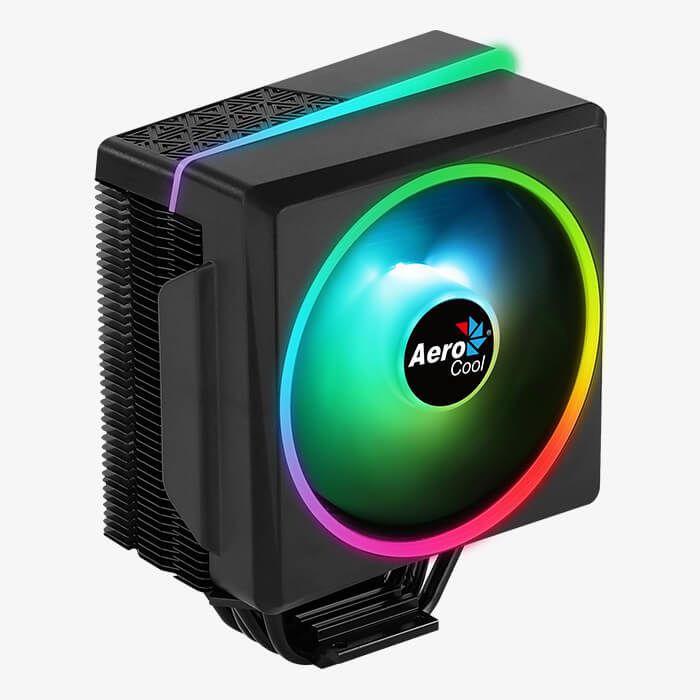

Cylon 4F
Model Cylon 4FPart no. CYLON4FEAN 4710562752724
30 specifications
- Noise14 dB
- TypeCooler
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)7.2 W
- Width126.5 mm
Overview
- Noise
- 14 dB
- Type
- Cooler
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 7.2 W
- Width
- 126.5 mm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Cylon 4F
- Part numbers
- CYLON4F, CYLON4FWH
- EAN / UPC
- 4710562752724, 4710562758979
- Also known as
- Aerocool CYLON4F CPU Cooler ARGB 12cm Fan White
Specifications
30 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
| Rotational speed (min) | 800 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (low speed) | 14 dB |
| Noise level (high speed) | 26 dB |
| Minimum airflow (imperial) | 26.1 cfm |
| Maximum airflow | 52.5 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fins material | Aluminium |
| Number of heat pipes | 4 |
| Illumination colour | Blue, Green, Red |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.2 W |
| Rated voltage | 12 V |
| Starting voltage | 5 V |
| Rated current | 0.6 A |
| Thermal Design Power (TDP) | 145 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126.5 mm |
| Depth | 76 mm |
| Height | 160 mm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Heat pipes diameter | 6 mm |
