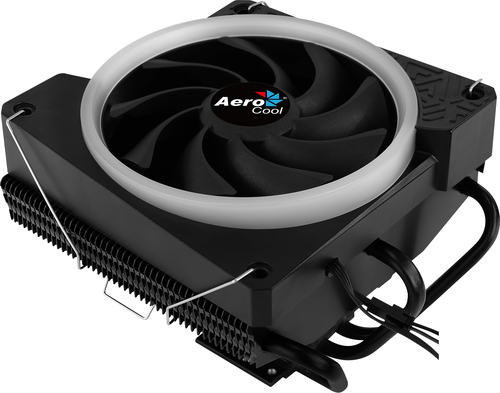

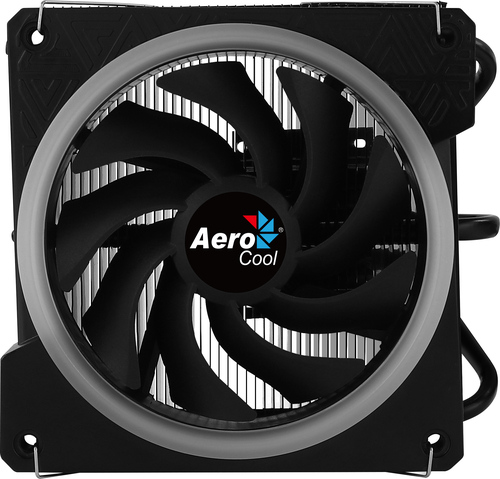

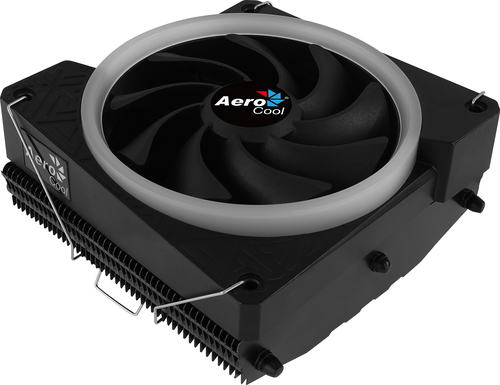

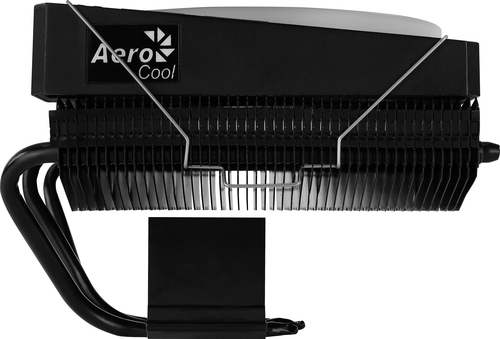

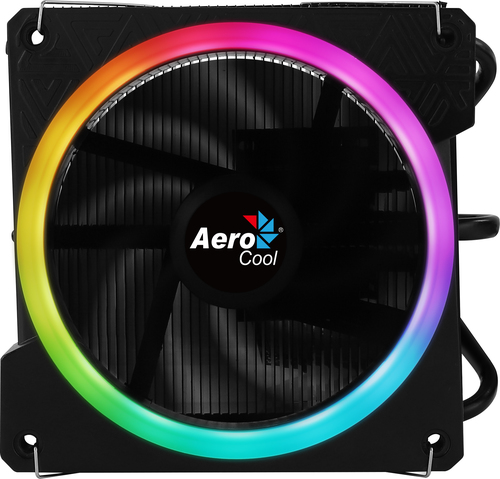

Cylon 3
Model Cylon 3Part no. CYLON3EAN 4710562750225
31 specifications
- Noise13.3 dB
- TypeCooler
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)6.84 W
- Width126 mm
Overview
- Noise
- 13.3 dB
- Type
- Cooler
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 6.84 W
- Width
- 126 mm
- Brand
- Aerocool
- Category
- Computer Cooling System
- Model
- Cylon 3
- Part number
- CYLON3
- EAN / UPC
- 4710562750225
- Also known as
- Aerocool Cylon 3 Processor Cooler 12 cm Black
Specifications
31 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1 |
| Rotational speed (min) | 600 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level (low speed) | 13.3 dB |
| Noise level (high speed) | 24.3 dB |
| Minimum airflow (imperial) | 24.1 cfm |
| Maximum airflow | 60.8 cfm |
| Minimum air pressure | 0.63 mmH2O |
| Maximum air pressure | 1.48 mmH2O |
| Bearing type | Hydraulic |
| Mean time between failures (MTBF) | 60000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Material | Aluminium |
| Number of fans | 1 fan(s) |

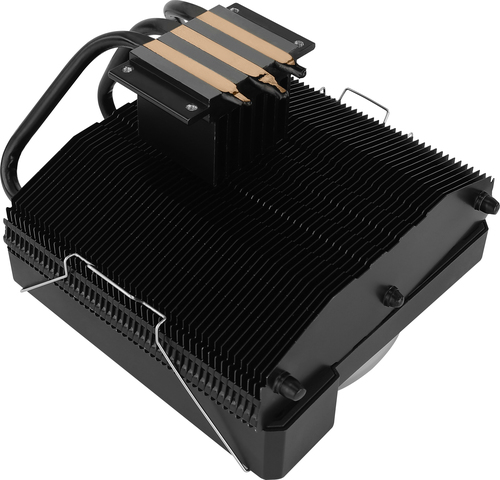

| Number of heat pipes | 3 |

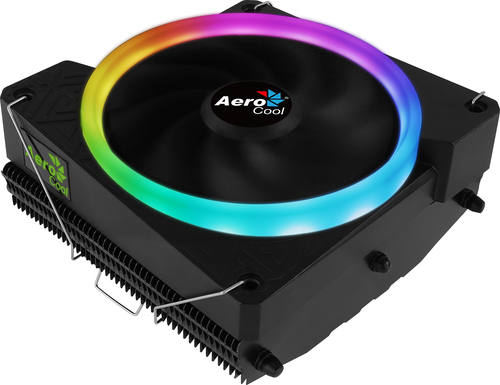

| Illumination LED | Yes |
| Illumination colour | Blue, Green, Red |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6.84 W |
| Rated voltage | 12 V |
| Starting voltage | 7 V |
| Rated current | 0.57 A |
| Thermal Design Power (TDP) | 125 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 126 mm |
| Depth | 138 mm |
| Height | 95 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Heat pipes diameter | 6 mm |
