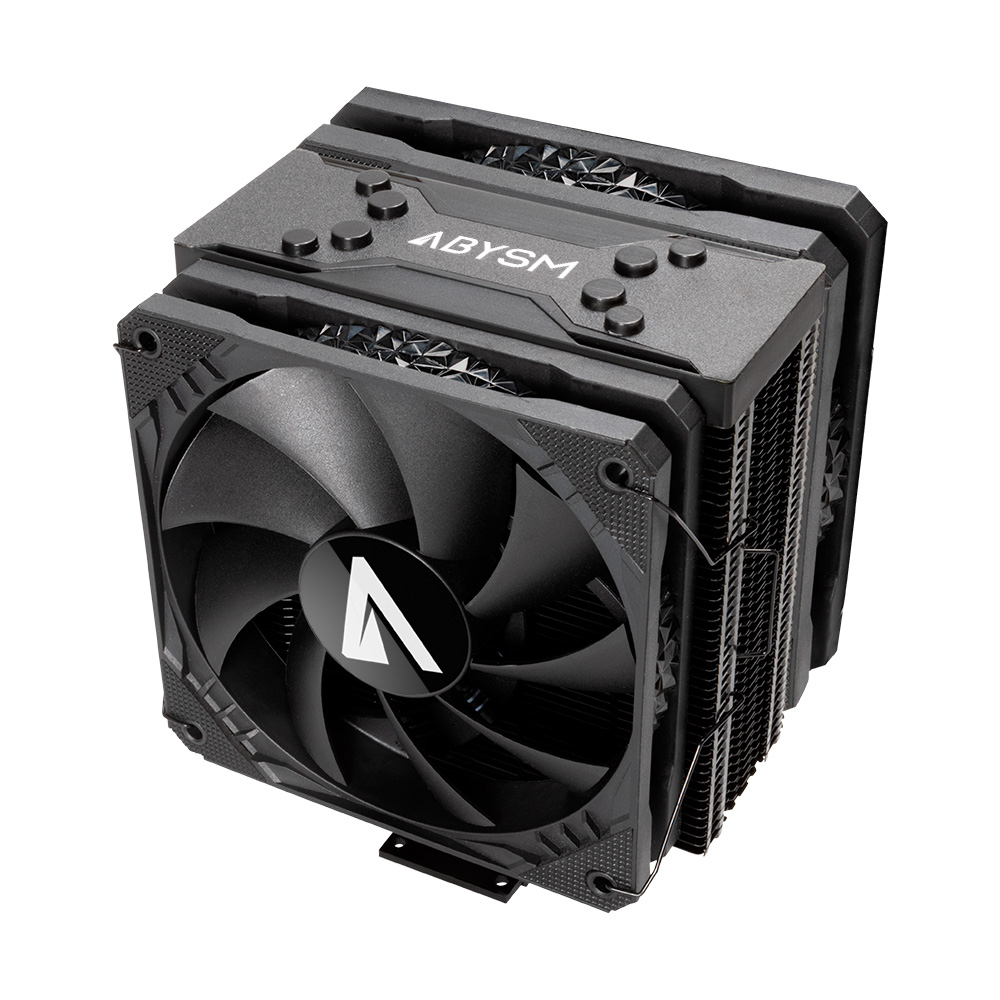

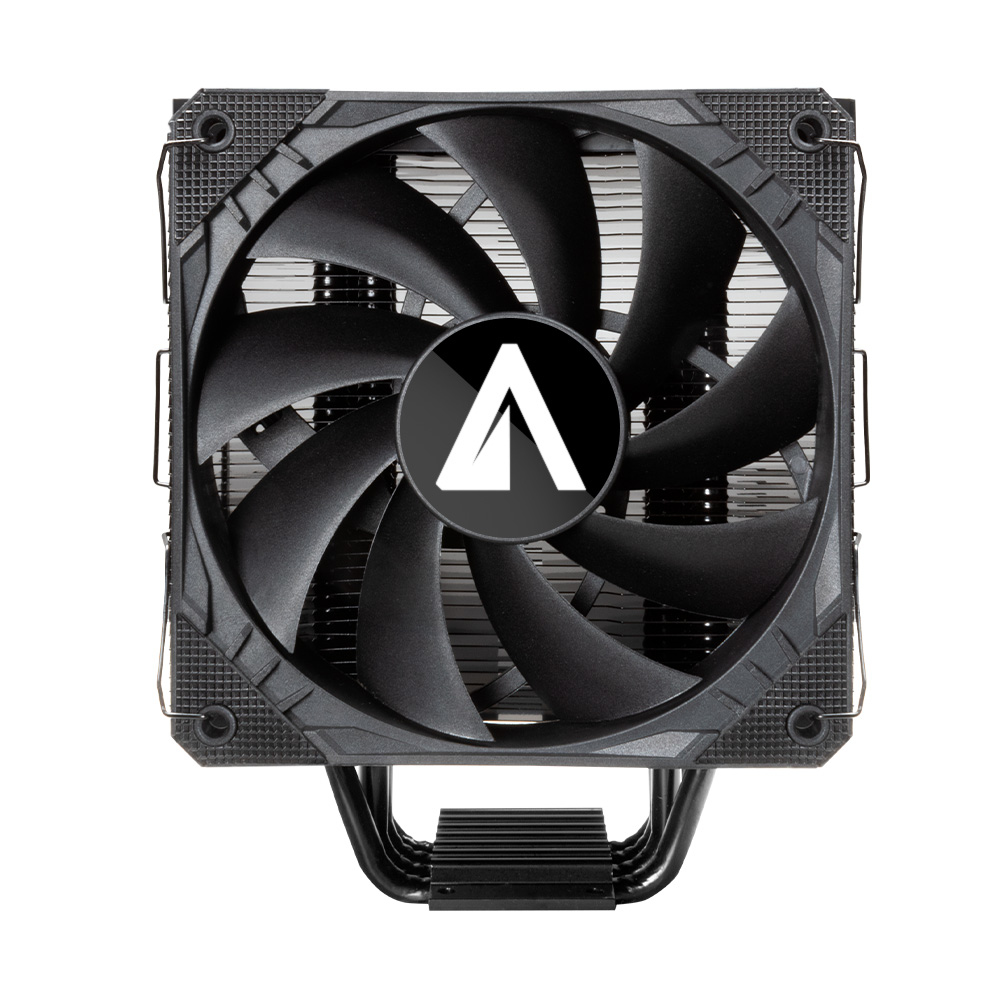

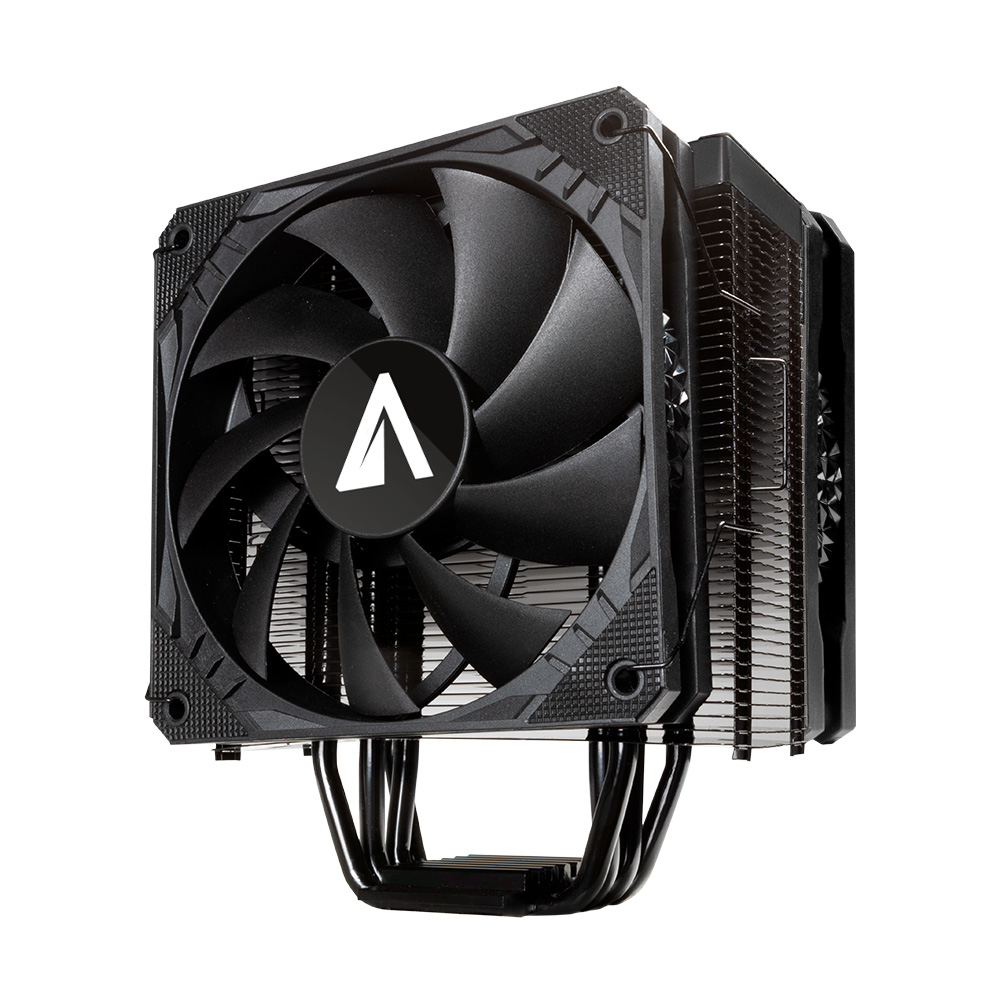

Aire Snow IV
Model Aire Snow IVPart no. AB832406EAN 6974560222612
34 specifications
- TypeAir cooler
- Weight960 g
- ColourBlack
- Suitable locationProcessor
- Power consumption (typical)5.28 W
- Width127 mm
Overview
- Type
- Air cooler
- Weight
- 960 g
- Colour
- Black
- Suitable location
- Processor
- Power consumption (typical)
- 5.28 W
- Width
- 127 mm
- Brand
- ABYSM
- Category
- Computer Cooling System
- Model
- Aire Snow IV
- Part number
- AB832406
- EAN / UPC
- 6974560222612
- Also known as
- ABYSM Aire Snow IV Processor Air cooler 12 cm Black 1 pc(s)
Specifications
34 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Suitable location | Processor |
| Type | Air cooler |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM3, Socket AM3+, Socket AM4, Socket AM5 |
| Maximum airflow | 68 cfm |
| Maximum air pressure | 2.05 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Fan noise level (max) | 35 dB |
| Fan bearing technology | Hydraulic bearing |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 1600 RPM |
| Fan speed (min) | 800 RPM |
| Mean time between failures (MTBF) | 30000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Radiator material | Aluminum |

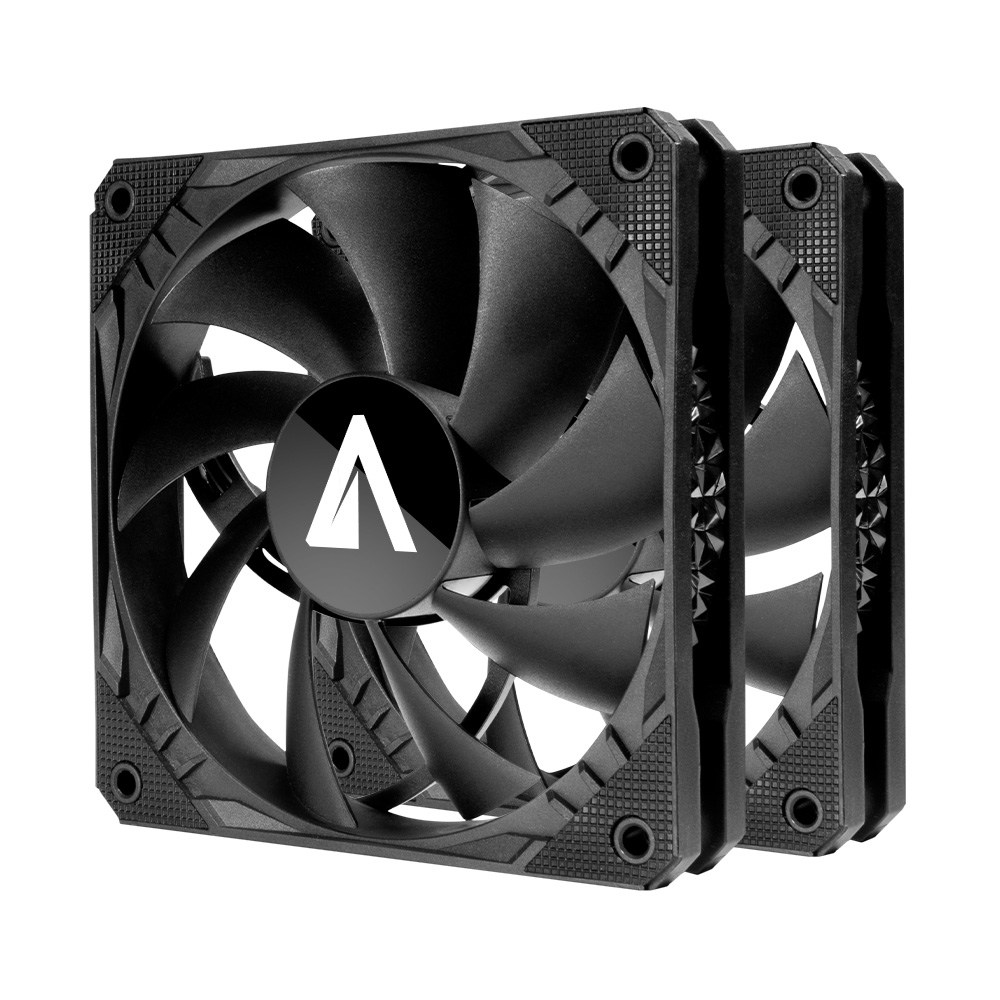

| Number of fans | 2 fan(s) |
| Number of fan blades | 9 |
| Number of fins | 44 |
| Fins material | Aluminium |
| Number of heat pipes | 4 |
| Fan connector | 4-pin |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 5.28 W |
| Voltage | 12 V |
| Thermal Design Power (TDP) | 200 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 127 mm |
| Depth | 100 mm |
| Height | 155 mm |
| Weight | 960 g |
| Fan dimensions (W x D x H) | 120 x 120 x 50 mm |
| Fan weight | 141 g |
| Package width | 150 mm |
| Package depth | 130 mm |
| Package height | 200 mm |
| Package weight | 906 g |
