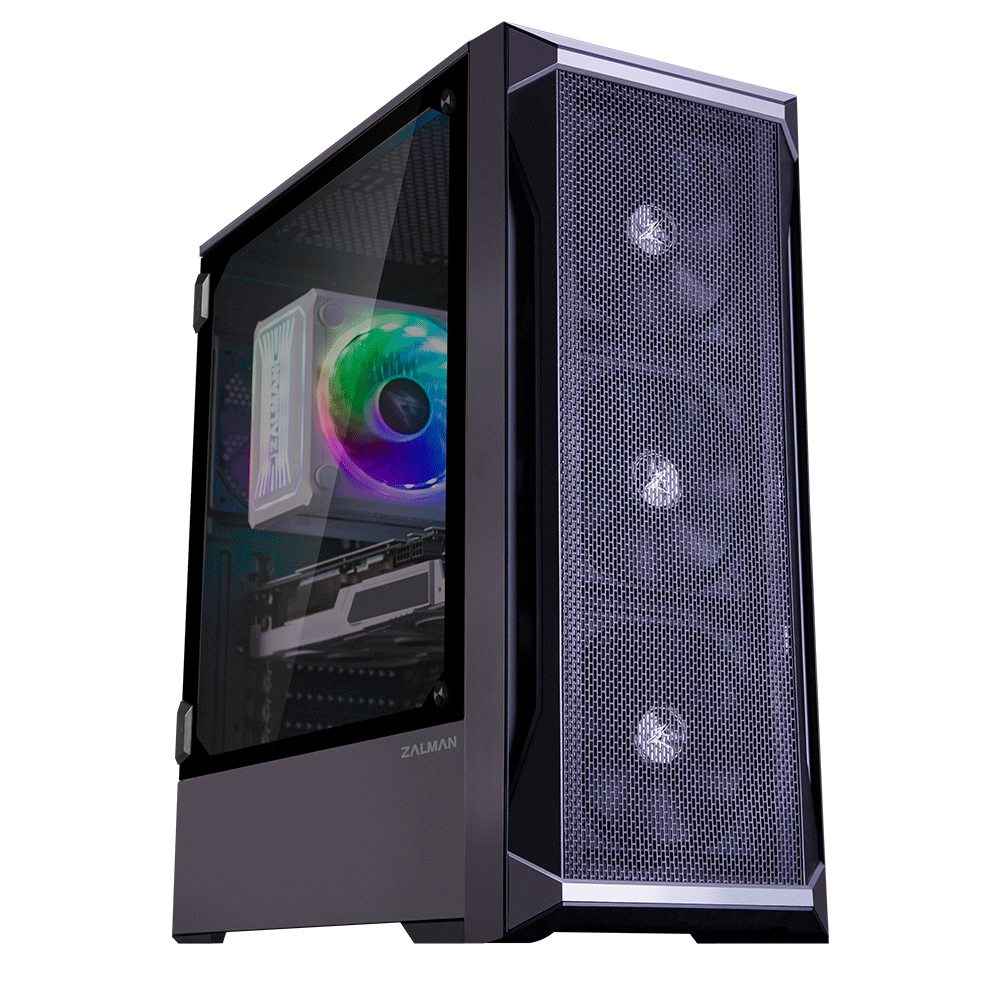

Z8 ATX Mid Tower PC Case, 120mm fan x4
Model Z8 ATX Mid Tower PC Case, 120mm fan x4Part no. Z8EAN 8809213768576
44 specifications
- TypeMidi Tower
- Weight6.3 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
- Front fans installed3x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 6.3 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Brand
- Zalman
- Category
- Computer Case
- Model
- Z8 ATX Mid Tower PC Case, 120mm fan x4
- Part number
- Z8
- EAN / UPC
- 8809213768576
- Also known as
- Zalman Z8 ATX Mid Tower PC Case, 120mm fan x4 Midi Tower Black
Specifications
44 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Transport wheels | No |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 35 cm |
| Maximum PSU length | 18 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 0 |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 0 |
| Front radiator sizes supported | 120 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 212 mm |
| Depth | 460 mm |
| Height | 493 mm |
| Weight | 6.3 kg |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
