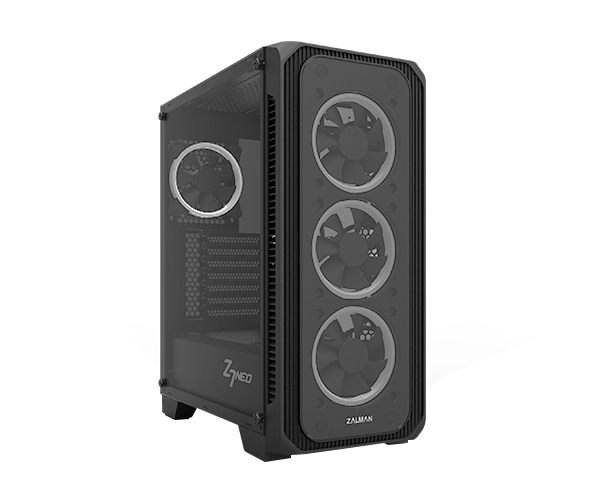

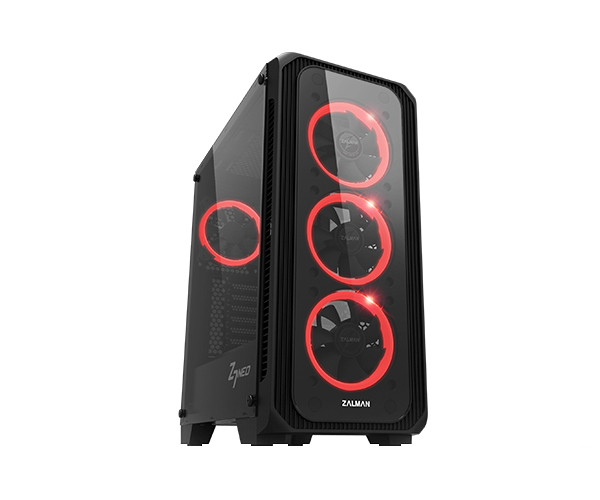

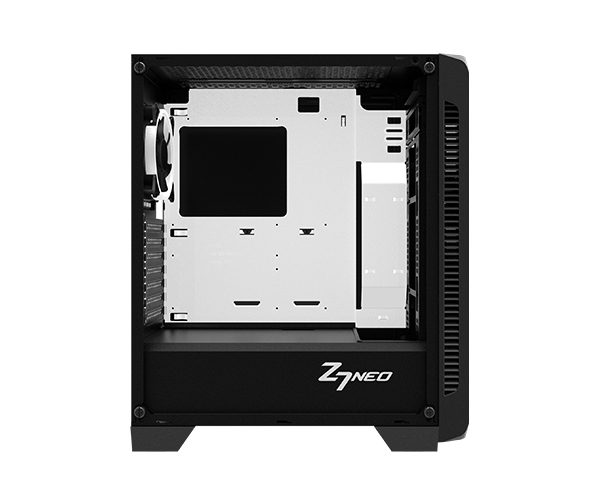

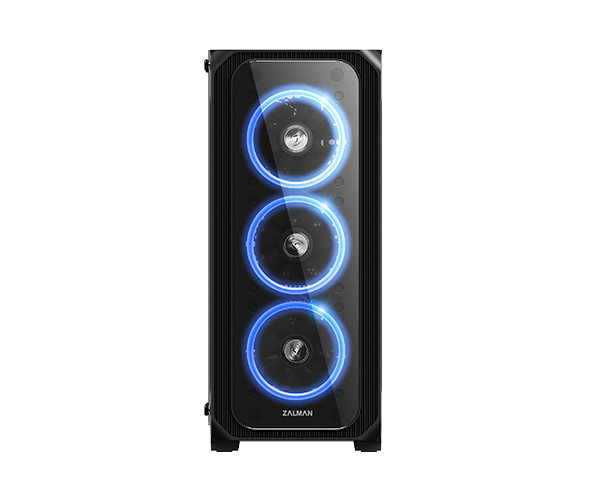

Z7 Neo
Model Z7 NeoPart no. Z7 NEOEAN 8809213769320
45 specifications
- TypeMidi Tower
- Weight7.2 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 7.2 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- Zalman
- Category
- Computer Case
- Model
- Z7 Neo
- Part number
- Z7 NEO
- EAN / UPC
- 8809213769320
- Also known as
- Zalman Z7 Neo Midi Tower Black
Specifications
45 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Plastic, Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | HDD, Power |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 35.5 cm |
| Maximum PSU length | 18 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 120,240,360 mm |
| Top radiator sizes supported | 120,240,280 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 213 mm |
| Depth | 420 mm |
| Height | 460 mm |
| Weight | 7.2 kg |
