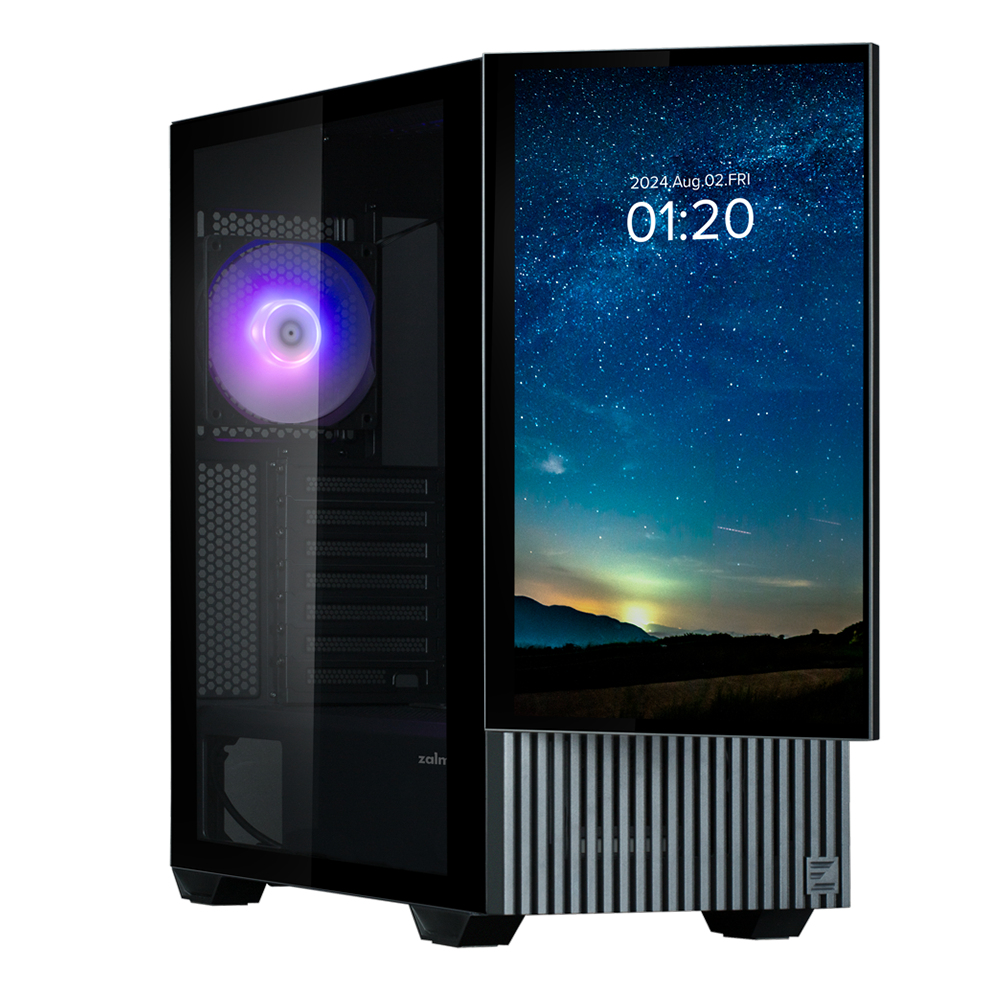

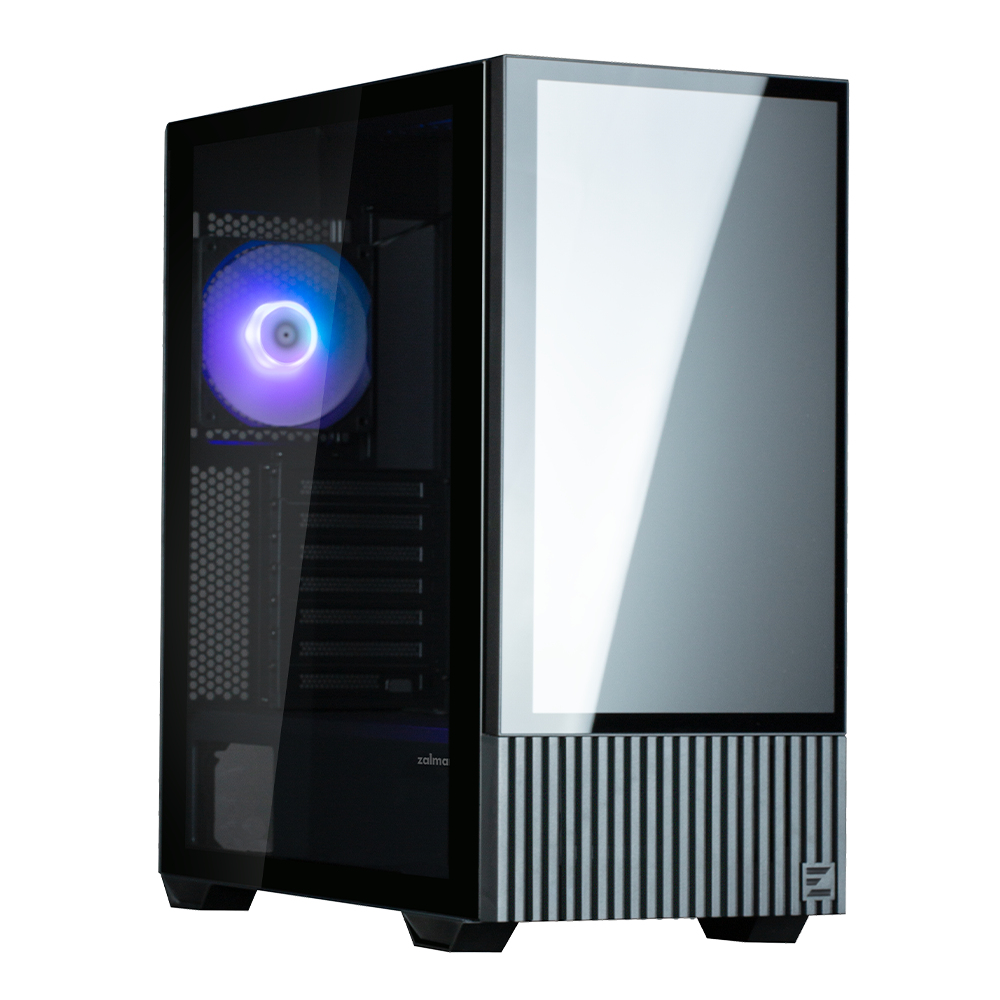

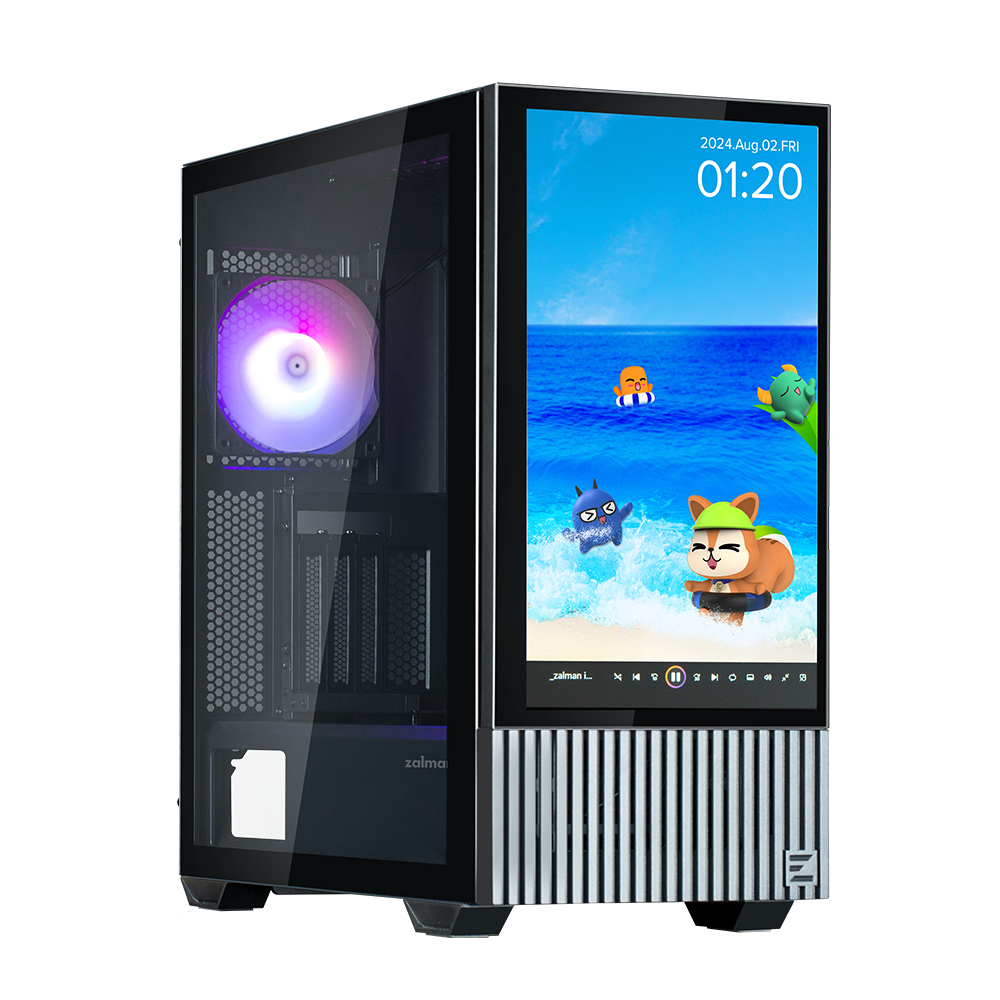

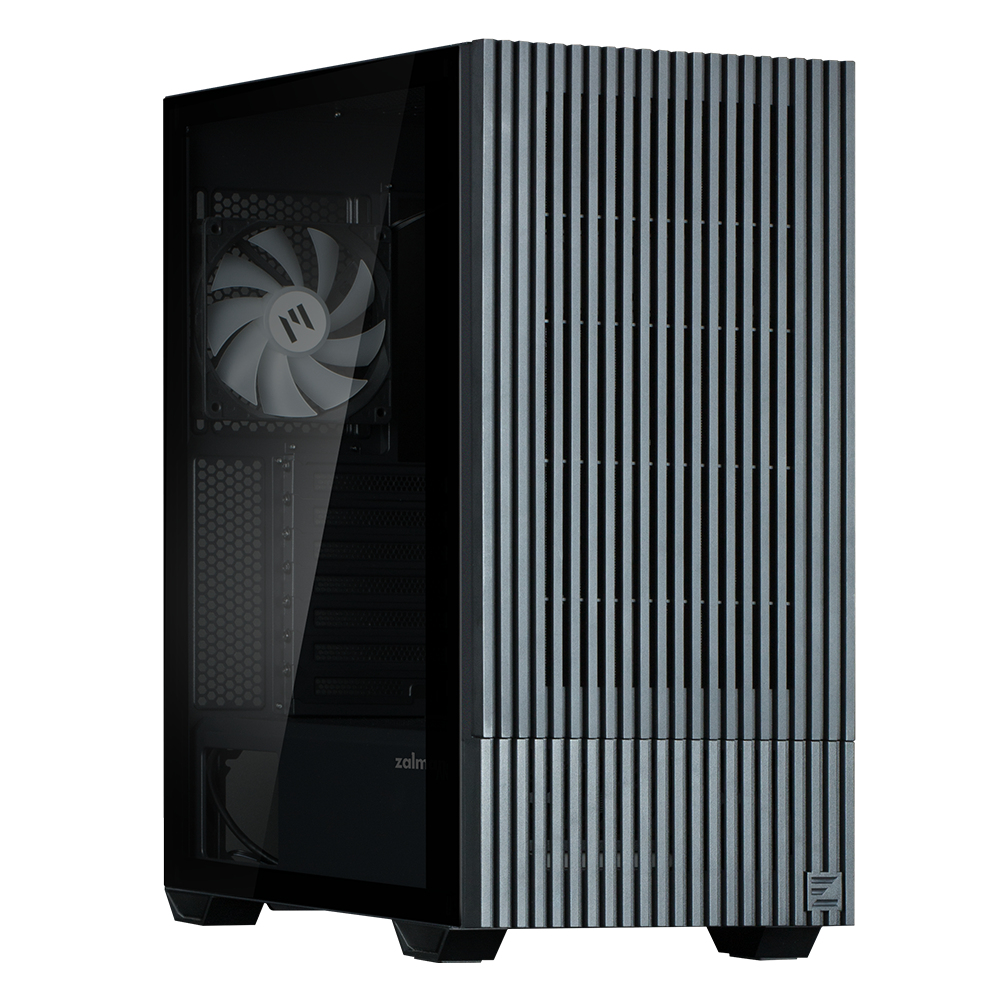

Z10 DS
Model Z10 DSPart no. Z10 DS BLACKEAN 8800263650040
49 specifications
- Display39.6 cm (15.6")
- Resolution1920 x 1080 pixels
- TypeMidi Tower
- Weight9.5 kg
- ColourBlack
- Power supply includedNo
Overview
- Display
- 39.6 cm (15.6")
- Resolution
- 1920 x 1080 pixels
- Type
- Midi Tower
- Weight
- 9.5 kg
- Colour
- Black
- Power supply included
- No
- Brand
- Zalman
- Category
- Computer Case
- Model
- Z10 DS
- Part number
- Z10 DS BLACK
- EAN / UPC
- 8800263650040
- Also known as
- Zalman Z10 DS Midi Tower Black
Specifications
49 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Back, Front |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17.3 cm |
| Maximum graphics card length | 39.5 cm |
| Maximum PSU length | 20 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |

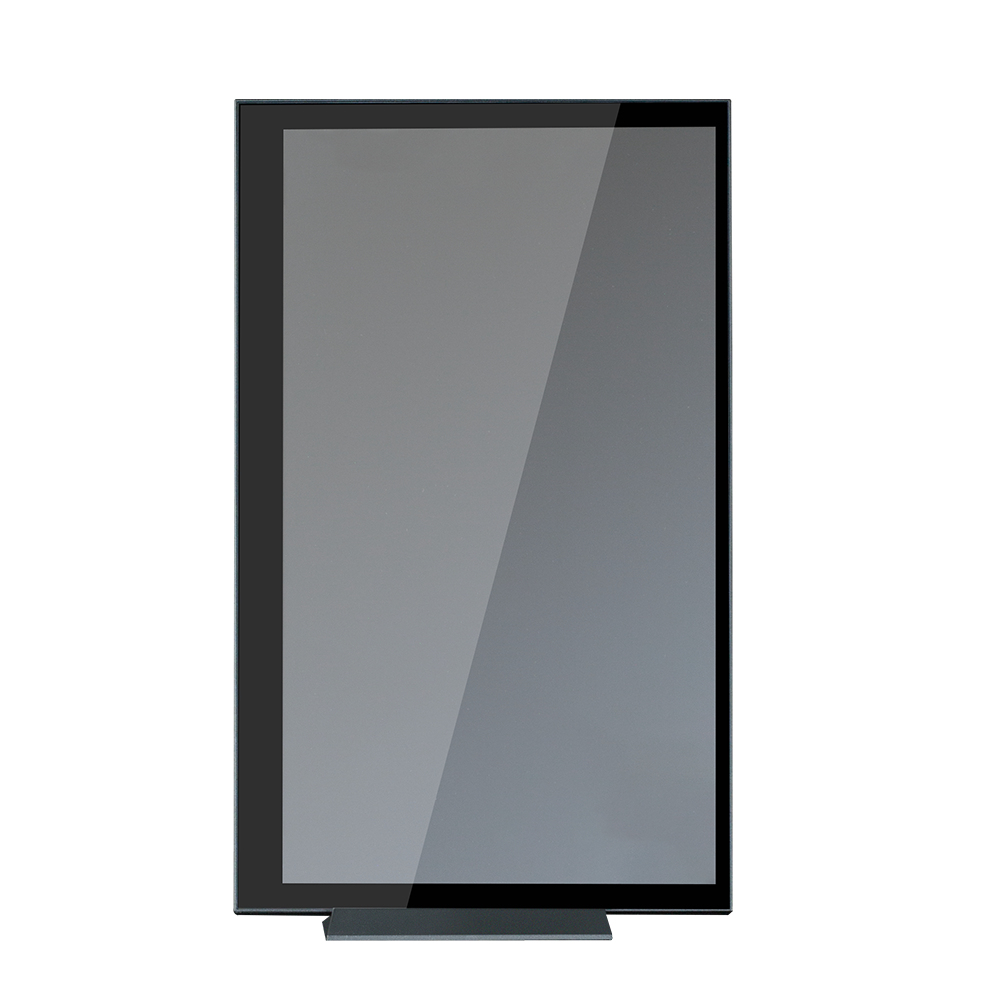

Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 2x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 474 mm |
| Height | 488 mm |
| Weight | 9.5 kg |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | South Korea |
