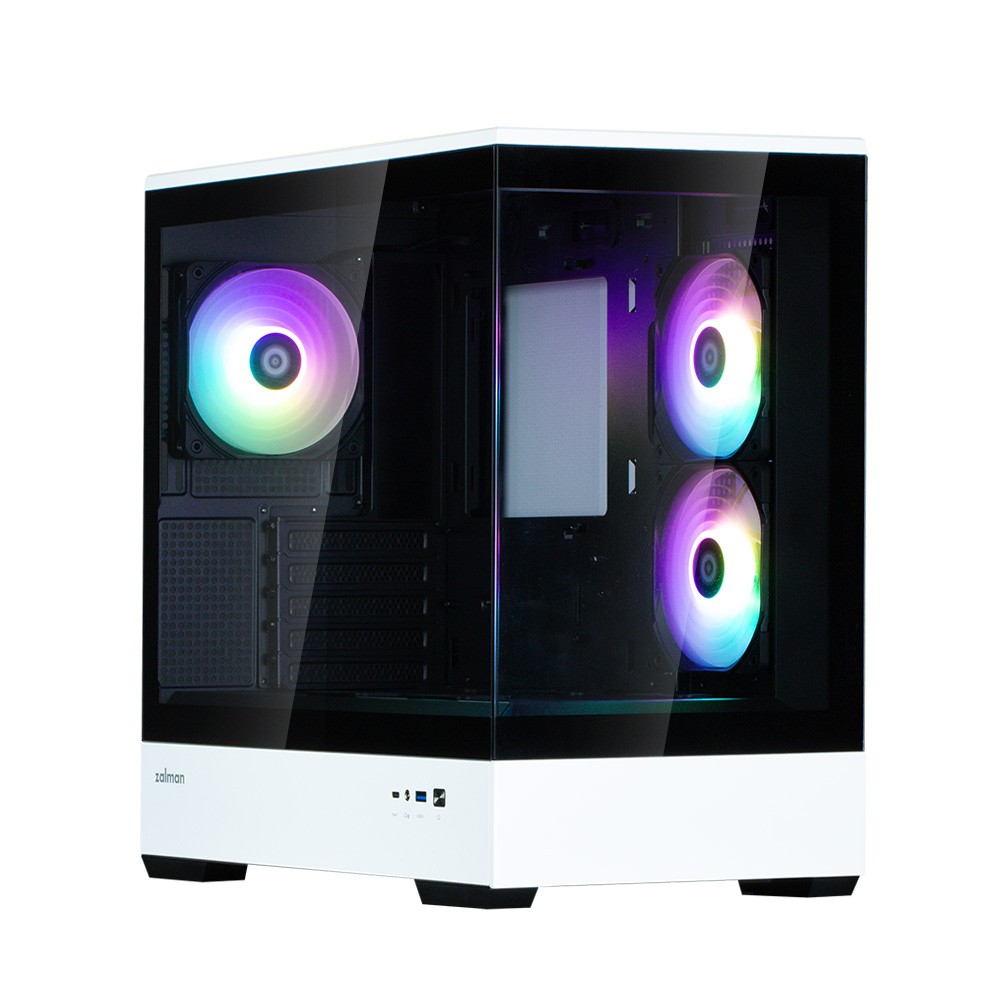

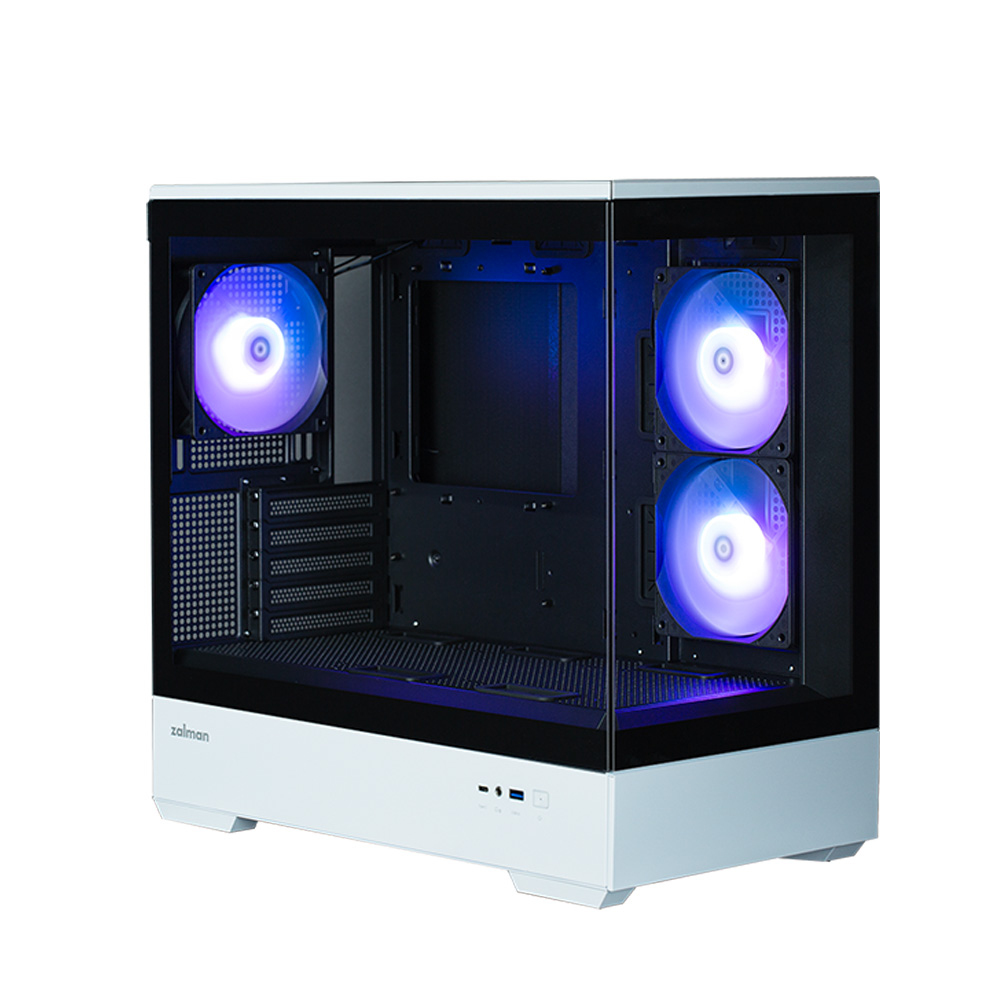

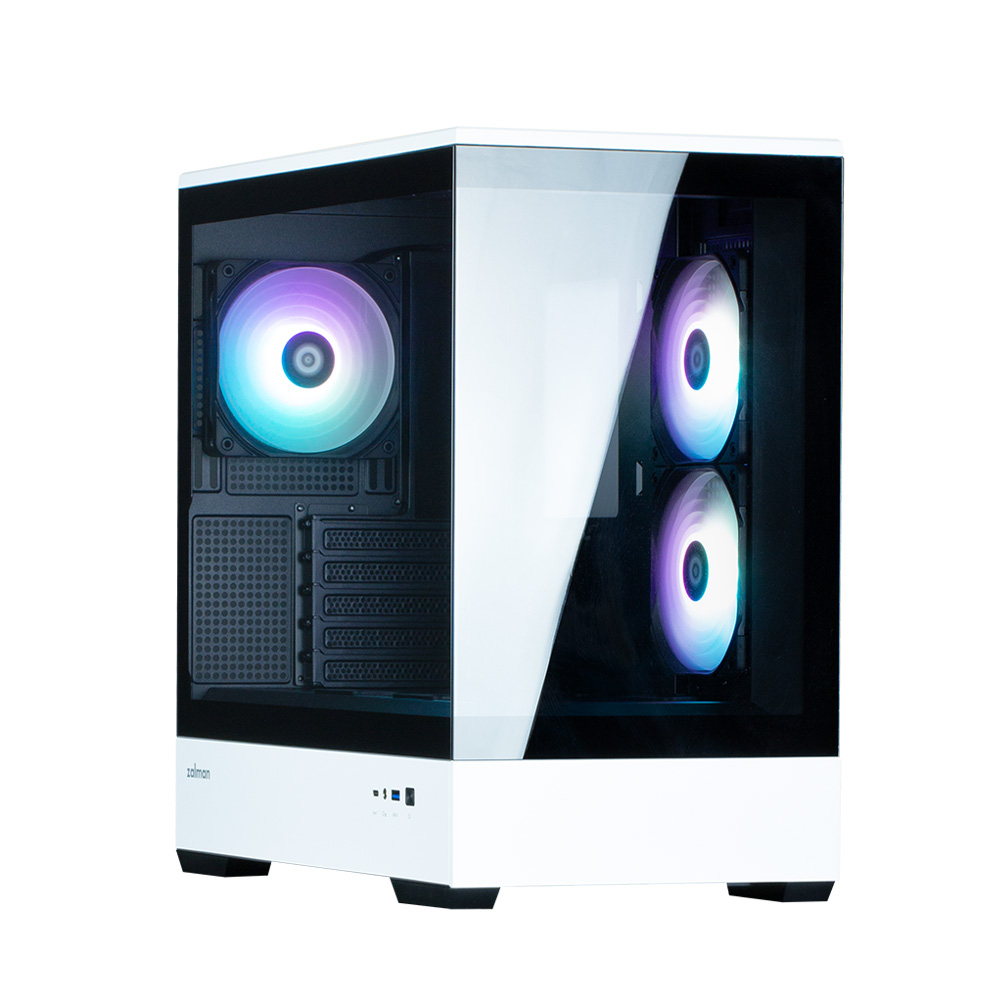

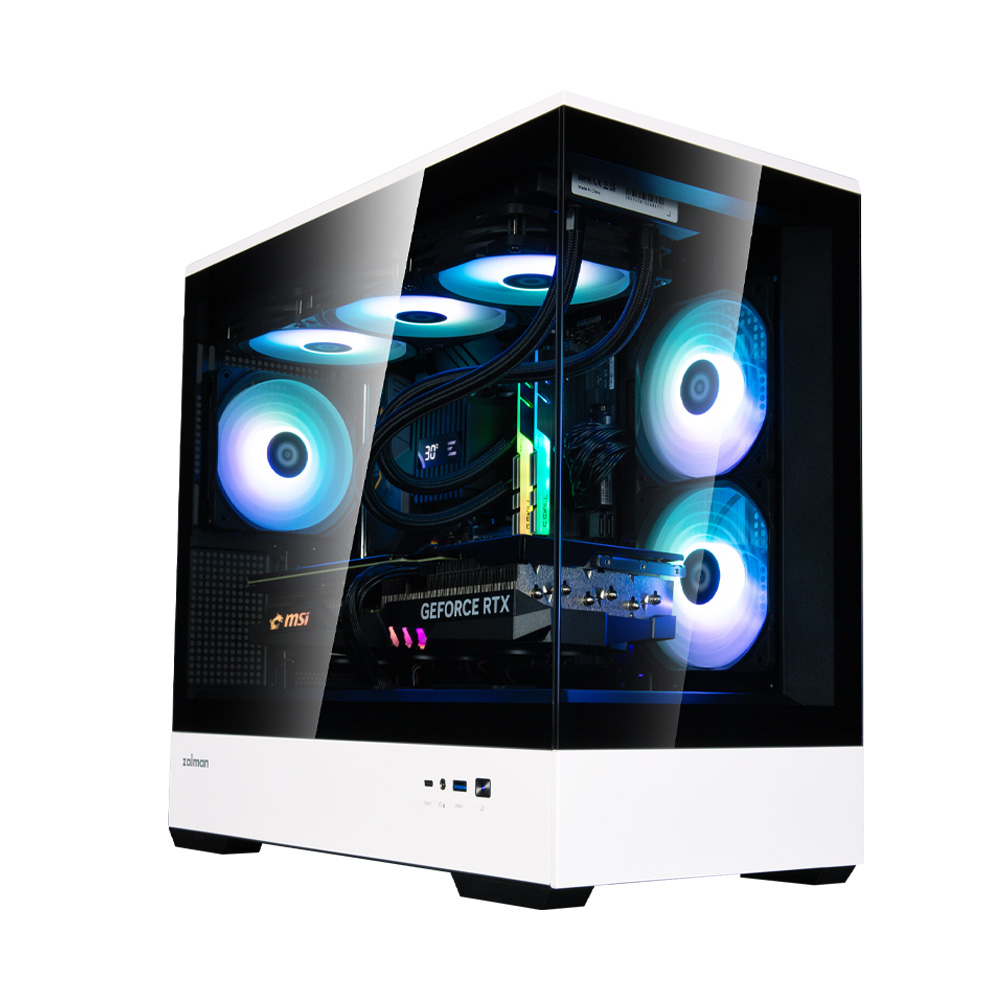

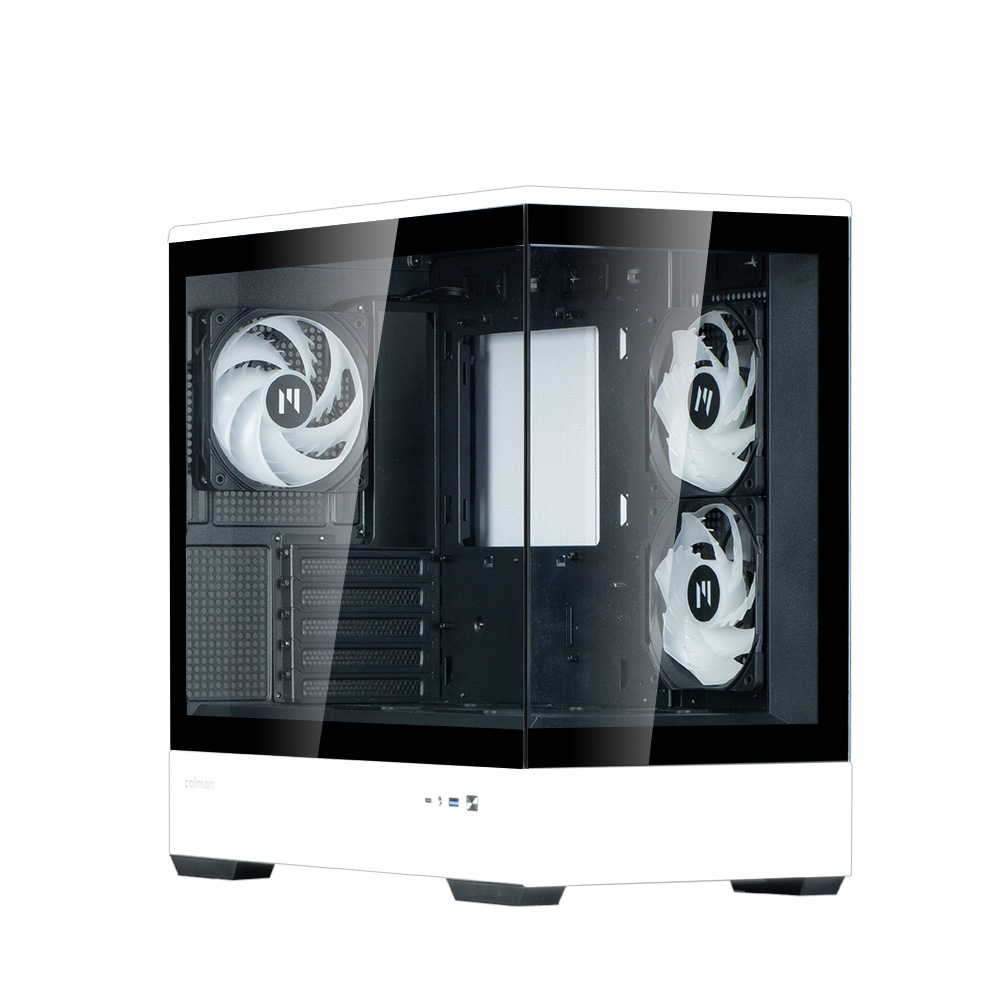

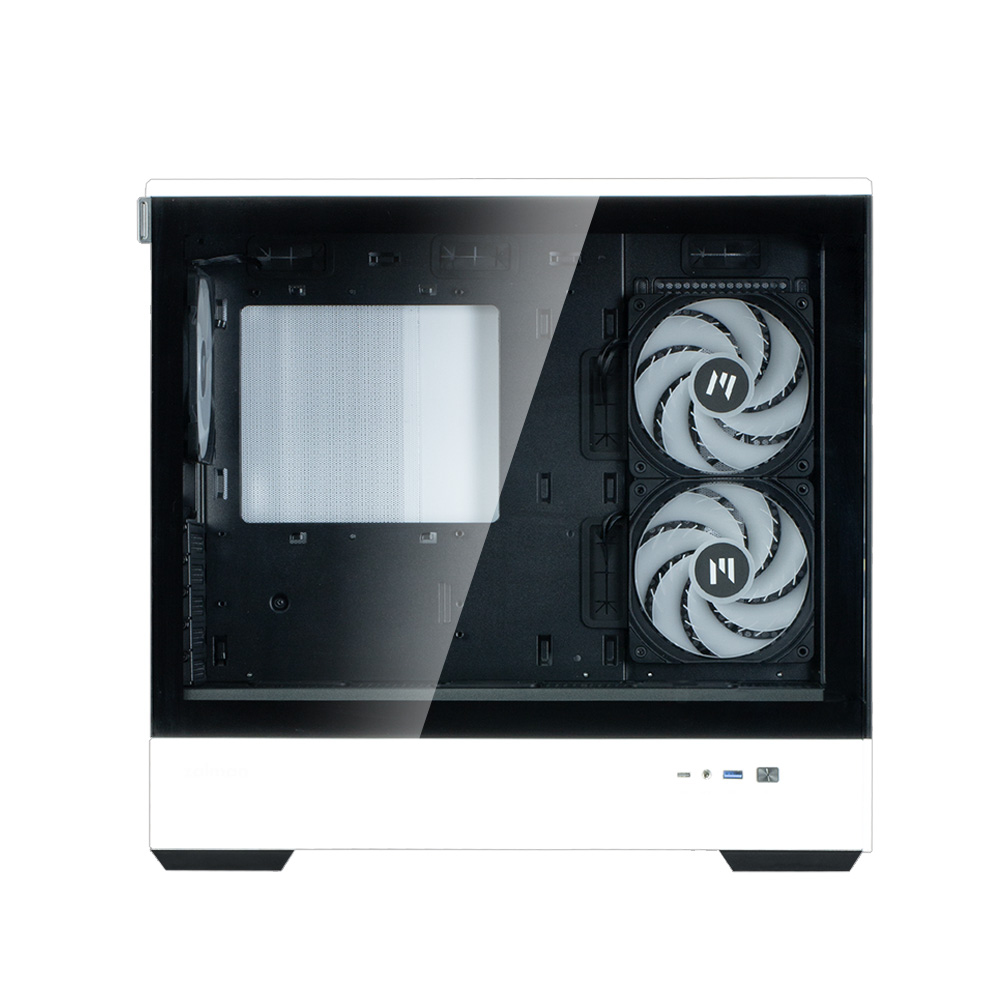

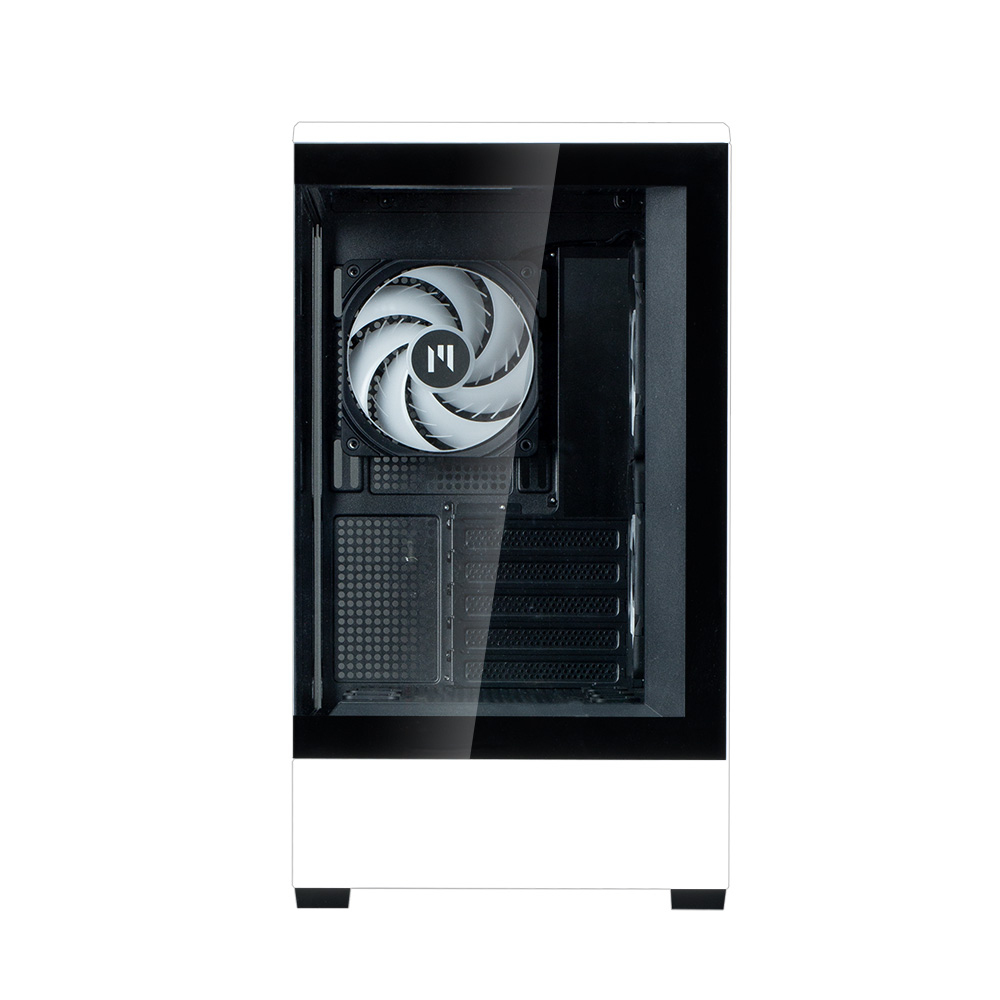

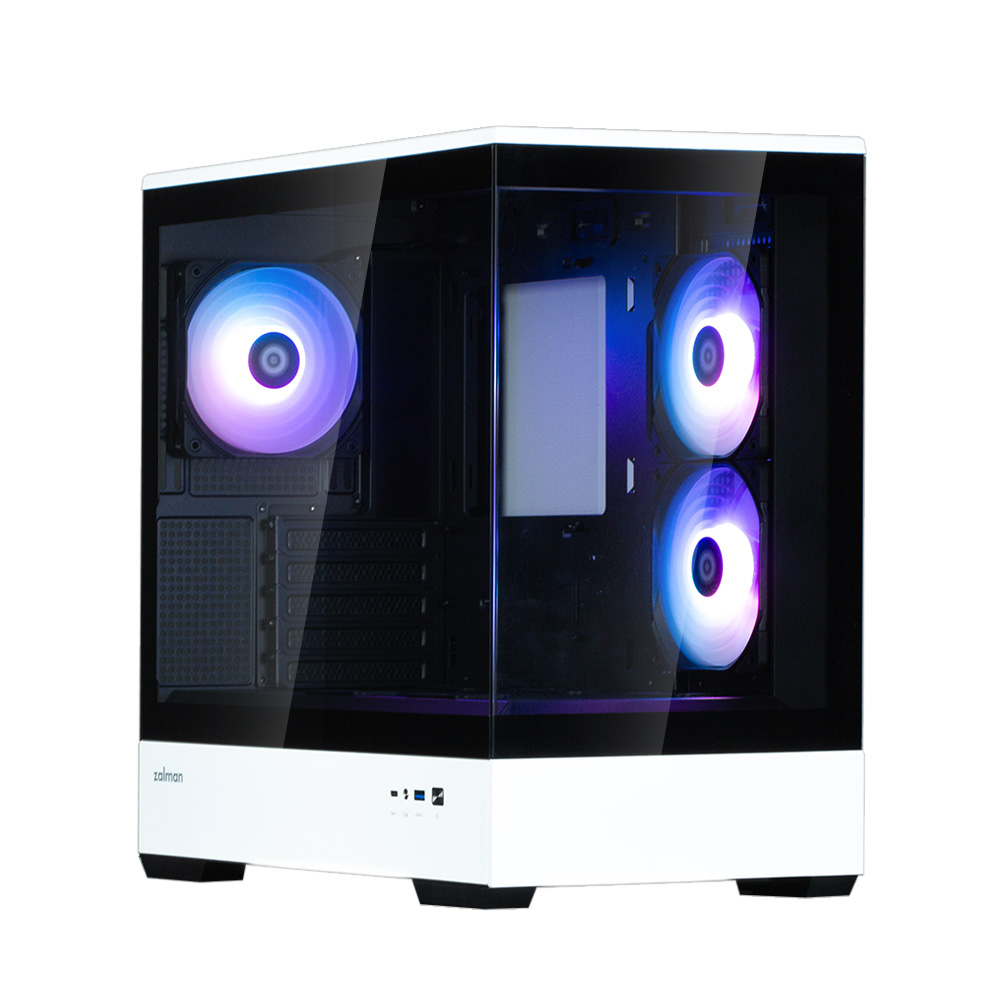

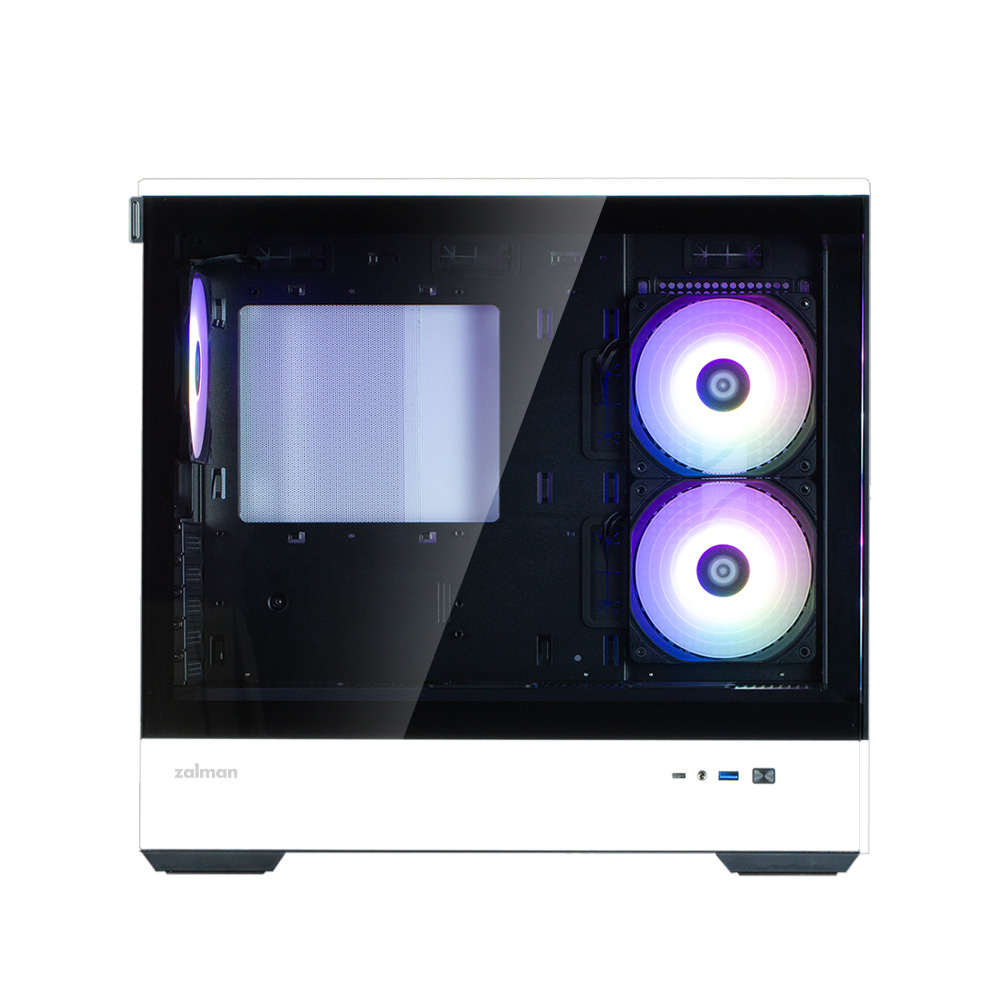

P30 BW
Model P30 BW
47 specifications
- TypeMini Tower
- Weight8 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
- Side fans installed2x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 8 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Side fans installed
- 2x 120 mm
- Brand
- Zalman
- Category
- Computer Case
- Model
- P30 BW
- Part number
- P30 BW
- Also known as
- Zalman P30 BW computer case Mini Tower Black
Specifications
47 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Back, Front |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17.3 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 20 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120,140 mm |
| Fan 2 maximum airflow | 46.6 cfm |
| Fan speed | 600 - 1500 RPM |
| Maximum airflow | 53.72 cfm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 235 mm |
| Depth | 453 mm |
| Height | 429 mm |
| Weight | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | South Korea |
