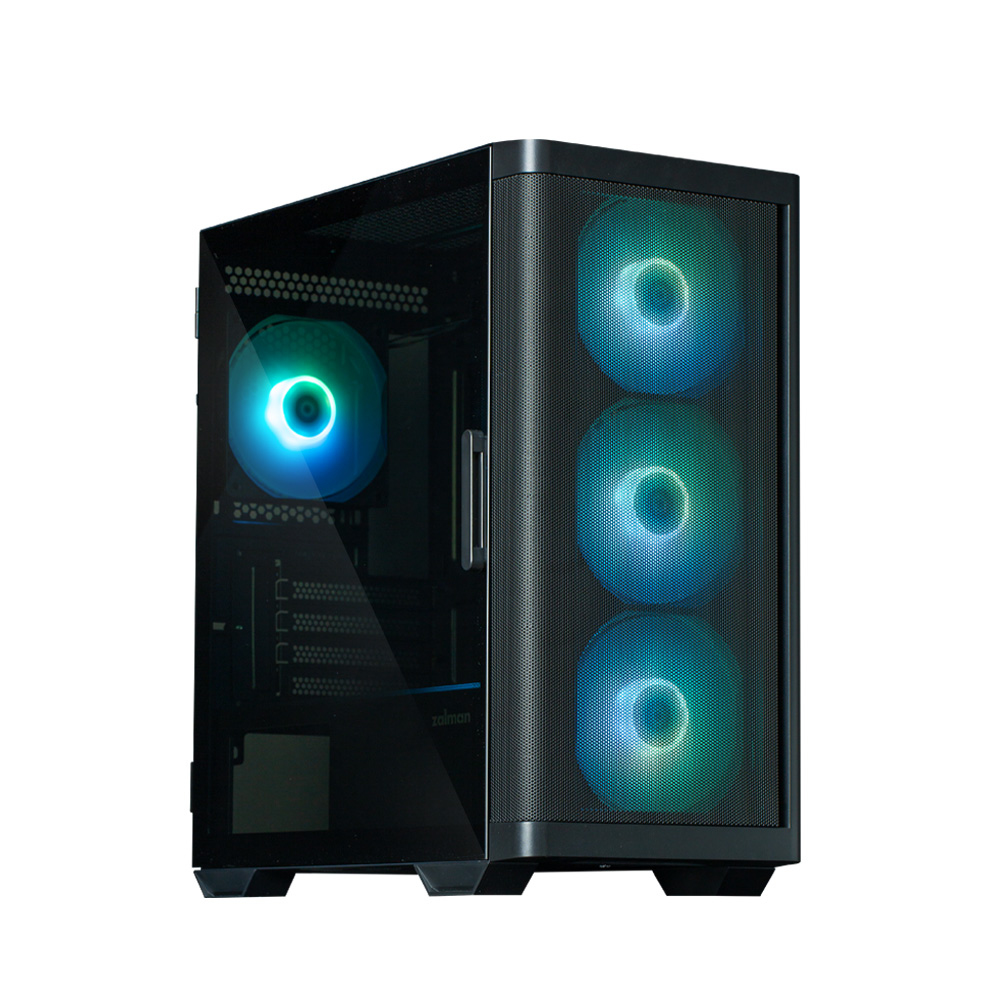

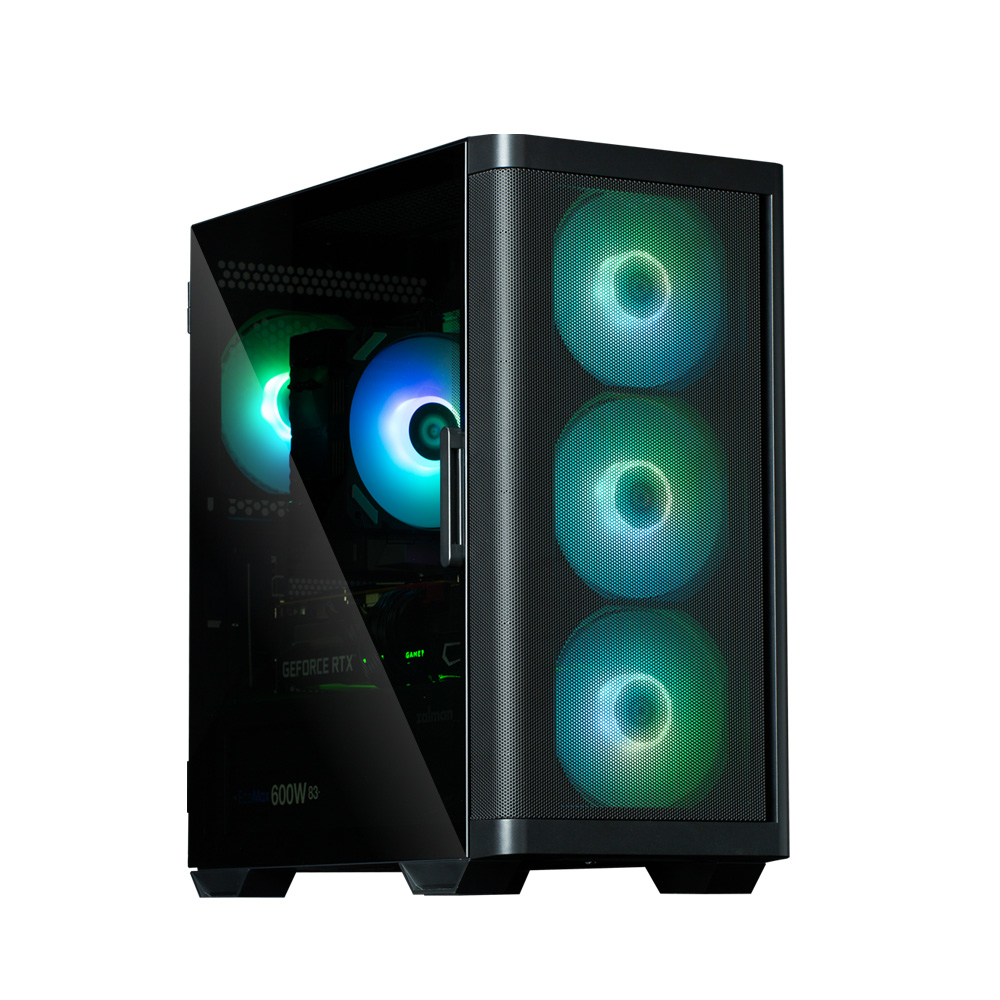

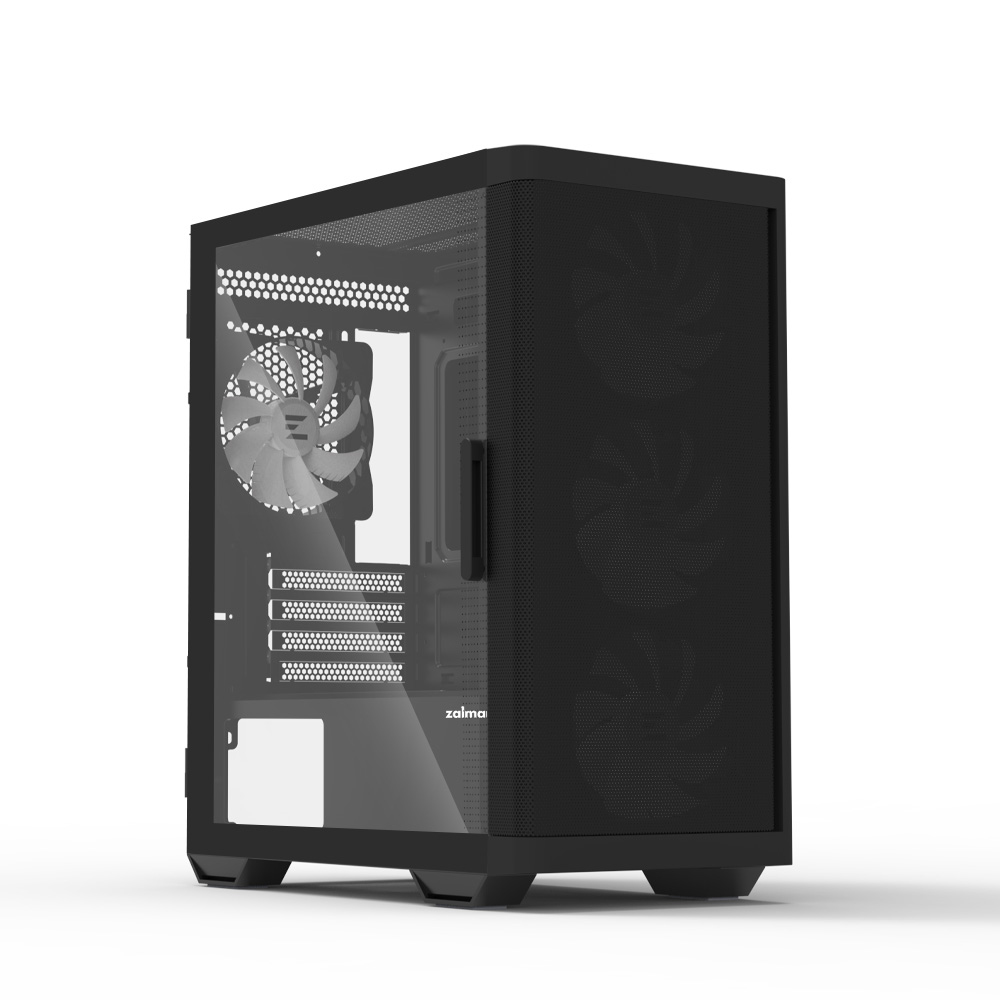

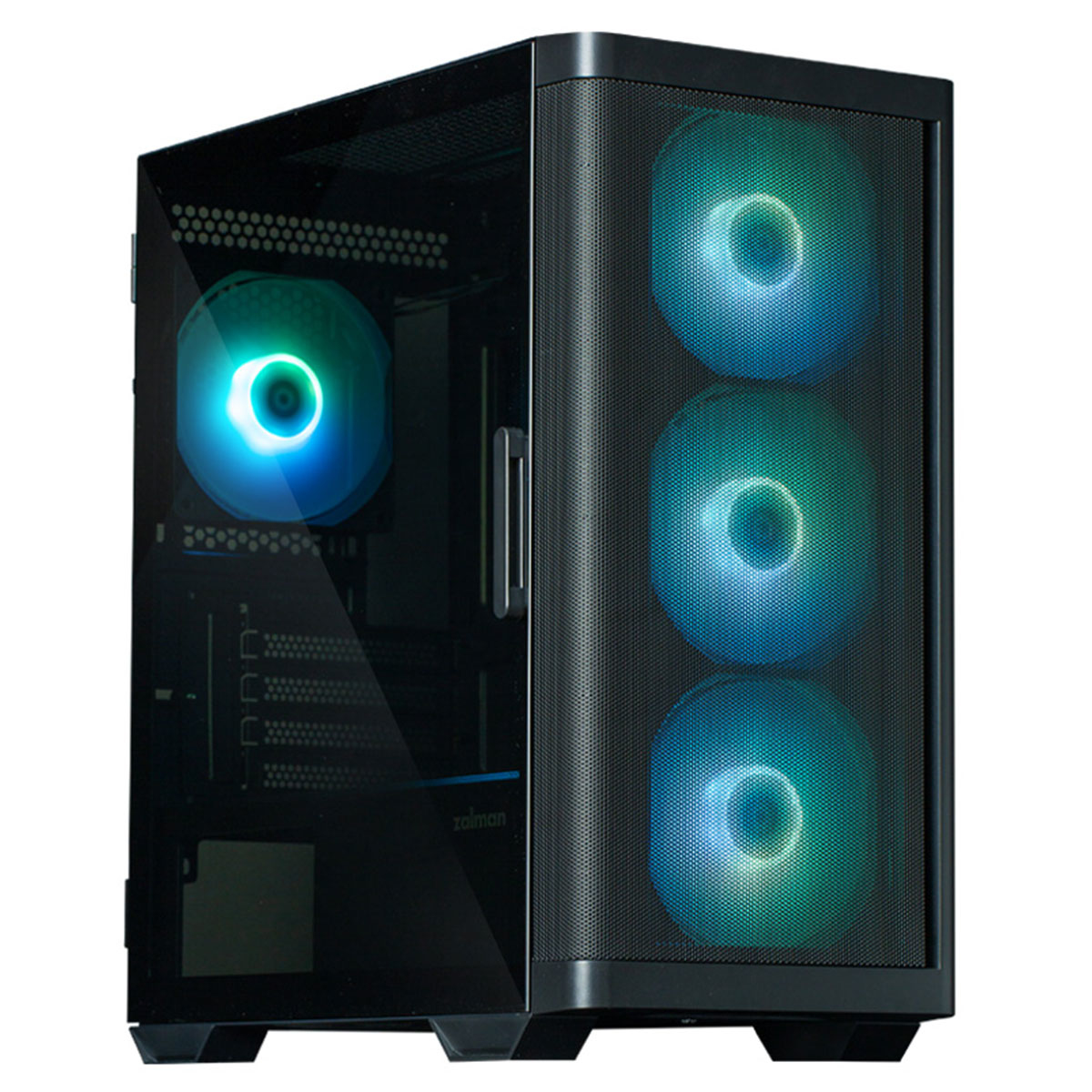

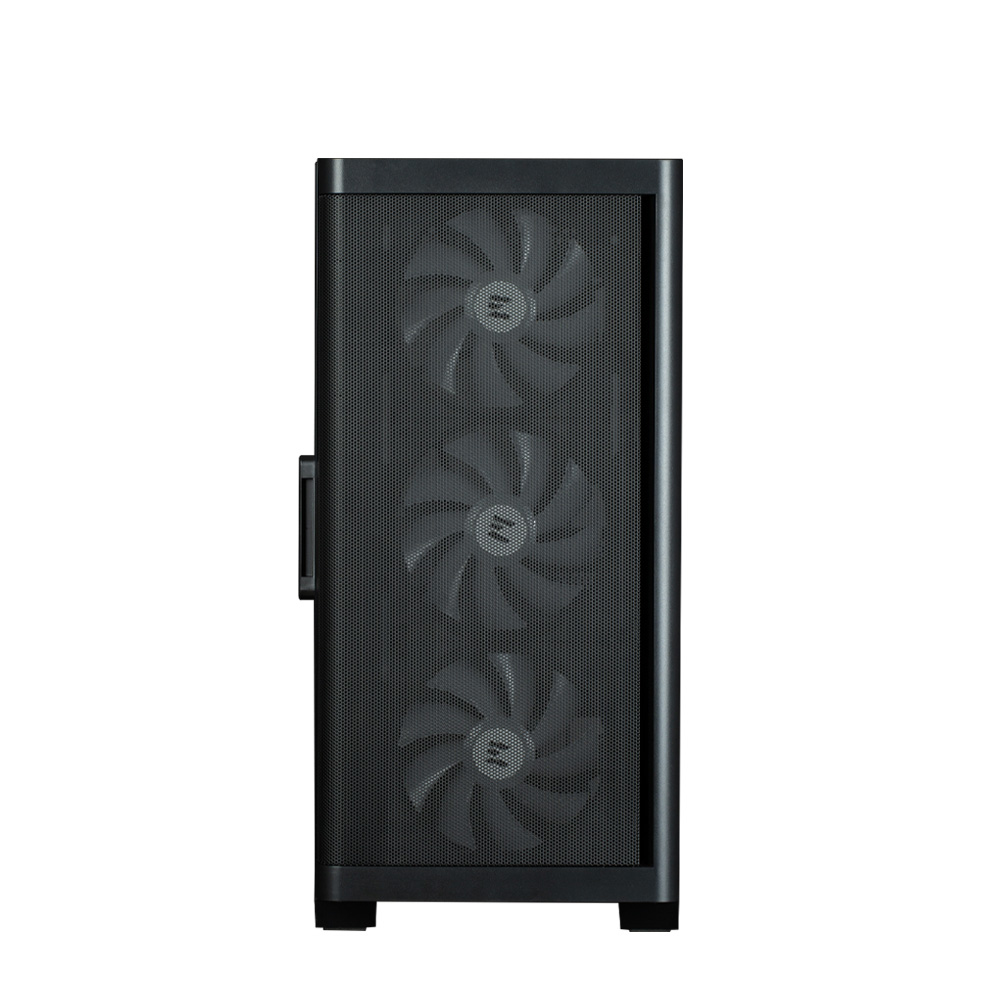

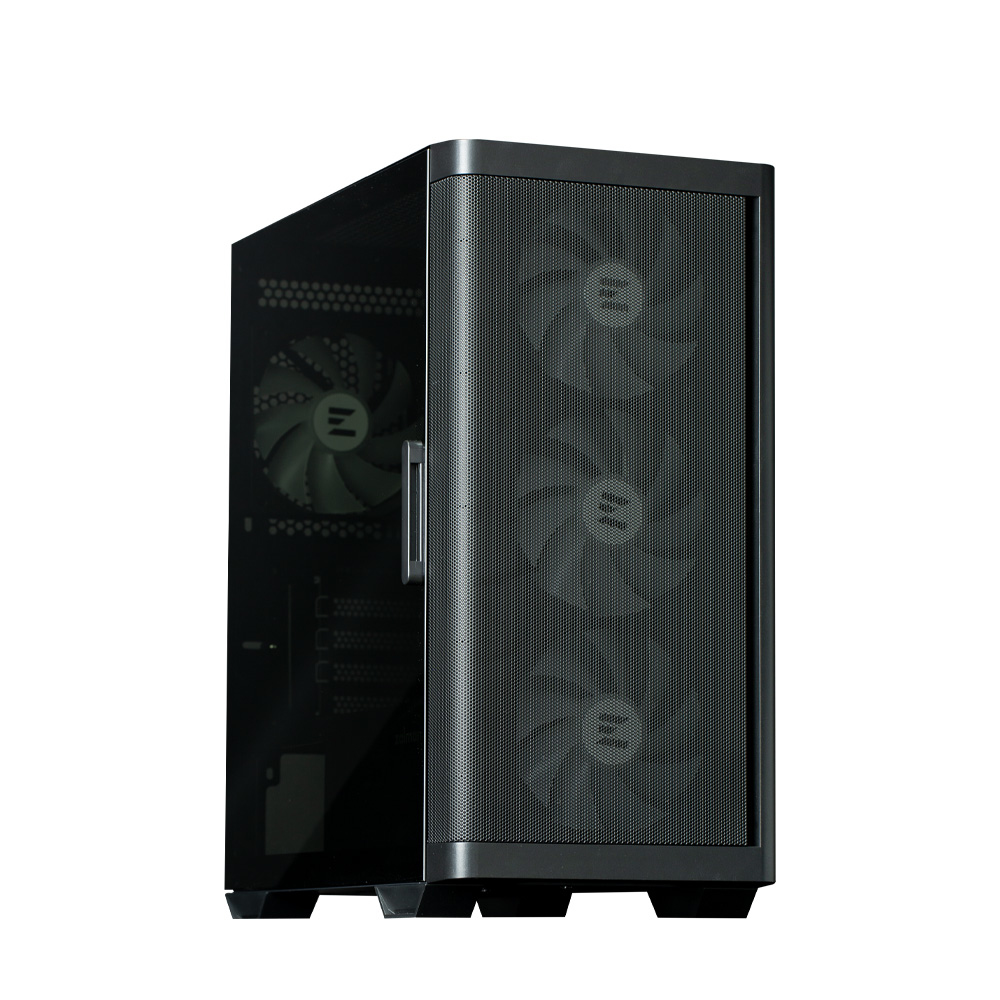

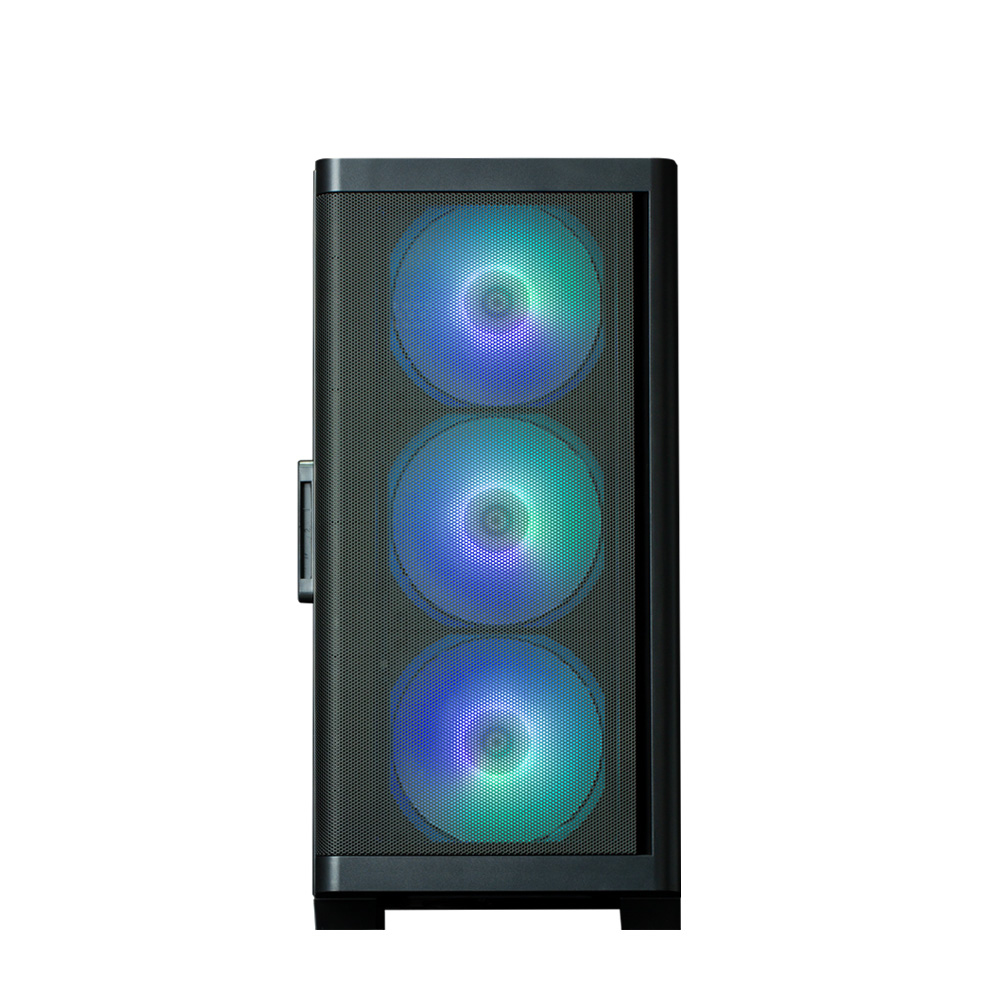

M4 Black
Model M4 BlackPart no. M4 BLACKEAN 8809213765506
46 specifications
- TypeMini Tower
- Weight4.1 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Front fans installed3x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 4.1 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Front fans installed
- 3x 120 mm
- Brand
- Zalman
- Category
- Computer Case
- Model
- M4 Black
- Part number
- M4 BLACK
- EAN / UPC
- 8809213765506, 8809213766145
- Also known as
- Zalman M4 Black Mini Tower
Specifications
46 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Plastic, Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Illumination | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Maximum CPU cooler height | 15.7 cm |
| Maximum graphics card length | 32 cm |
| Maximum PSU length | 14 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
| Combo headphone/mic port | Yes |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 120,140,240 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 208 mm |
| Depth | 385 mm |
| Height | 425 mm |
| Weight | 4.1 kg |
