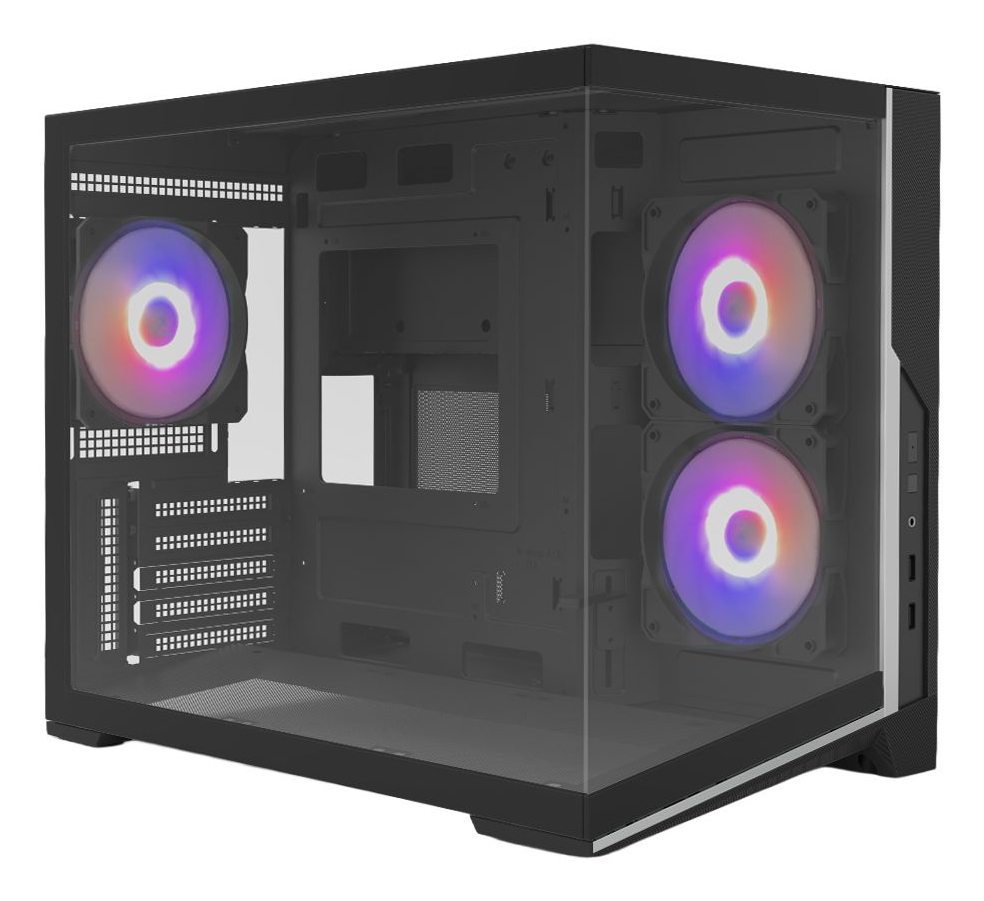

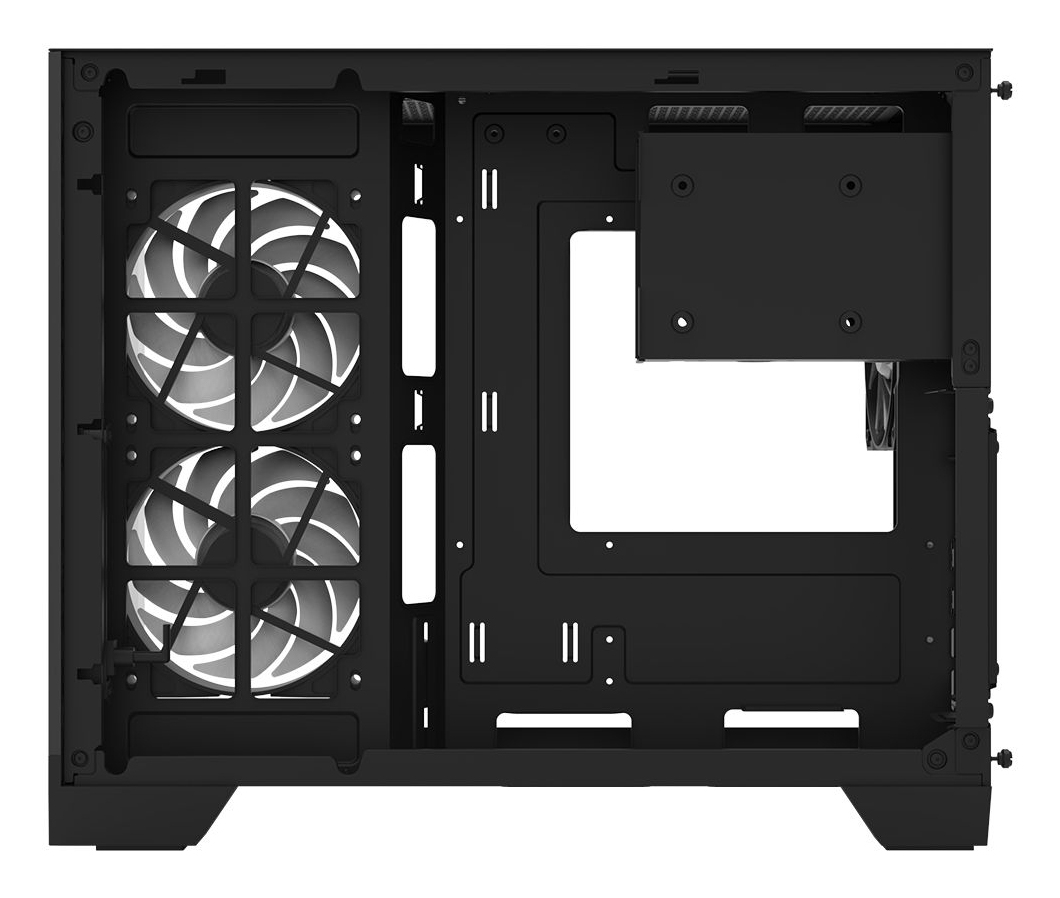

D30 Dual-Chamber Panoramic View Computer Case Mini Tower Black
Model D30Part no. D30 BLACKEAN 8070431000100
50 specifications
- Noise17.4 dB
- TypeMini Tower
- Weight5.2 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
Overview
- Noise
- 17.4 dB
- Type
- Mini Tower
- Weight
- 5.2 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Brand
- Zalman
- Category
- Computer Case
- Model
- D30
- Part number
- D30 BLACK
- EAN / UPC
- 8070431000100, 8800263651658
- Also known as
- Zalman D30 Dual-Chamber Panoramic View Computer Case Mini Tower Black
Specifications
50 specifications in 11 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Anti-dust filter | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 41 cm |
| Maximum PSU length | 18 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Side |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Fan power consumption | 1.56 W |
| Fan rated current | 0.13 A |
| Fan rated voltage | 12 V |
| Maximum airflow | 34.7 cfm |
| Noise level (low speed) | 17.4 dB |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Packaging content
| Specification | Value |
|---|---|
| Number of mounting brackets | 0 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 439 mm |
| Depth | 274 mm |
| Height | 361 mm |
| Weight | 5.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 330 mm |
| Package depth | 430 mm |
| Package height | 485 mm |
| Package weight | 6.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733080 |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Volume | 43.4 L |
