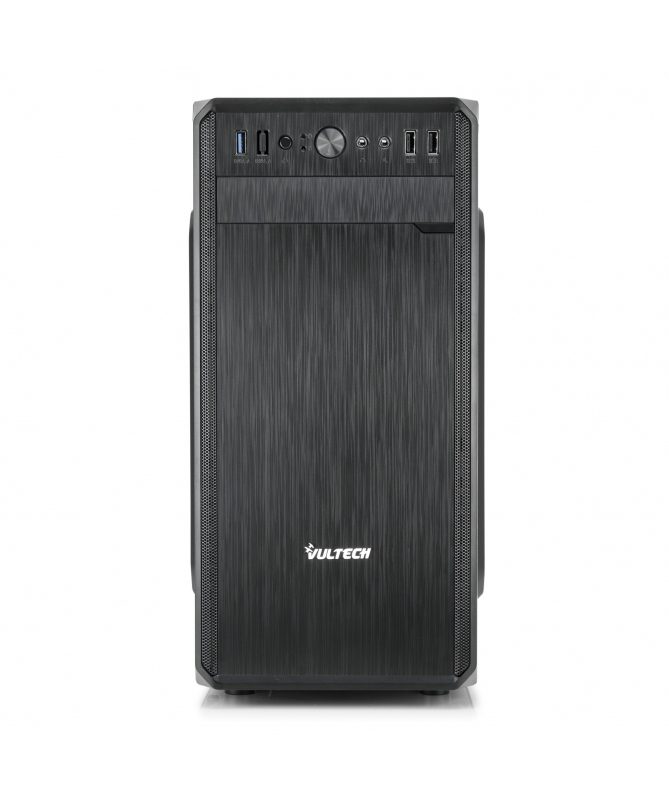

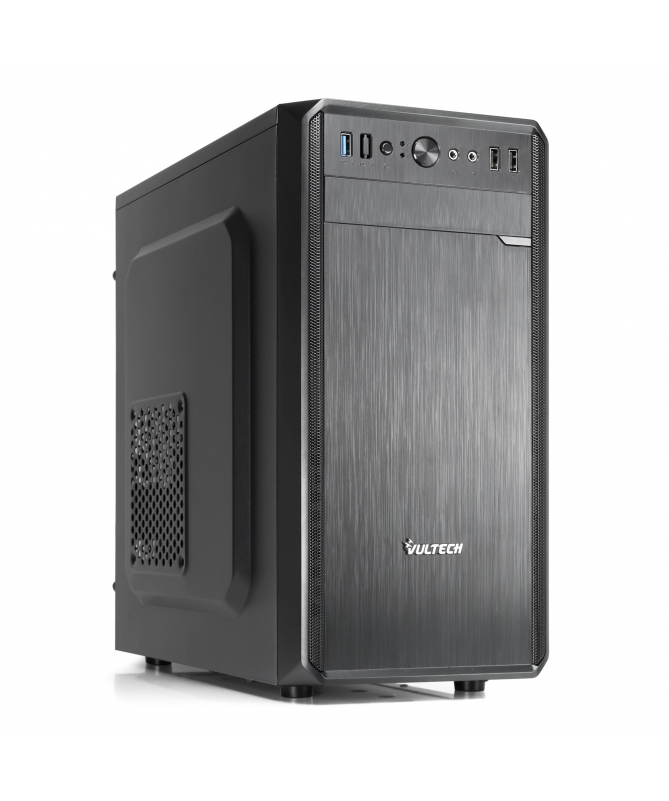

GS-2688N REV 2.3
Model GS-2688N REV 2.3Part no. GS-2688N REV. 2.3
41 specifications
- TypeMicro Tower
- Weight3.5 kg
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity2
- Number of front fans supported (max)1
Overview
- Type
- Micro Tower
- Weight
- 3.5 kg
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 1
- Brand
- Vultech
- Category
- Computer Case
- Model
- GS-2688N REV 2.3
- Part number
- GS-2688N REV. 2.3
- Also known as
- Vultech GS-2688N REV 2.3 Micro Tower Black 250 W
Specifications
41 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | Steel |
| Product colour | Black |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | No |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 14.7 cm |
| Maximum graphics card length | 31.5 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 250 W |
| Number of power supply units | 1 |
| Power supply location | Rear |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Number of SATA connectors | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 80 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |

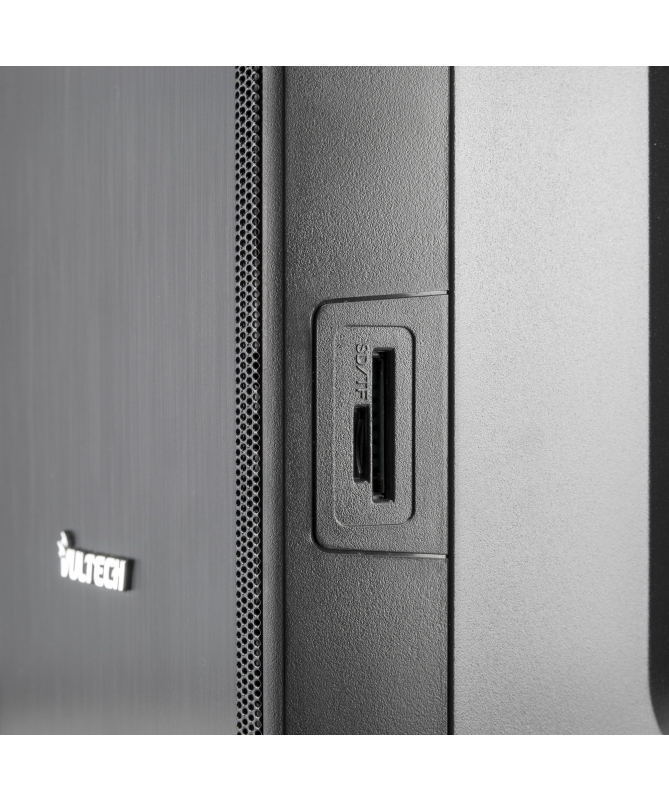

| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 186 mm |
| Depth | 360 mm |
| Height | 377 mm |
| Weight | 3.5 kg |
| Material thickness | 0.45 mm |
Other features
| Specification | Value |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 1 |
