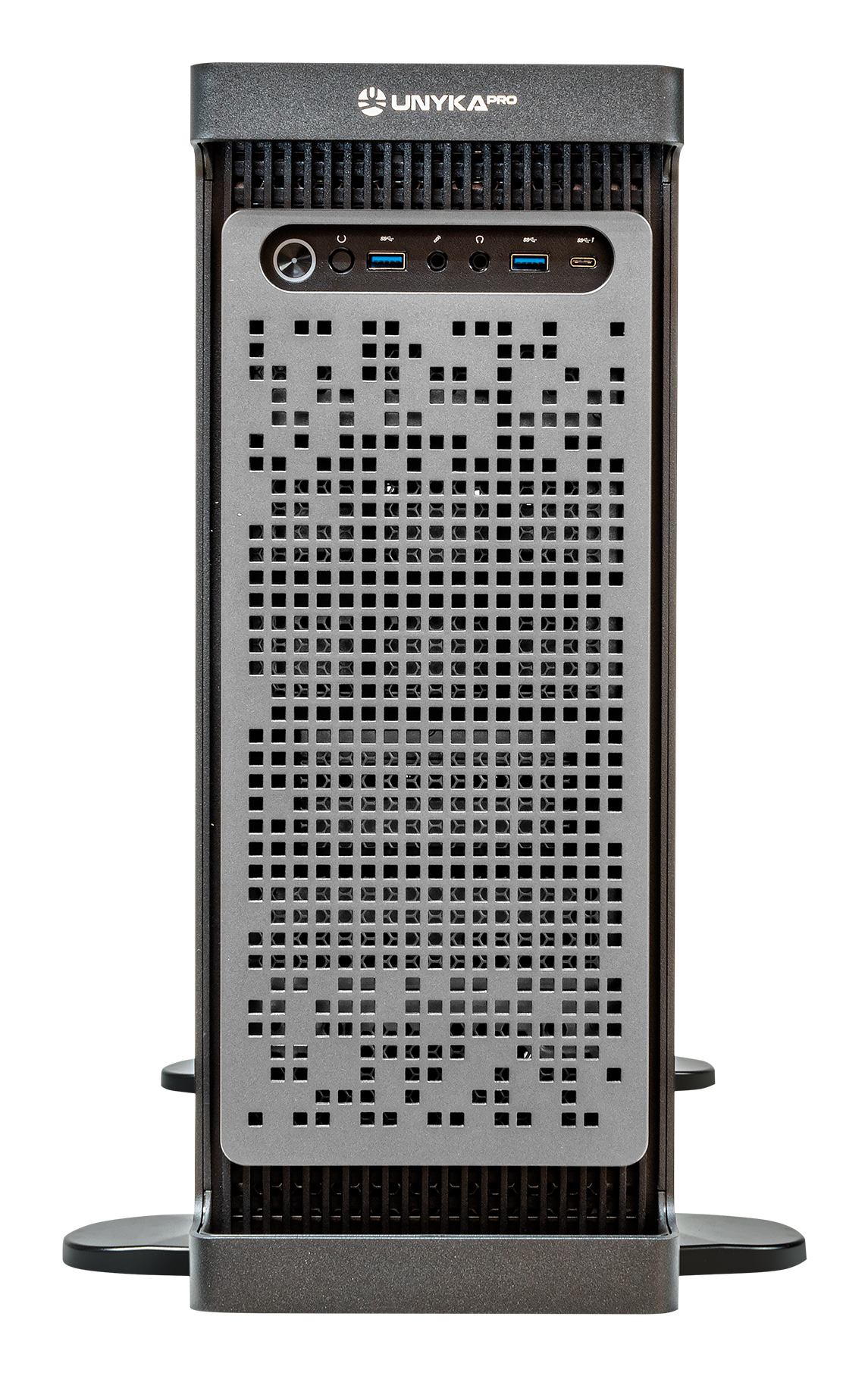

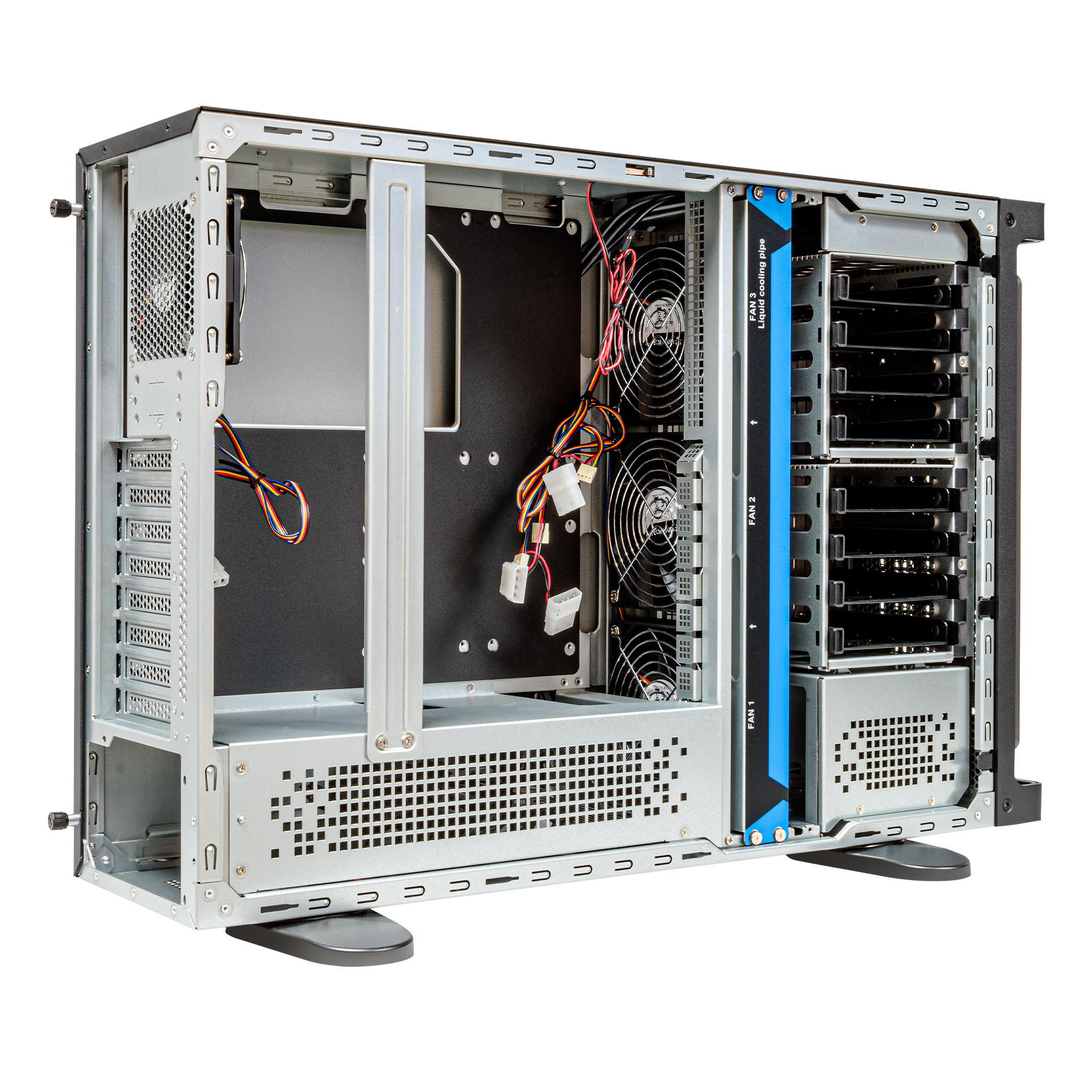

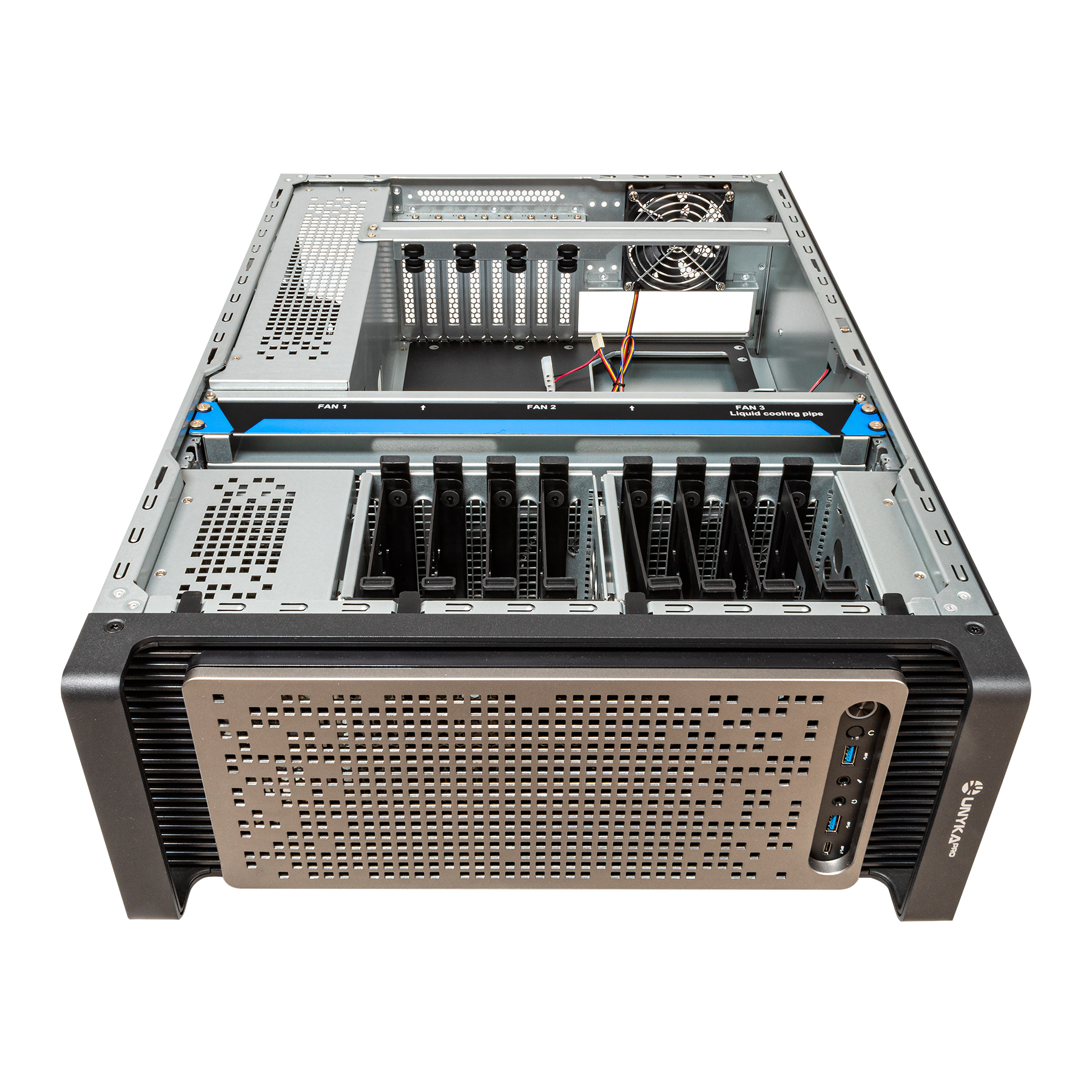

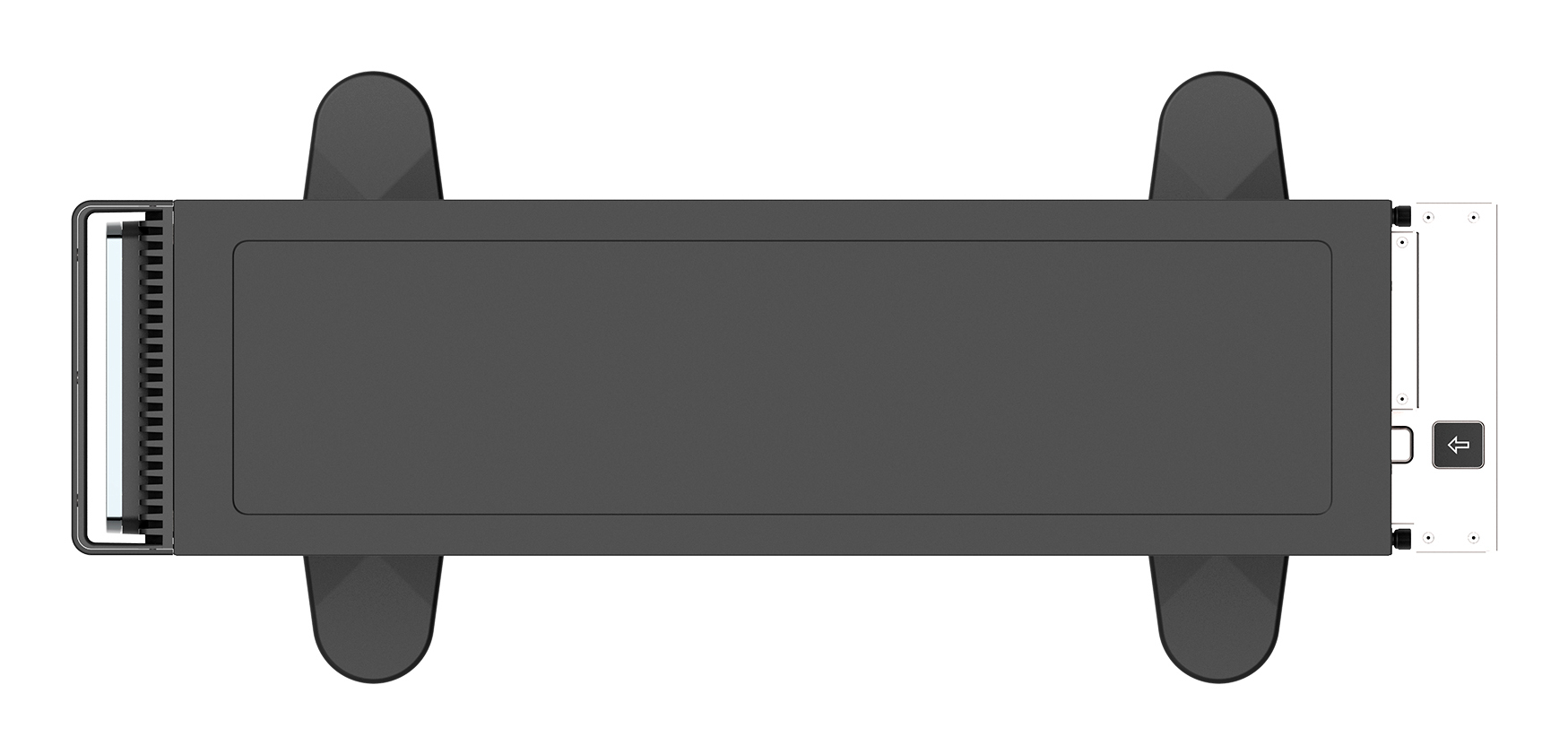

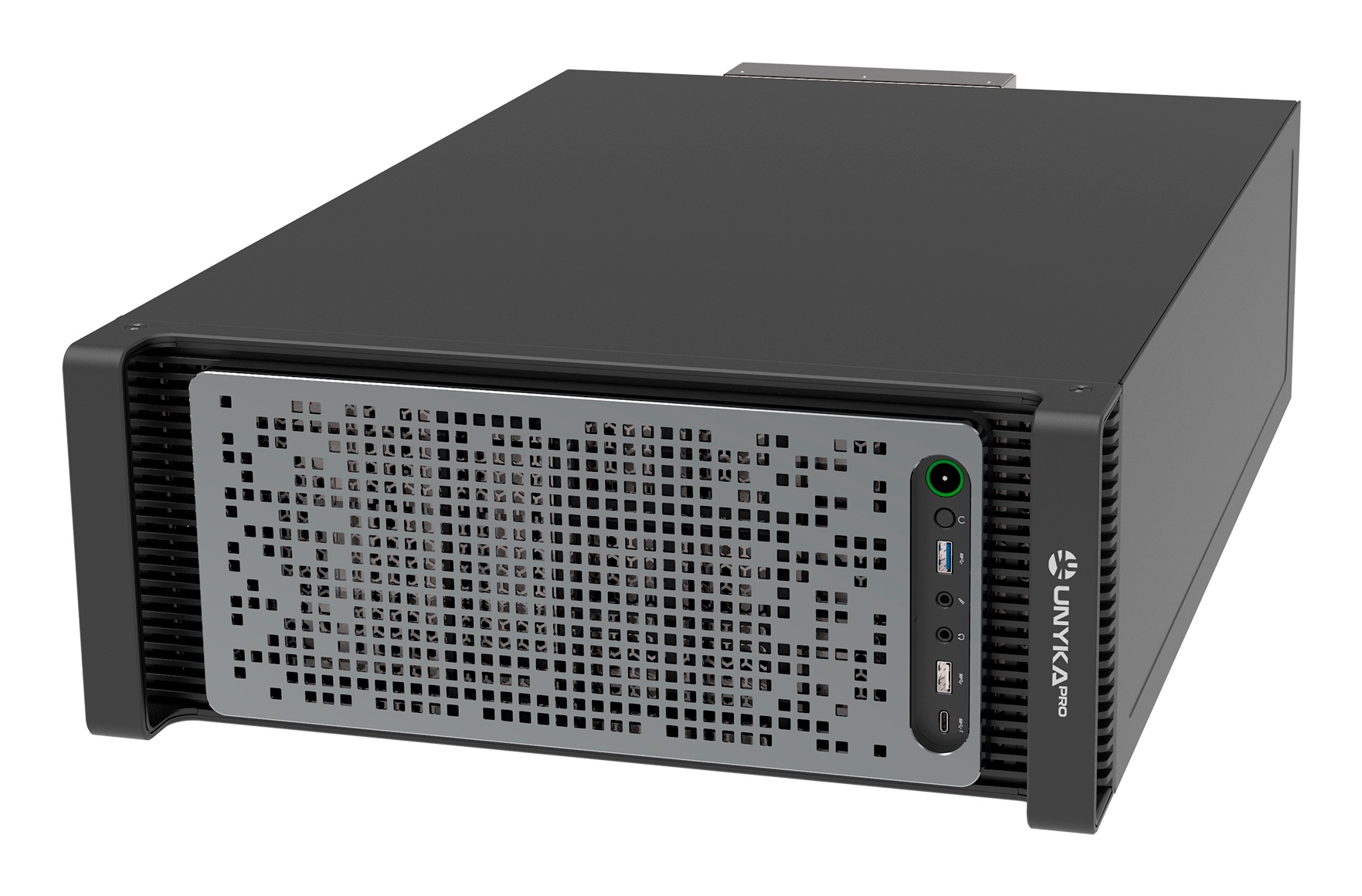

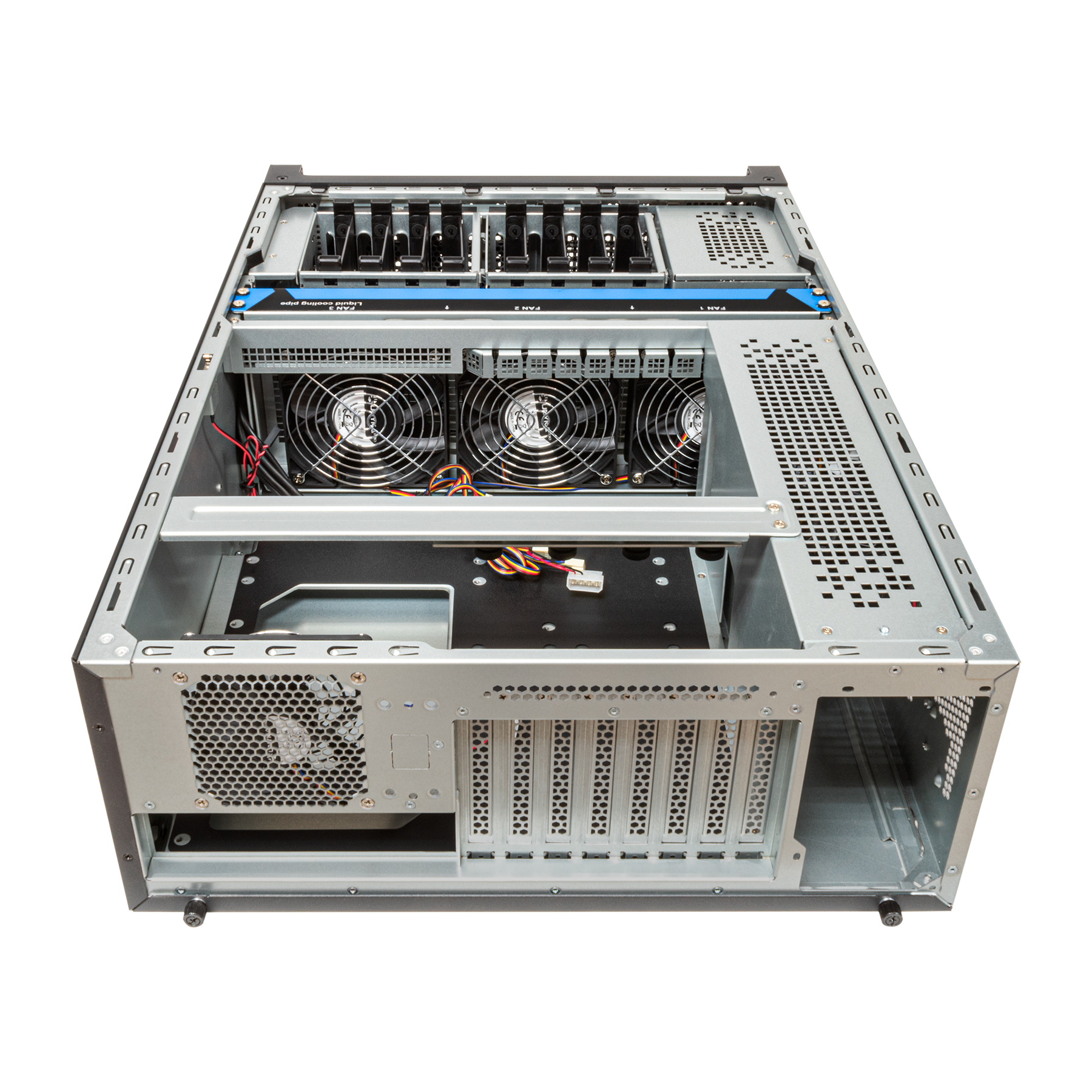

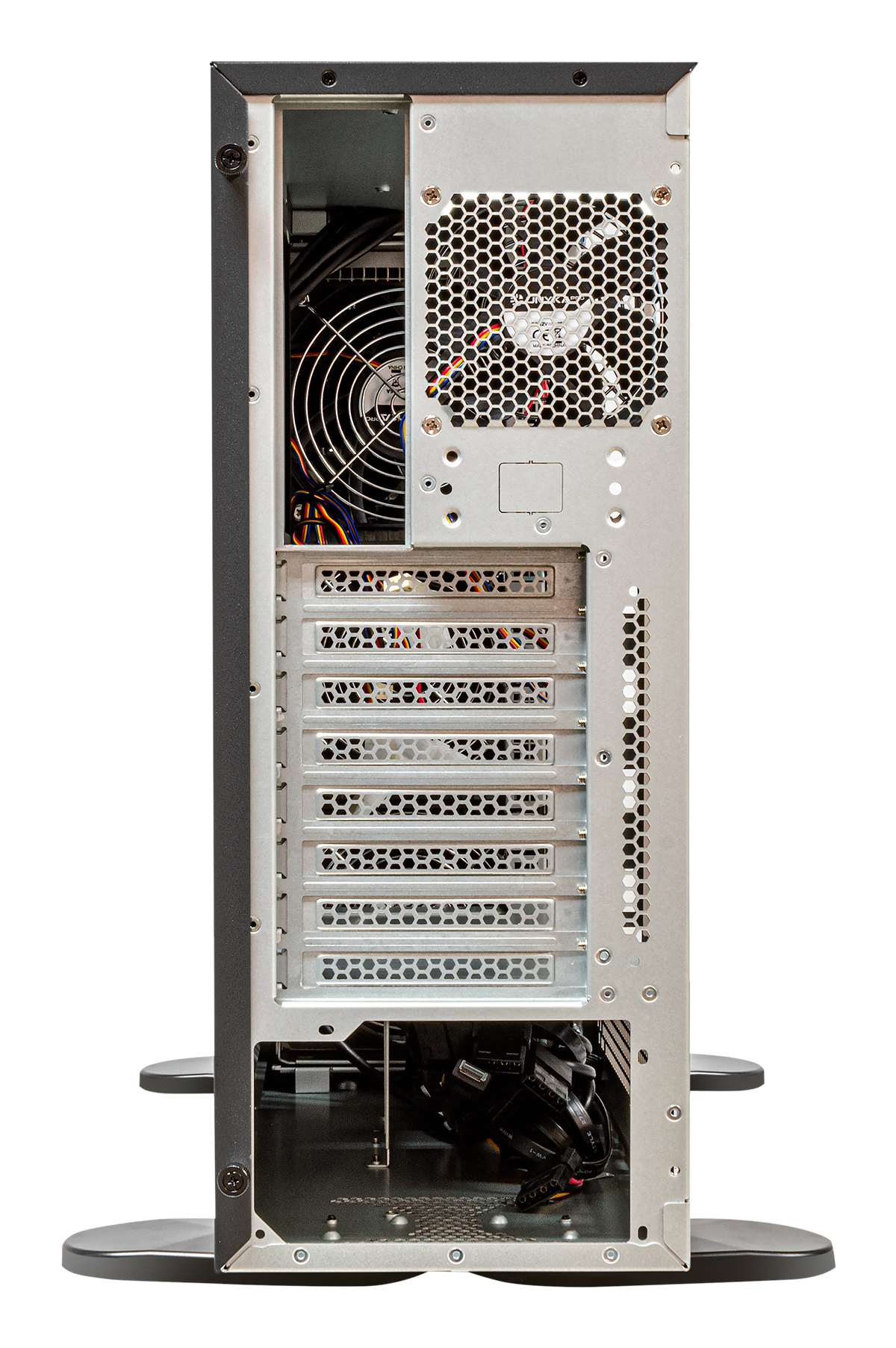

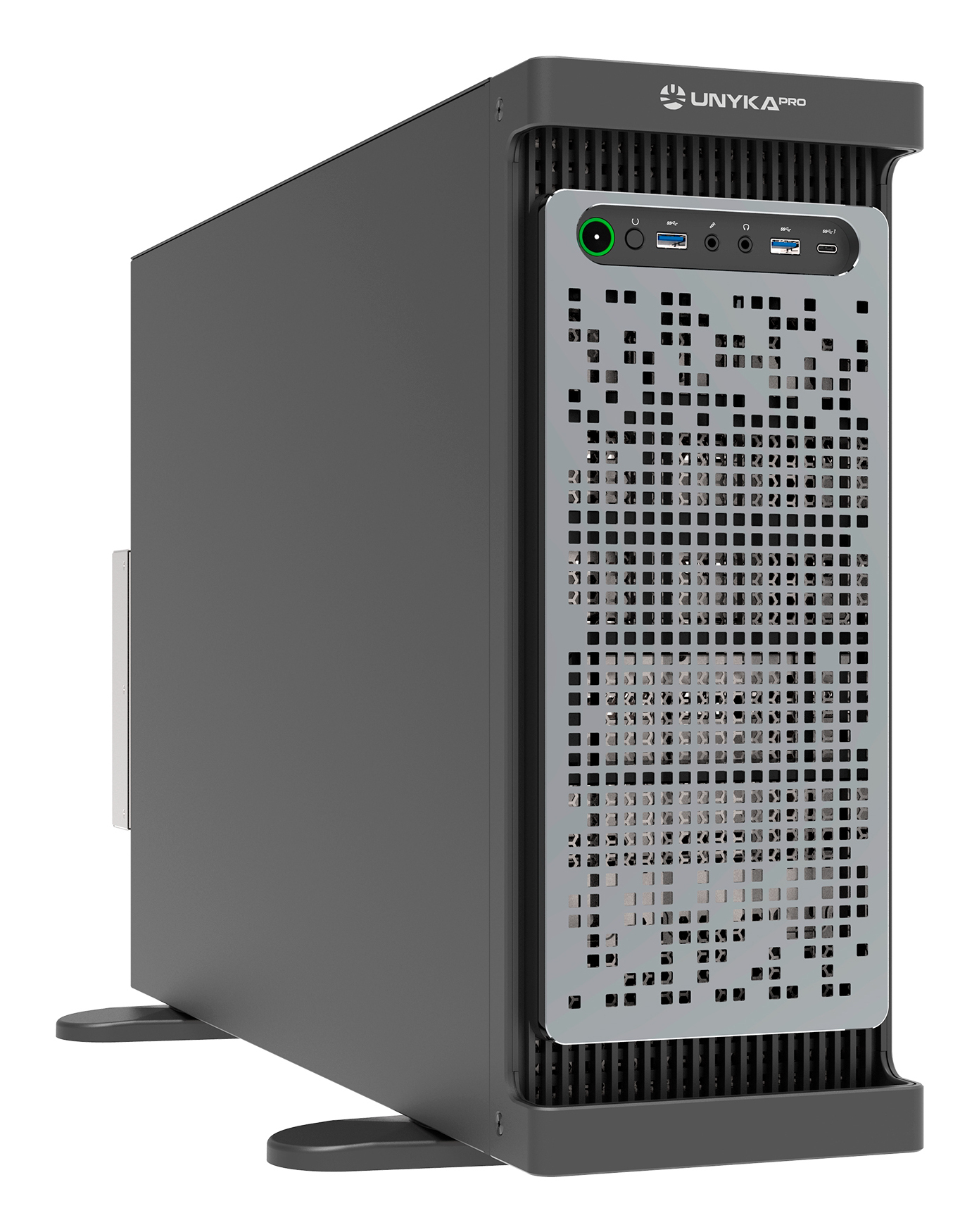

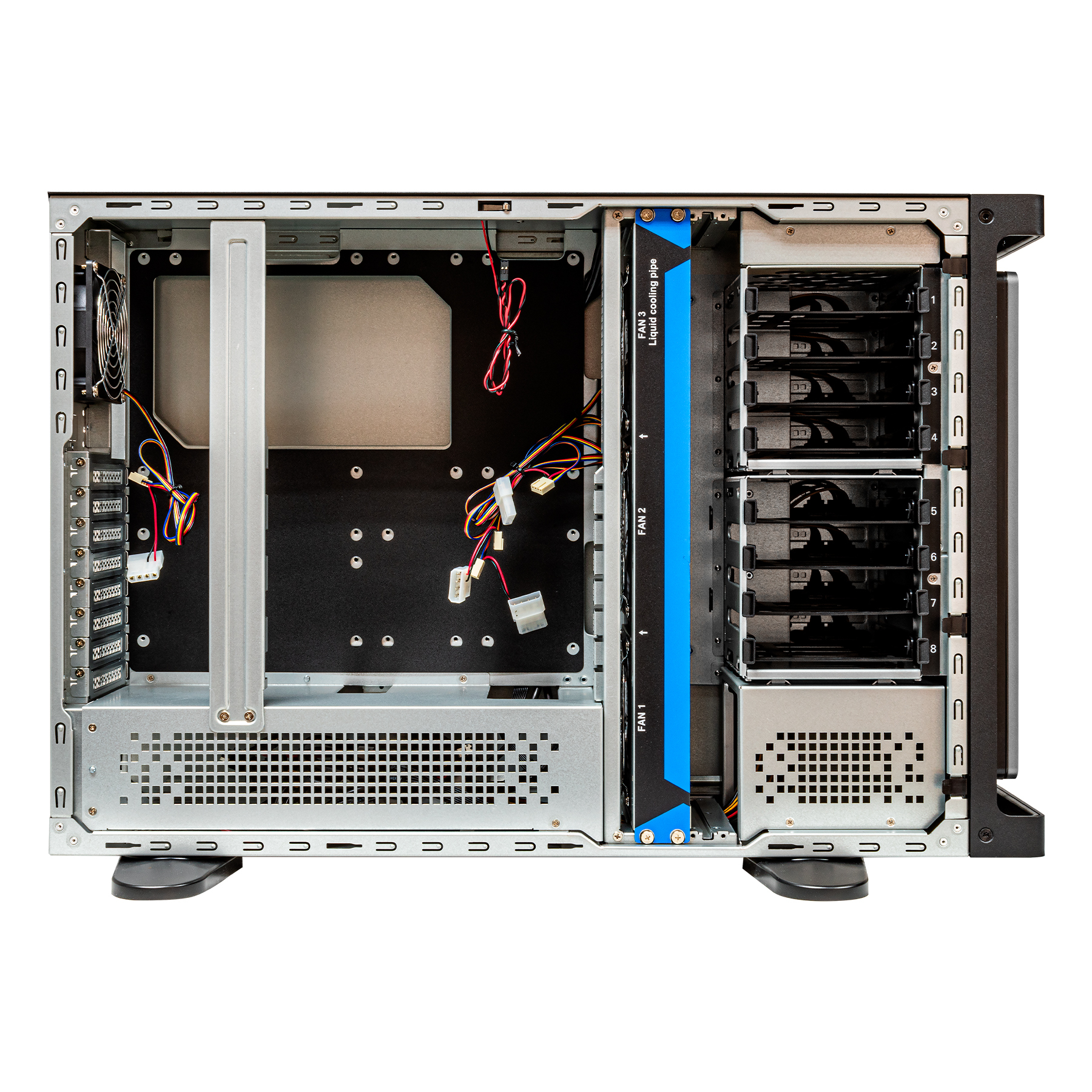

Dual Form Workstation & IDC Rack WS-SR630
Model WS-SR630Part no. UK80.40.630EAN 6974560221233
42 specifications
- TypeRack
- Weight17.9 kg
- ColourBlack, Silver
- Power supply includedYes
- USB 2.0 ports quantity0
- Number of front fans supported (max)1
Overview
- Type
- Rack
- Weight
- 17.9 kg
- Colour
- Black, Silver
- Power supply included
- Yes
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 1
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- WS-SR630
- Part number
- UK80.40.630
- EAN / UPC
- 6974560221233
- Also known as
- UNYKAch Dual Form Workstation & IDC Rack WS-SR630
Specifications
42 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | ABS, Polycarbonate (PC), SGCC |
| Product colour | Black, Silver |
| Supported motherboard form factors | ATX, CEB, EEB, micro ATX |
| Number of 3.5" bays | 10 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 10 |
| Number of storage drives supported | 10 |
| Number of expansion slots | 8 |
| Rack mounting | Yes |
| Rack capacity | 4U |
| Side window | No |
| Anti-dust filter | Yes |
| On/off button | Yes |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply location | Bottom |
| Redundant power supply (RPS) support | Yes |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 92 mm |
| Rear fans installed | 1x 92 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 92 mm |
| Cooling | Yes |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 650 mm |
| Height | 175 mm |
| Weight | 17.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 566 mm |
| Package depth | 813 mm |
| Package height | 292 mm |
| Package weight | 22.2 kg |
