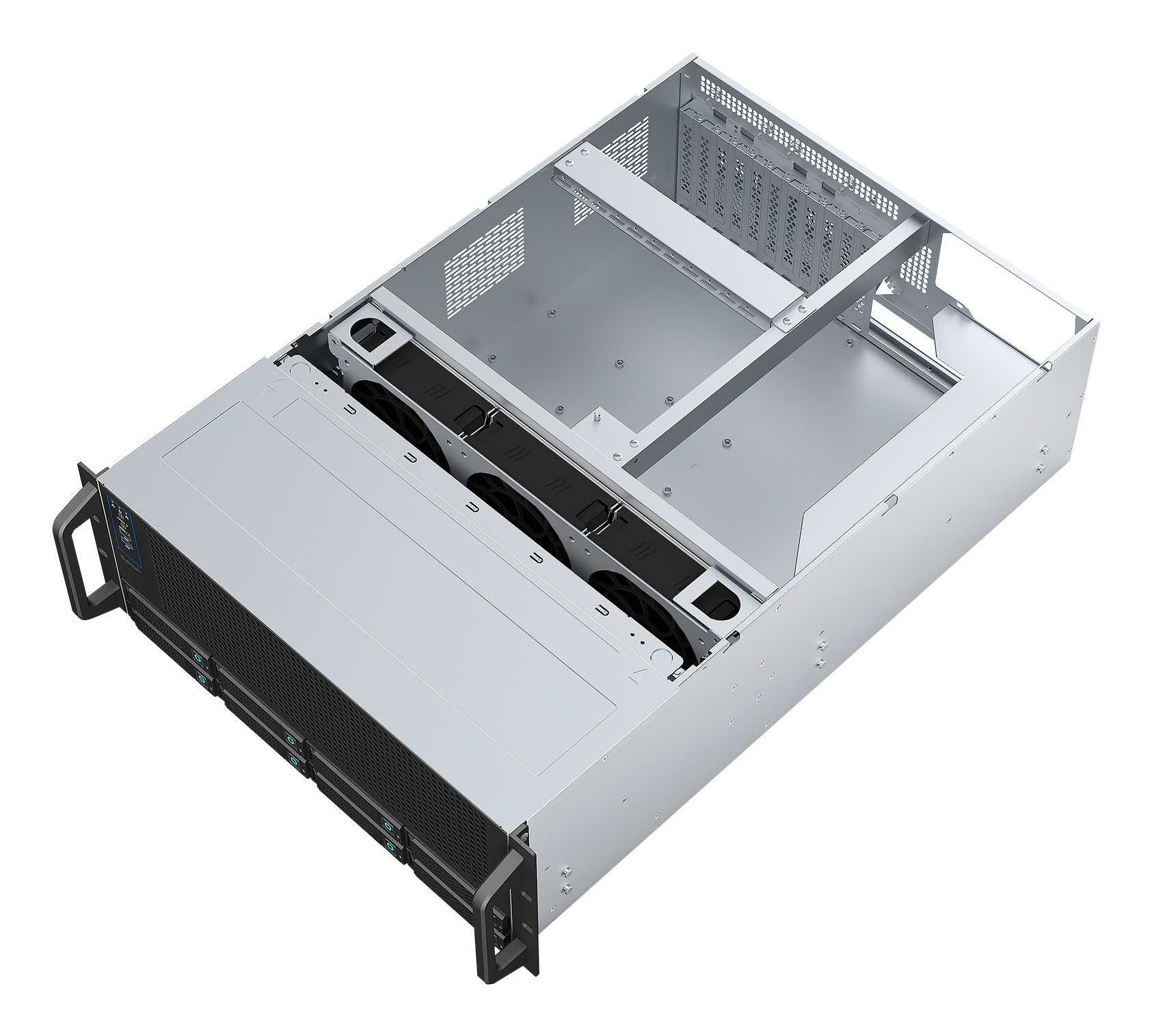

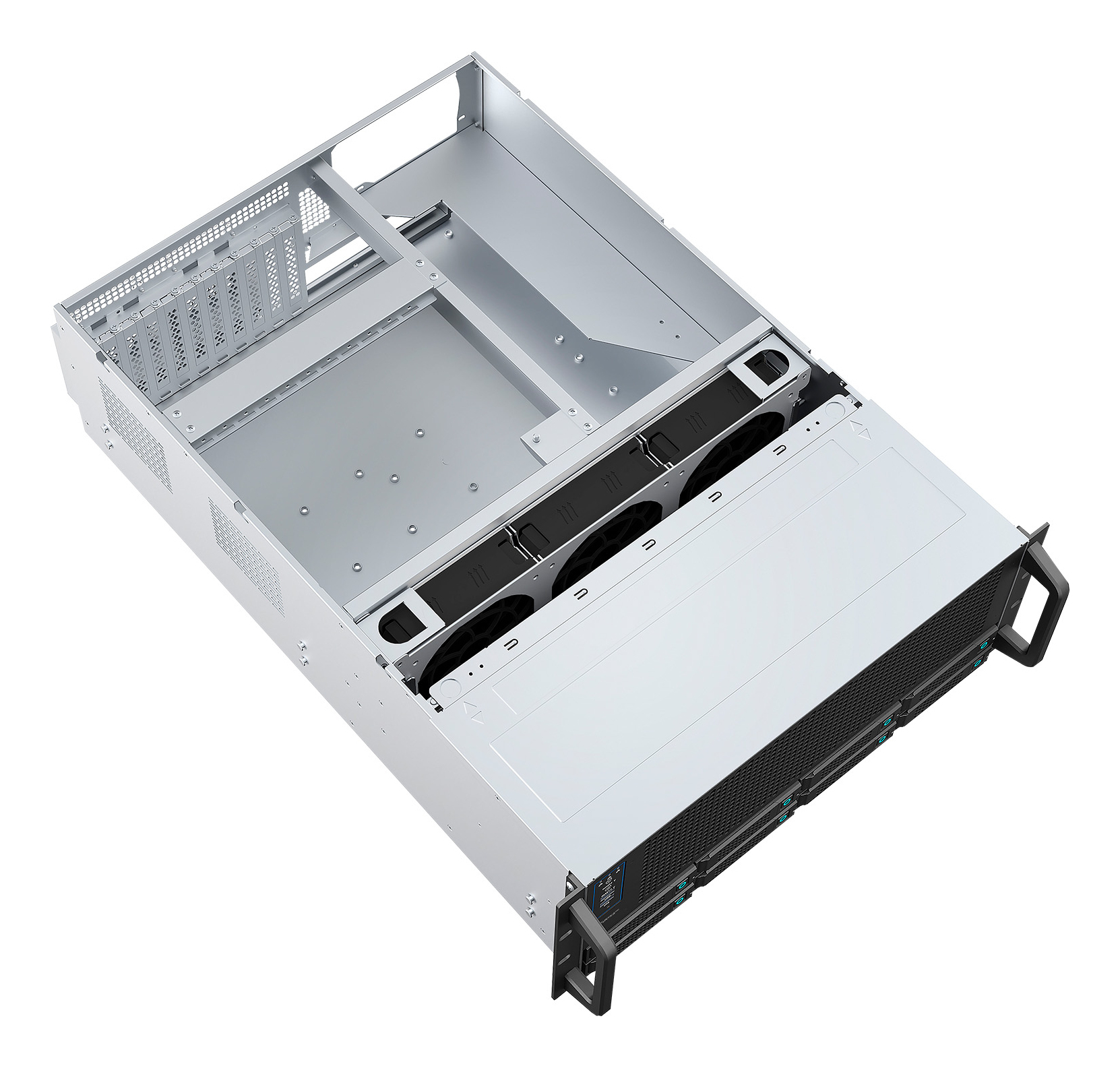

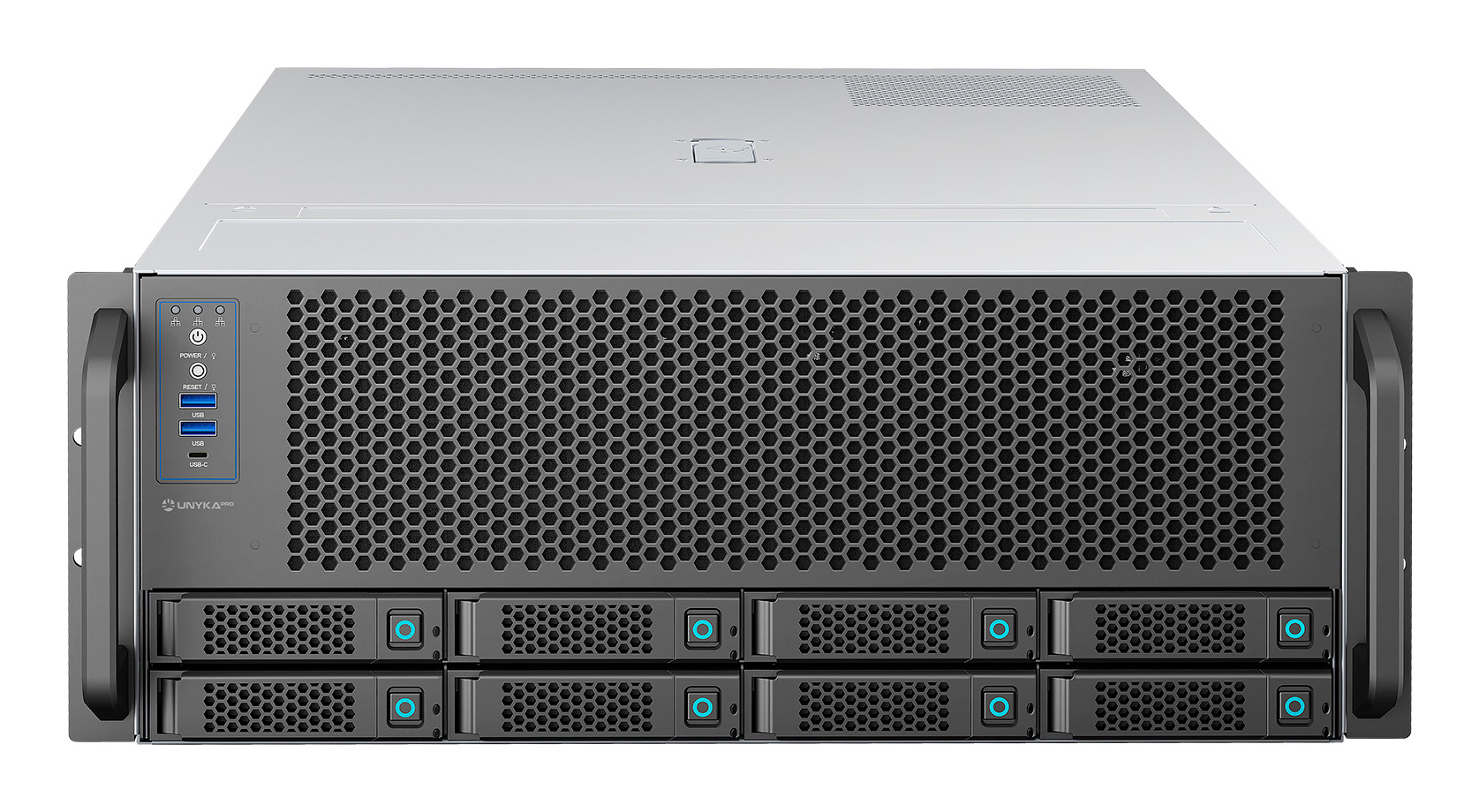

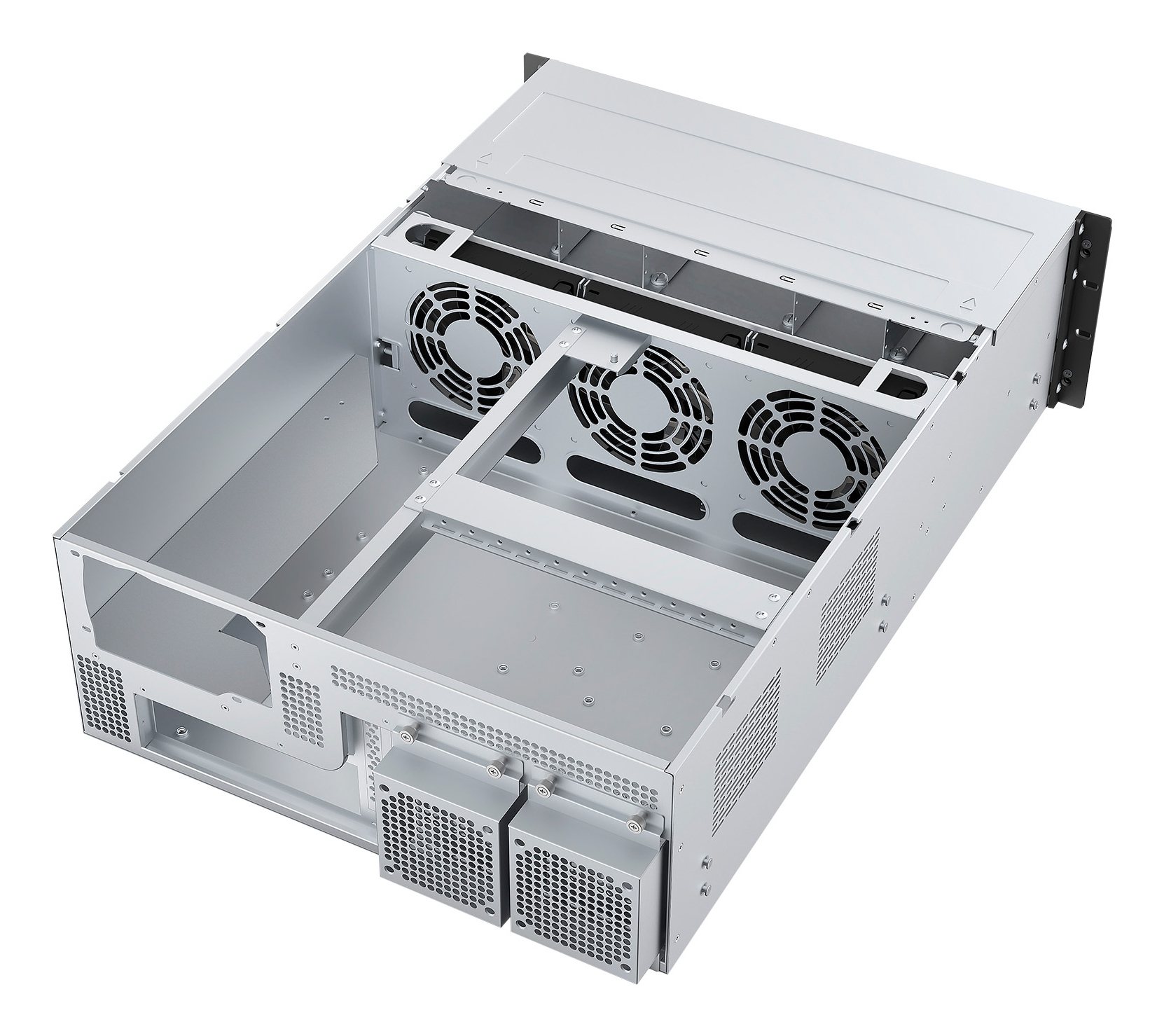

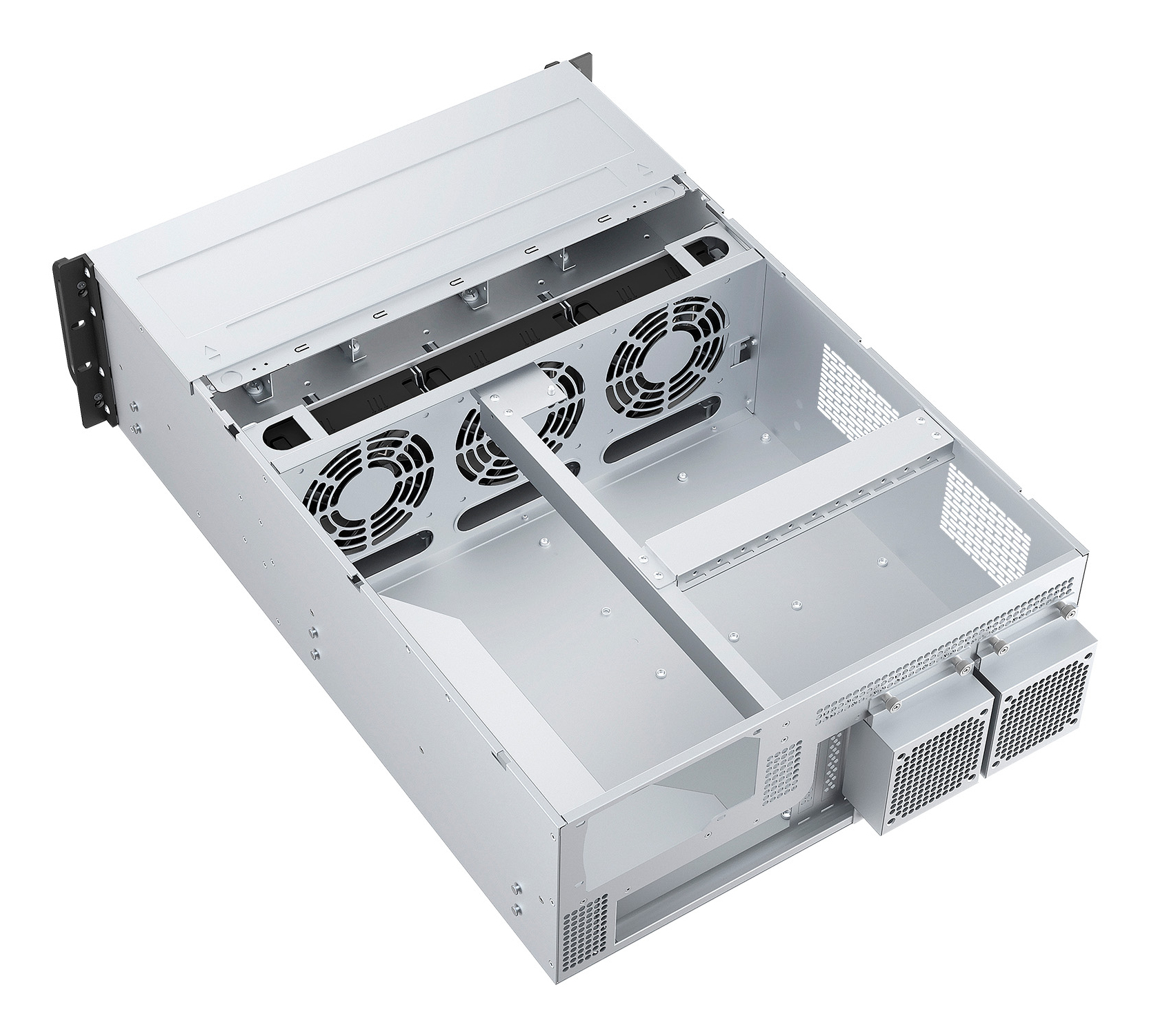

Server Rack Hot Swap 4U HSW4U6508 8 BAYS
Model UK80.40.6508EAN 8436617921292
38 specifications
- TypeRack
- Weight14.9 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of rear fans supported (max)2
Overview
- Type
- Rack
- Weight
- 14.9 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of rear fans supported (max)
- 2
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- UK80.40.6508
- Part number
- UK80.40.6508
- EAN / UPC
- 8436617921292
- Also known as
- UNYKAch Server Rack Hot Swap 4U HSW4U6508 8 BAYS
Specifications
38 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | Aluminium, SGCC, SPCC |
| Product colour | Black, Silver |
| Supported motherboard form factors | ATX, CEB, EEB, micro ATX |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 8 |
| Number of storage drives supported | 12 |
| Full-Height expansion slots | 11 |
| Rack mounting | Yes |
| Rack capacity | 4U |
| On/off button | Yes |
| Reset button | Yes |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Hot-swap | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 655 mm |
| Height | 176 mm |
| Weight | 14.9 kg |
| Material thickness | 1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 560 mm |
| Package depth | 850 mm |
| Package height | 245 mm |
| Package weight | 18.7 kg |
Other features
| Specification | Value |
|---|---|
| Supported HDD interfaces | Mini SAS |
| Peripheral (Molex) power connectors (4-pin) | 4 |
