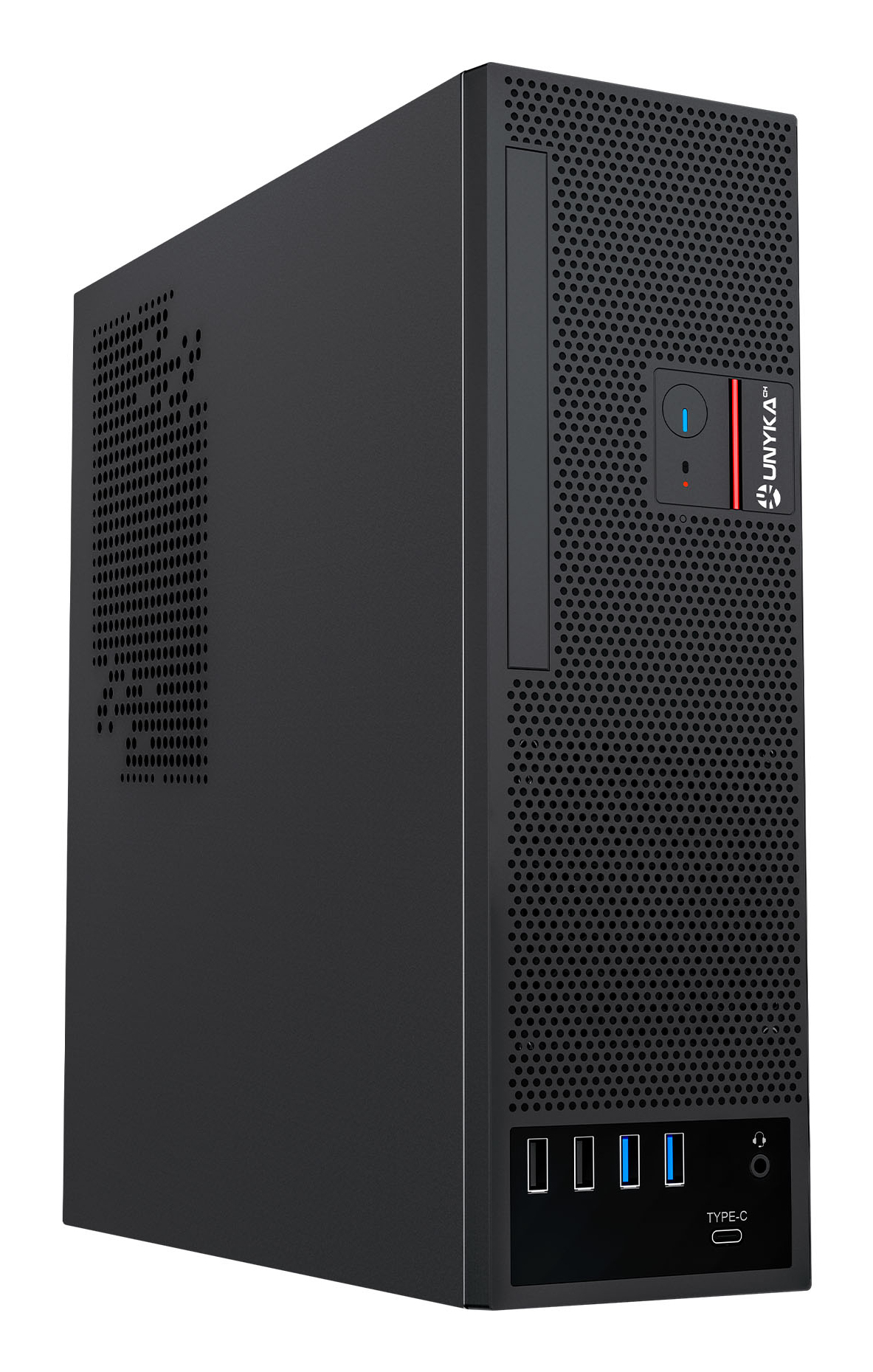

UK3006 8L SFF
Model UK3006 8L SFFPart no. UK52118-OCEAN 8436617921544
41 specifications
- TypeSmall Form Factor (SFF)
- Weight3.6 kg
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity2
- Front fans installed1x 80 mm
Overview
- Type
- Small Form Factor (SFF)
- Weight
- 3.6 kg
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 2
- Front fans installed
- 1x 80 mm
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- UK3006 8L SFF
- Part numbers
- UK52118-OC, UK52118
- EAN / UPC
- 8436617921544, 8436617920059
- Also known as
- UNYKAch PC Case Desktop UK3006 8L SFF Micro ATX Black With ODD Support 150W Flex
Specifications
41 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Small Form Factor (SFF) |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SGCC |
| Product colour | Black |
| Supported motherboard form factors | ITX, micro ATX |
| Number of 3.5" bays | 0 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 4.5 cm |
| Maximum graphics card length | 22 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 150 W |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Supported power supply form factors | SFX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| USB Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 80 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 152 mm |
| Depth | 340 mm |
| Height | 365 mm |
| Weight | 3.6 kg |
| Material thickness | 0.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 152 mm |
| Package depth | 340 mm |
| Package height | 365 mm |
| Package weight | 3.6 kg |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Volume | 8 L |
