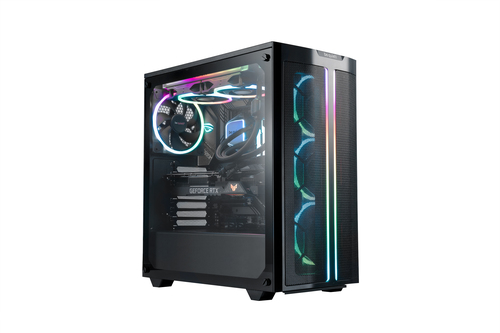

PURE BASE 500 FX Black
Model PURE BASE 500 FX BlackPart no. BGW43EAN 4260052189054
63 specifications
- Noise23.3 dB
- TypeMidi Tower
- Weight8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
Overview
- Noise
- 23.3 dB
- Type
- Midi Tower
- Weight
- 8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Brand
- be quiet!
- Category
- Computer Case
- Model
- PURE BASE 500 FX Black
- Part number
- BGW43
- EAN / UPC
- 4260052189054
- Also known as
- be quiet! PURE BASE 500 FX Black Midi Tower
Specifications
63 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans, Front |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 36.9 cm |
| Maximum PSU length | 25.8 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX, PS2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Fan power consumption | 4.56 W |
| Fan rated current | 0.07 A |
| Fan rated voltage | 5 - 13.2 V |
| Fan speed | 1500 - 1700 RPM |
| Maximum airflow | 56 cfm |
| Noise level (high speed) | 23.3 dB |
| Noise level (low speed) | 20.6 dB |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 450 mm |
| Height | 463 mm |
| Weight | 8 kg |
Packaging data
| Specification | Value |
|---|---|
| LED controller | Yes |
| Package width | 285 mm |
| Package depth | 510 mm |
| Package height | 494 mm |
| Package weight | 9.2 kg |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Air pressure | 1.66 mmH2O |
| Fan connector | 4-pin |
| Mean time between failures (MTBF) | 60000 h |
