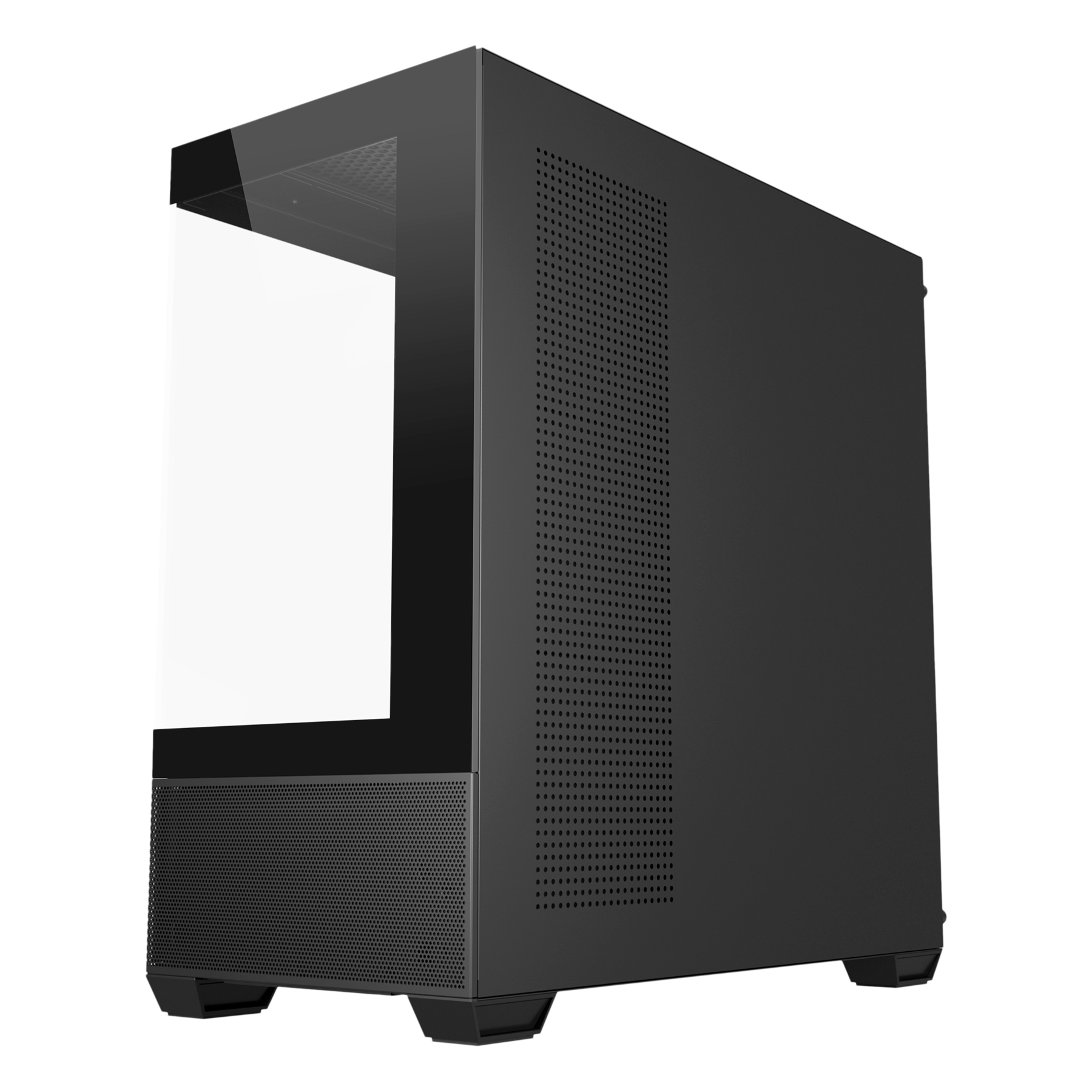

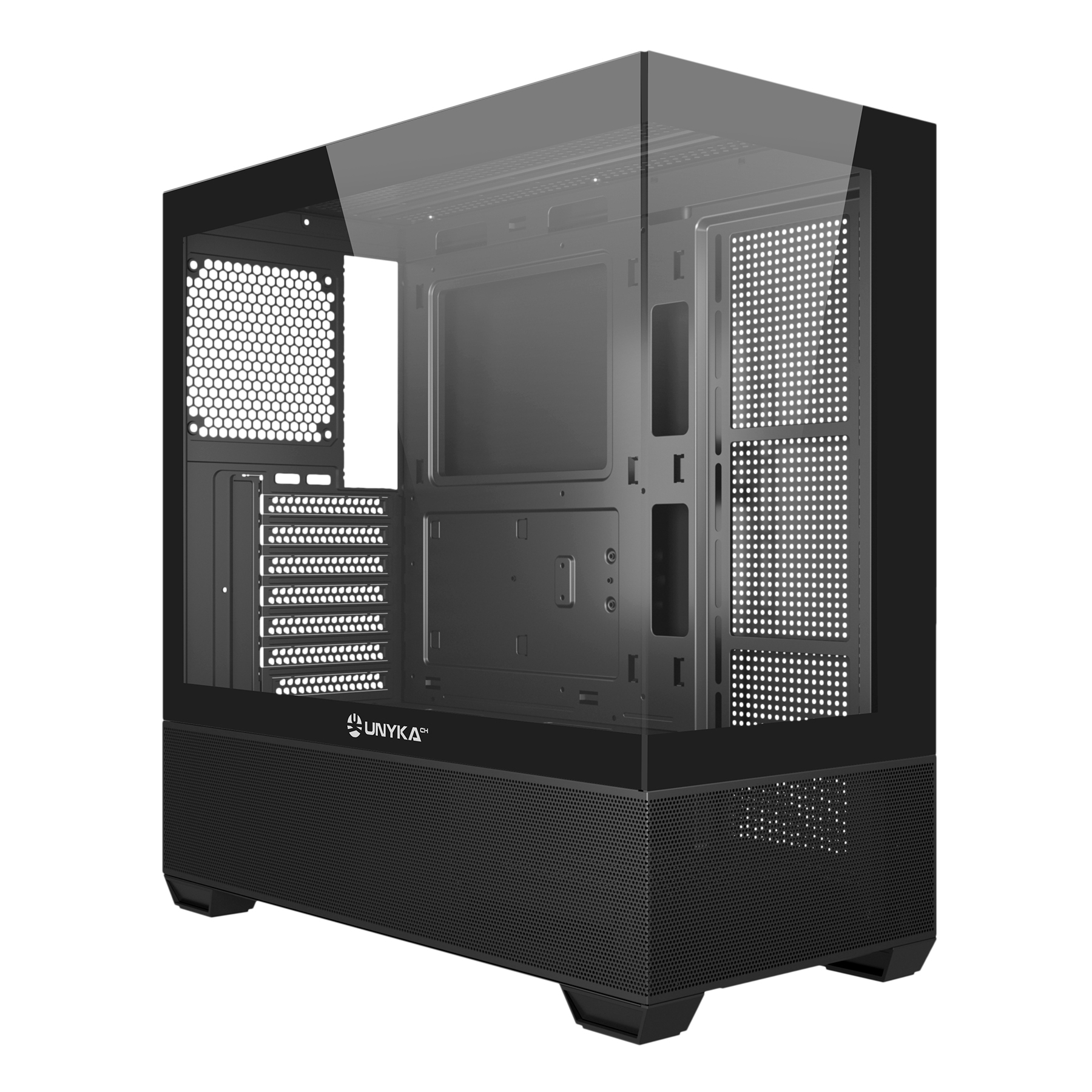

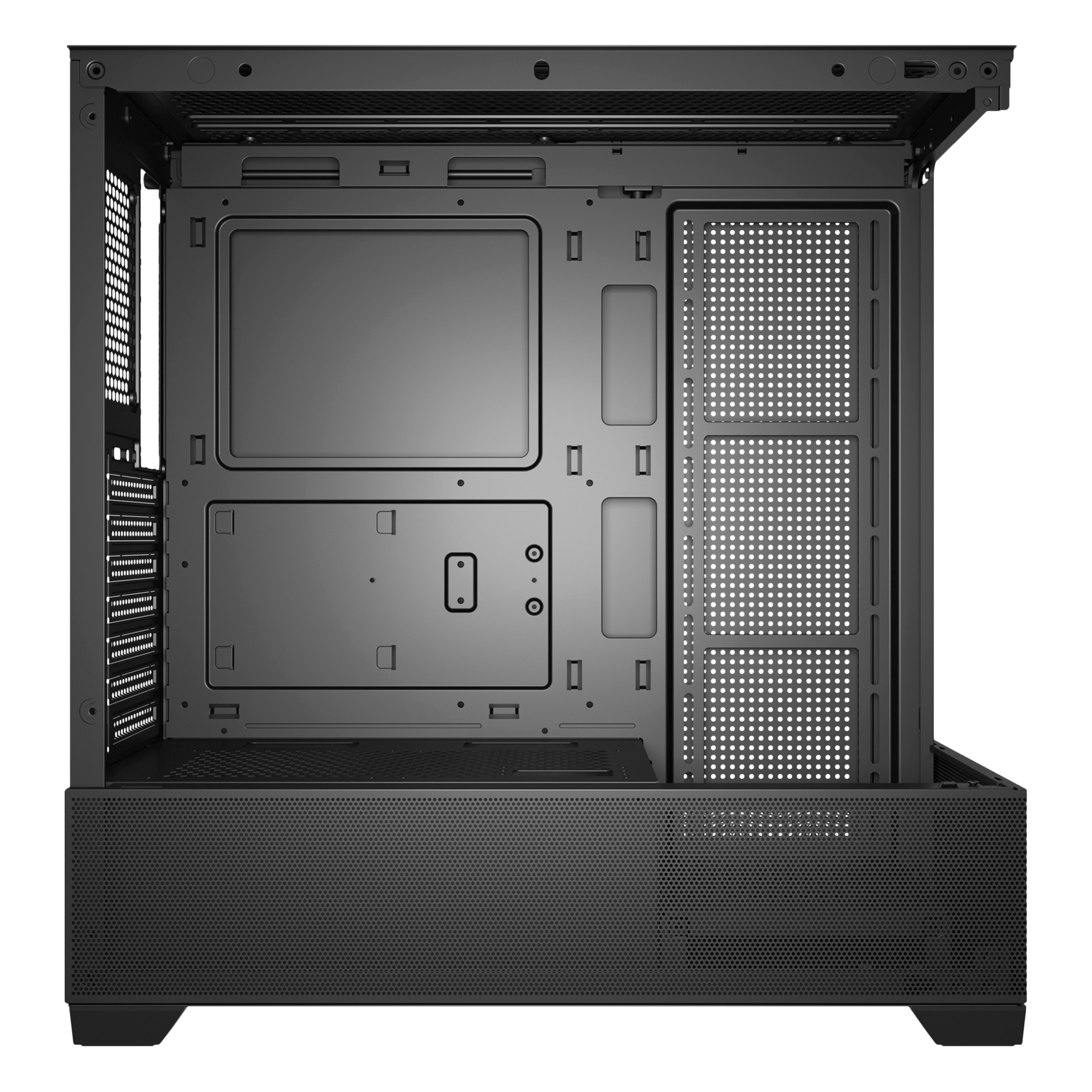

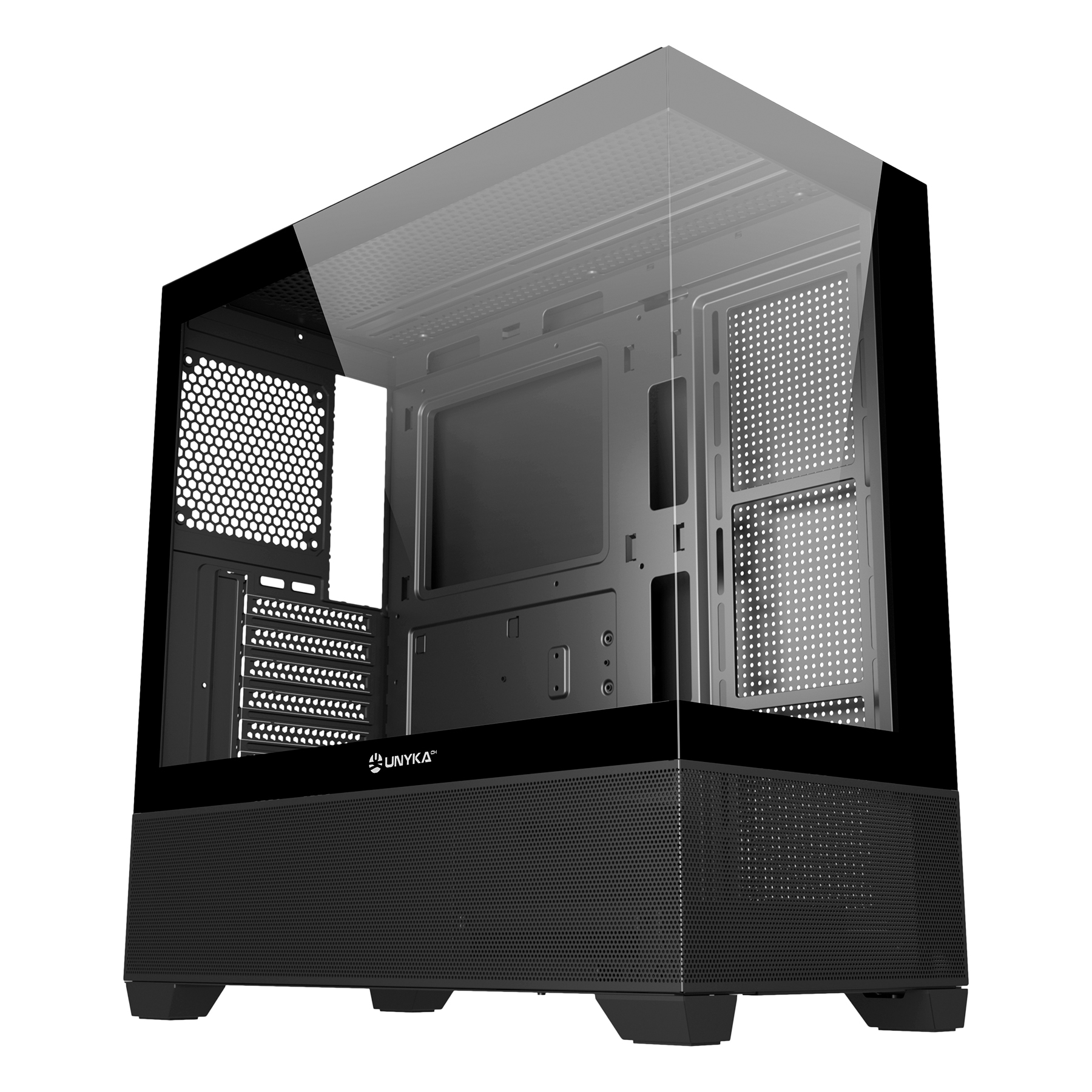

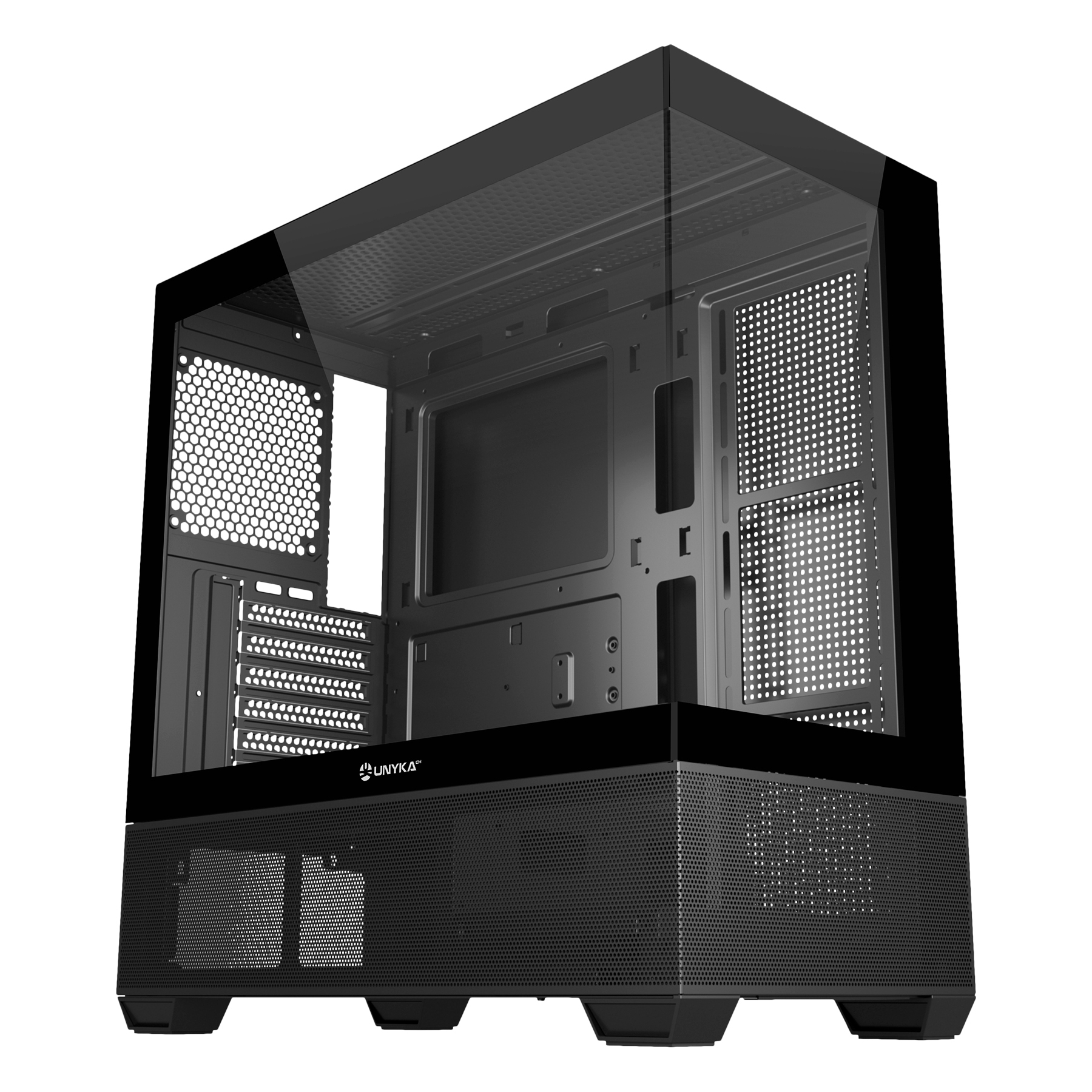

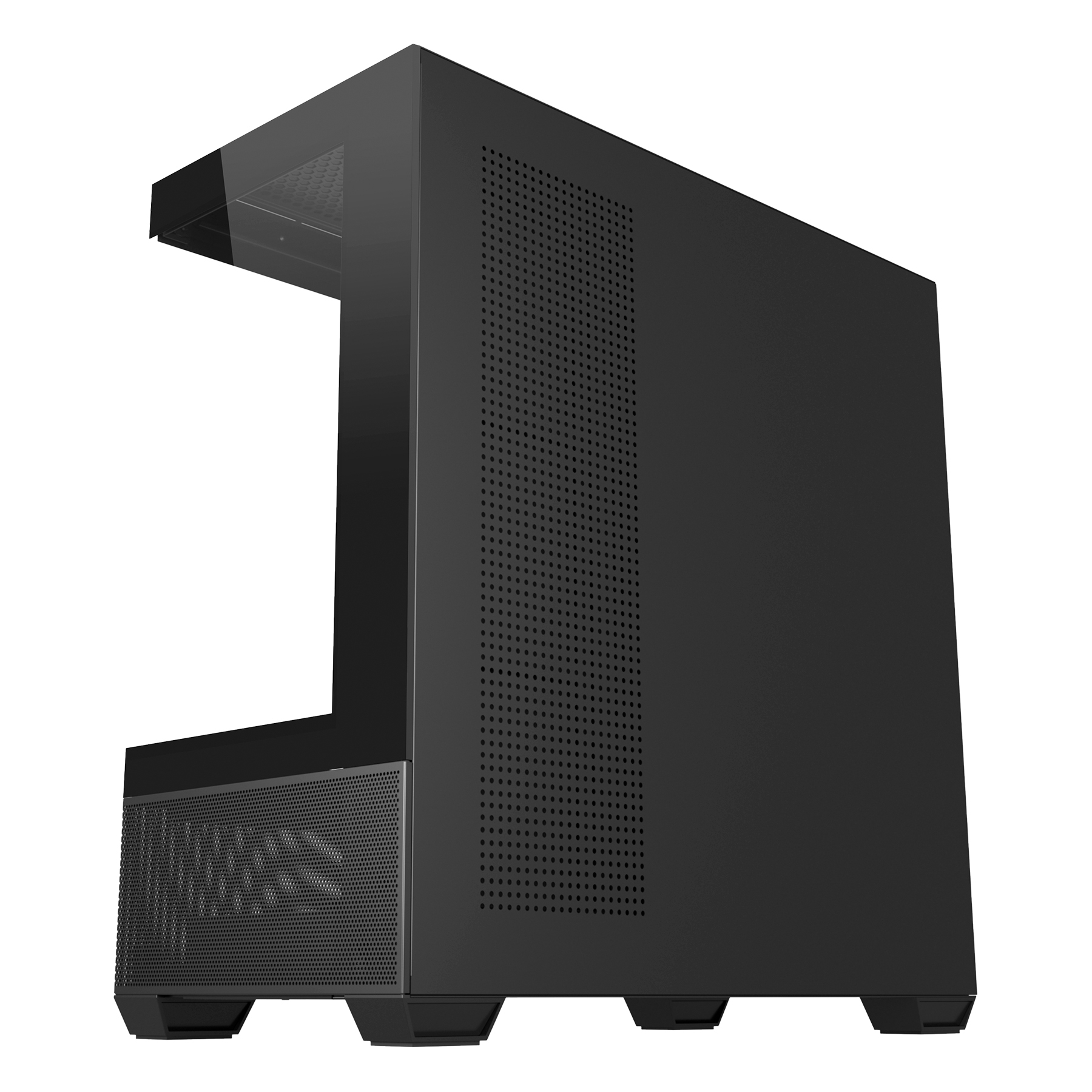

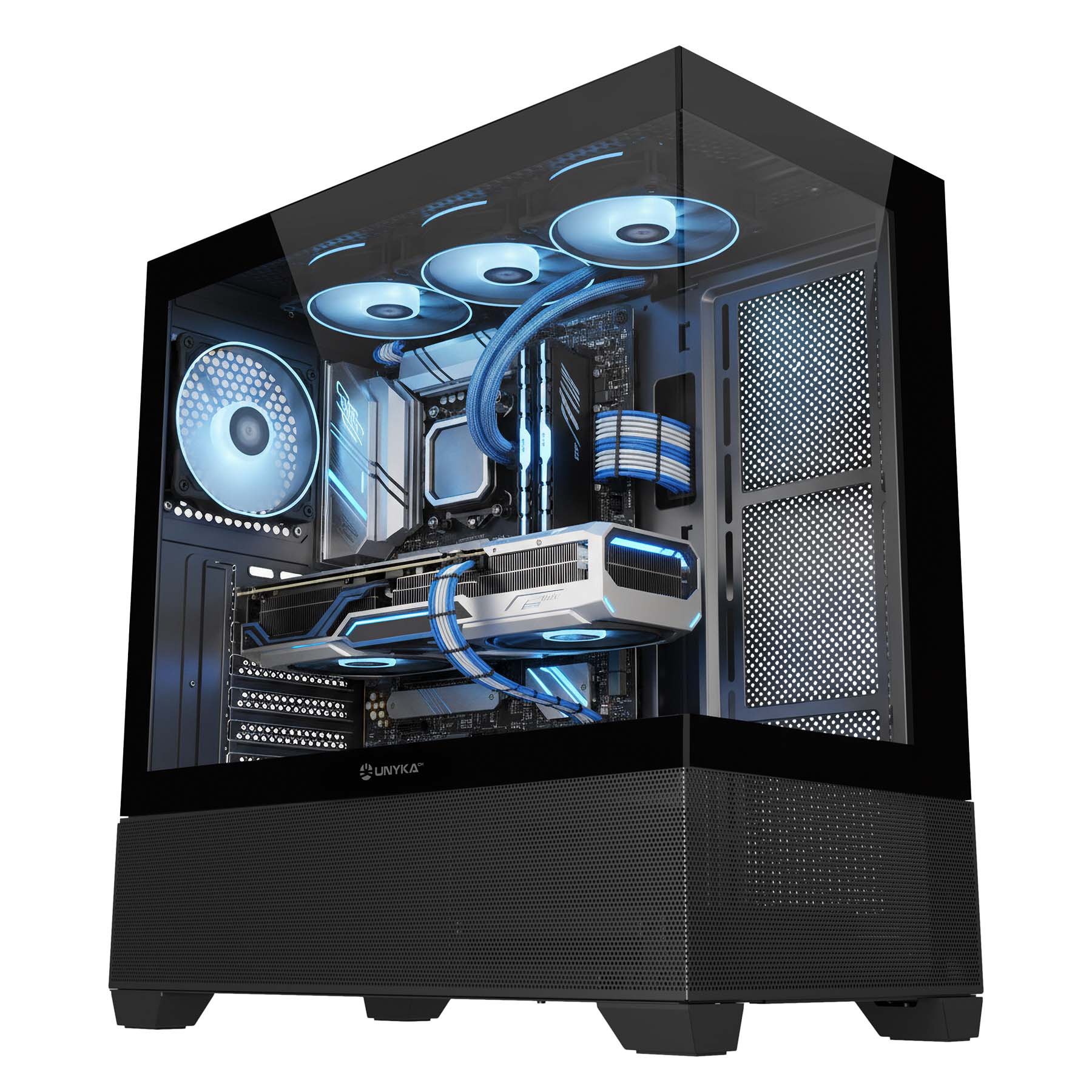

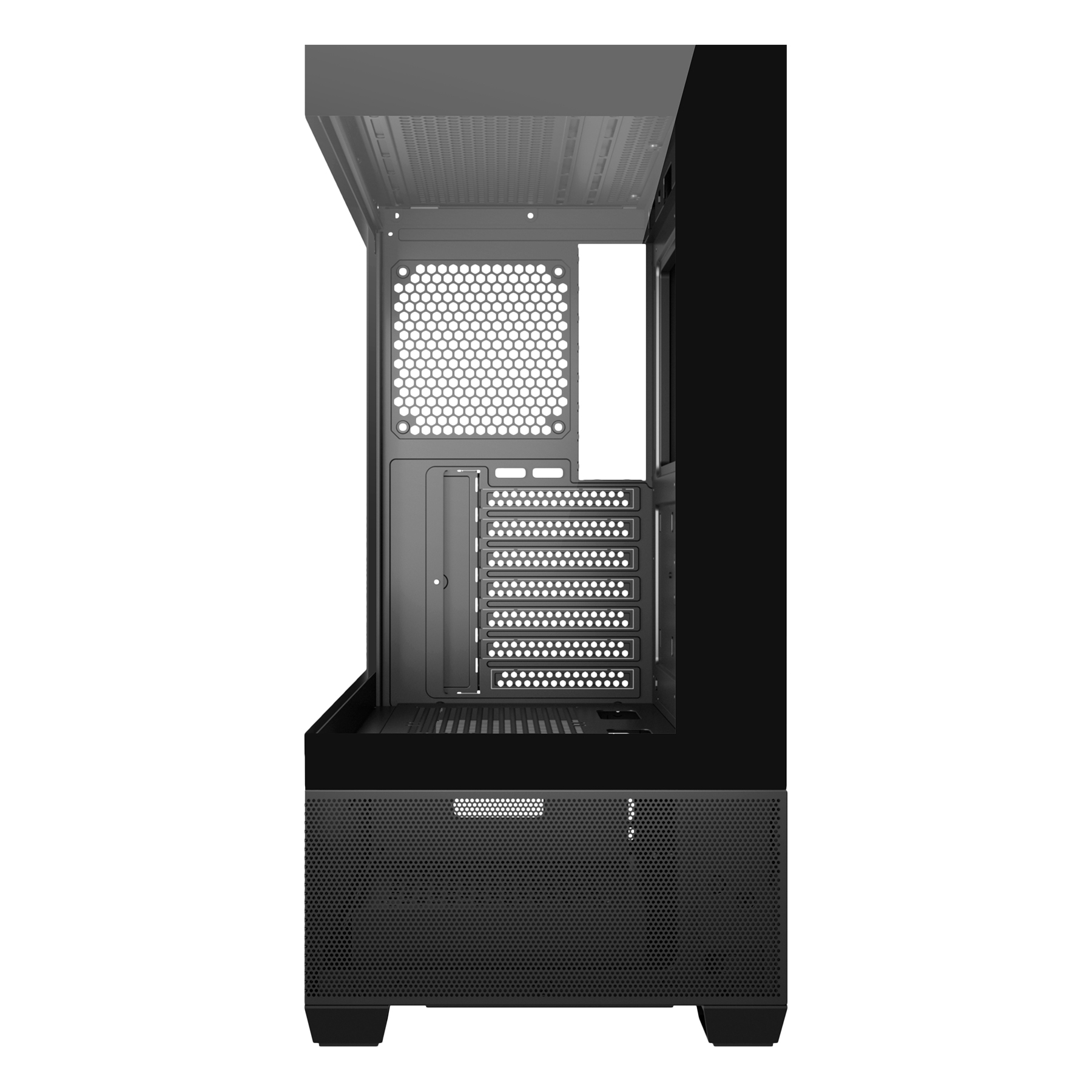

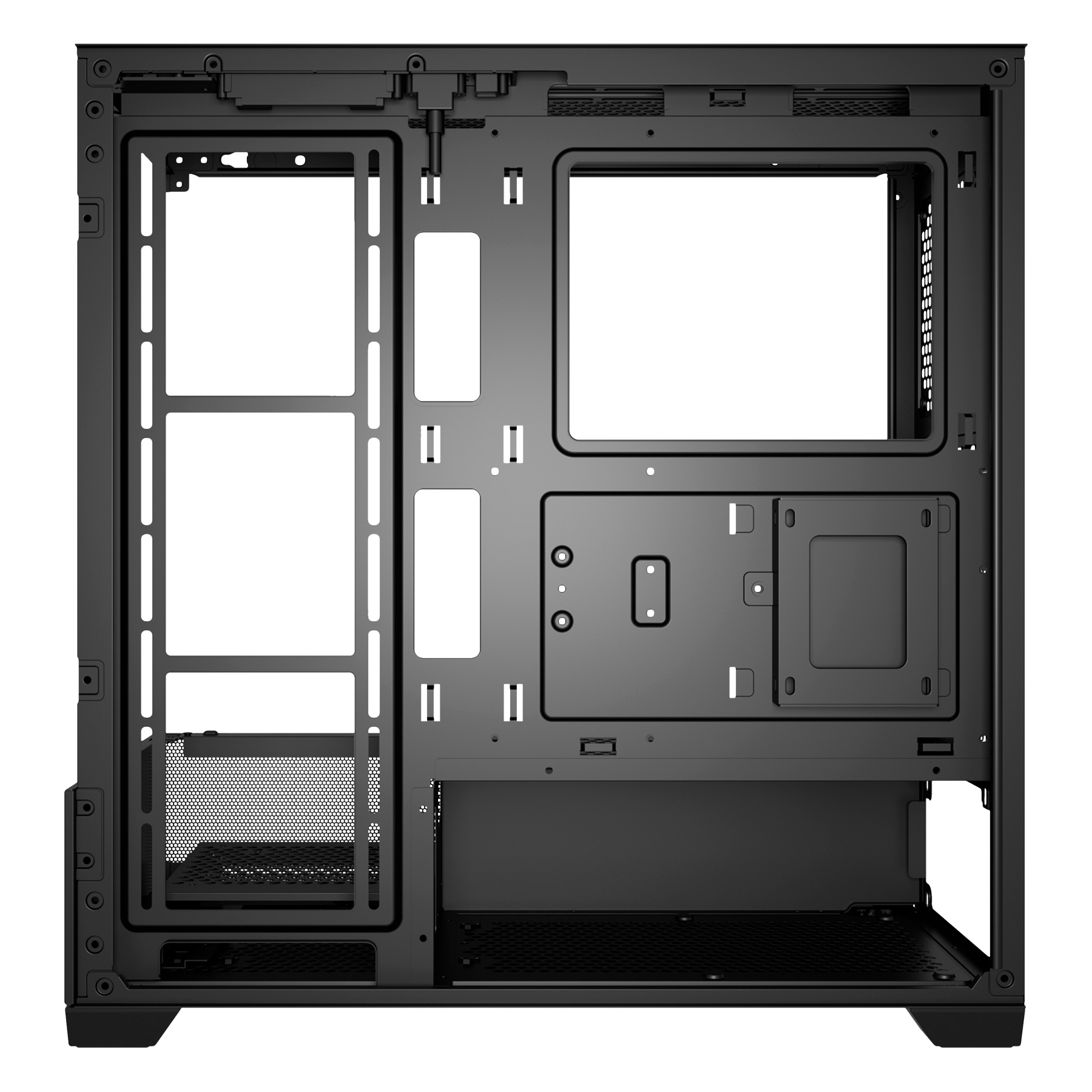

PC Case ATX Revelat Black
Model RevelatPart no. UK121801EAN 8436617920615
50 specifications
- TypeMidi Tower
- Weight5.65 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of side fans supported (max)3
Overview
- Type
- Midi Tower
- Weight
- 5.65 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of side fans supported (max)
- 3
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- Revelat
- Part number
- UK121801
- EAN / UPC
- 8436617920615
- Also known as
- UNYKAch PC Case ATX Revelat Black
Specifications
50 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), SGCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Rack mounting | No |
| Side window | Yes |
| Suitable for | Gaming |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 42.5 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Side radiator sizes supported | 120,240 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 434 mm |
| Height | 454 mm |
| Weight | 5.65 kg |
| Material thickness | 0.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 280 mm |
| Package depth | 495 mm |
| Package height | 515 mm |
| Package weight | 6.85 kg |
