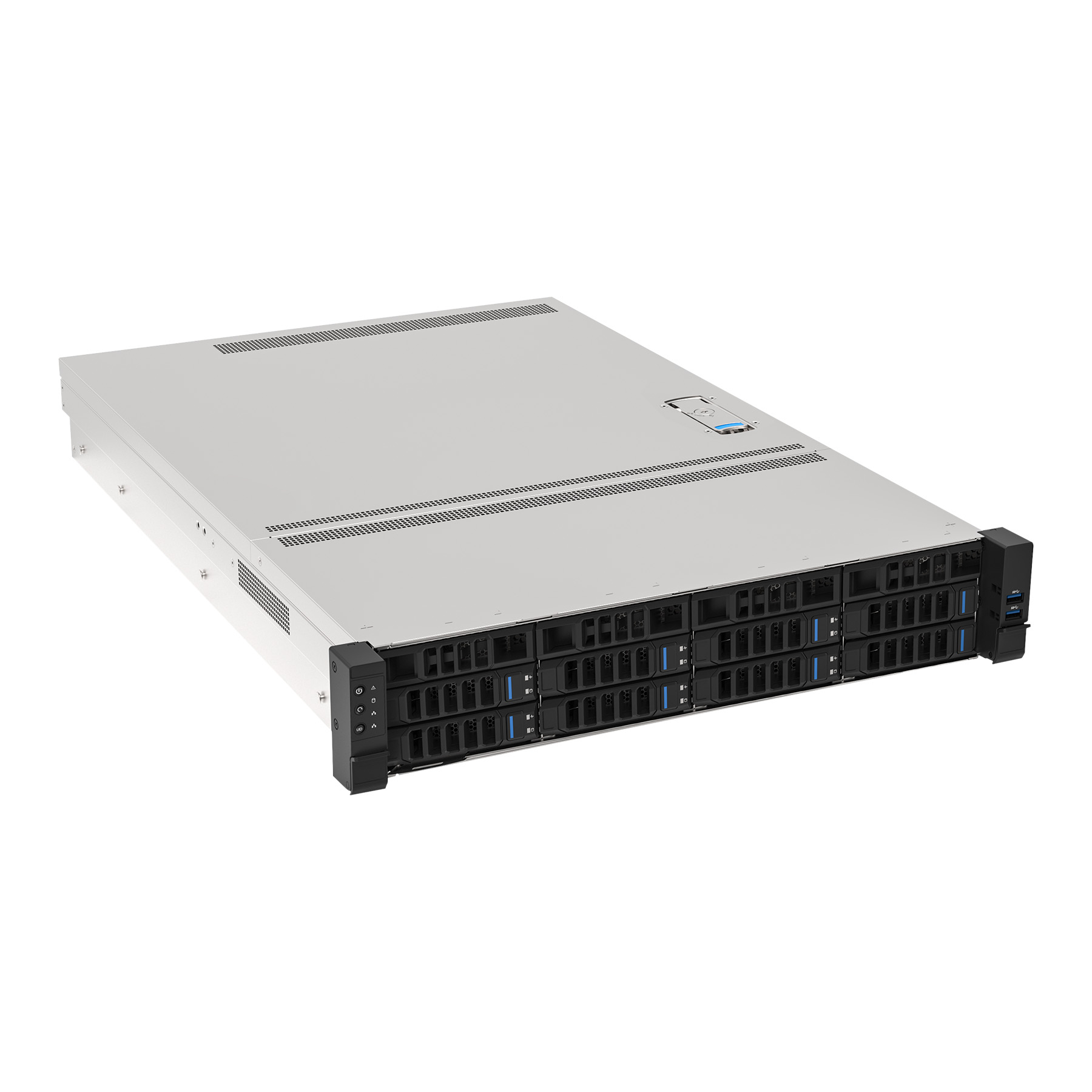

HSW4208 G4
Model HSW4208 G4Part no. UK80.20.08G4EAN 8436617921988
41 specifications
- Noise61.4 dB
- TypeRack
- Weight15 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity0
Overview
- Noise
- 61.4 dB
- Type
- Rack
- Weight
- 15 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- HSW4208 G4
- Part number
- UK80.20.08G4
- EAN / UPC
- 8436617921988
- Also known as
- UNYKAch HSW4208 G4 Rack Black, Silver
Specifications
41 specifications in 9 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC, Aluminium |
| Product colour | Black, Silver |
| Supported motherboard form factors | EEB, CEB, ATX, micro ATX |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Rack mounting | Yes |
| Rack capacity | 2U |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 7.3 cm |
| Maximum graphics card length | 16.9 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 4x 80 mm |
| Fan rated voltage | 12 V |
| Fan speed | 0 - 6300 RPM |
| Noise level (high speed) | 61.4 dB |
| Pulse-width modulation (PWM) support | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Hot-swap | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 447 mm |
| Depth | 660 mm |
| Height | 87 mm |
| Weight | 15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 826 mm |
| Package height | 218 mm |
| Package volume | 103800 cm³ |
| Package weight | 18.5 kg |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Fan connector | 4-pin |
