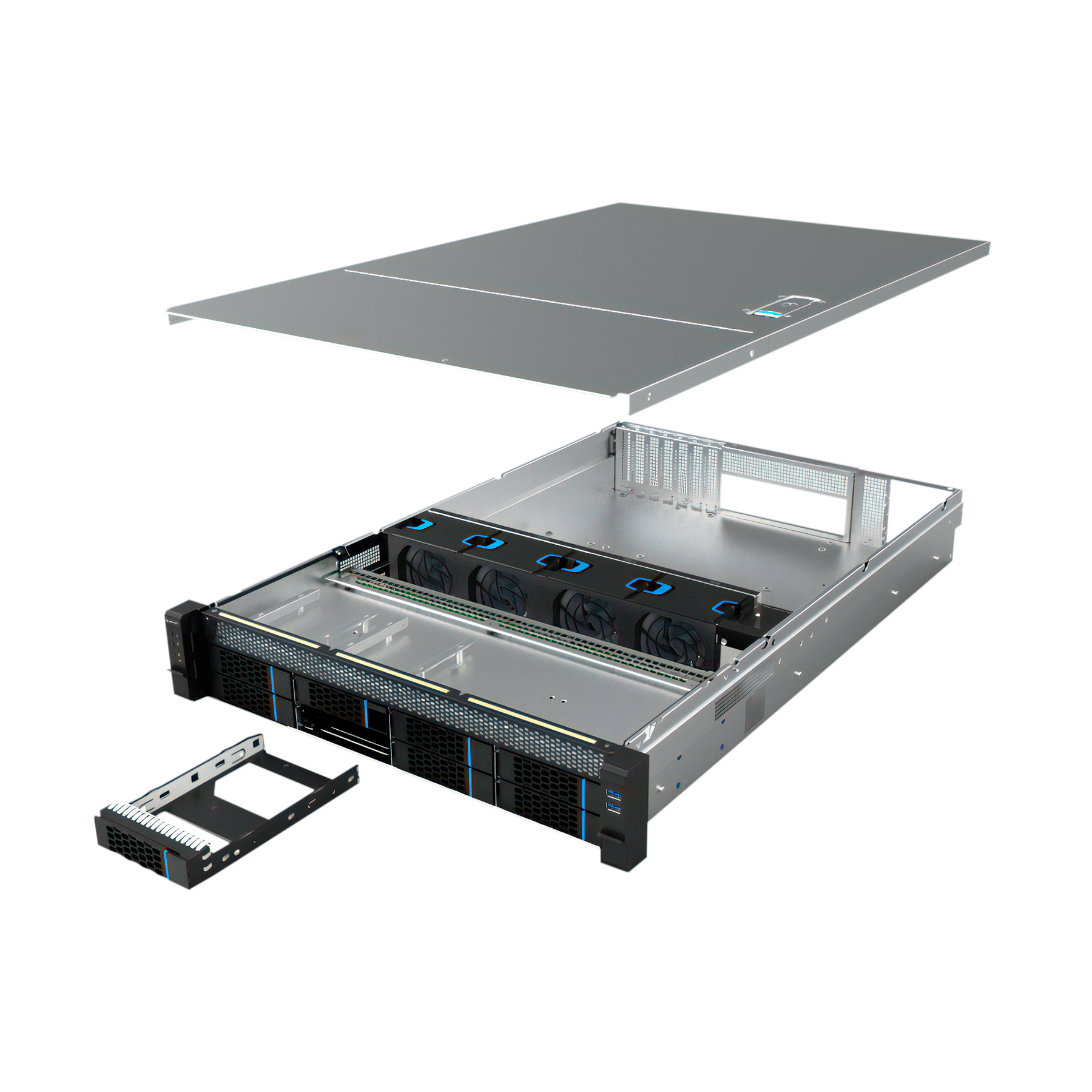

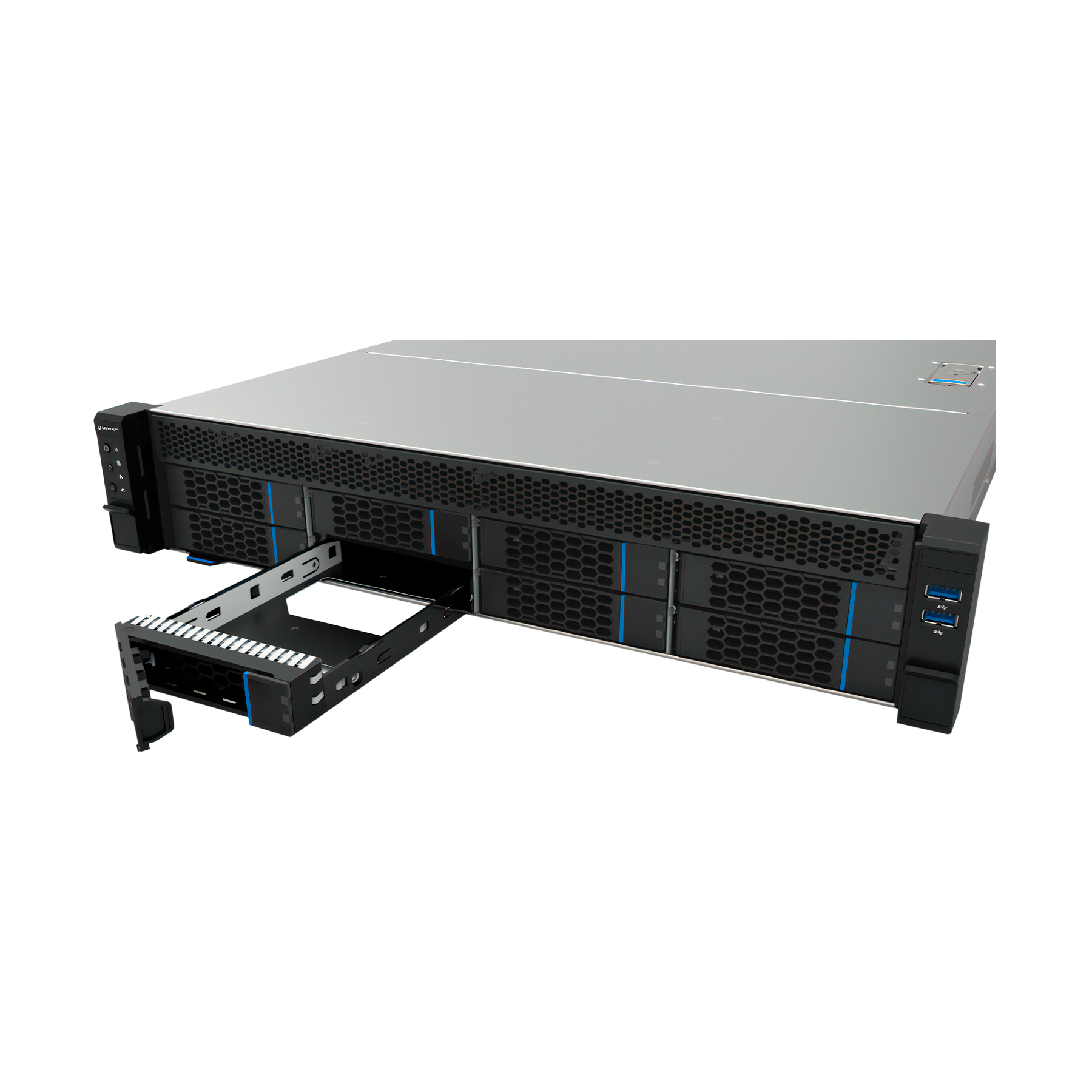

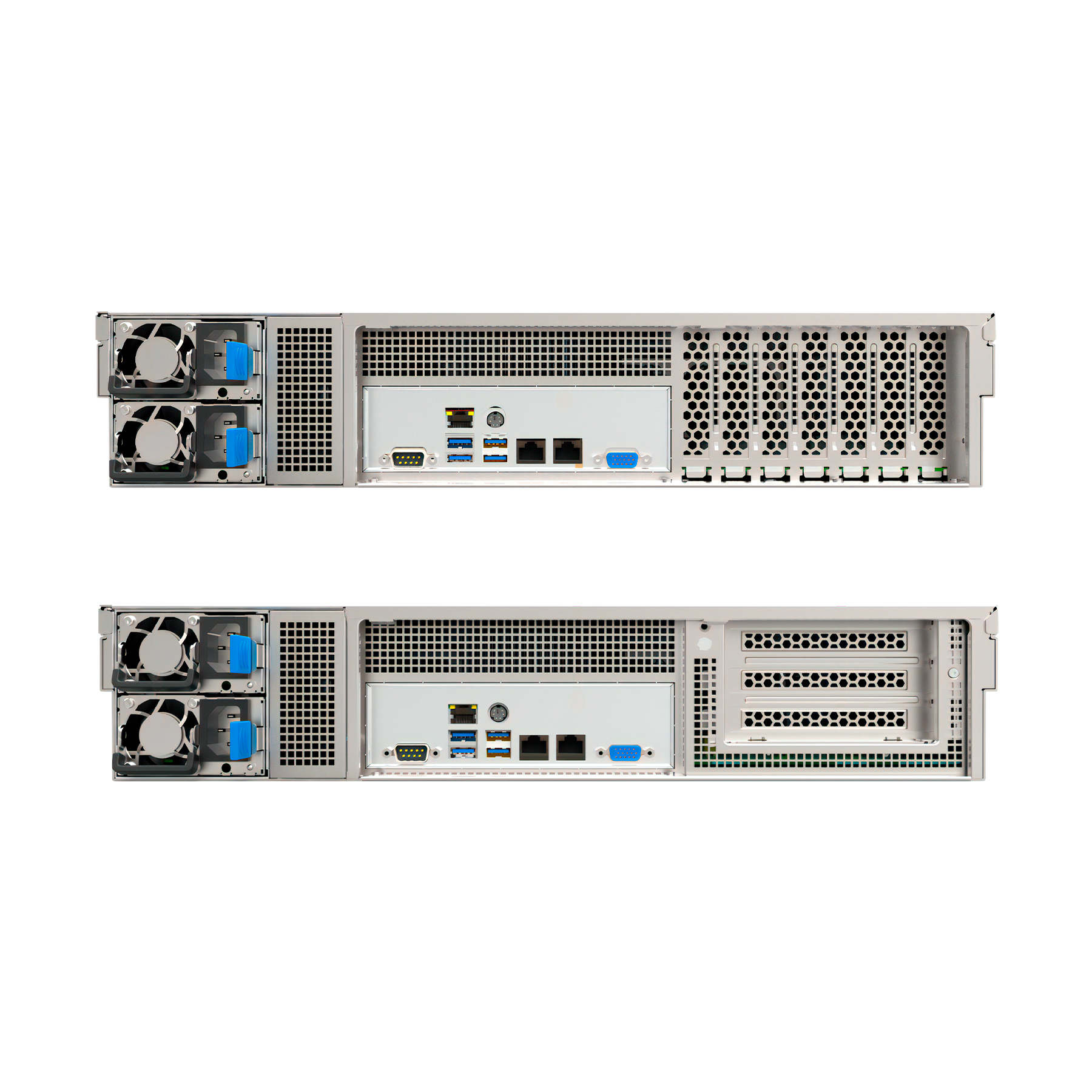

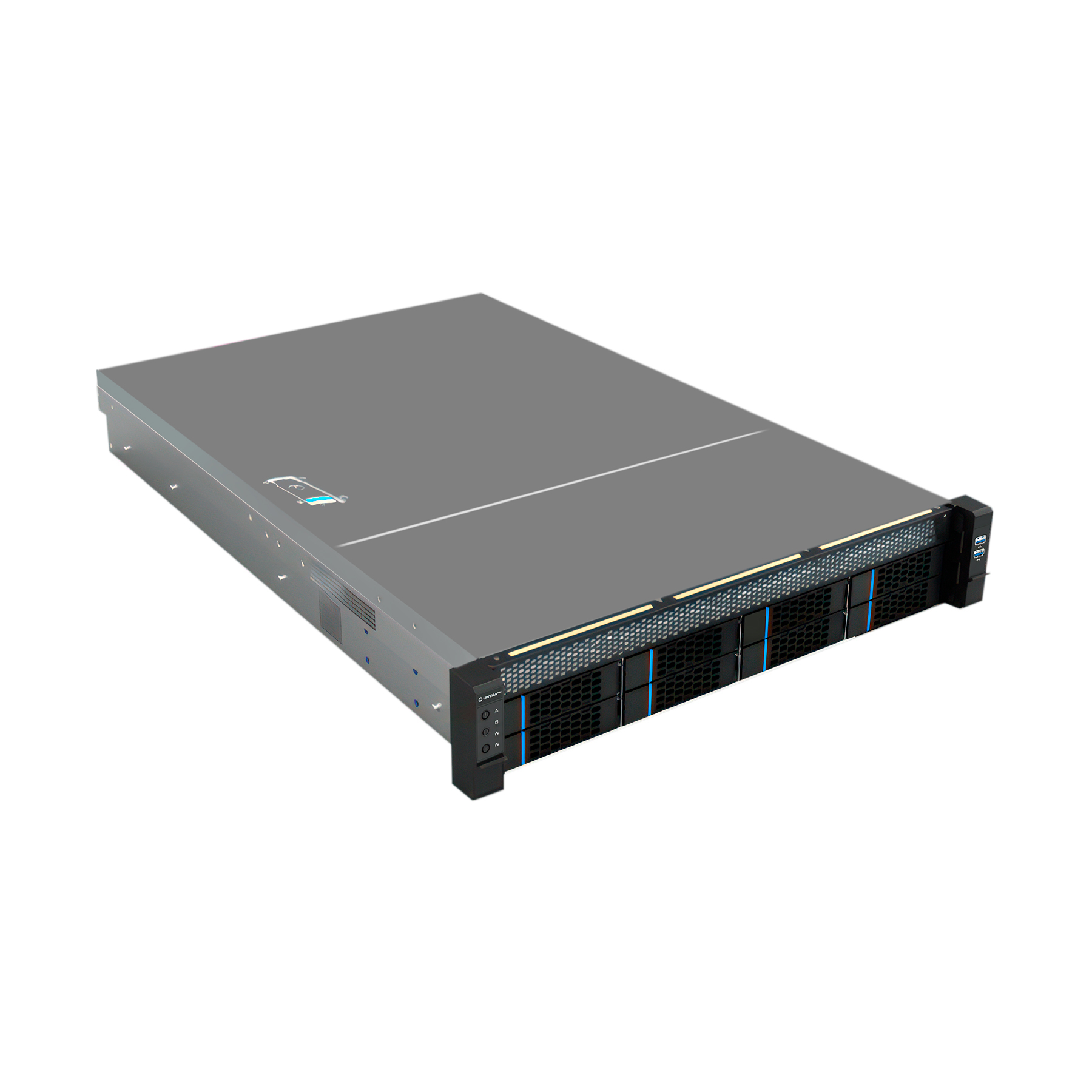

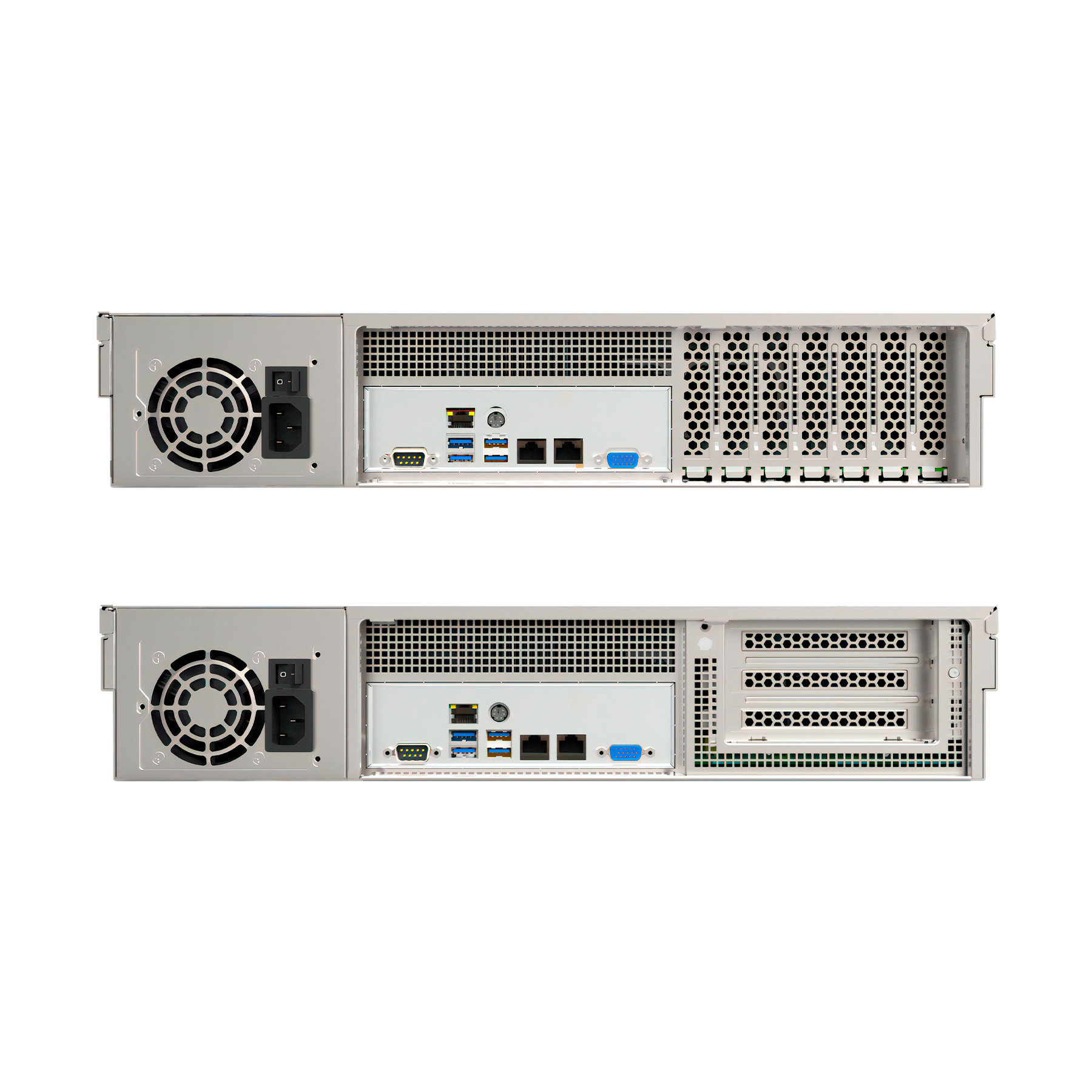

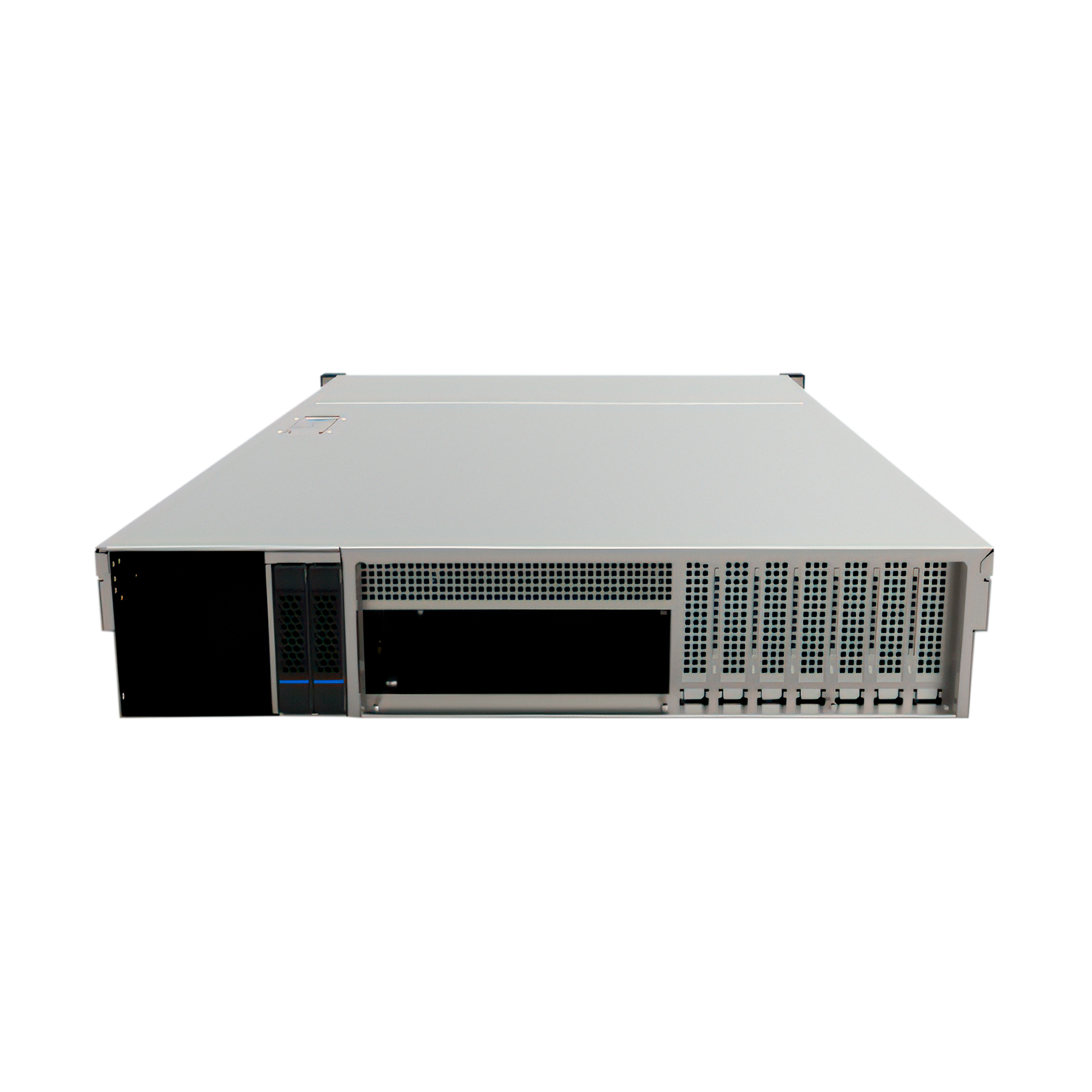

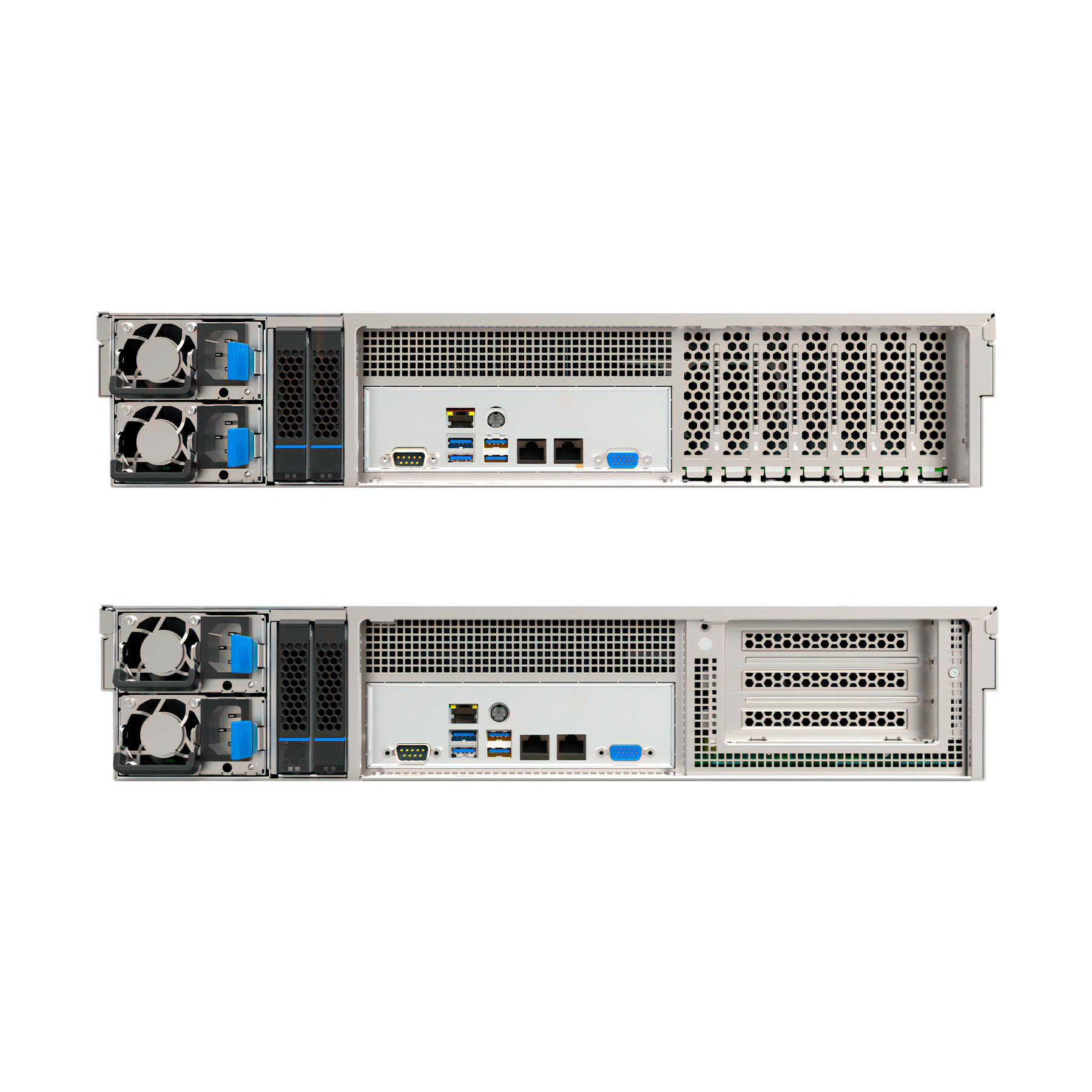

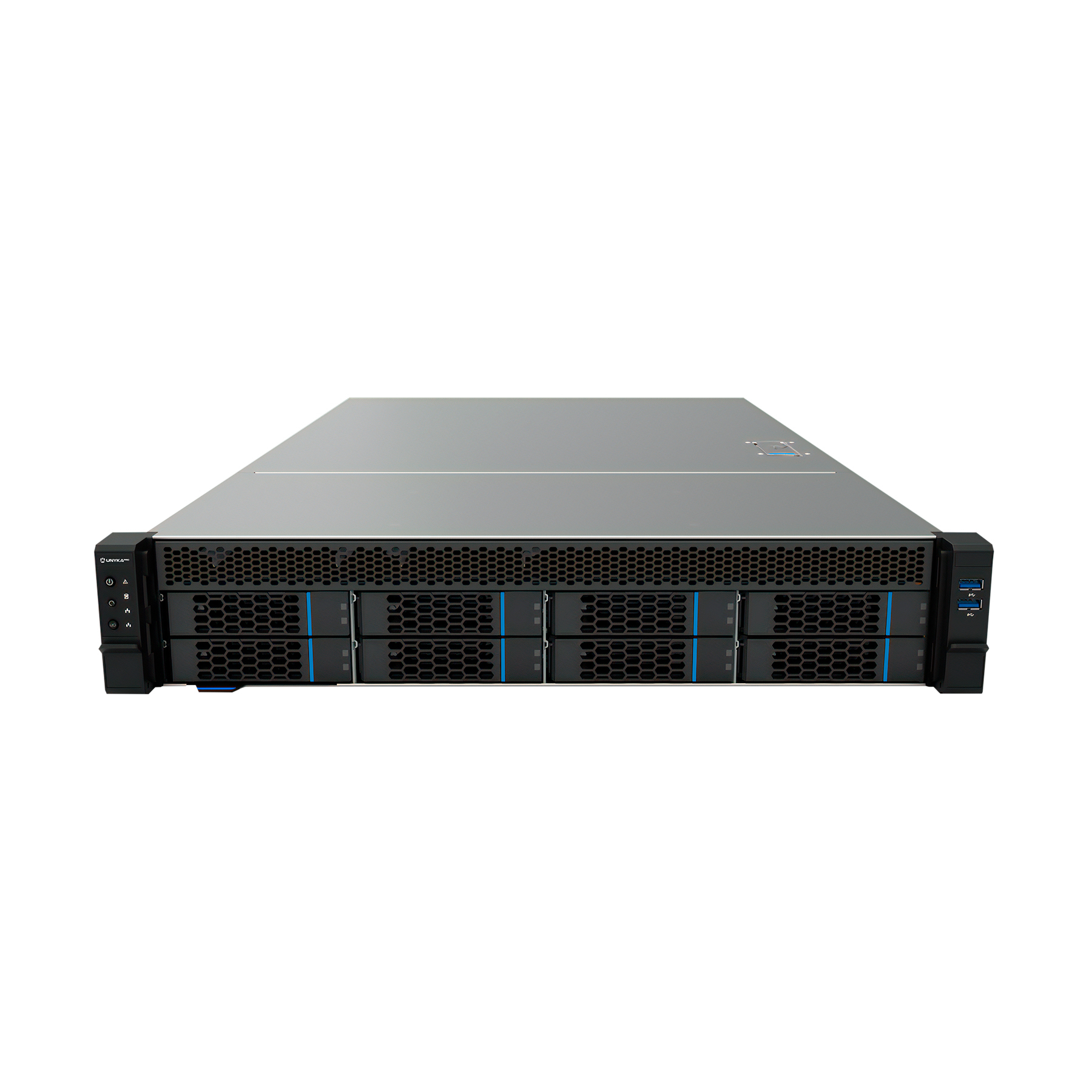

Hot Swap 2U HSW4208 G3
Model Hot Swap 2U HSW4208 G3Part no. UK80.20.08G3EAN 6974560221011
31 specifications
- TypeRack
- Weight9.7 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity0
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Rack
- Weight
- 9.7 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Supported HDD sizes
- 2.5,3.5"
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- Hot Swap 2U HSW4208 G3
- Part number
- UK80.20.08G3
- EAN / UPC
- 6974560221011
- Also known as
- UNYKAch Server Rack Hot Swap 2U HSW4208 G3 12 GB Backplane
Specifications
31 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC |
| Product colour | Black, Silver |
| Supported motherboard form factors | ATX, CEB, EEB |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 0 |
| Number of internal 3.5" bays | 8 |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Rear |
| Redundant power supply (RPS) support | Yes |

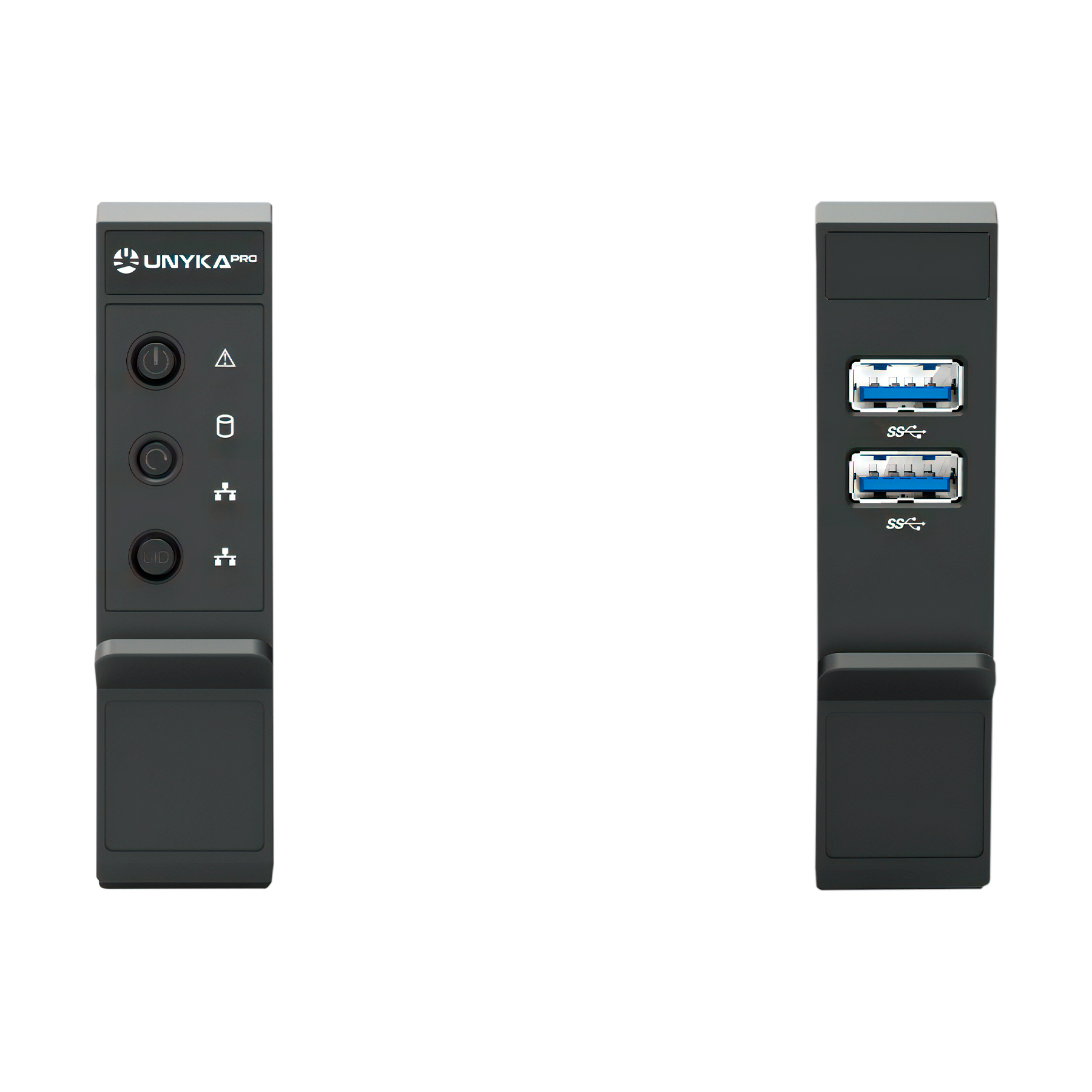

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Hot-swap | Yes |
| Number of HDDs supported | 8 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 685 mm |
| Height | 87.8 mm |
| Weight | 9.7 kg |
| Material thickness | 1.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 577 mm |
| Package depth | 836 mm |
| Package height | 204 mm |
| Package weight | 13.5 kg |
Other features
| Specification | Value |
|---|---|
| Supported HDD interfaces | Mini SAS |
| Peripheral (Molex) power connectors (4-pin) | 4 |
