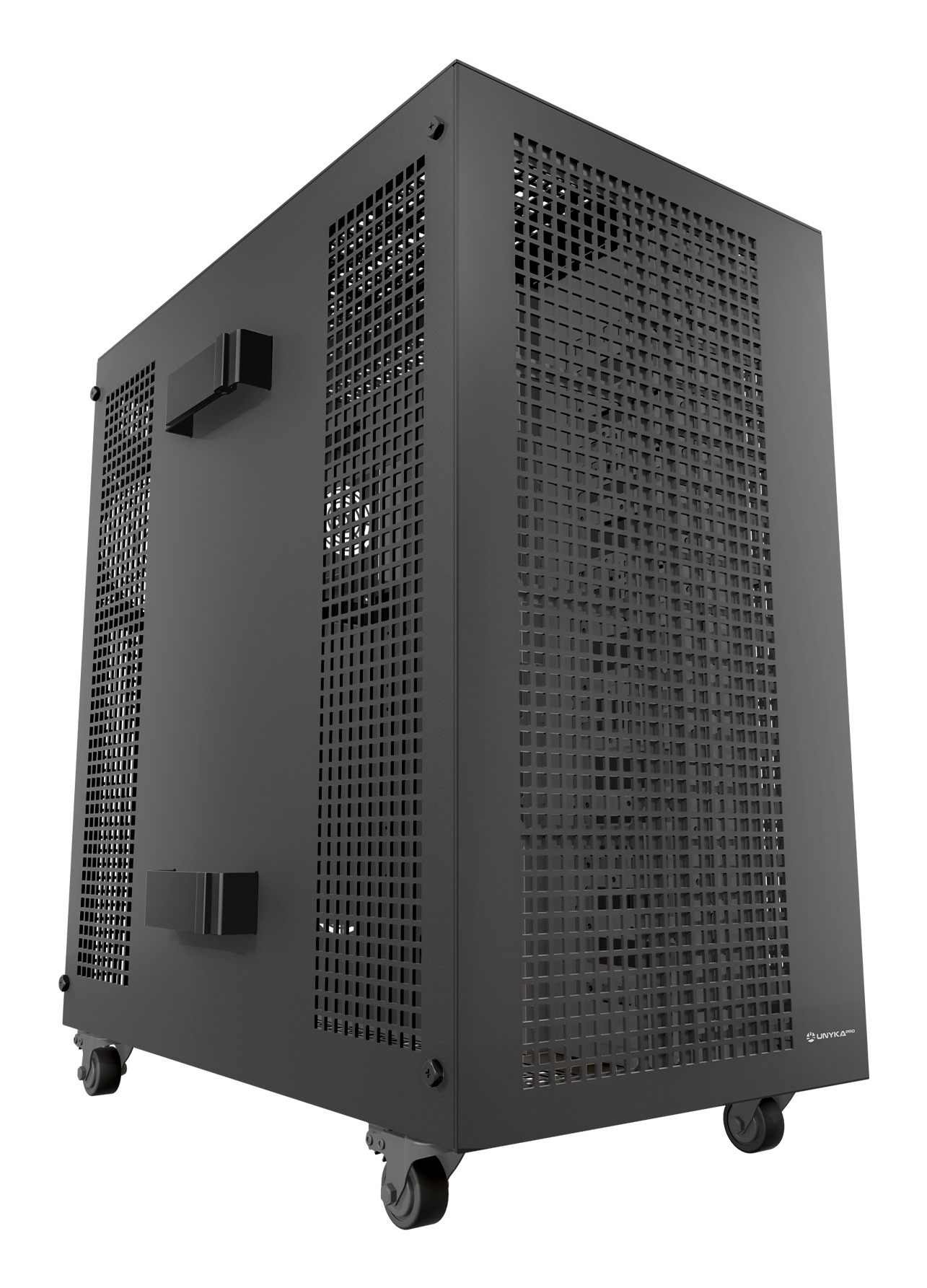

AI PRO 1500
Model AI PRO 1500Part no. UK80.15.42EAN 8436617921162
51 specifications
- TypeTower
- Weight23 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)4
Overview
- Type
- Tower
- Weight
- 23 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 4
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- AI PRO 1500
- Part number
- UK80.15.42
- EAN / UPC
- 8436617921162
- Also known as
- UNYKAch Case Workstation AI PRO 1500
Specifications
51 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | SPCC |
| Product colour | Black |

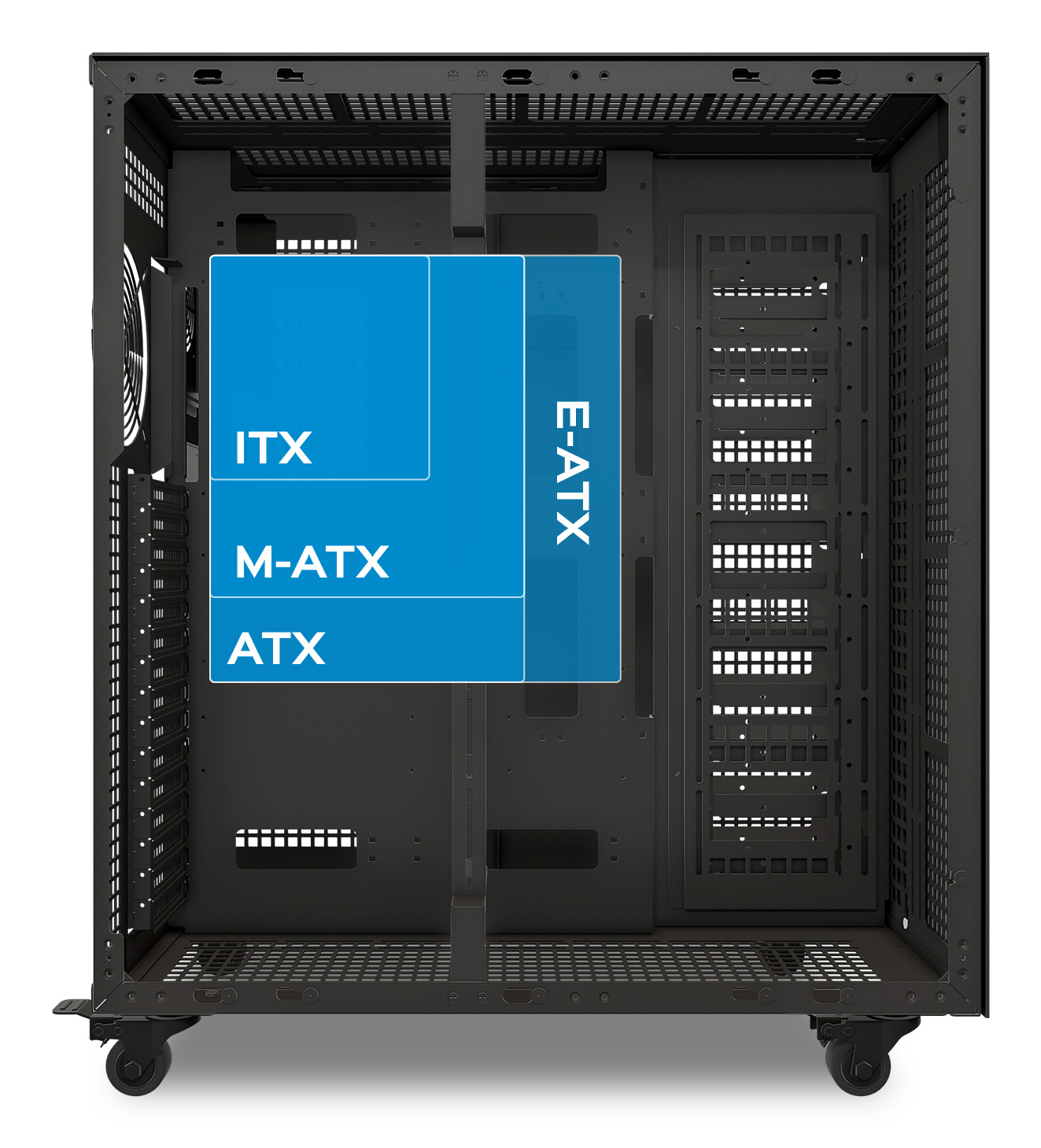

| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |

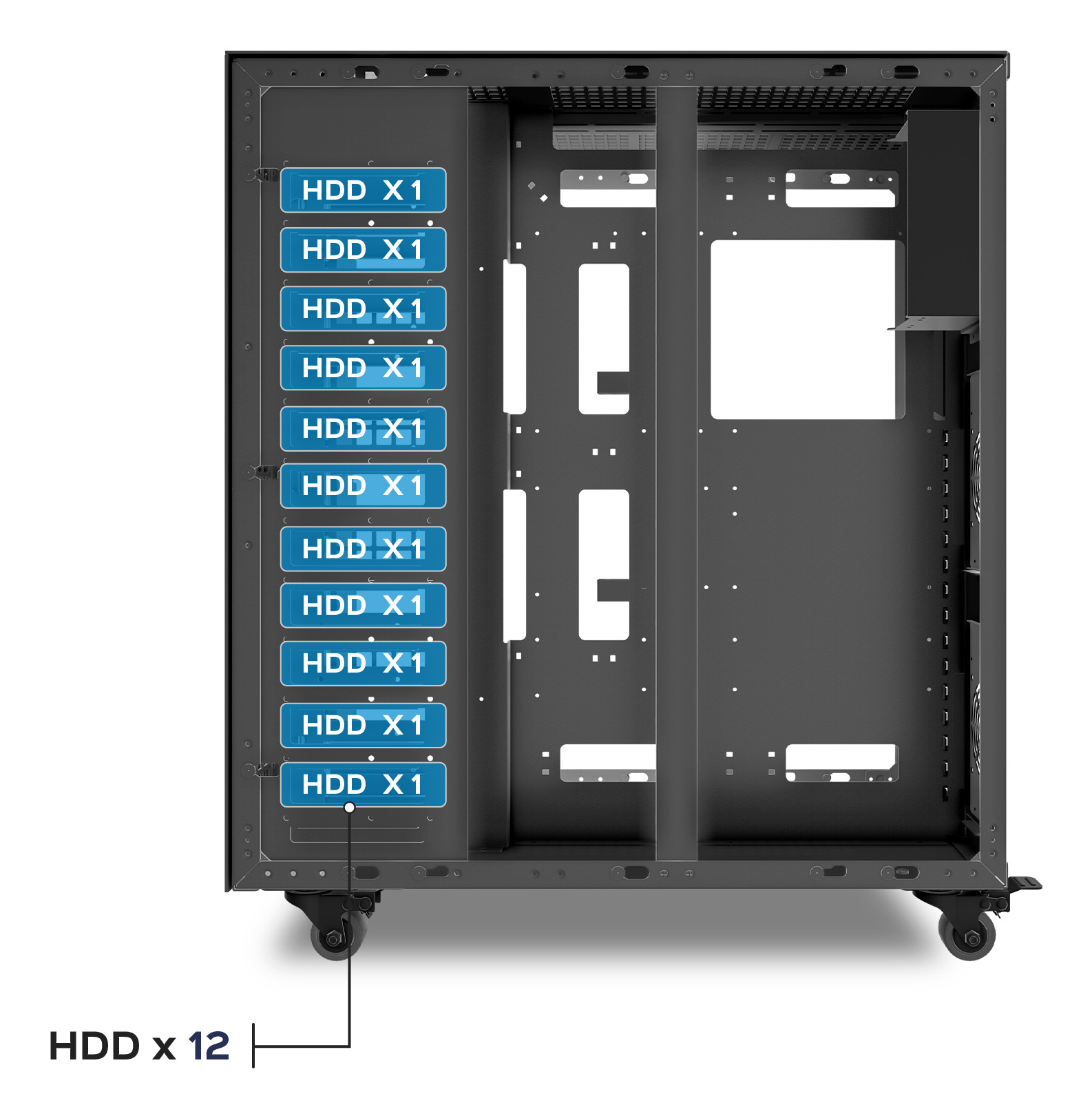

| Number of 3.5" bays | 12 |
| Number of 2.5" bays | 5 |
| Number of internal 3.5" bays | 12 |
| Number of storage drives supported | 17 |
| Number of expansion slots | 15 |
| Anti-dust filter | Yes |
| Transport wheels | Yes |
| On/off button | Yes |
| Reset button | Yes |

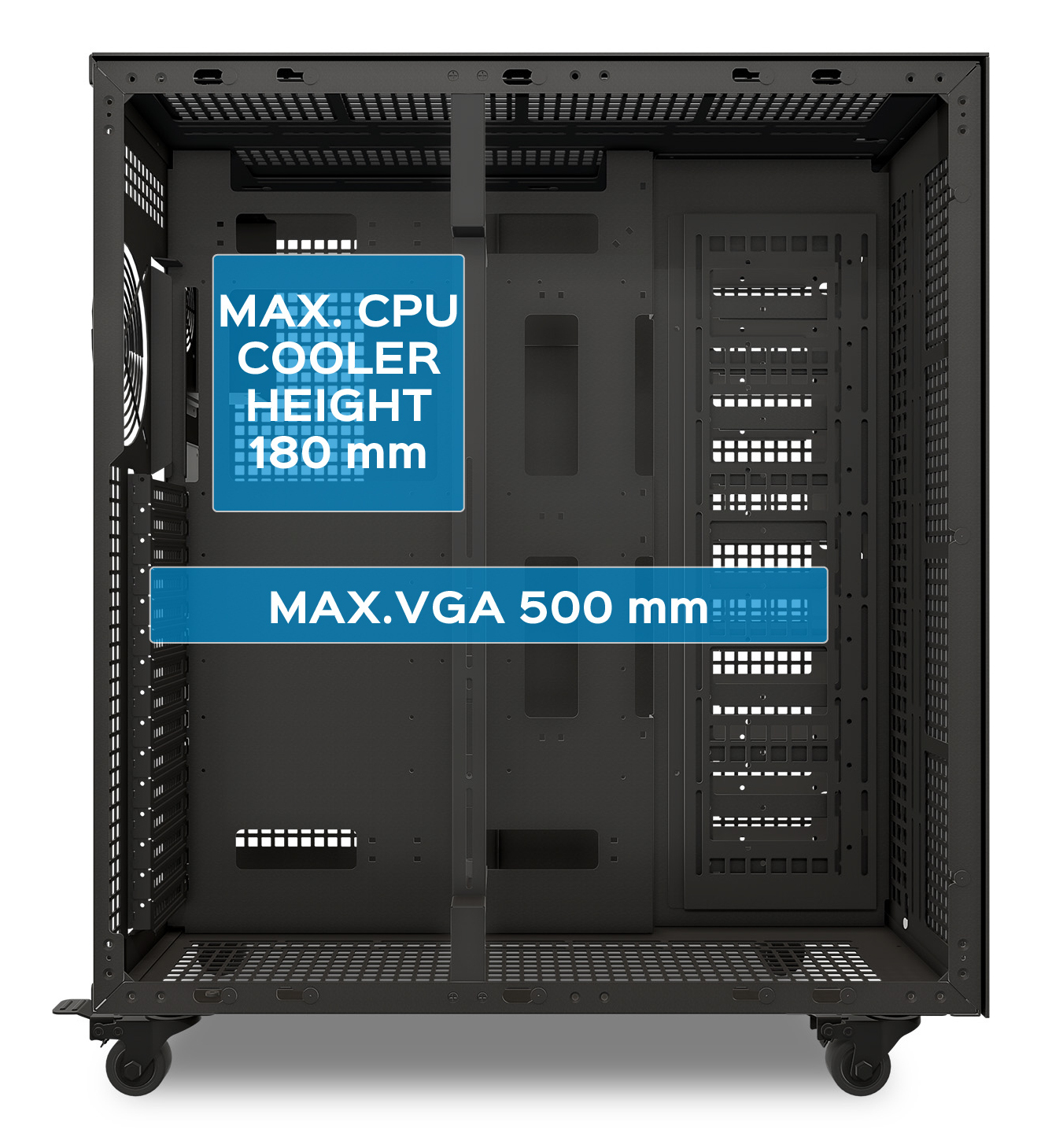

| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 50 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Rear |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |

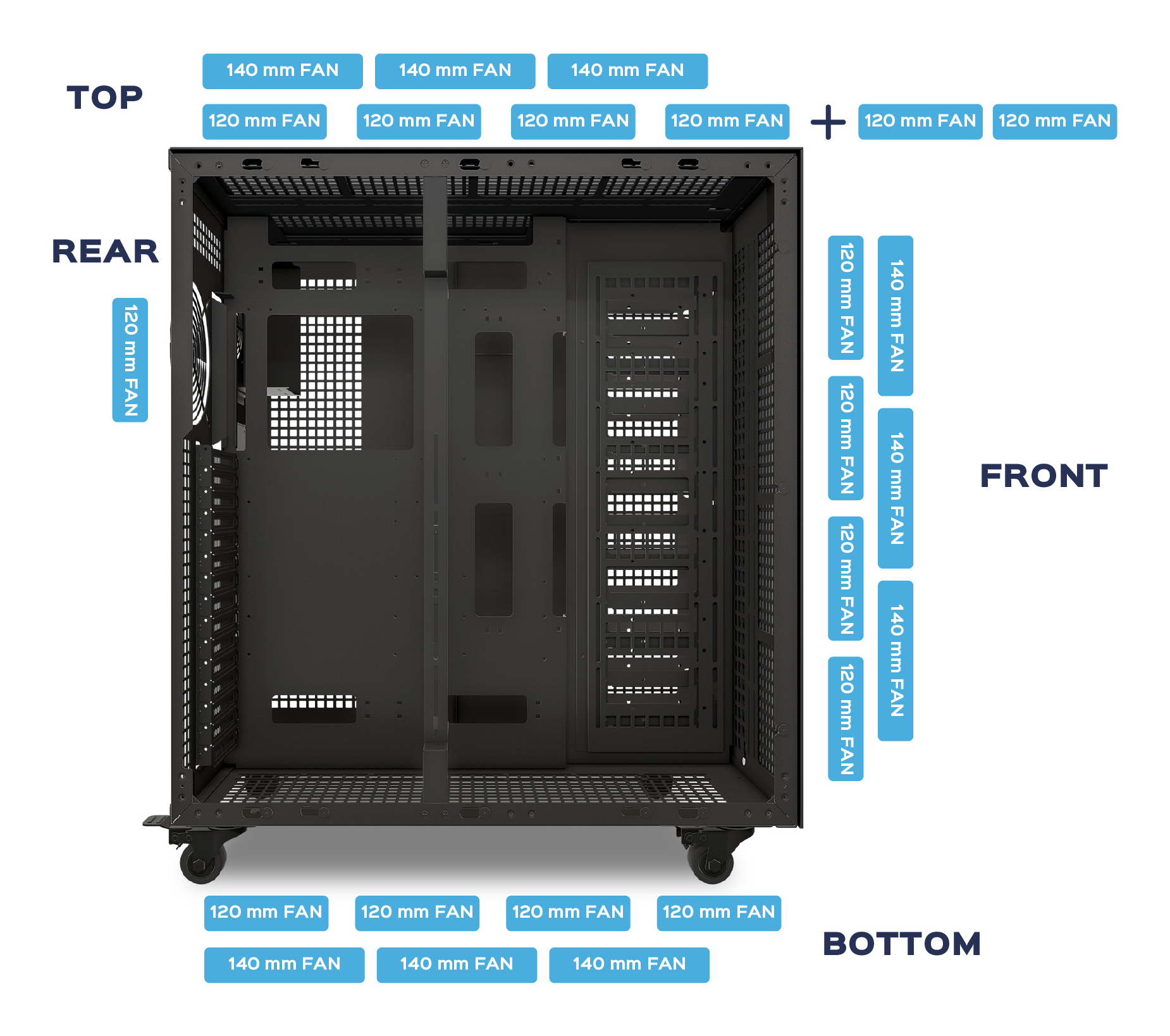

Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 8 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 6 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 4 |
| Bottom fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 240,280,360,420,480 mm |
| Side radiator sizes supported | 240,280,360,420,480 mm |
| Bottom radiator sizes supported | 240,280,360,420,480 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 240,280,360,420,480 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 335 mm |
| Depth | 559 mm |
| Height | 590 mm |
| Weight | 23 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 450 mm |
| Package depth | 667 mm |
| Package height | 732 mm |
| Package weight | 28 kg |
