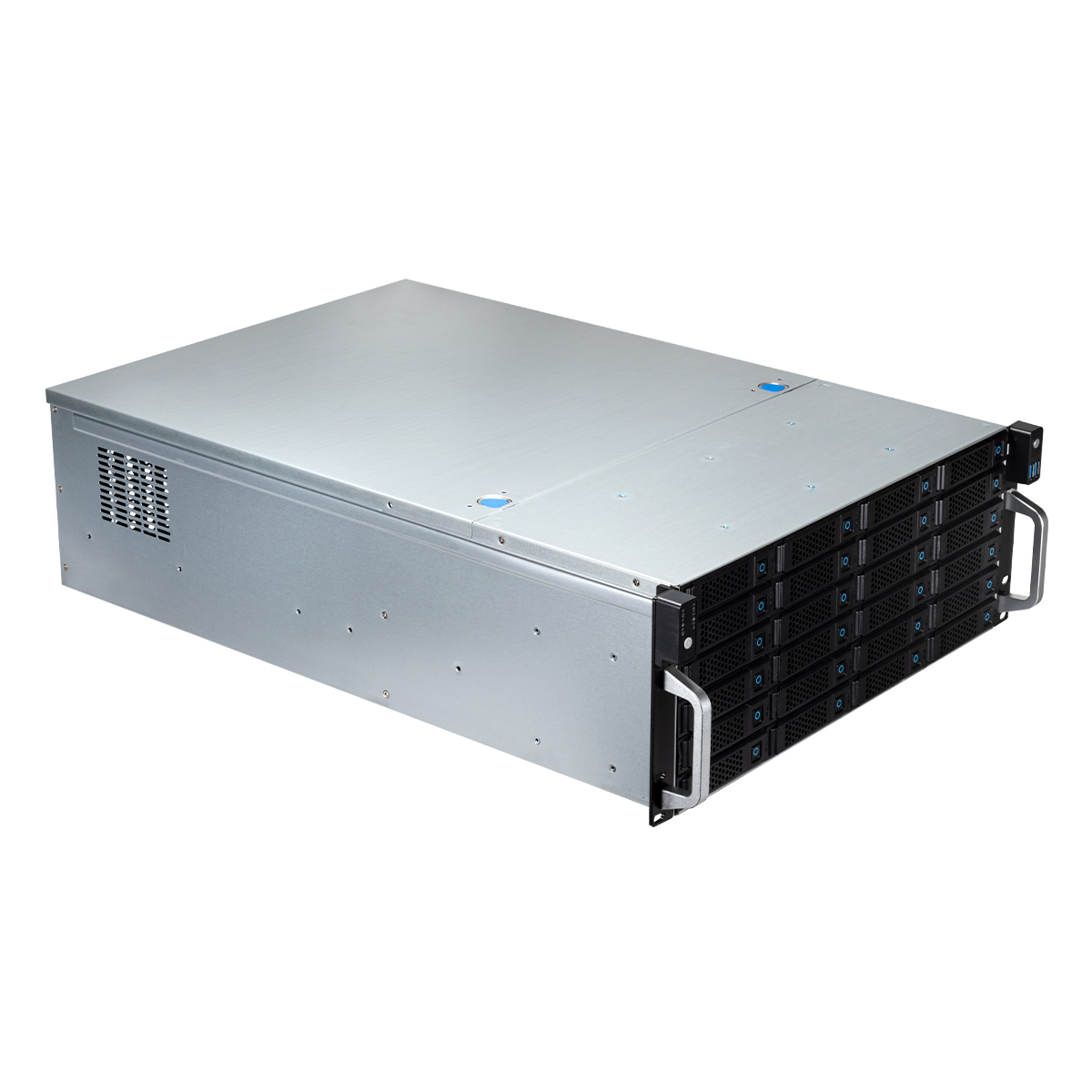

Server Rack Hot Swap 4U / 24 Bays
Model 80.40.24EAN 6940533545064
37 specifications
- TypeRack
- Weight15.3 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity0
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Rack
- Weight
- 15.3 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Supported HDD sizes
- 2.5,3.5"
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- 80.40.24
- Part number
- 80.40.24
- EAN / UPC
- 6940533545064
- Also known as
- UNYKAch Server Rack Hot Swap 4U / 24 Bays
Specifications
37 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC |
| Product colour | Black, Silver |

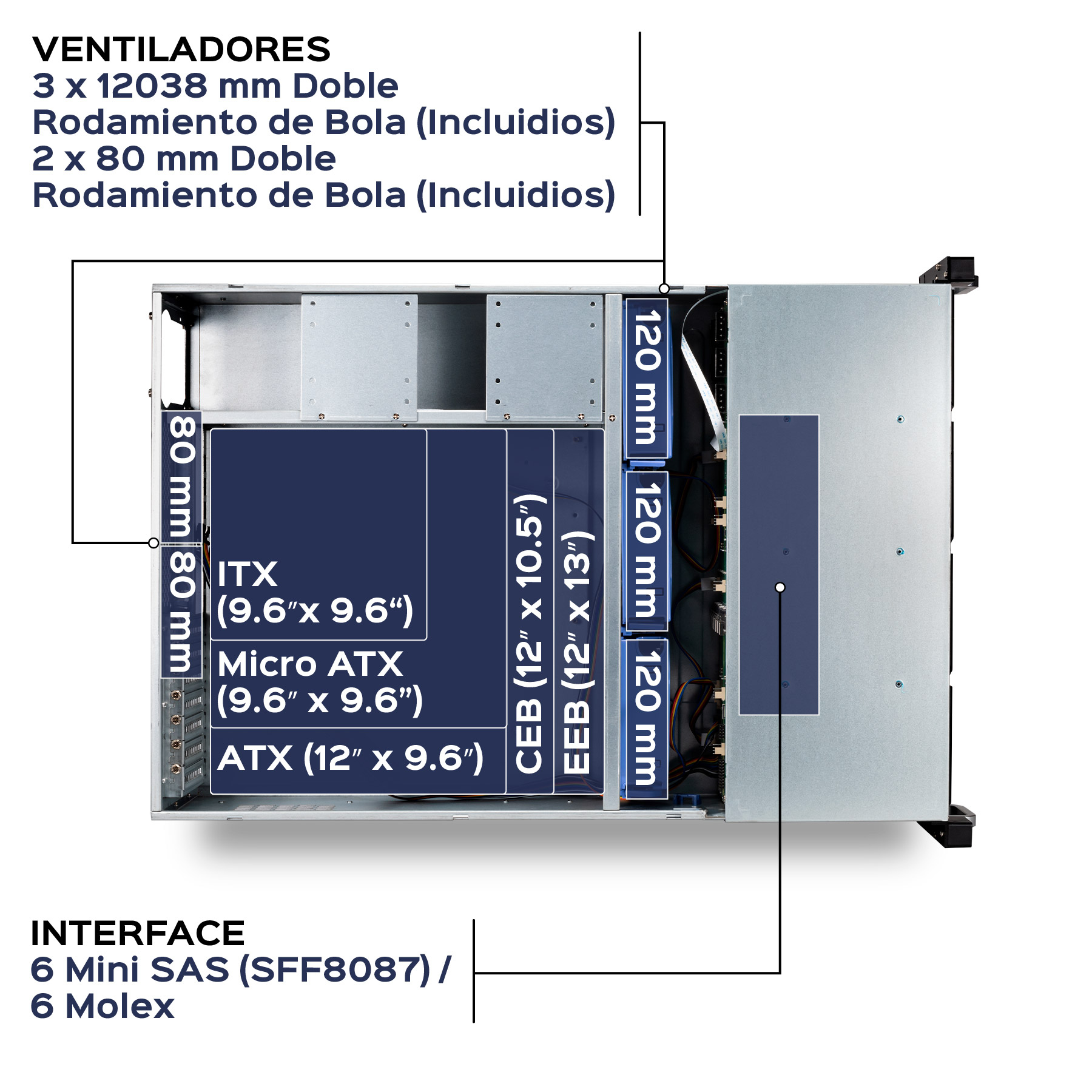

| Supported motherboard form factors | ATX, CEB, EEB, micro ATX |
| Number of 3.5" bays | 24 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 24 |
| Number of internal 3.5" bays | 24 |
| Number of internal 5.25" bays | 0 |
| Number of external 5.25" bays | 0 |

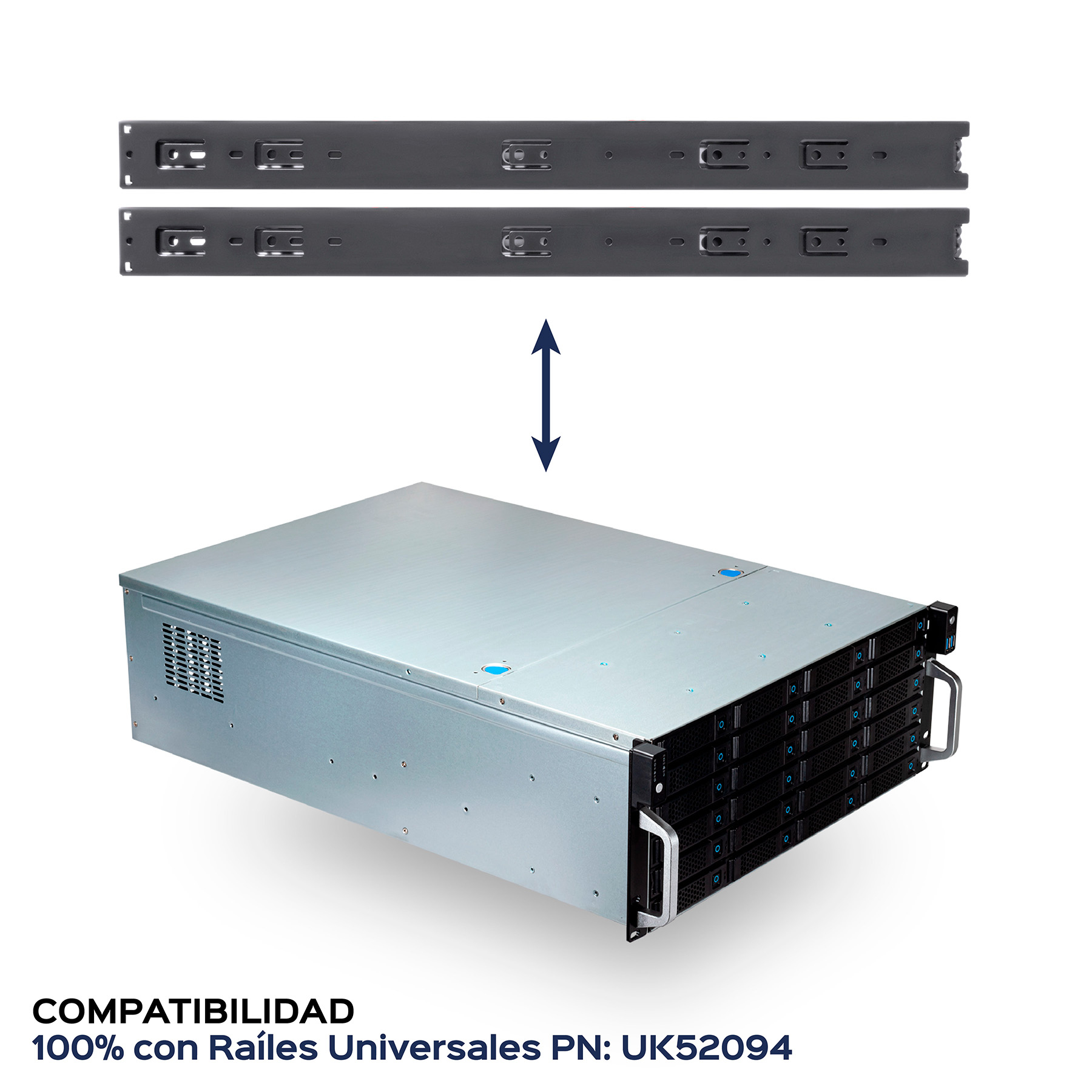

| Rack mounting | Yes |
| Rack capacity | 4U |
| Side window | No |
| On/off button | Yes |
| Certification | CE / ROSH |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Hot-swap | Yes |
| Number of HDDs supported | 24 |

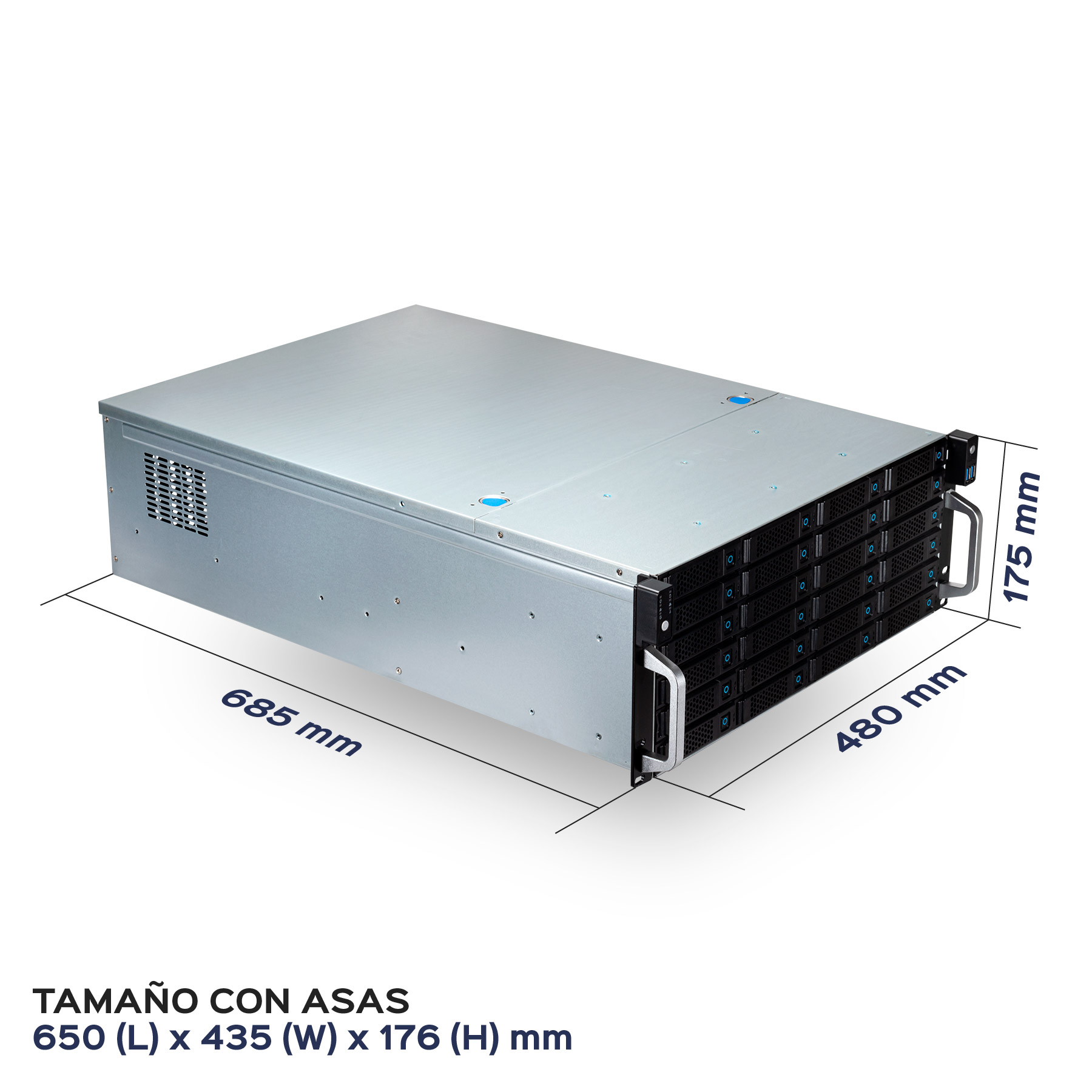

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 650 mm |
| Height | 176 mm |
| Weight | 15.3 kg |
| Material thickness | 1 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 845 mm |
| Package height | 245 mm |
| Package weight | 17.6 kg |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| I/O ports | 6x Mini SAS |
