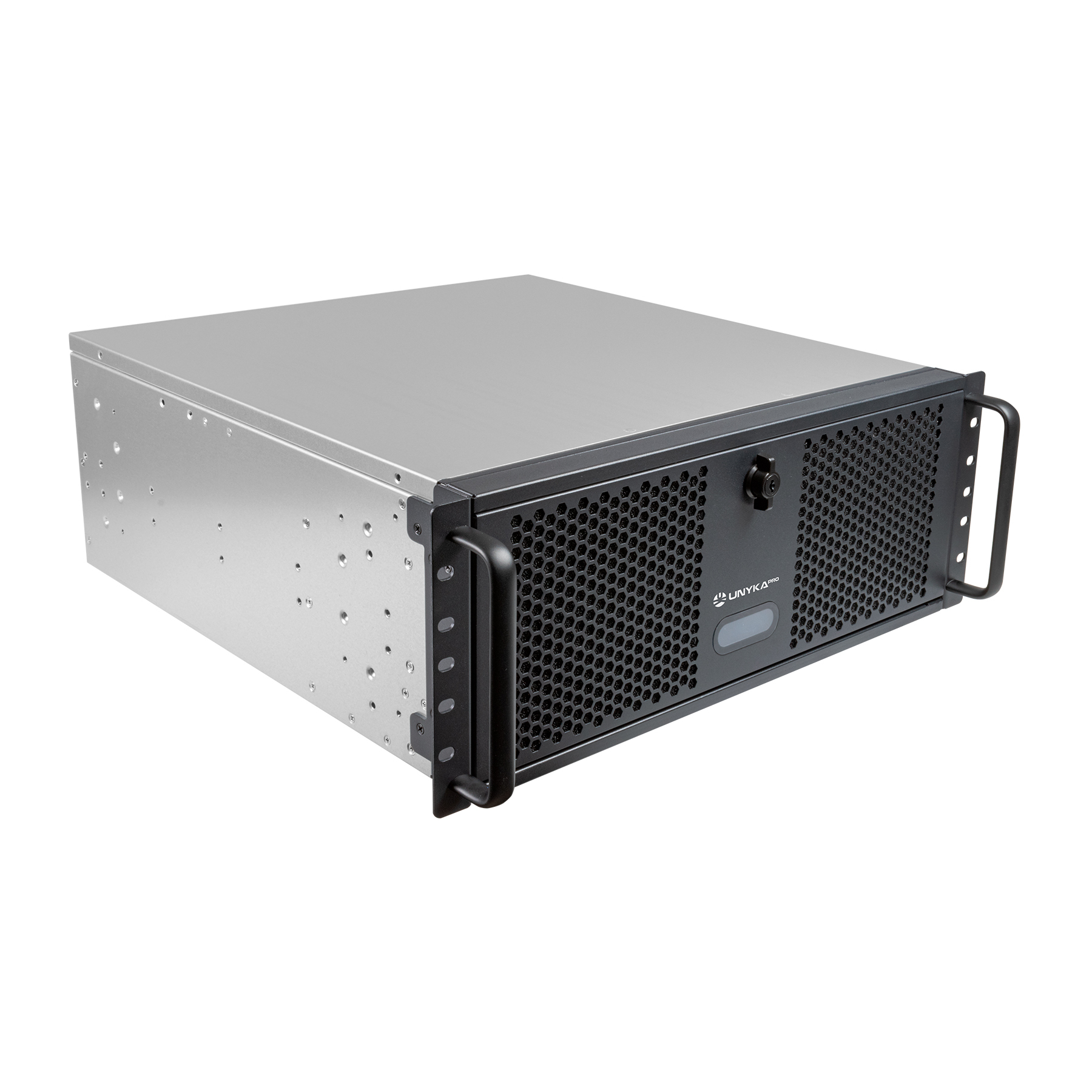

4U 19″ UK4339V
Model 4U 19″ UK4339VPart no. UK51920EAN 6974560221226
40 specifications
- TypeRack
- Weight10.3 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)2
Overview
- Type
- Rack
- Weight
- 10.3 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 2
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- 4U 19″ UK4339V
- Part number
- UK51920
- EAN / UPC
- 6974560221226
- Also known as
- UNYKAch 4U 19″ UK4339V Rack Black, Silver
Specifications
40 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC |
| Product colour | Black, Silver |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of internal 3.5" bays | 3 |

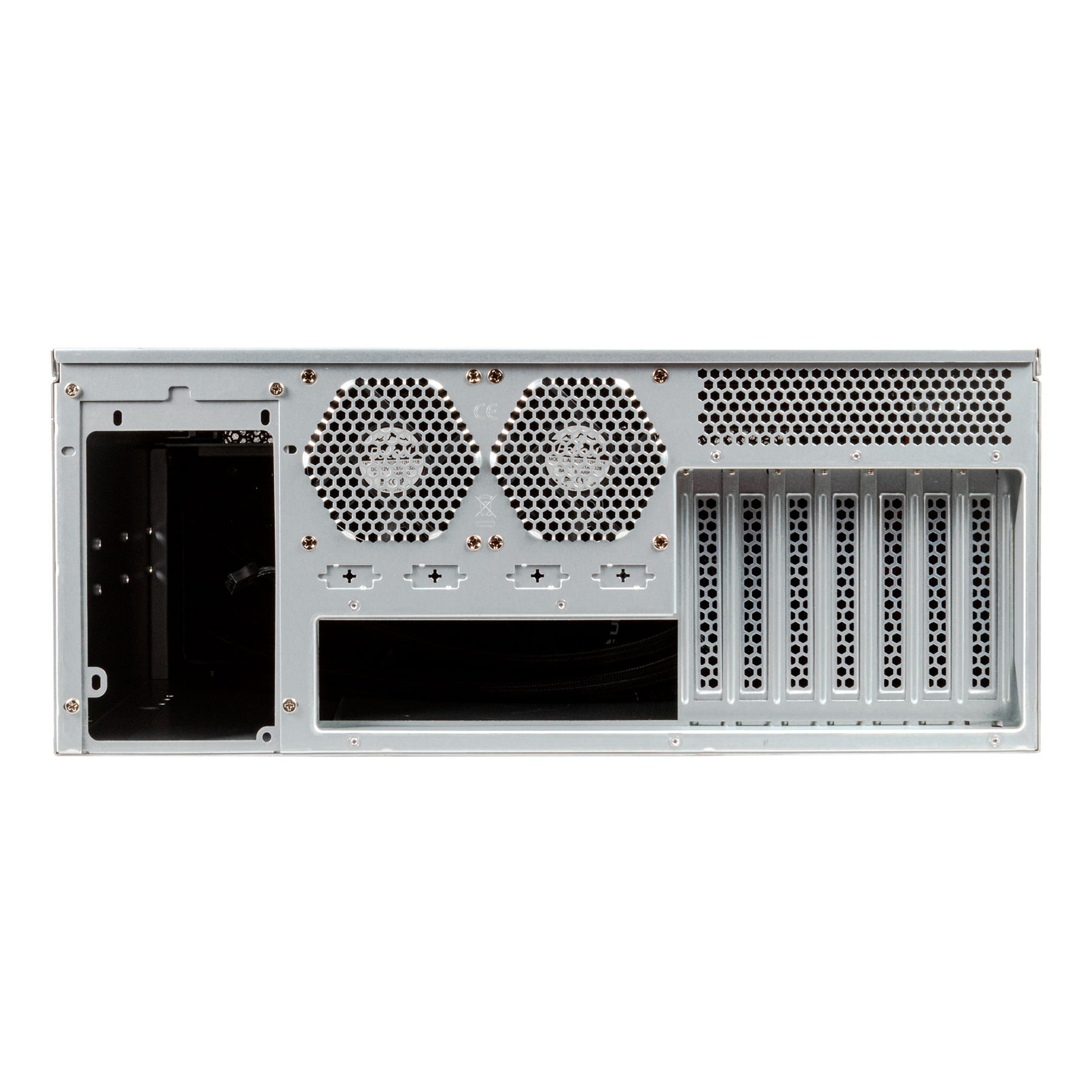

| Number of expansion slots | 7 |
| Rack mounting | Yes |
| Rack capacity | 4U |
| Anti-dust filter | Yes |
| On/off button | Yes |
| LED indicators | Yes |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |

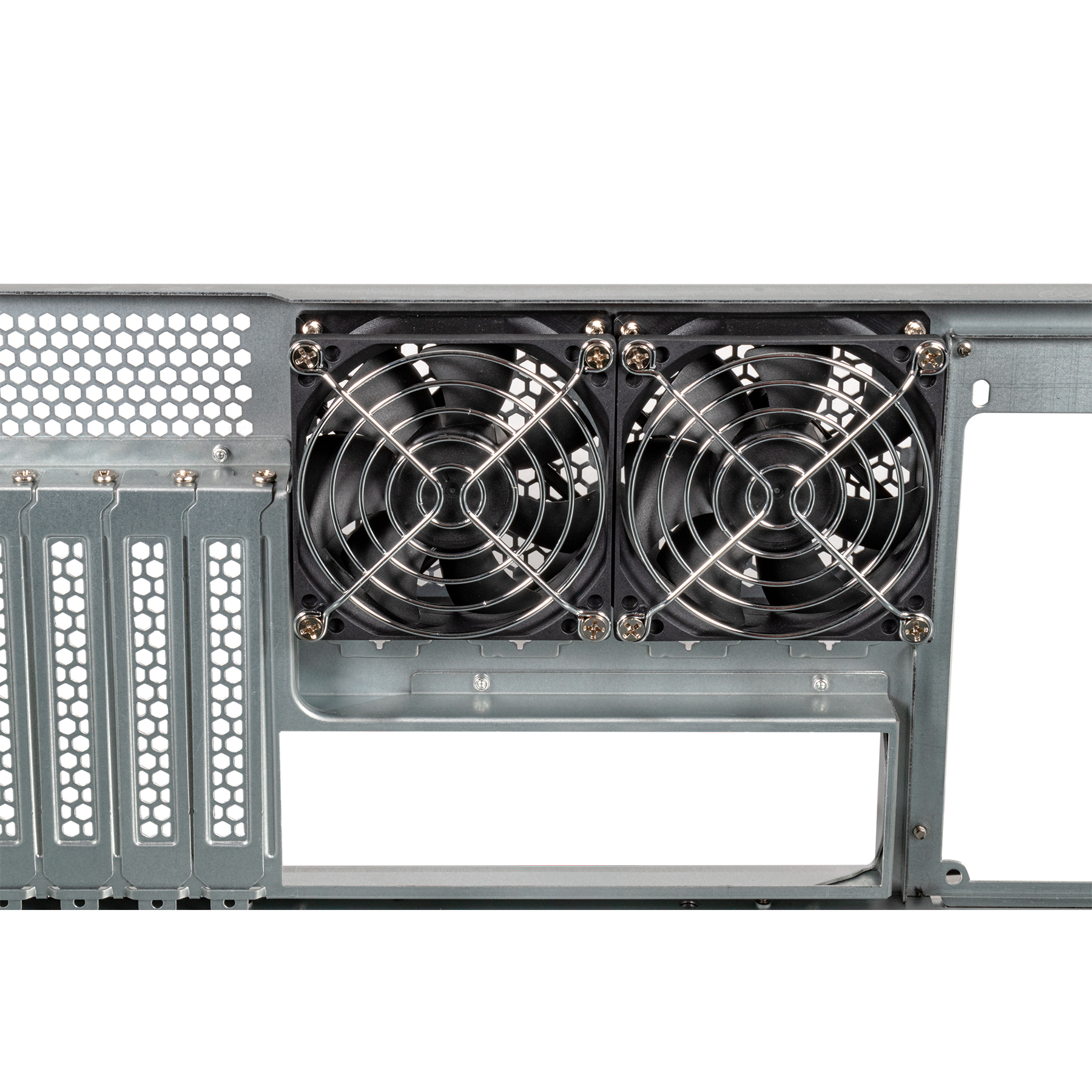

| Rear fans installed | 2x 80 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 80 mm |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |

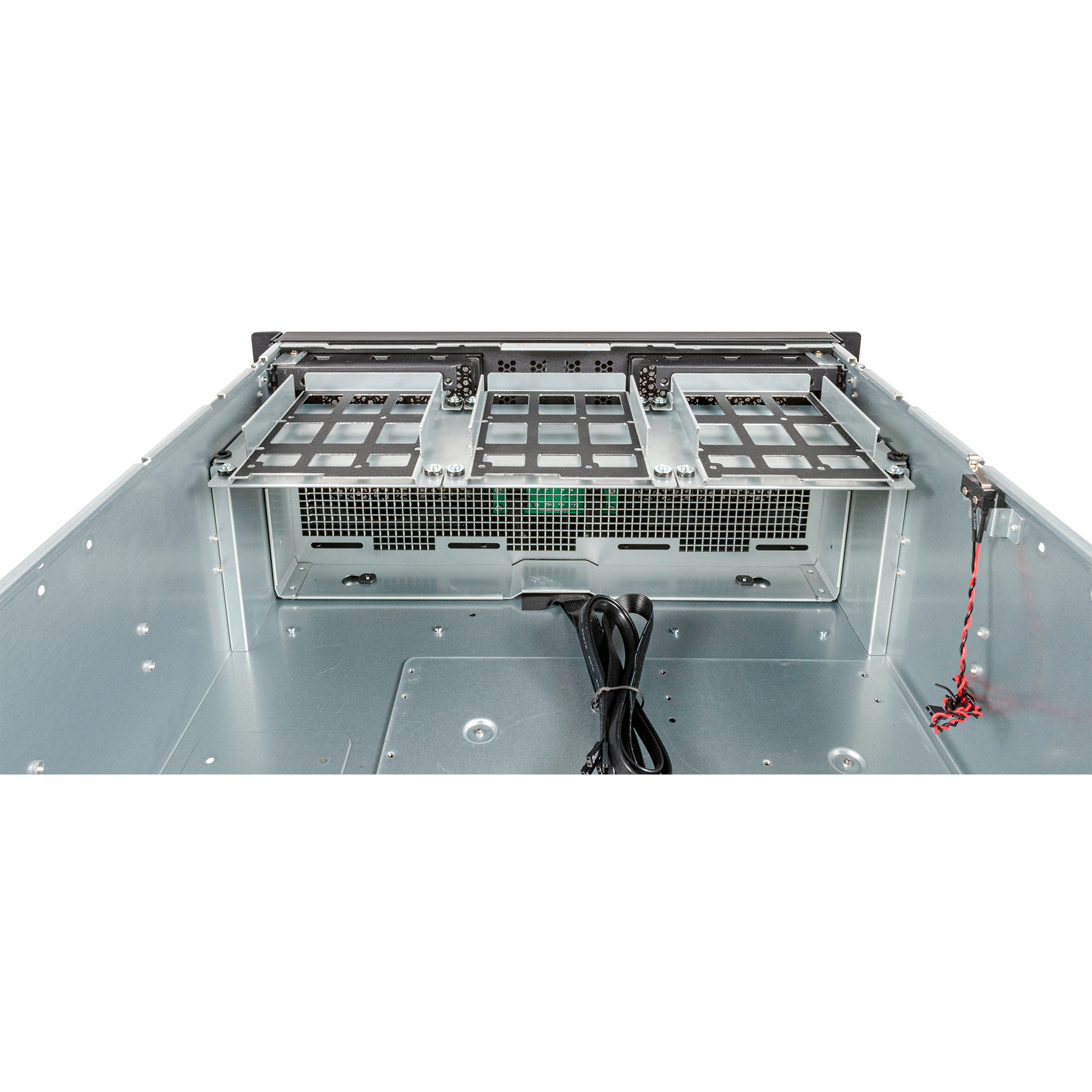

| HDD/SSD combo cage | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 447 mm |
| Height | 176 mm |
| Weight | 10.3 kg |
| Material thickness | 1.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 614 mm |
| Package height | 340 mm |
| Package weight | 14.1 kg |
