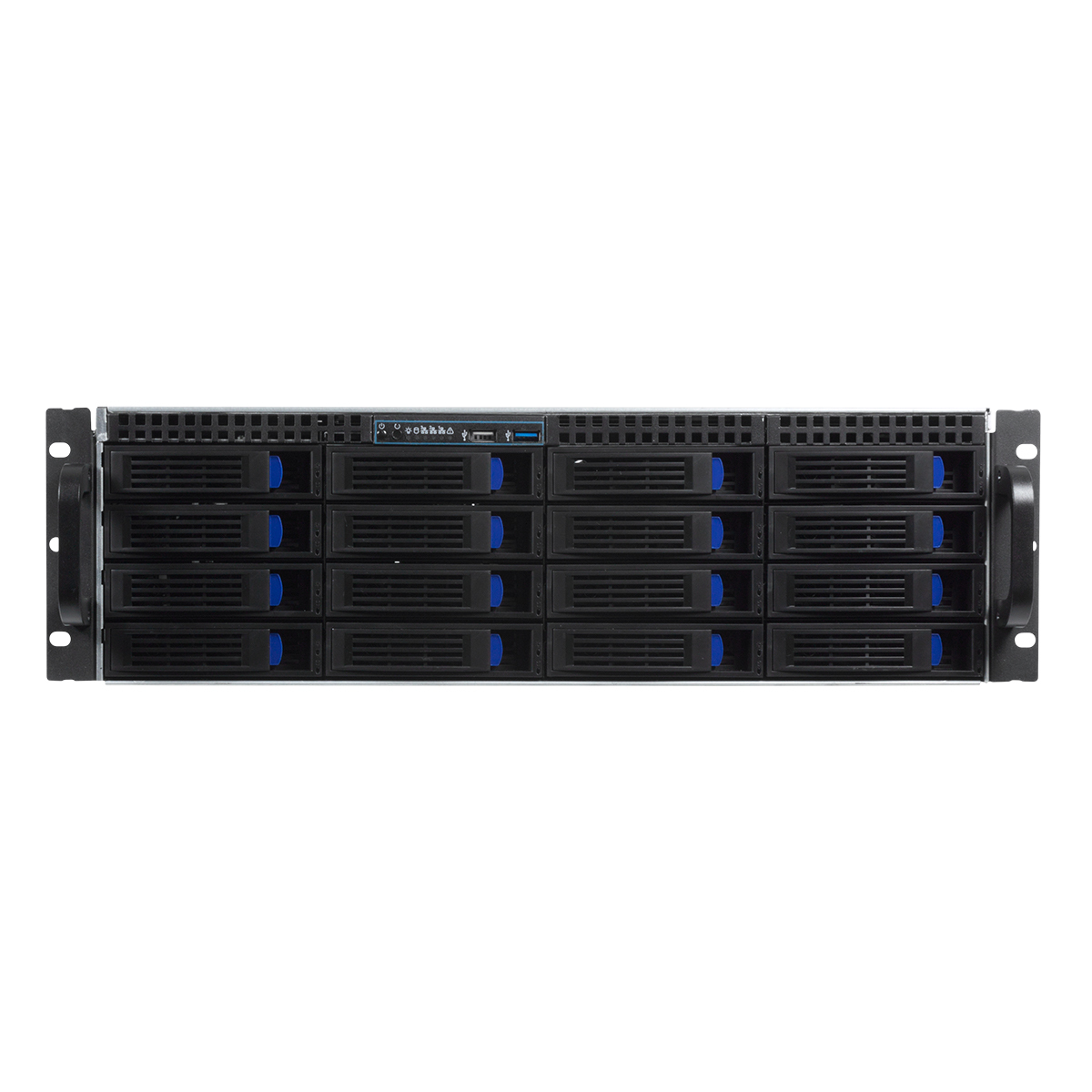

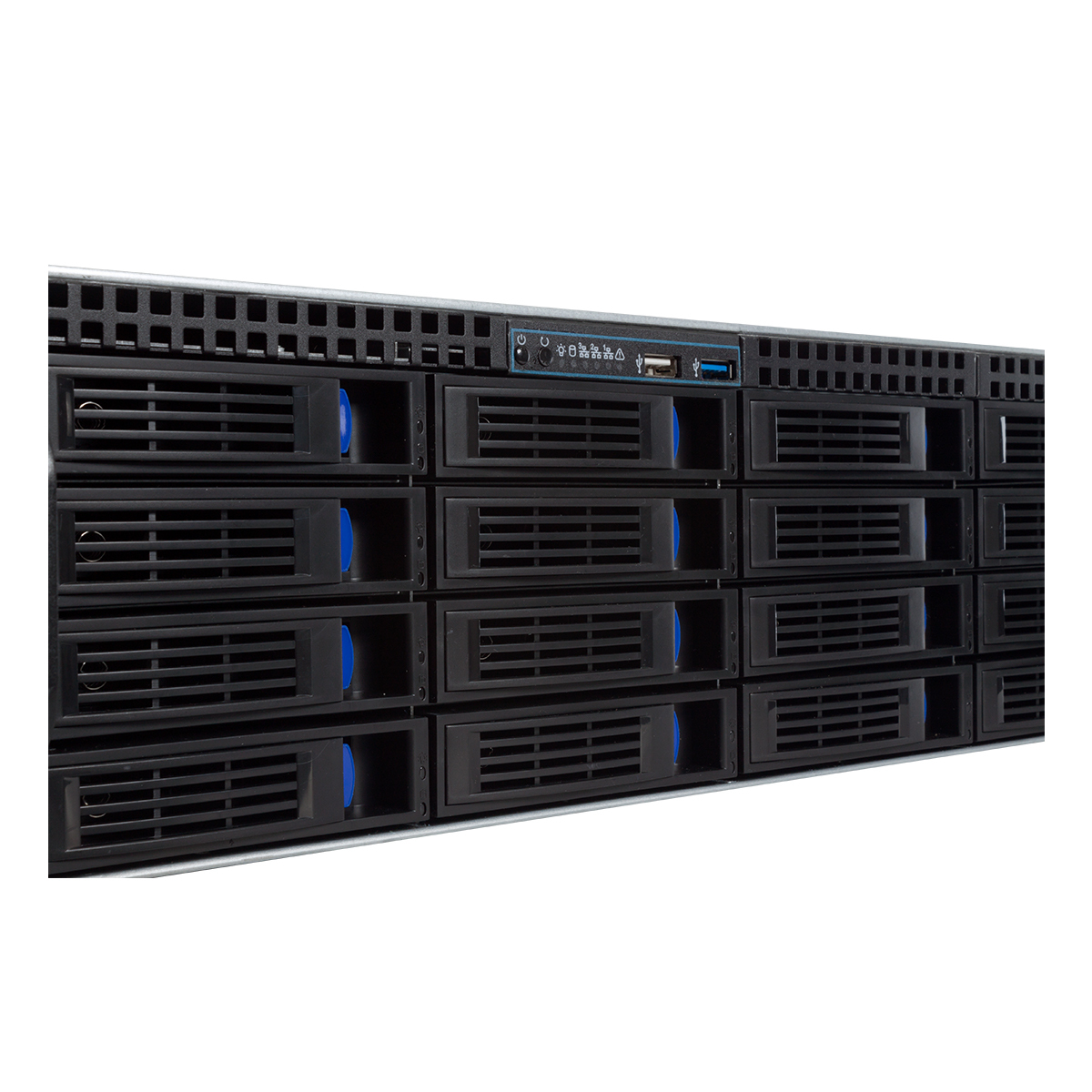

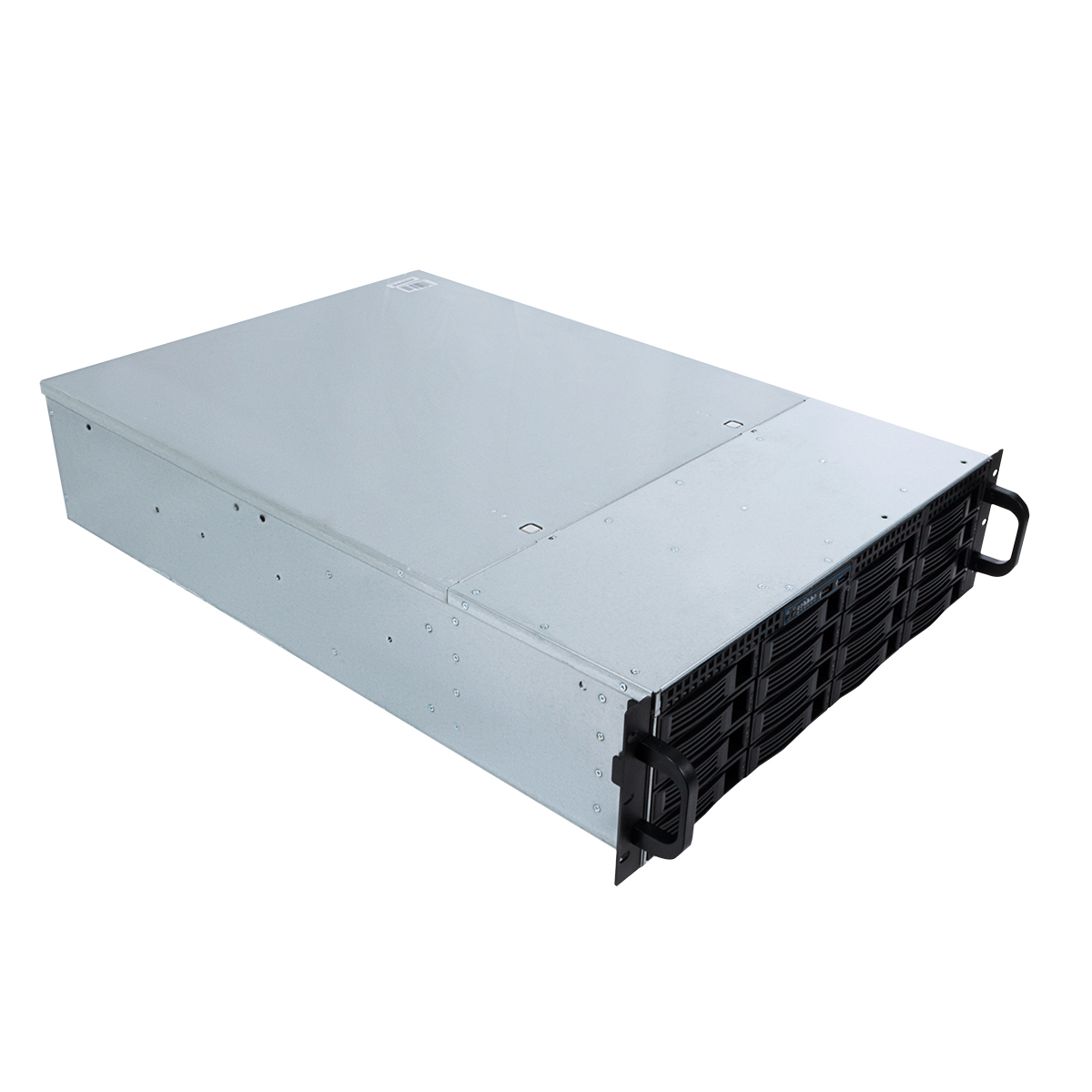

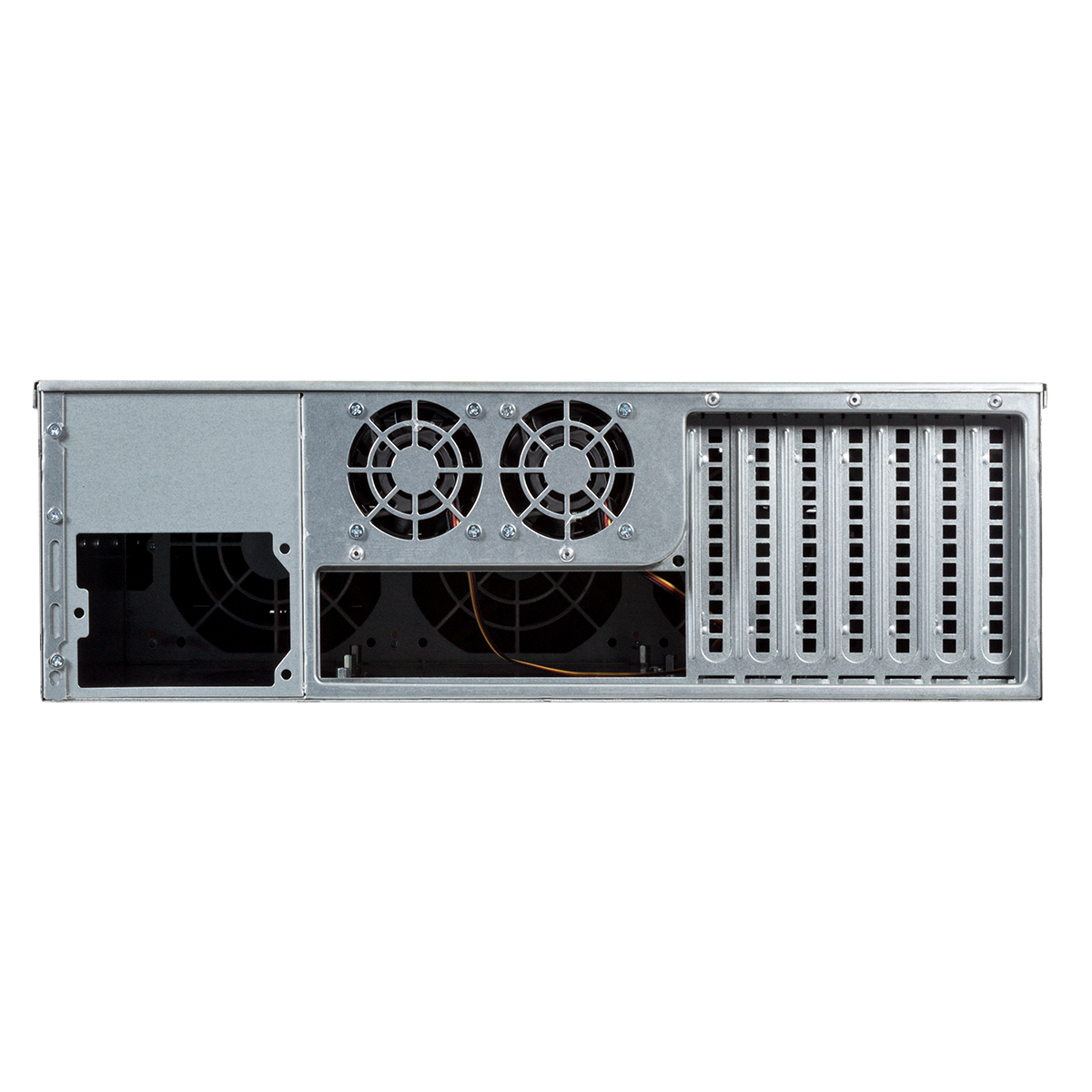

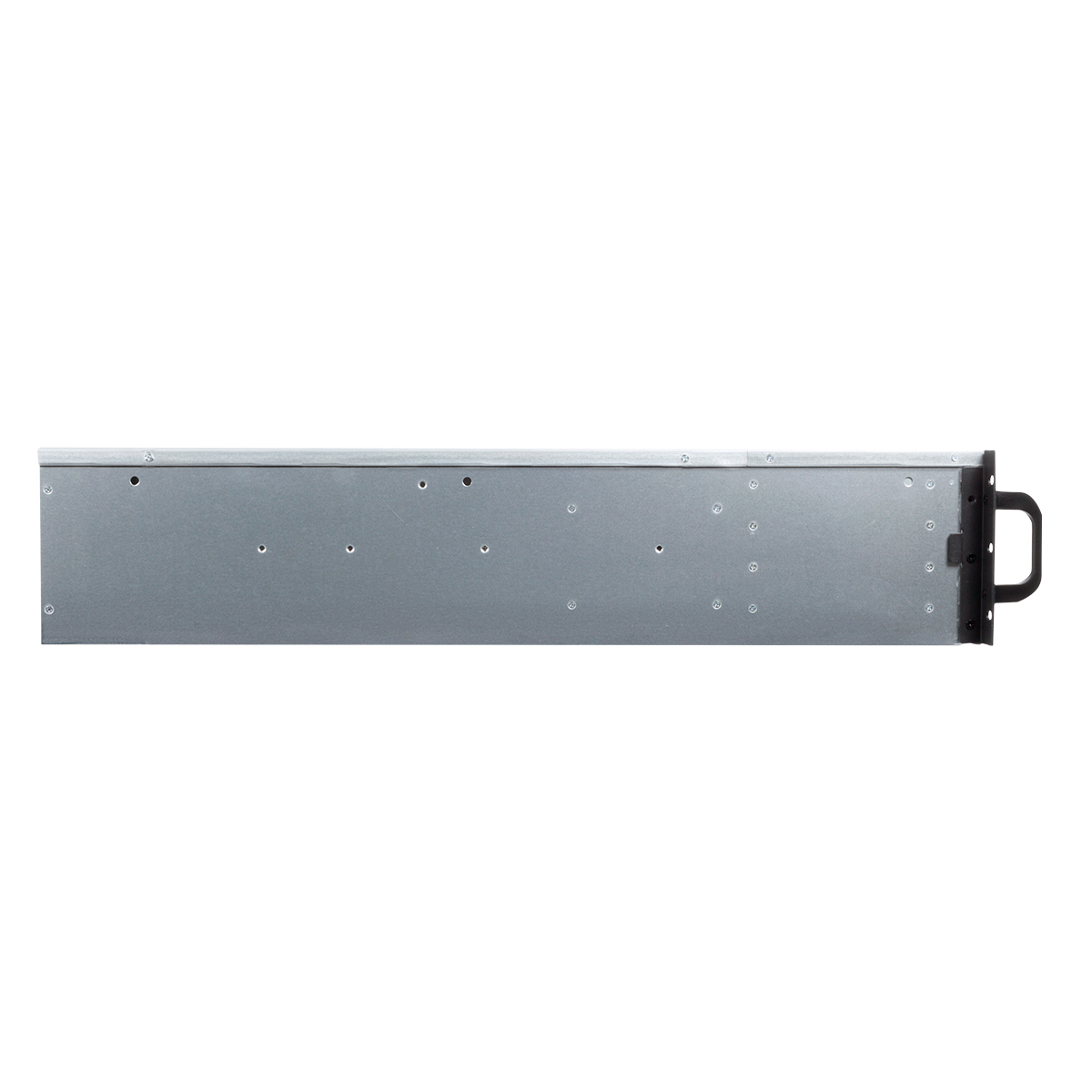

3U HSW4416
Model 3U HSW4416Part no. 80.30.16EAN 6940533544241
37 specifications
- TypeRack
- Weight16 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity1
- Supported HDD sizes3.5"
Overview
- Type
- Rack
- Weight
- 16 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Supported HDD sizes
- 3.5"
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- 3U HSW4416
- Part number
- 80.30.16
- EAN / UPC
- 6940533544241
- Also known as
- UNYKAch 3U HSW4416 Rack Black, Silver
Specifications
37 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC |
| Product colour | Black, Silver |
| Supported motherboard form factors | ATX, CEB, EEB, micro ATX |
| Number of 3.5" bays | 16 |
| Number of 5.25" bays | 0 |
| Number of internal 3.5" bays | 16 |
| Rack mounting | Yes |
| Rack capacity | 3U |
| Side window | No |
| Certification | CE / ROSH |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | No |
| Audio output | No |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| Hot-swap | Yes |
| Number of HDDs supported | 16 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 650 mm |
| Height | 132 mm |
| Weight | 16 kg |
| Material thickness | 1.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 555 mm |
| Package depth | 830 mm |
| Package height | 155 mm |
| Package volume | 71400 cm³ |
| Package weight | 18 kg |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Ventilation fan(s) | 8025 mm x 4 Double ball / 6025 mm x 2 Double ball |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| I/O ports | 4x Mini SAS |
