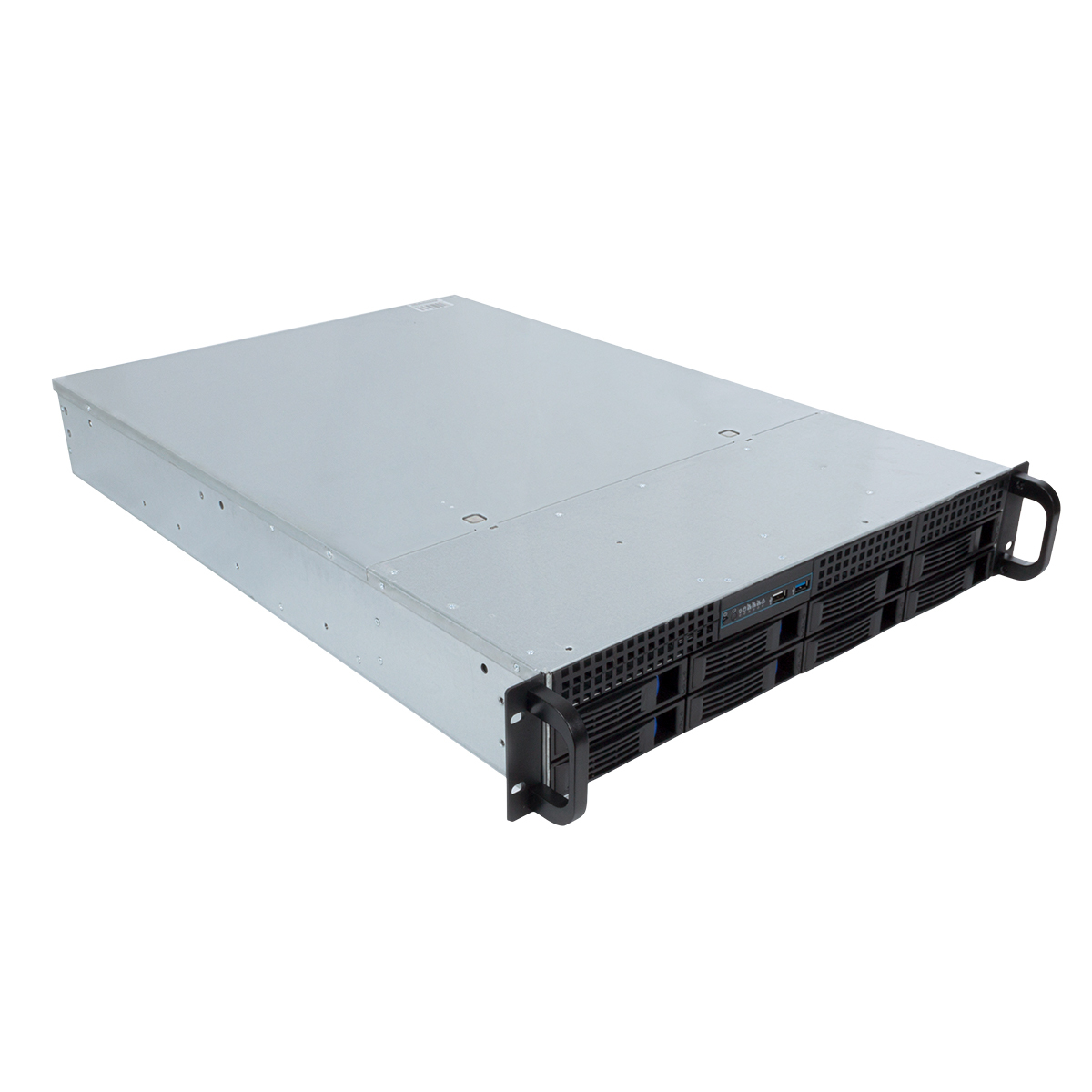

2U HSW4208
Model 2U HSW4208Part no. 80.20.08EAN 6940533543435
36 specifications
- TypeRack
- Weight11 kg
- ColourBlack, Silver
- Power supply includedNo
- USB 2.0 ports quantity1
- Supported HDD sizes3.5"
Overview
- Type
- Rack
- Weight
- 11 kg
- Colour
- Black, Silver
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Supported HDD sizes
- 3.5"
- Brand
- UNYKAch
- Category
- Computer Case
- Model
- 2U HSW4208
- Part number
- 80.20.08
- EAN / UPC
- 6940533543435
- Also known as
- UNYKAch 2U HSW4208 Rack Black, Silver
Specifications
36 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Rack |
| Type | Server |
| Material | SGCC |
| Product colour | Black, Silver |
| Supported motherboard form factors | ATX, CEB, EEB |
| Number of 3.5" bays | 8 |
| Number of 5.25" bays | 0 |
| Number of internal 3.5" bays | 8 |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Side window | No |
| Certification | CE / ROSH |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | Flex-ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | No |
| Audio output | No |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| Hot-swap | Yes |
| Number of HDDs supported | 8 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 650 mm |
| Height | 89 mm |
| Weight | 11 kg |
| Material thickness | 1.2 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 555 mm |
| Package depth | 830 mm |
| Package height | 155 mm |
| Package volume | 71400 cm³ |
| Package weight | 13 kg |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
| Supported HDD interfaces | mSATA |
| Ventilation fan(s) | 4x 80 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
