TQC-4701U3C-B computer case Mini Tower Black
Model TQC-4701U3C-BEAN 8433281013629
39 specifications
- TypeMini Tower
- Weight2.5 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity1
- Front fans installed1x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 2.5 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Front fans installed
- 1x 120 mm
- Brand
- TooQ
- Category
- Computer Case
- Model
- TQC-4701U3C-B
- Part number
- TQC-4701U3C-B
- EAN / UPC
- 8433281013629
- Also known as
- TooQ TQC-4701U3C-B computer case Mini Tower Black
Specifications
39 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Steel |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |

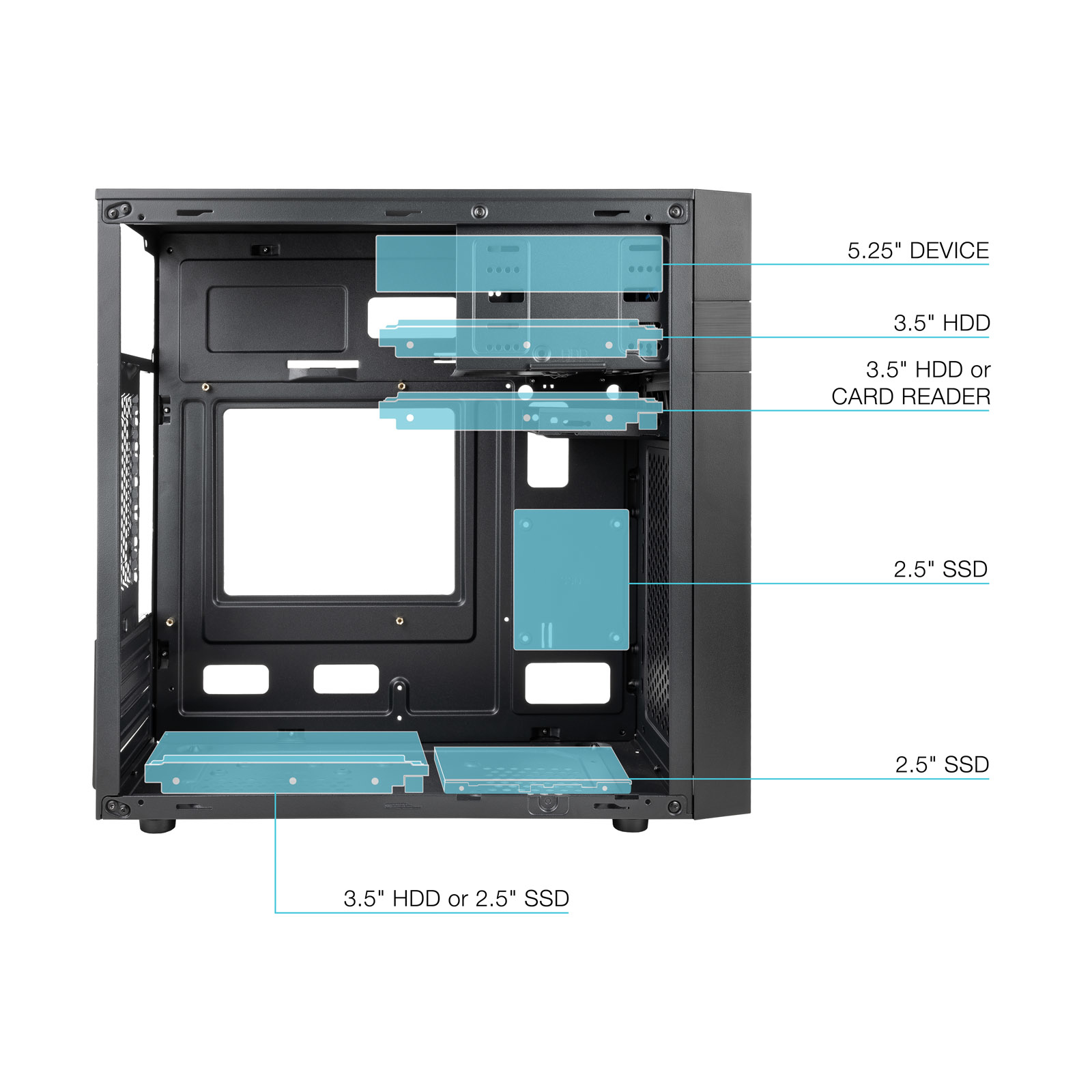

| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 1 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of external 5.25" bays | 1 |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 25 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |

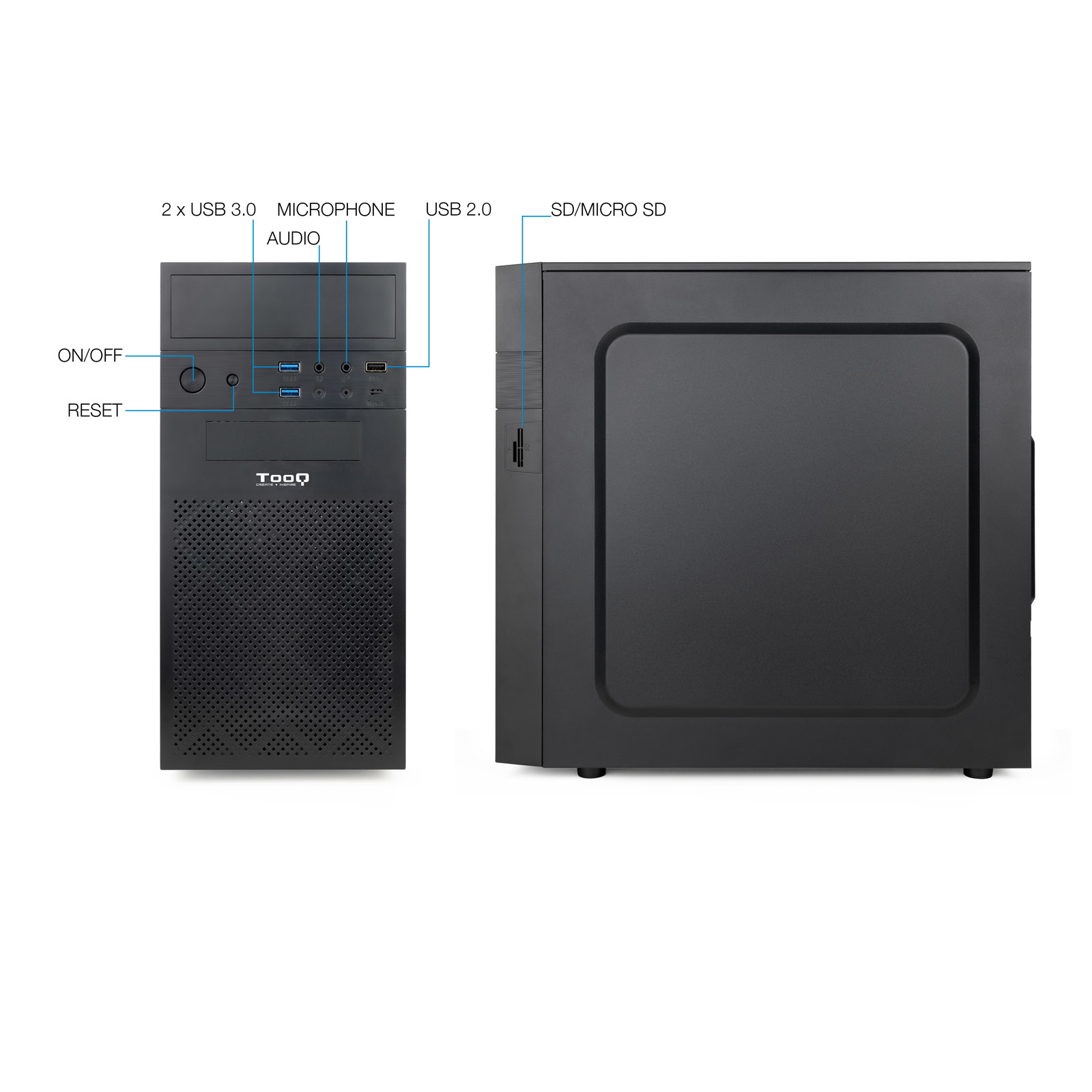

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 120 mm |
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5,5.25" |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 172 mm |
| Depth | 370 mm |
| Height | 358 mm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 205 mm |
| Package depth | 400 mm |
| Package height | 390 mm |
| Package weight | 3 kg |
