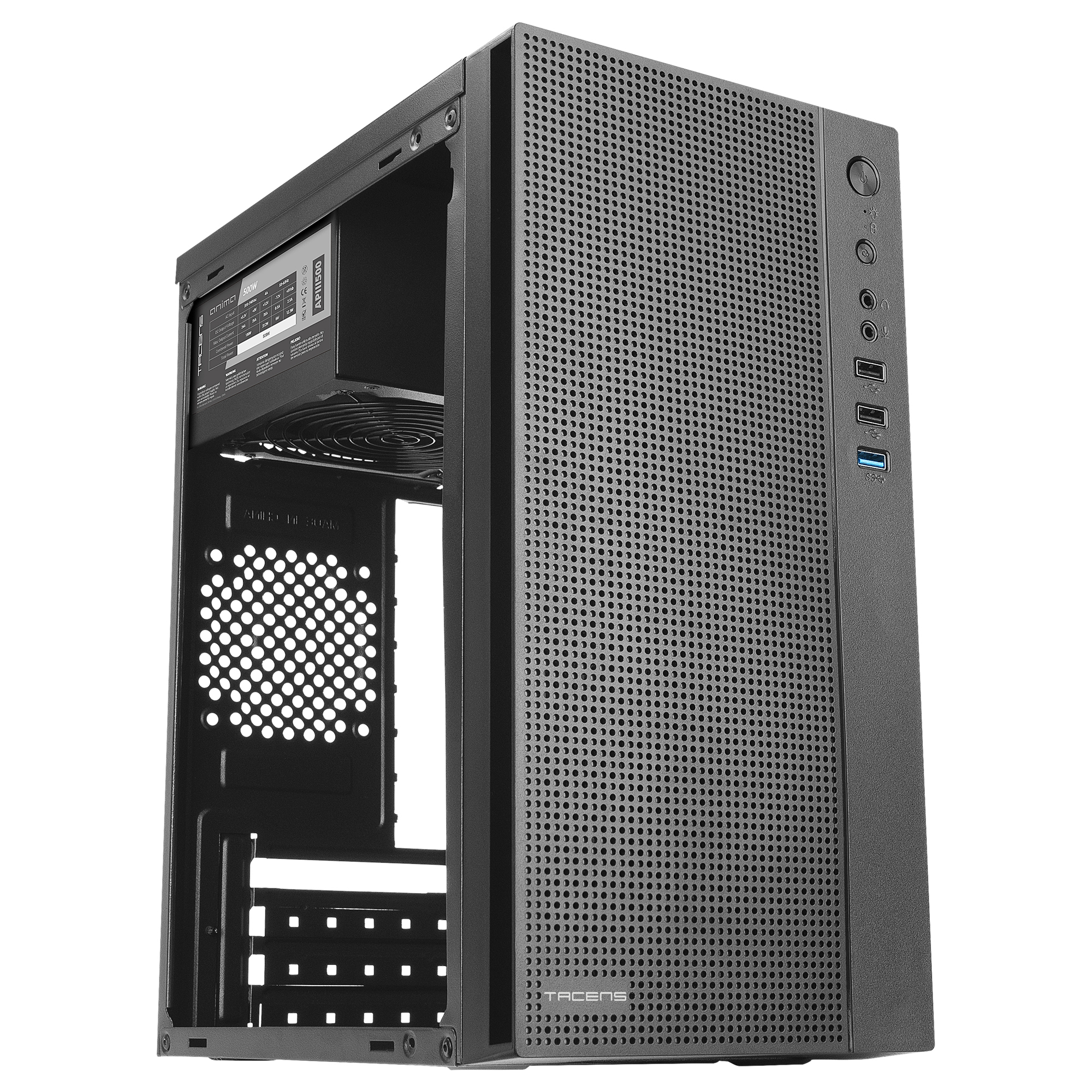

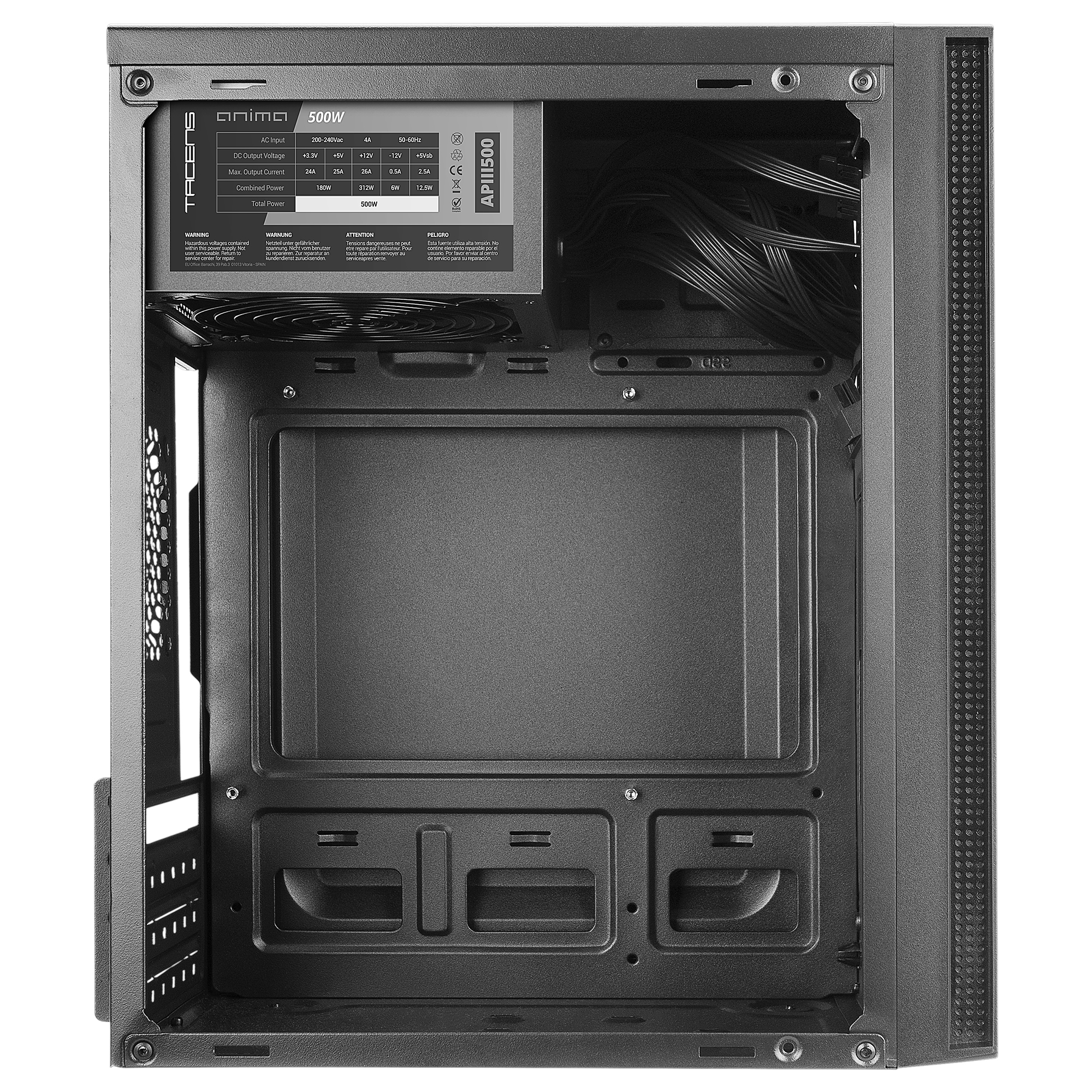

AC5500 Compact Micro ATX PC Case Front Mesh Cooling
500W Power Supply USB 3.0 Black
Model AC5500EAN 8437023608104
37 specifications
- TypeMini Tower
- Weight2.42 kg
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity2
- Number of front fans supported (max)1
Overview
- Type
- Mini Tower
- Weight
- 2.42 kg
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 1
- Brand
- Tacens Anima
- Category
- Computer Case
- Model
- AC5500
- Part number
- AC5500
- EAN / UPC
- 8437023608104
- Also known as
- Tacens Anima AC5500 Compact Micro ATX PC Case Front Mesh Cooling 500W Power Supply USB 3.0 Black
Specifications
37 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 14.5 cm |
| Maximum graphics card length | 25 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 500 W |
| Supported power supply form factors | ATX |
| ATX power connector (20+4 pin) | No |
| Number of SATA connectors | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
Packaging content
| Specification | Value |
|---|---|
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 291 mm |
| Depth | 188 mm |
| Height | 345 mm |
| Weight | 2.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 206 mm |
| Package depth | 381 mm |
| Package height | 343 mm |
| Package weight | 2.89 kg |
