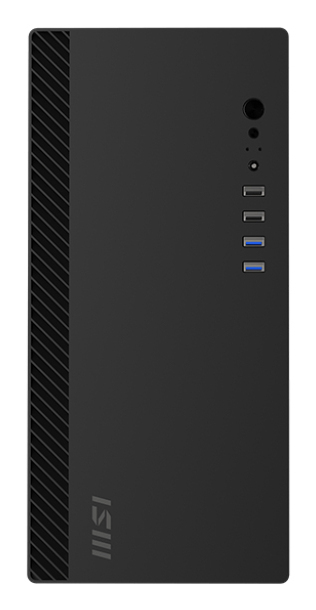

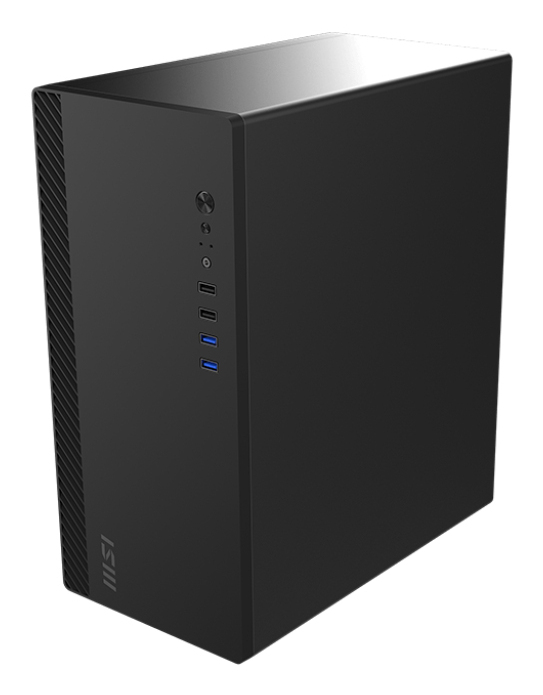

PRO SHIELD M100P
Model PRO SHIELD M100PEAN 4711377332620
32 specifications
- TypeMidi Tower
- Weight2.92 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Rear fans installed1x 80 mm
Overview
- Type
- Midi Tower
- Weight
- 2.92 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Rear fans installed
- 1x 80 mm
- Brand
- MSI
- Category
- Computer Case
- Model
- PRO SHIELD M100P
- Part number
- PRO SHIELD M100P
- EAN / UPC
- 4711377332620
- Also known as
- MSI PRO SHIELD M100P computer case Midi Tower Black
Specifications
32 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of storage drives supported | 4 |
| Number of expansion slots | 4 |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 14 cm |
| Maximum graphics card length | 27.5 cm |
| Maximum PSU length | 16 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Rear fans installed | 1x 80 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 80,90 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 4 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 166 mm |
| Depth | 312 mm |
| Height | 354 mm |
| Weight | 2.92 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.58 kg |
