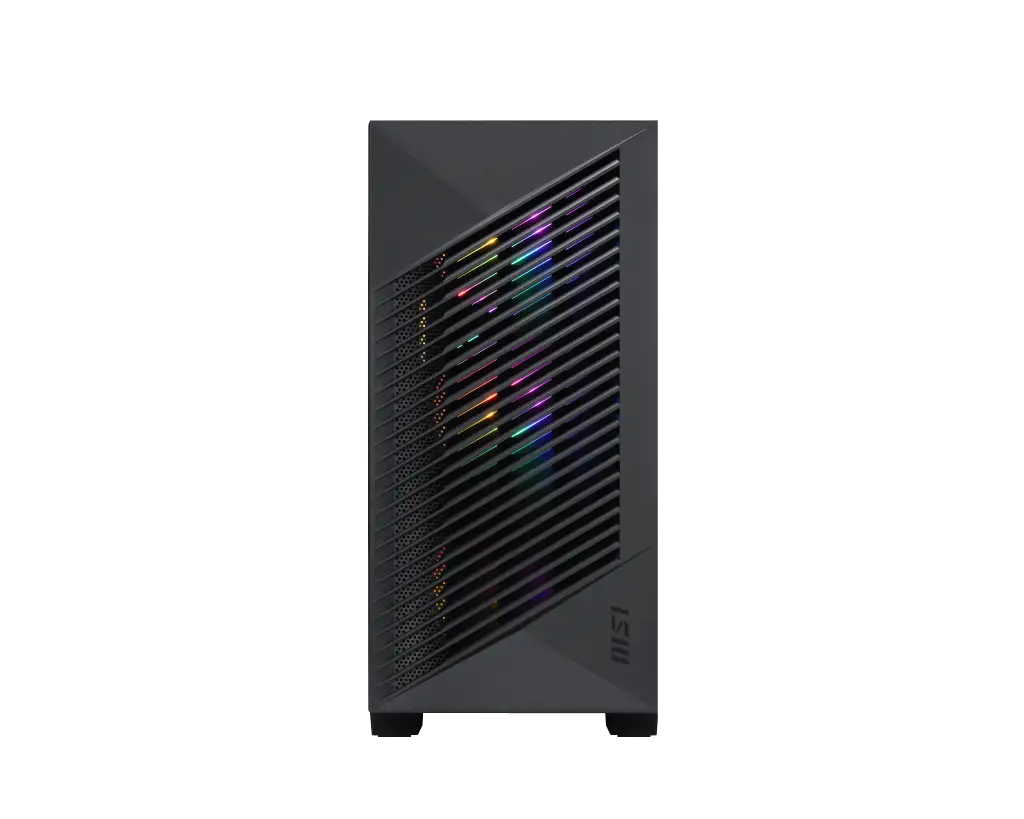

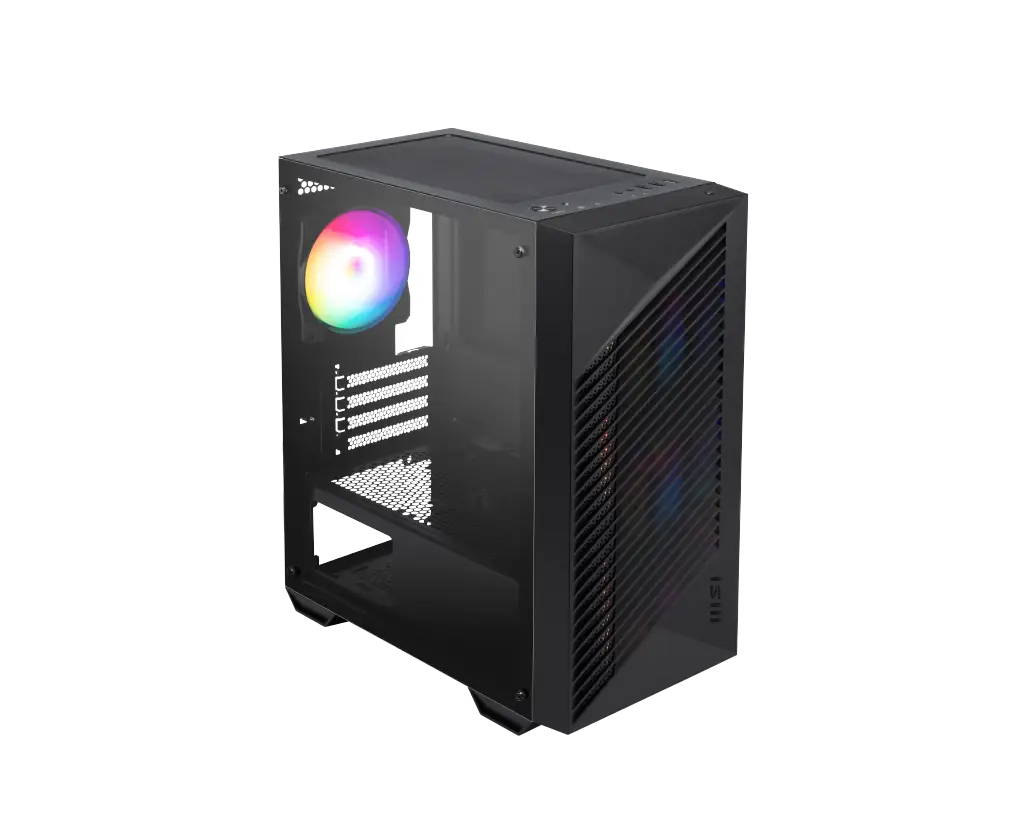

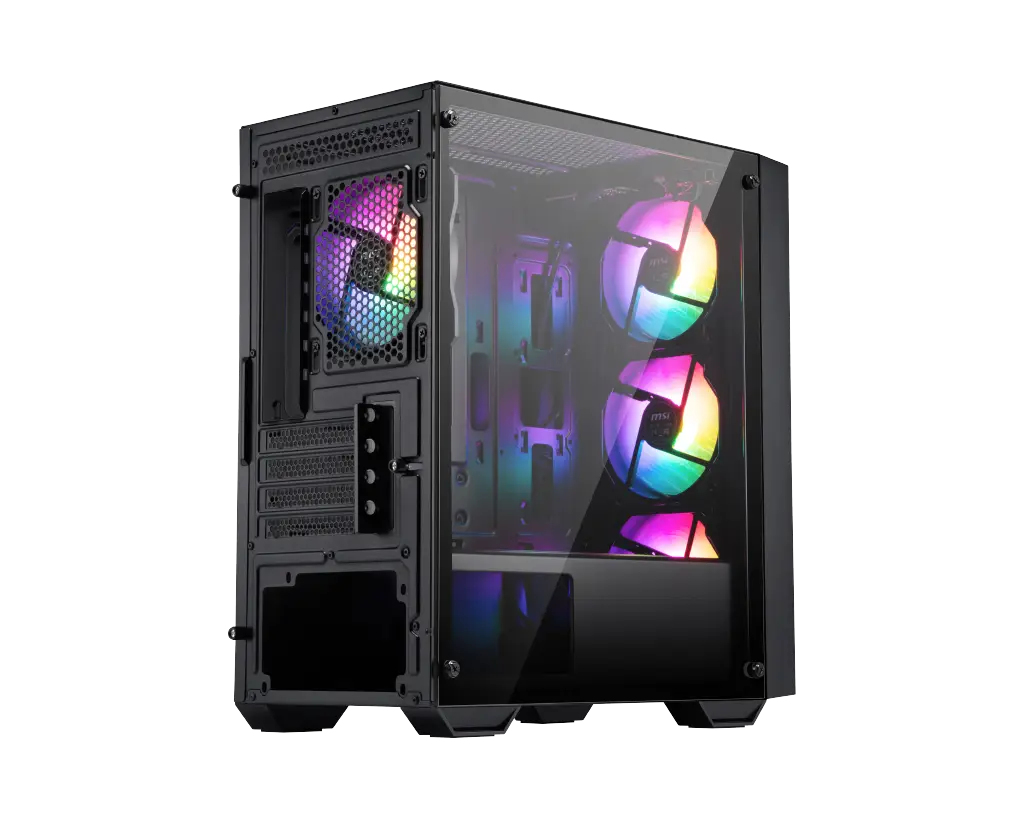

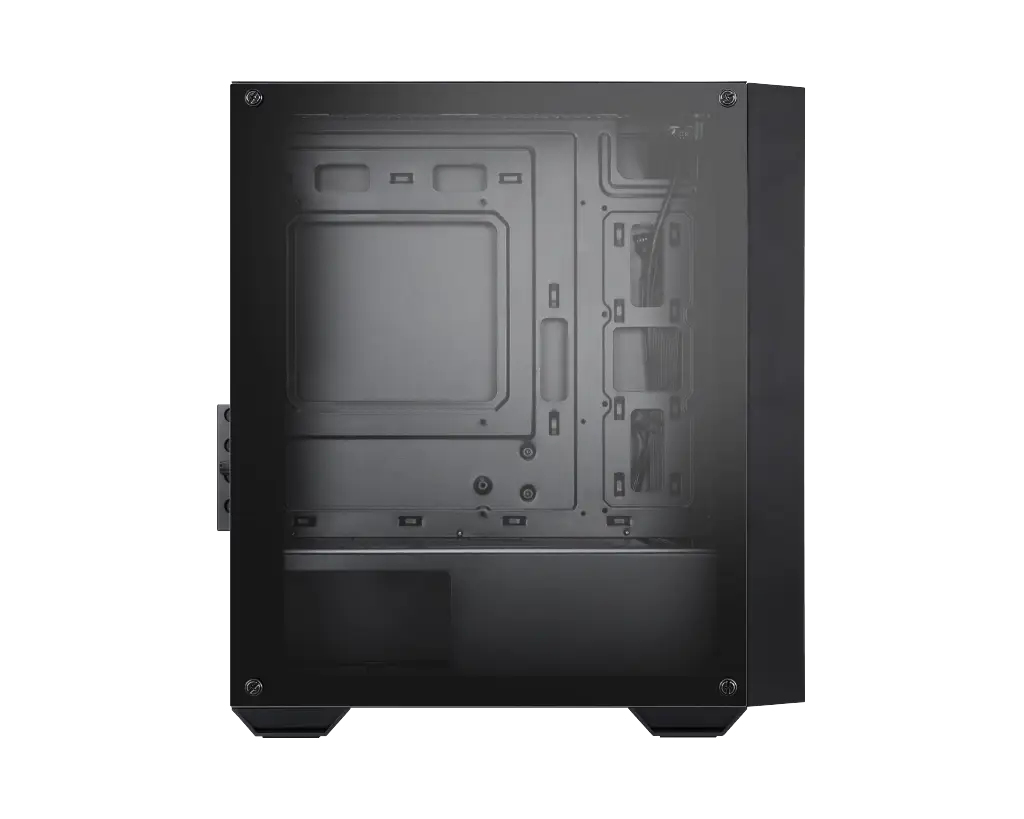

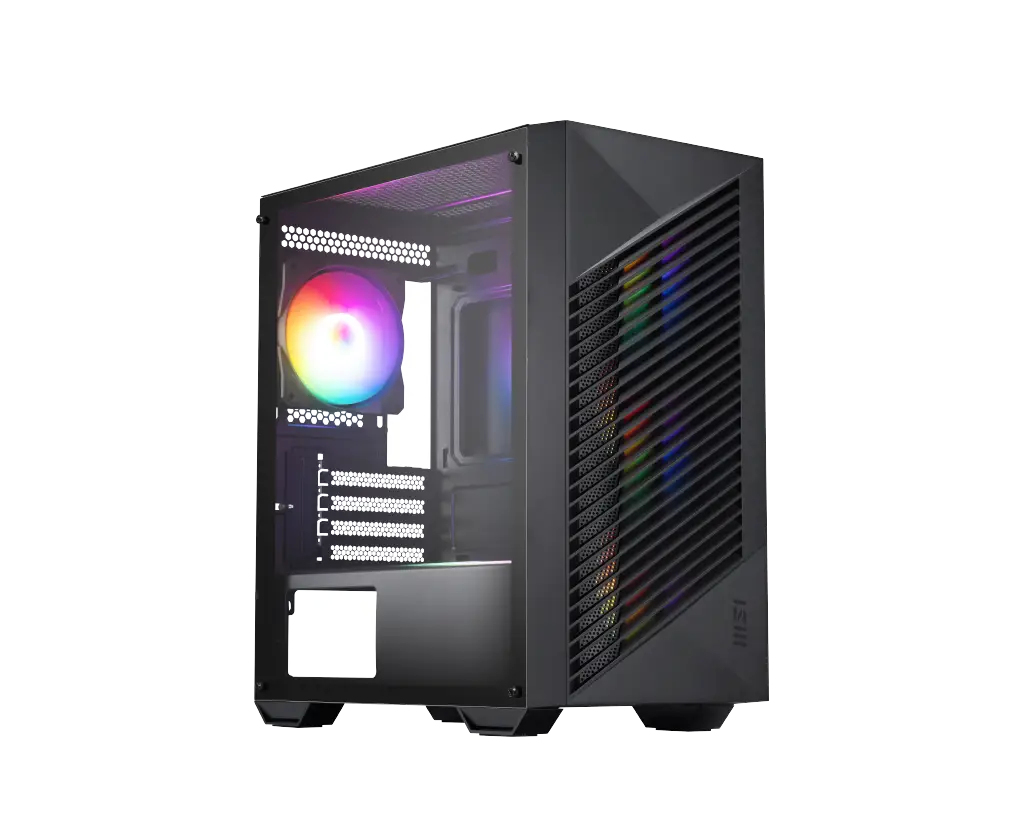

PRO FORGE M050A
Model PRO FORGE M050AEAN 824142430279
37 specifications
- TypeMini Tower
- Weight4.4 kg
- Supported power supply form factorsATX
- USB 2.0 ports quantity0
- Front fans installed3x 120 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Mini Tower
- Weight
- 4.4 kg
- Supported power supply form factors
- ATX
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- MSI
- Category
- Computer Case
- Model
- PRO FORGE M050A
- Part number
- PRO FORGE M050A
- EAN / UPC
- 824142430279
- Also known as
- MSI PRO FORGE M050A computer case Mini Tower
Specifications
37 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 4 |
| Illumination | Yes |
| Illumination colour | Multi |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 30 cm |
| Maximum PSU length | 17 cm |
Power supply
| Specification | Value |
|---|---|
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
| Combo headphone/mic port | No |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Top radiator sizes supported | 120,240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 388 mm |
| Height | 423 mm |
| Weight | 4.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 5.23 kg |
