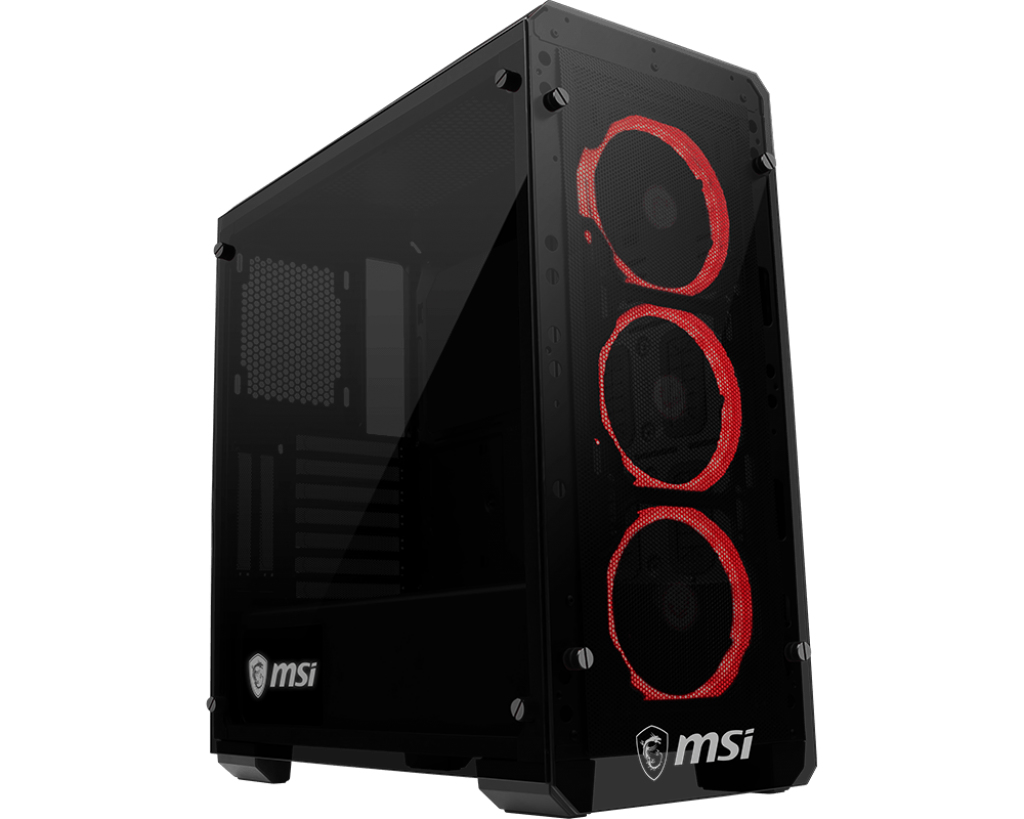

MSI MAG Pylon
Model MAG PylonPart no. 306-7G02M51-C05EAN 4719072566517
34 specifications
- TypeMidi Tower
- Weight8.4 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 8.4 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- MSI
- Category
- Computer Case
- Model
- MAG Pylon
- Part number
- 306-7G02M51-C05
- EAN / UPC
- 4719072566517
- Also known as
- MSI MAG Pylon Midi Tower Black
Specifications
34 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Metal |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 37 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 218 mm |
| Depth | 440 mm |
| Height | 470 mm |
| Weight | 8.4 kg |
Other features
| Specification | Value |
|---|---|
| Volume | 45 L |
