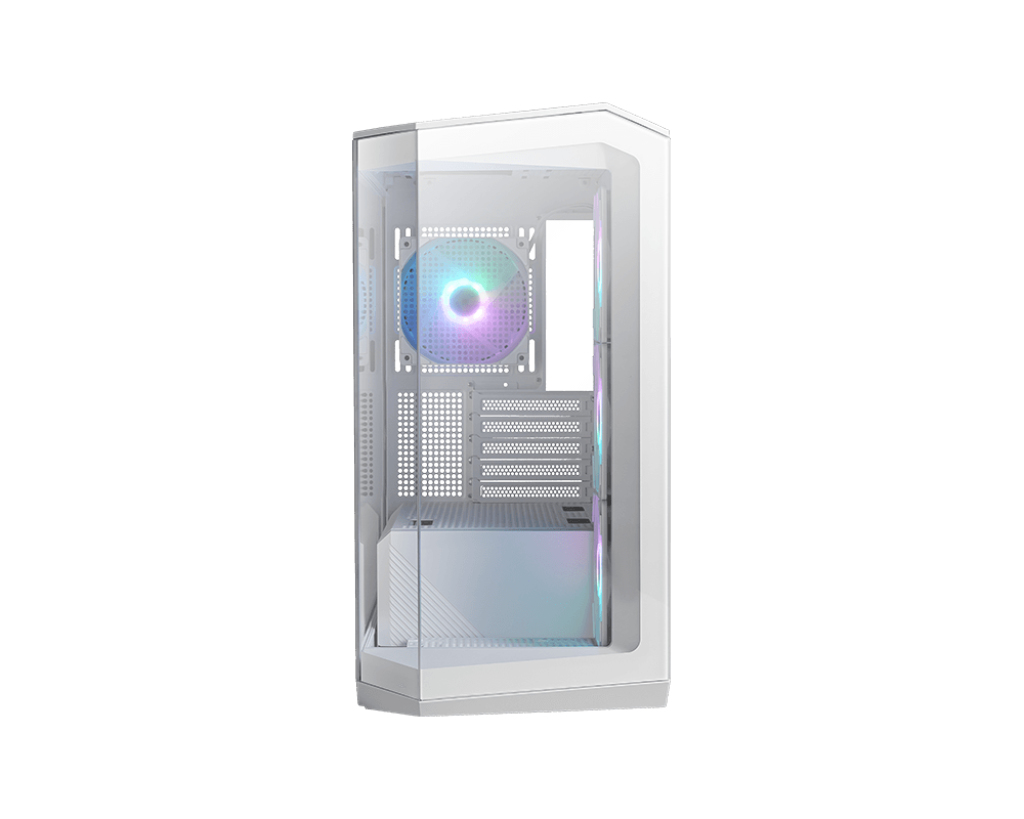

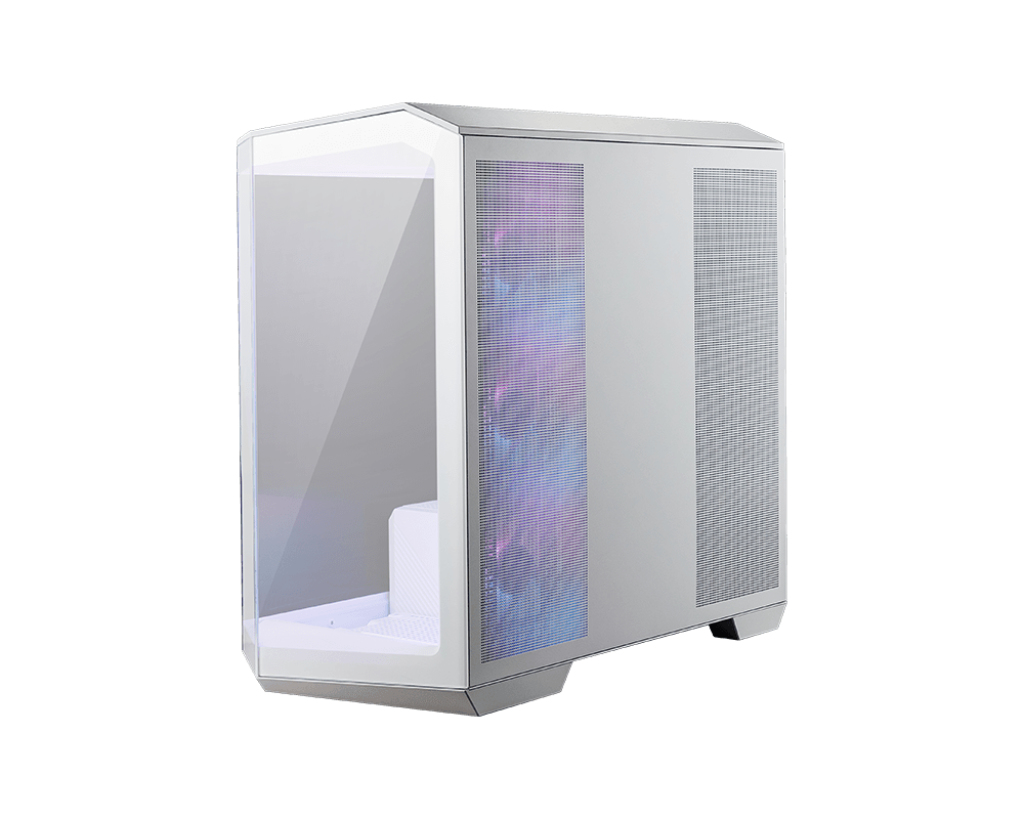

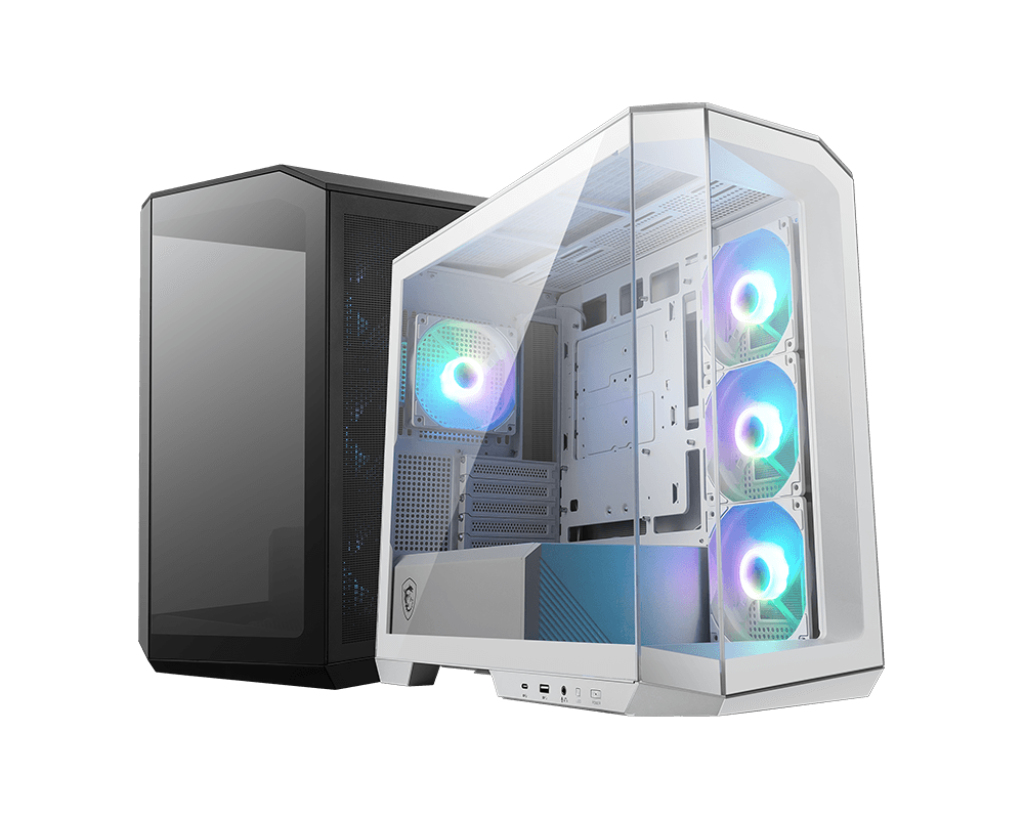

MAG PANO M100R PZ
Model MAG PANO M100R PZPart no. 306-7G24R21-809EAN 4711377136471
46 specifications
- TypeMicro Tower
- Weight8.66 kg
- ColourWhite
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
- Side fans installed3x 120 mm
Overview
- Type
- Micro Tower
- Weight
- 8.66 kg
- Colour
- White
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Side fans installed
- 3x 120 mm
- Brand
- MSI
- Category
- Computer Case
- Model
- MAG PANO M100R PZ
- Part numbers
- 306-7G24R21-809, MAG PANO M100R PZ WHITE, MAG PANO M100R PZ
- EAN / UPC
- 4711377136471, 824142337714, 4711377136488, 824142337707
- Also known as
- MSI MAG PANO M100R PZ Micro Tower White
Specifications
46 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | Metal |
| Product colour | White |
| Supported motherboard form factors | ITX, micro ATX |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 39 cm |
| Maximum PSU length | 20 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Power supply shroud | Yes |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,240,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 235 mm |
| Depth | 440 mm |
| Height | 405 mm |
| Weight | 8.66 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 11.3 kg |
