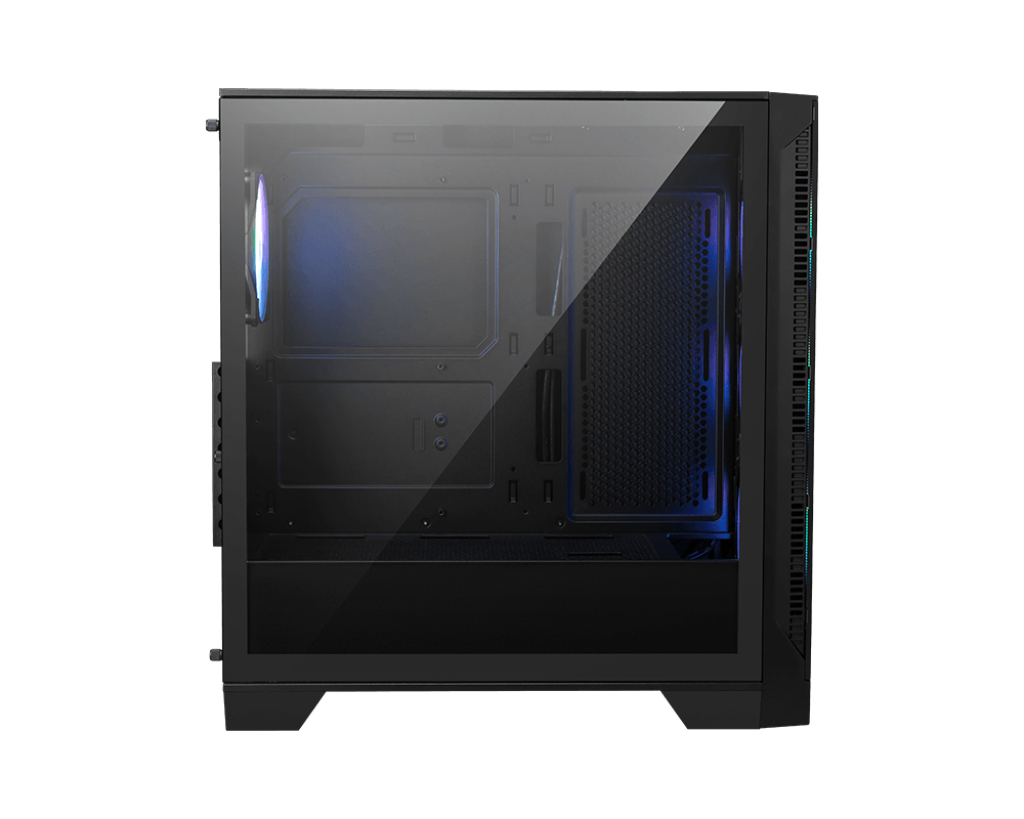

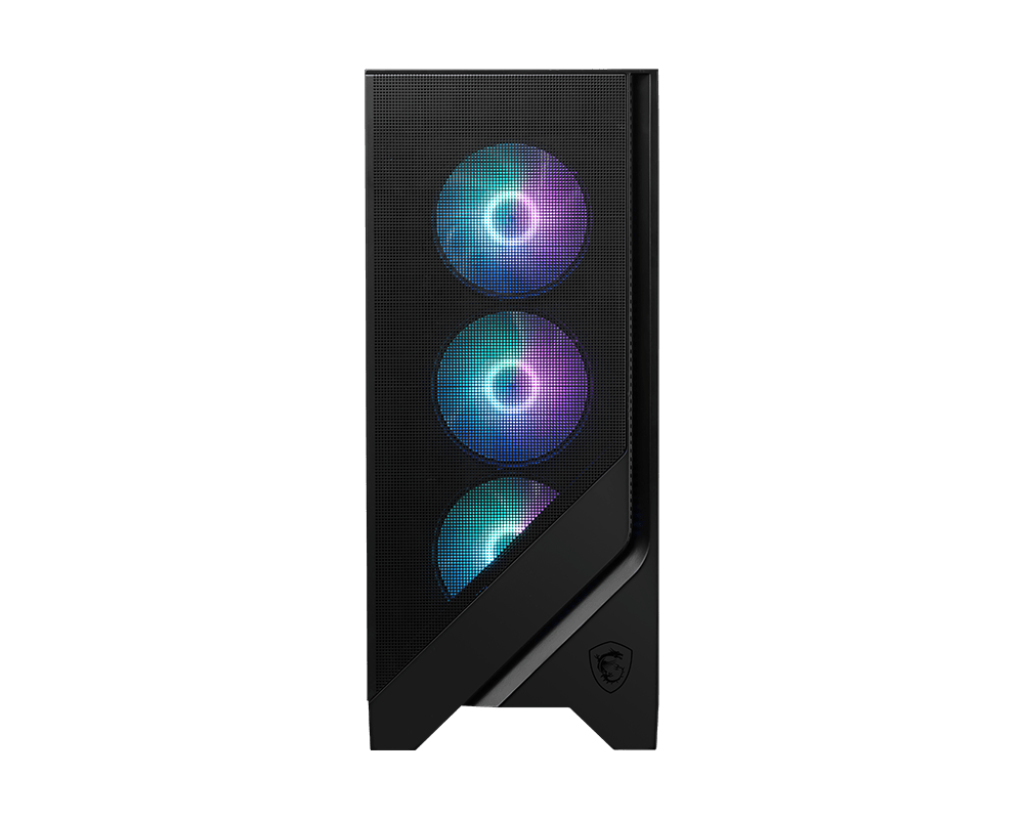

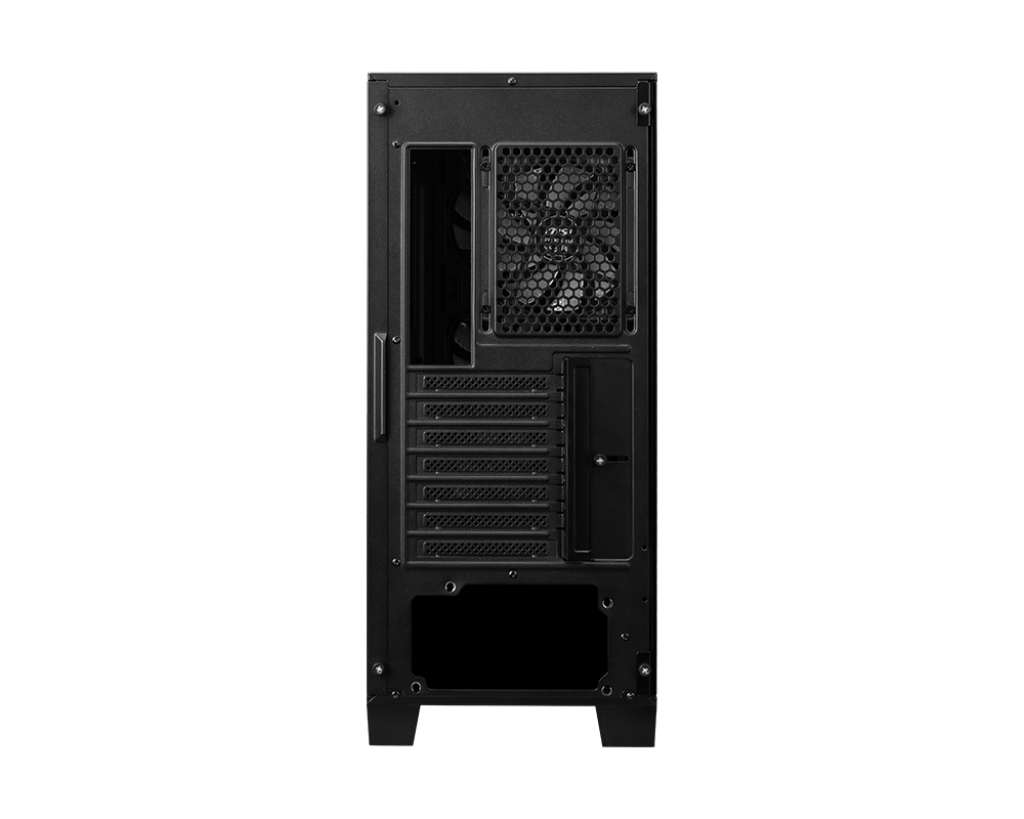

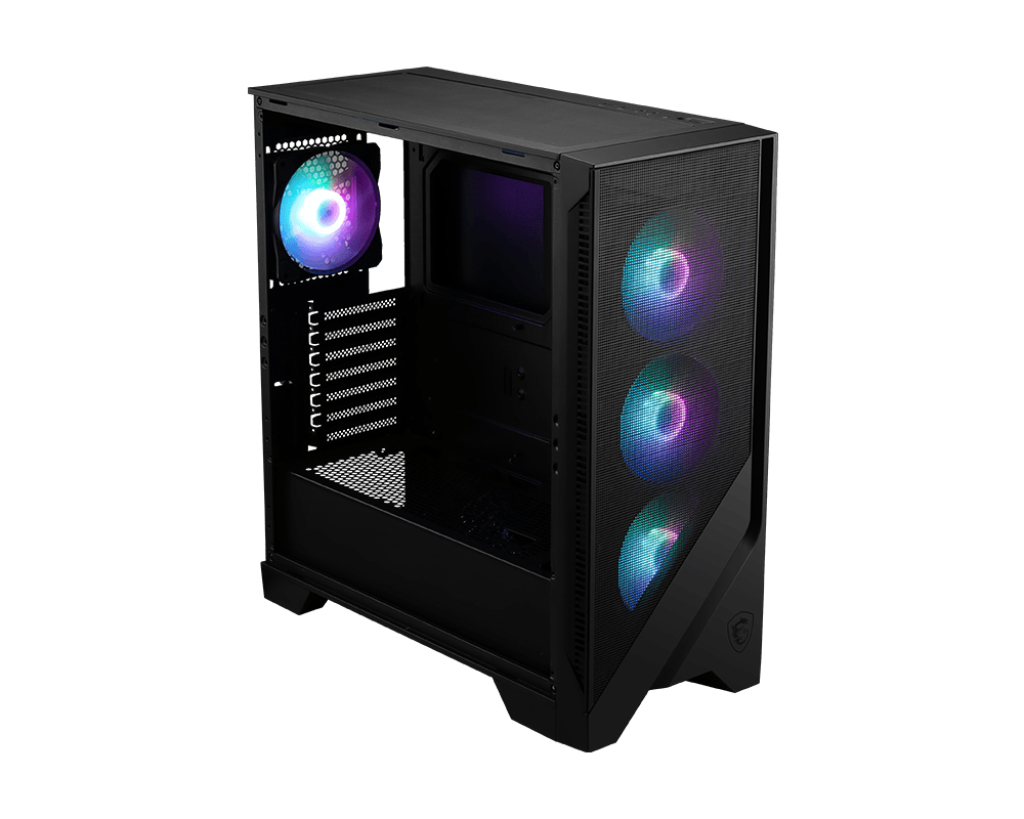

Forge 320R AIRFLOW
Model Forge 320R AIRFLOWPart no. MAG FORGE 320R AIRFLOWEAN 824142332290
46 specifications
- TypeMicro Tower
- Weight7.05 kg
- ColourBlack, Transparent
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 120 mm
Overview
- Type
- Micro Tower
- Weight
- 7.05 kg
- Colour
- Black, Transparent
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Brand
- MSI
- Category
- Computer Case
- Model
- Forge 320R AIRFLOW
- Part numbers
- MAG FORGE 320R AIRFLOW, MAG FORGE 320R WHITE AIRFLOW
- EAN / UPC
- 824142332290, 4711377121552, 4711377193474
- Also known as
- MSI MAG Forge 320R AIRFLOW Micro Tower Black, Transparent
Specifications
46 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Micro Tower |
| Type | PC |
| Material | Mesh, Plastic |
| Product colour | Black, Transparent |
| Supported motherboard form factors | micro ATX, Mini-ITX, ATX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 39 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 472.5 mm |
| Depth | 210 mm |
| Height | 498 mm |
| Weight | 7.05 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.35 kg |
