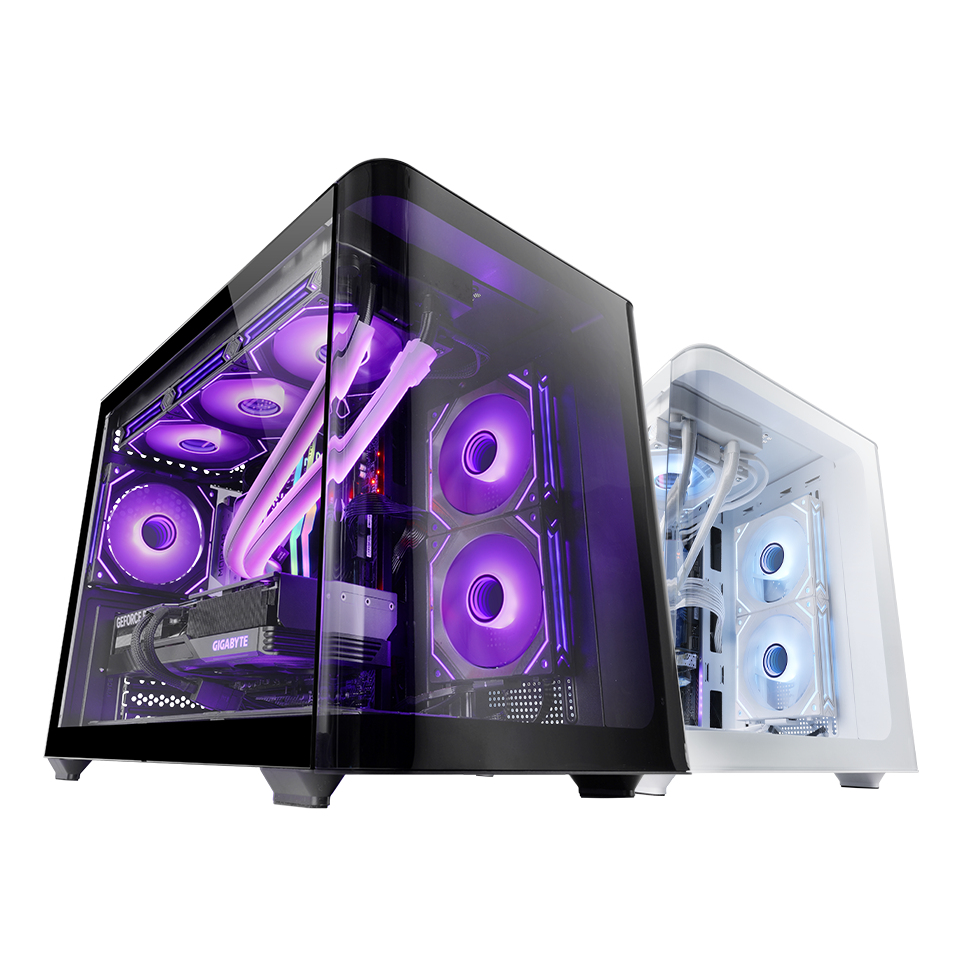

MCFUSIONM computer case Mini Tower Black
Model MCFUSIONMEAN 8435693108184
46 specifications
- TypeMini Tower
- Weight5.9 kg
- ColourBlack
- Supported power supply form factorsATX
- USB 2.0 ports quantity2
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Mini Tower
- Weight
- 5.9 kg
- Colour
- Black
- Supported power supply form factors
- ATX
- USB 2.0 ports quantity
- 2
- Supported HDD sizes
- 2.5,3.5"
- Brand
- Mars Gaming
- Category
- Computer Case
- Model
- MCFUSIONM
- Part numbers
- MCFUSIONM, MCFUSIONMW
- EAN / UPC
- 8435693108184, 8435693108191
- Also known as
- Mars Gaming MCFUSIONM computer case Mini Tower Black
Specifications
46 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | No |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 44.5 cm |
Power supply
| Specification | Value |
|---|---|
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 140,240 mm |
| Bottom radiator sizes supported | 240,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | No |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 475 mm |
| Depth | 285 mm |
| Height | 370 mm |
| Weight | 5.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 350 mm |
| Package depth | 415 mm |
| Package height | 540 mm |
| Package weight | 6.98 kg |
