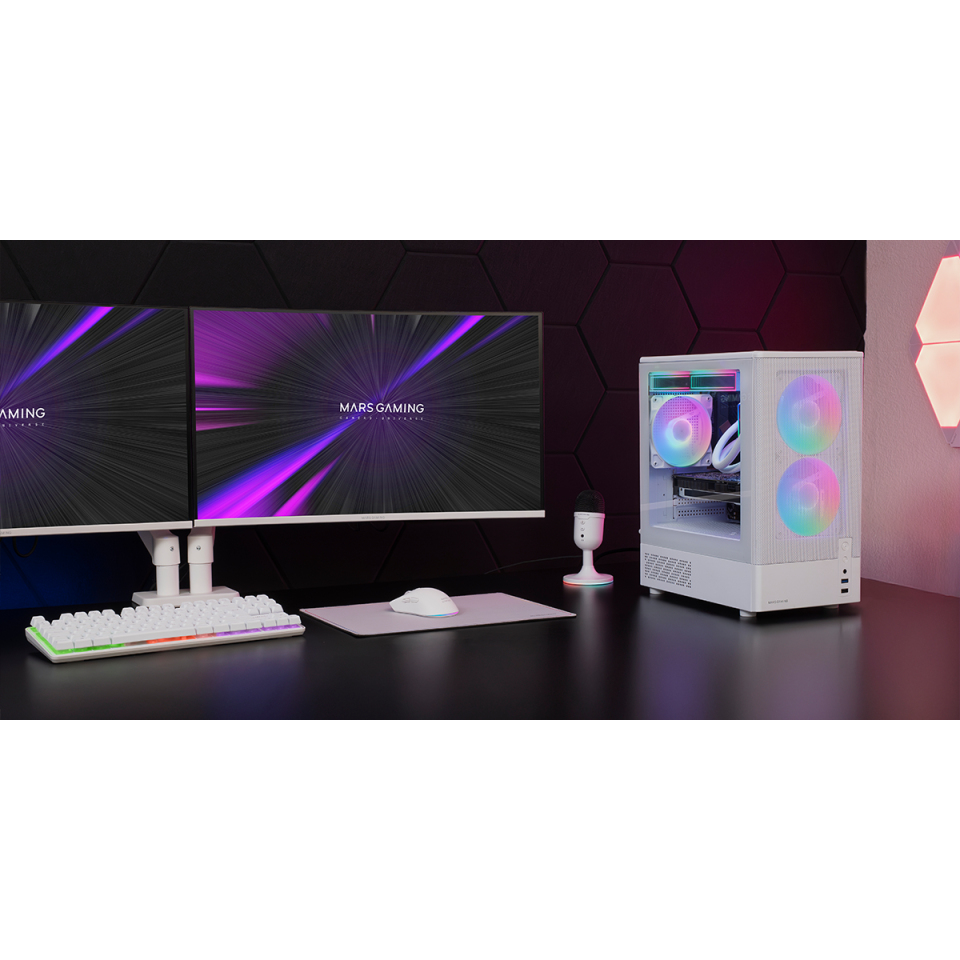

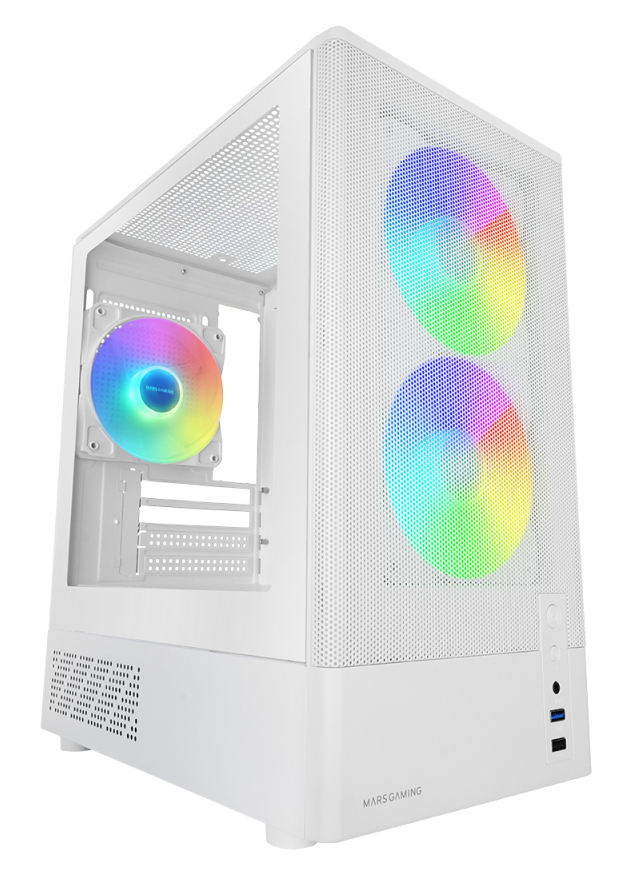

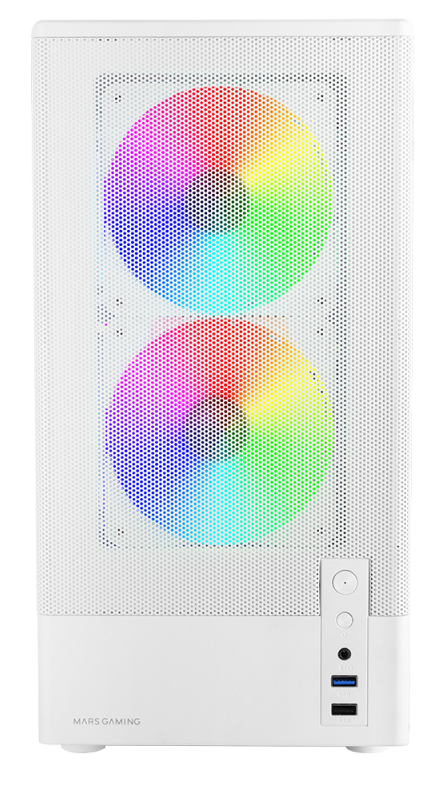

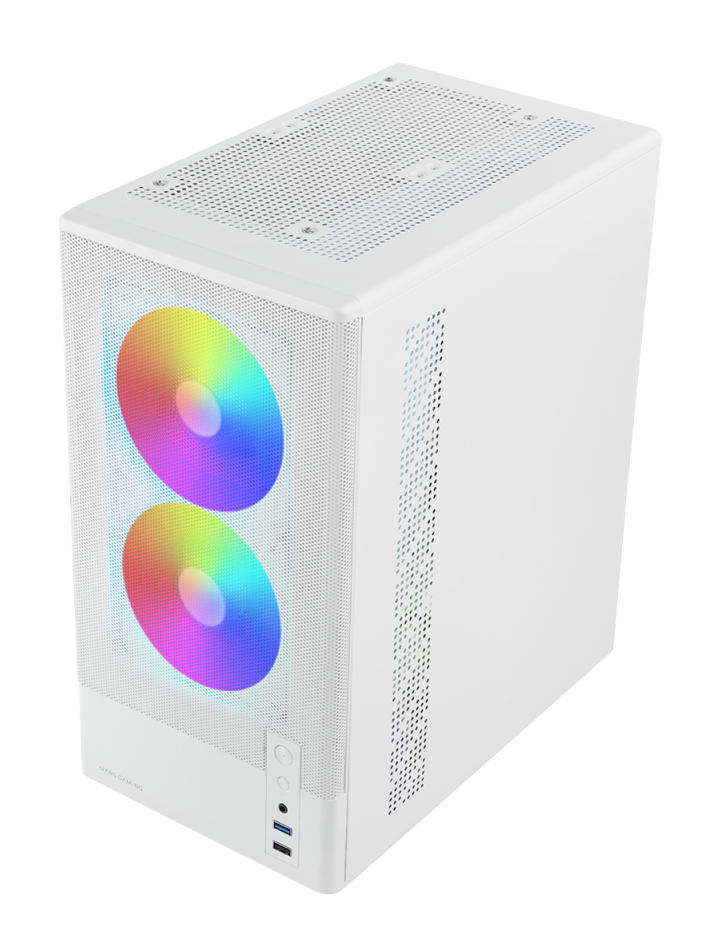

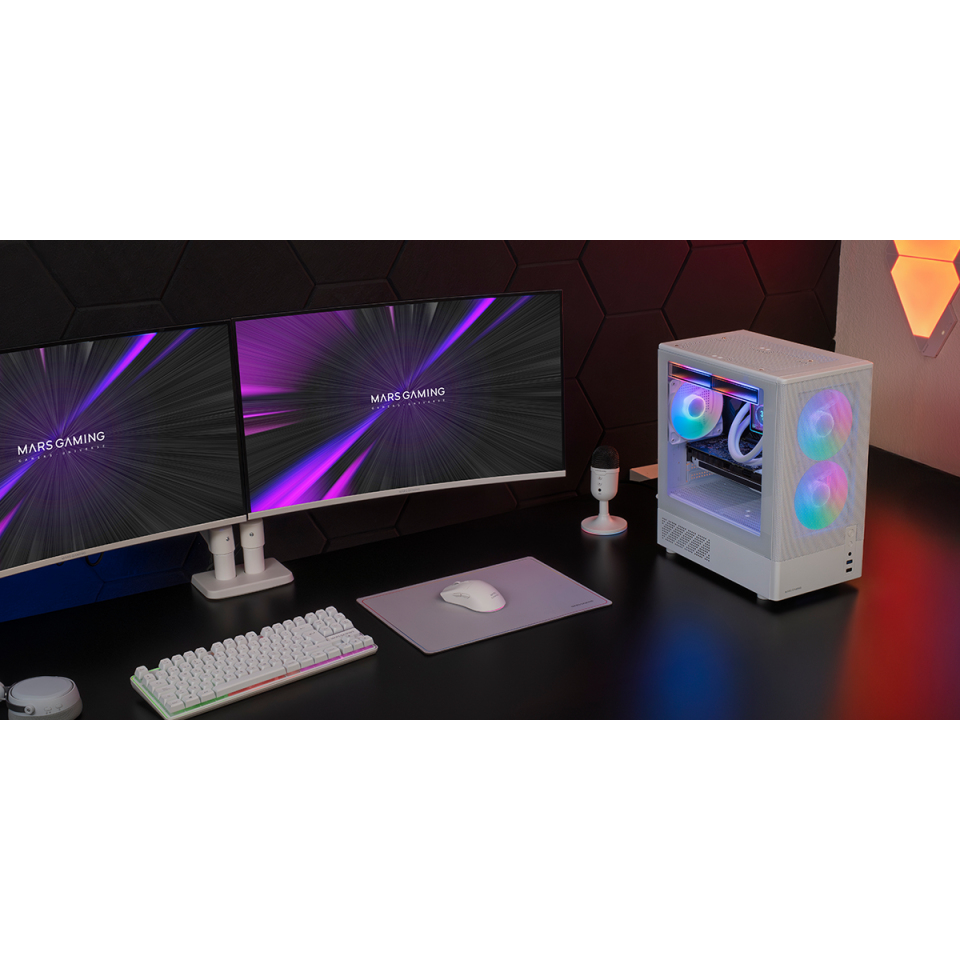

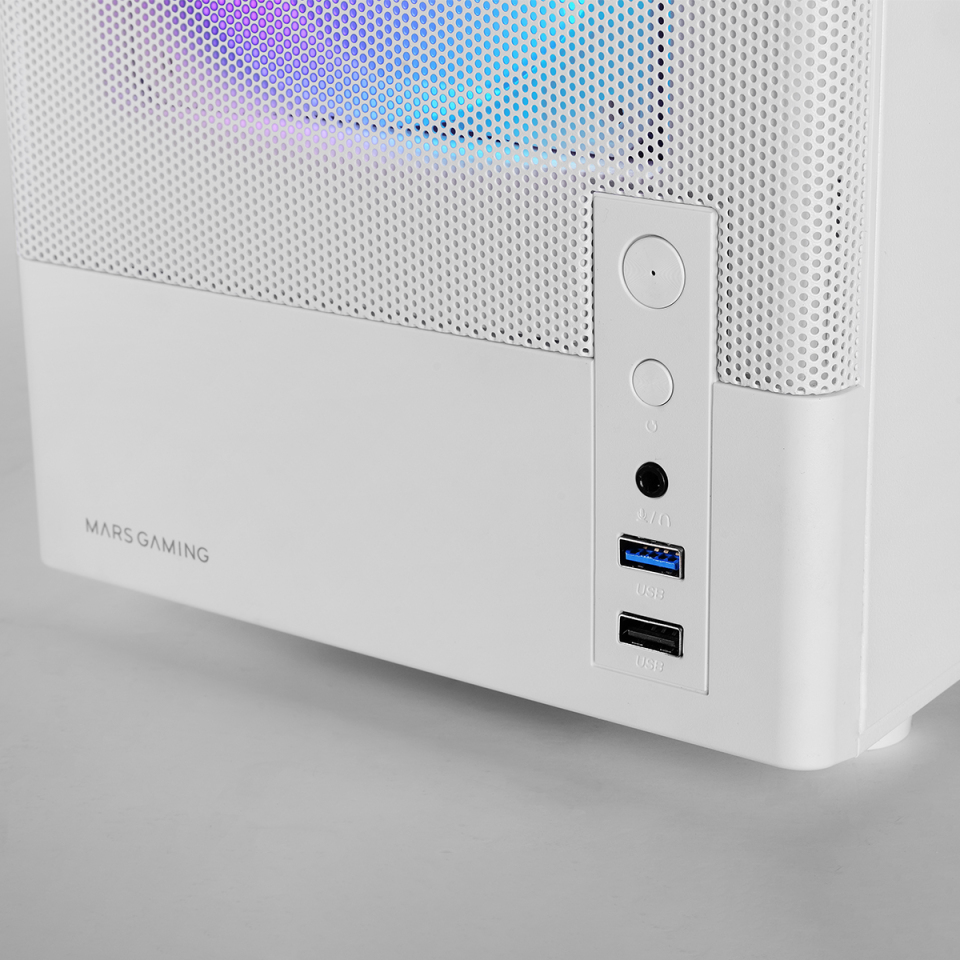

MC-ONYXW Mini Tower White
Model MC-ONYXWPart no. MCONYXWEAN 8435693113942
55 specifications
- TypeMini Tower
- Weight3.05 kg
- ColourWhite
- Power supply includedNo
- USB 2.0 ports quantity1
- Front fans installed2x 120 mm
Overview
- Type
- Mini Tower
- Weight
- 3.05 kg
- Colour
- White
- Power supply included
- No
- USB 2.0 ports quantity
- 1
- Front fans installed
- 2x 120 mm
- Brand
- Mars Gaming
- Category
- Computer Case
- Model
- MC-ONYXW
- Part number
- MCONYXW
- EAN / UPC
- 8435693113942
- Also known as
- Mars Gaming MC-ONYXW Mini Tower White
Specifications
55 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Metal, Tempered glass |
| Product colour | White |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 4 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Heat sink included | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 29.2 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 2x 120 mm |
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240 mm |
| Pump motor speed | 1000 RPM |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 340 mm |
| Height | 395 mm |
| Weight | 3.05 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 242 mm |
| Package depth | 425 mm |
| Package height | 386 mm |
