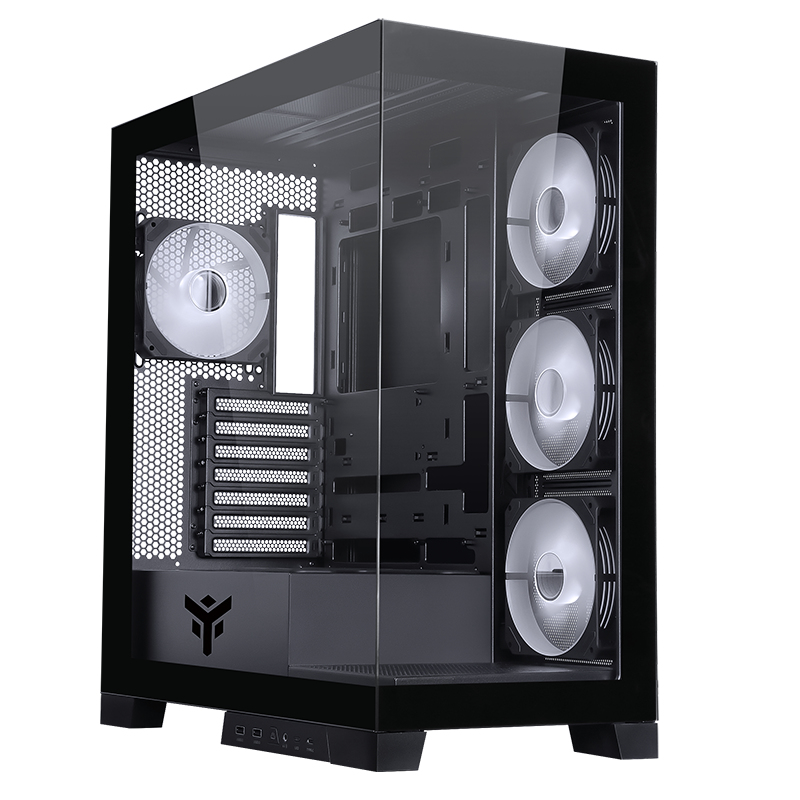

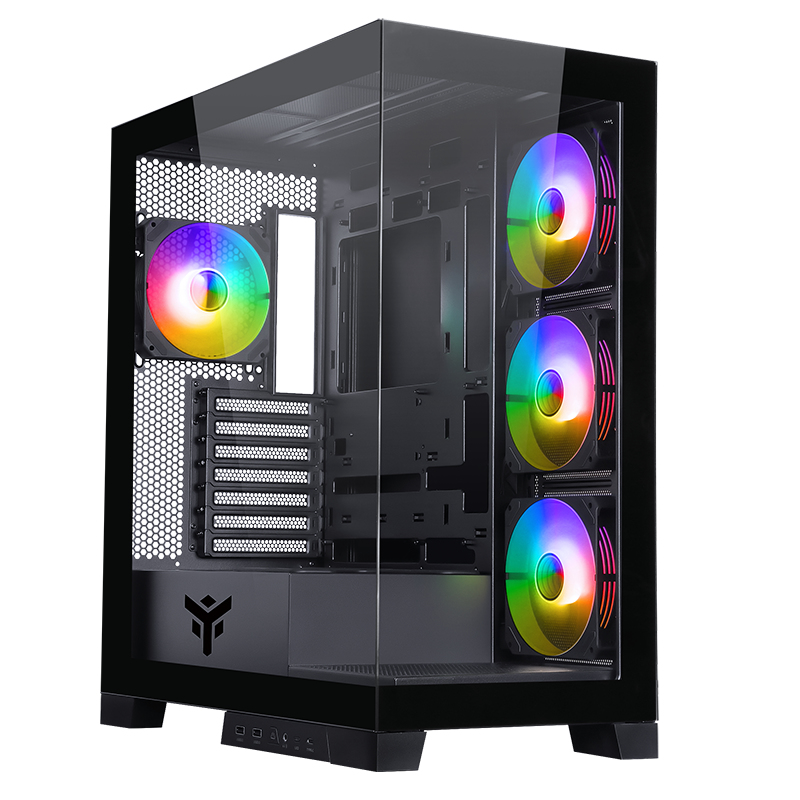

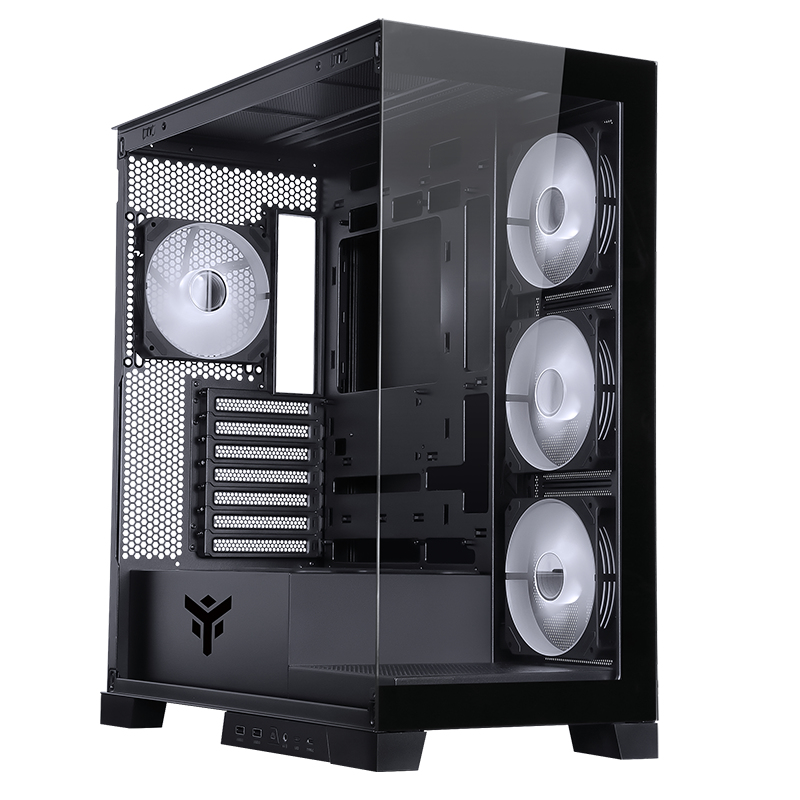

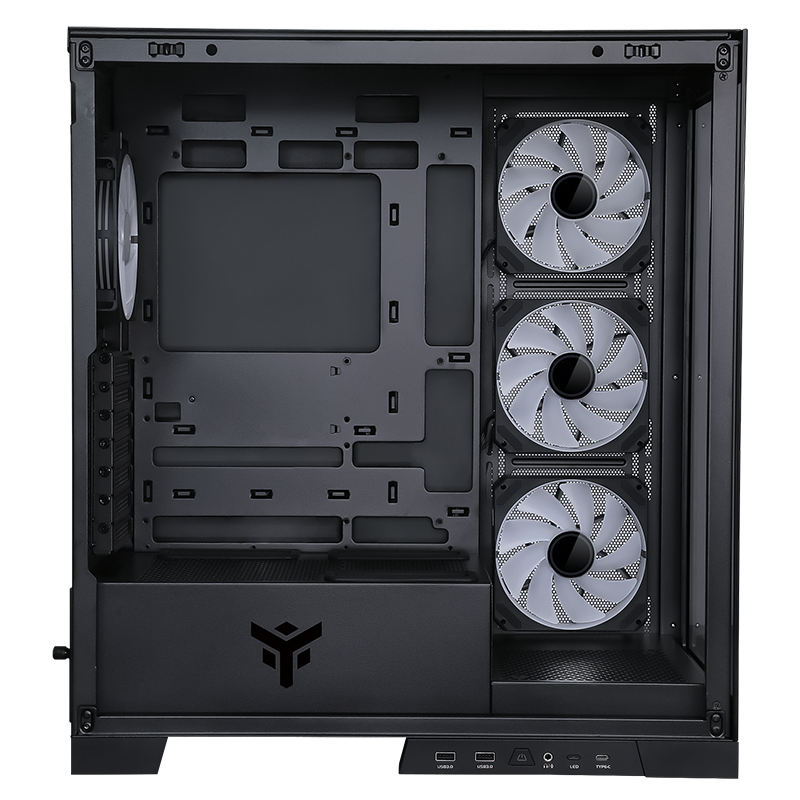

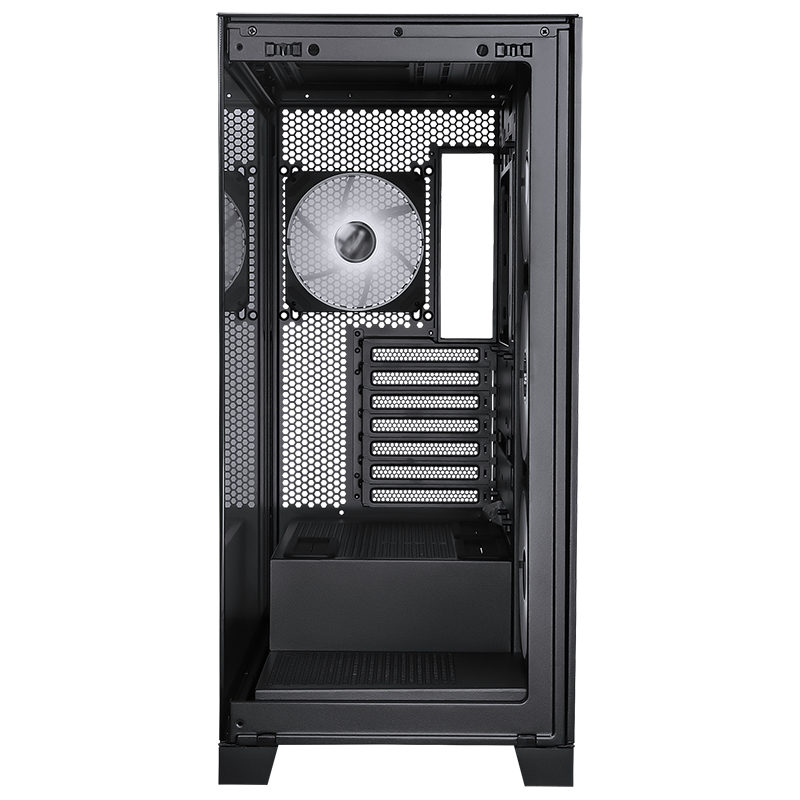

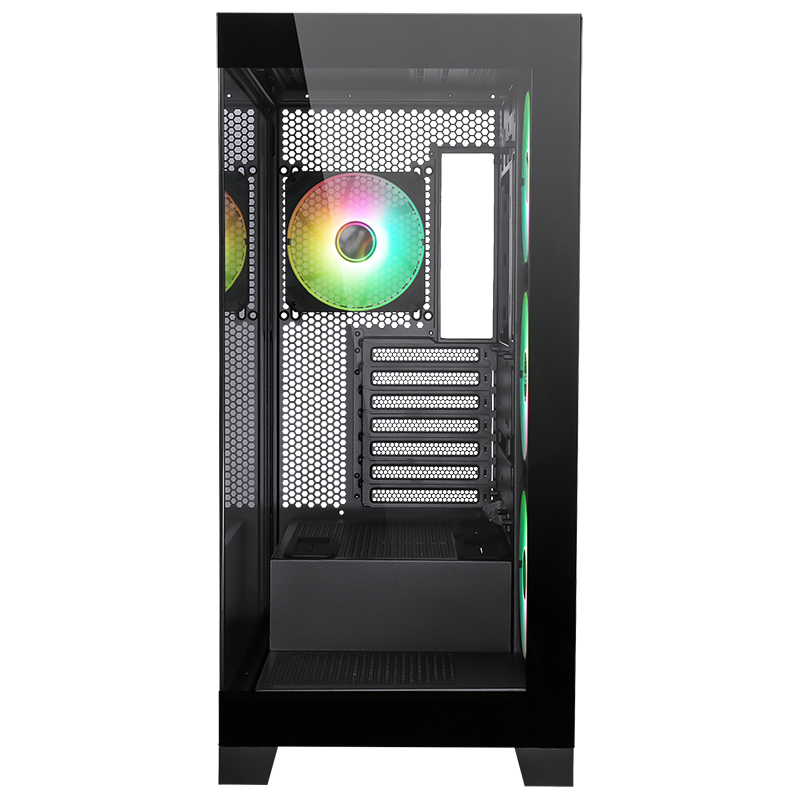

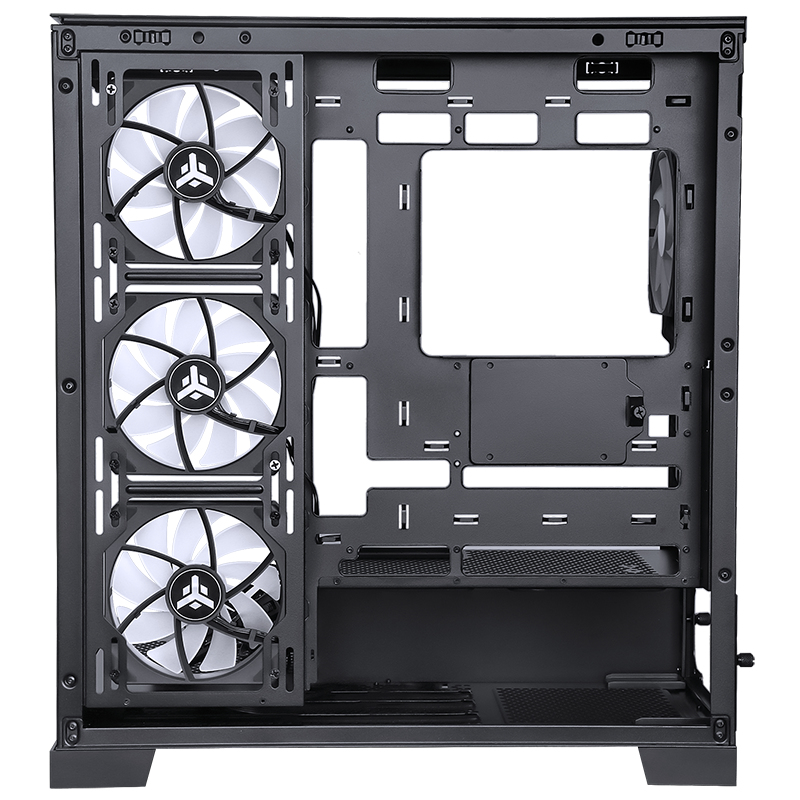

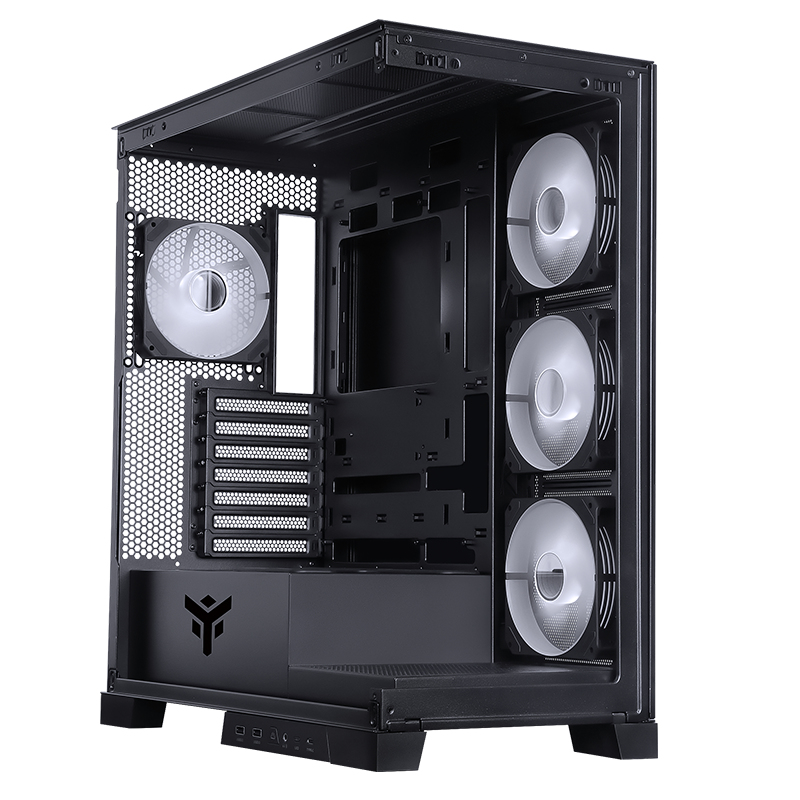

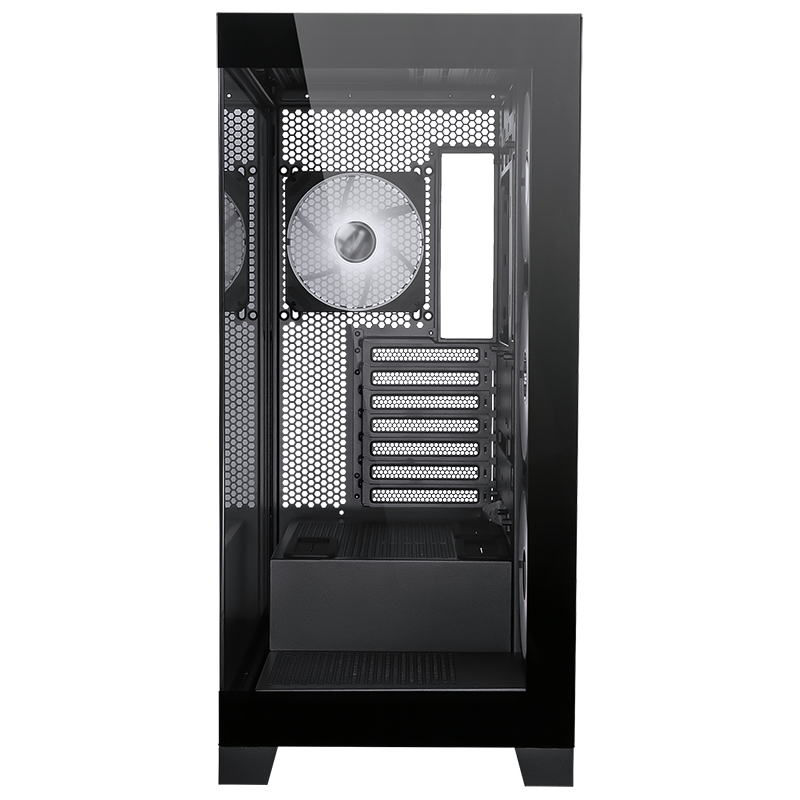

SHOWBUI 45B
Model SHOWBUI 45BPart no. ITGCASB45BEAN 8056157883227
39 specifications
- TypeTower
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)3
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Tower
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 3
- Supported HDD sizes
- 2.5,3.5"
- Brand
- itek
- Category
- Computer Case
- Model
- SHOWBUI 45B
- Part number
- ITGCASB45B
- EAN / UPC
- 8056157883227
- Also known as
- itek SHOWBUI 45B Tower Black
Specifications
39 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 18.3 cm |
| Maximum graphics card length | 43 cm |
| Maximum PSU length | 18.6 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Side fans installed | 3x 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator sizes supported | 120,140,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 235 mm |
| Depth | 461 mm |
| Height | 505 mm |
