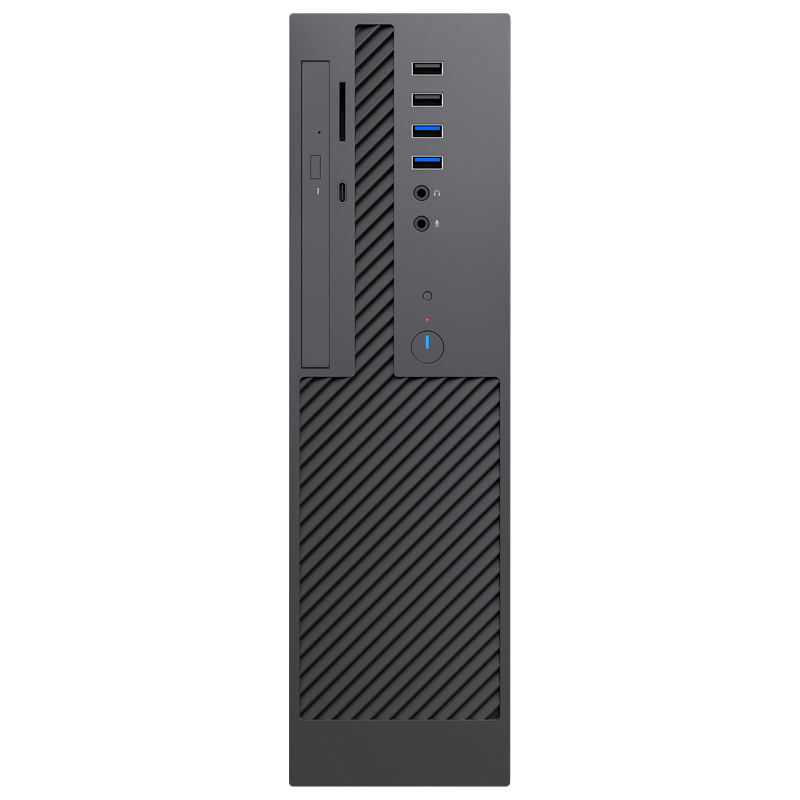

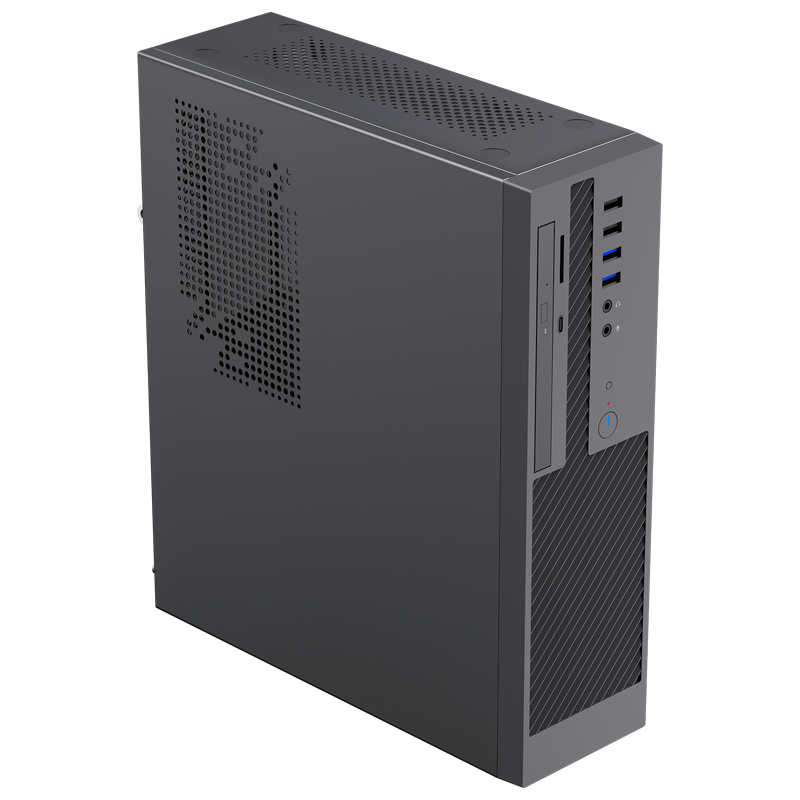

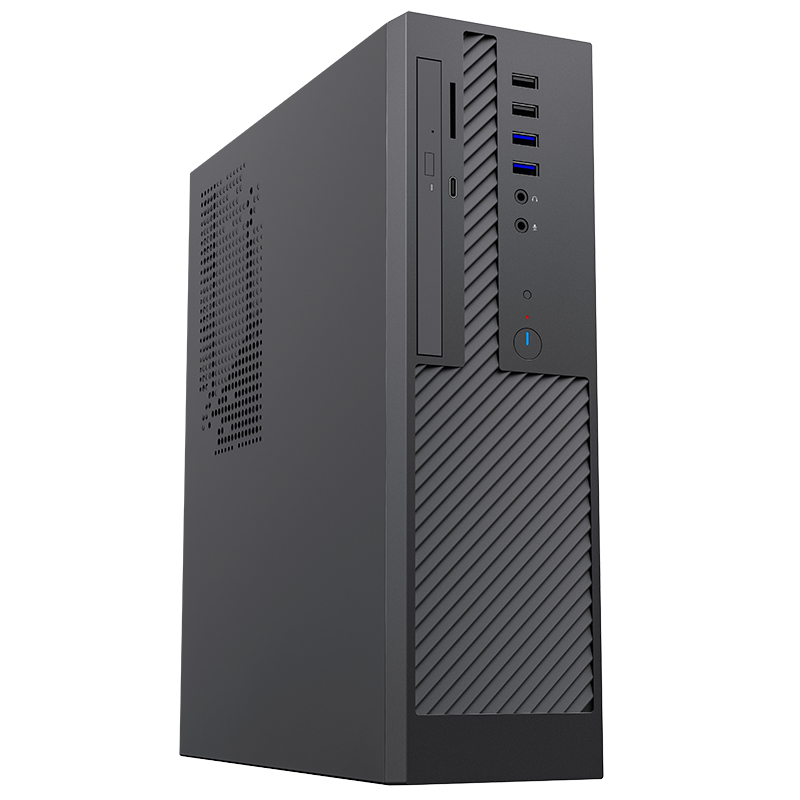

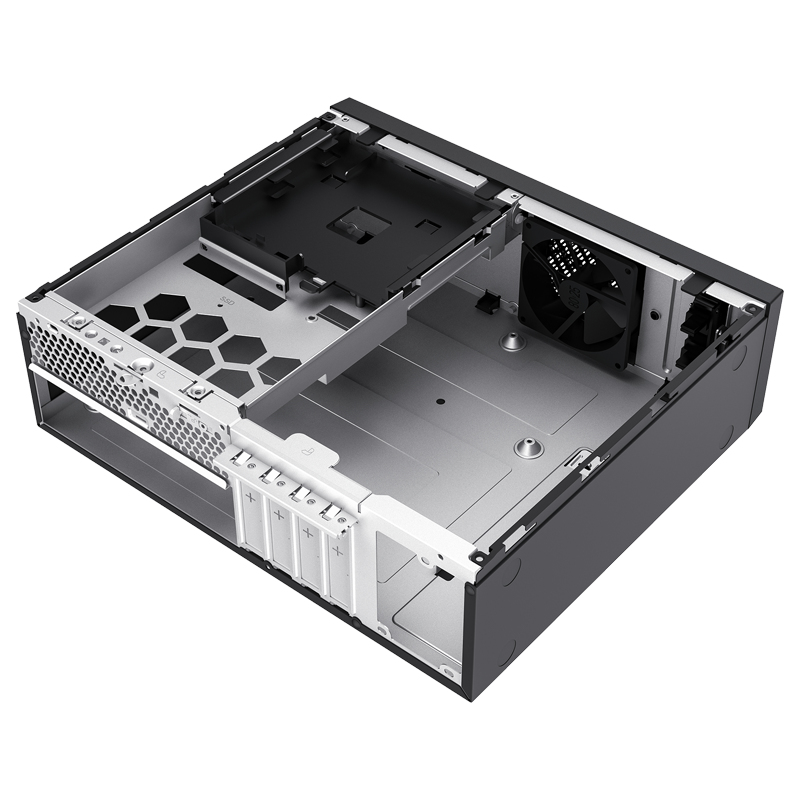

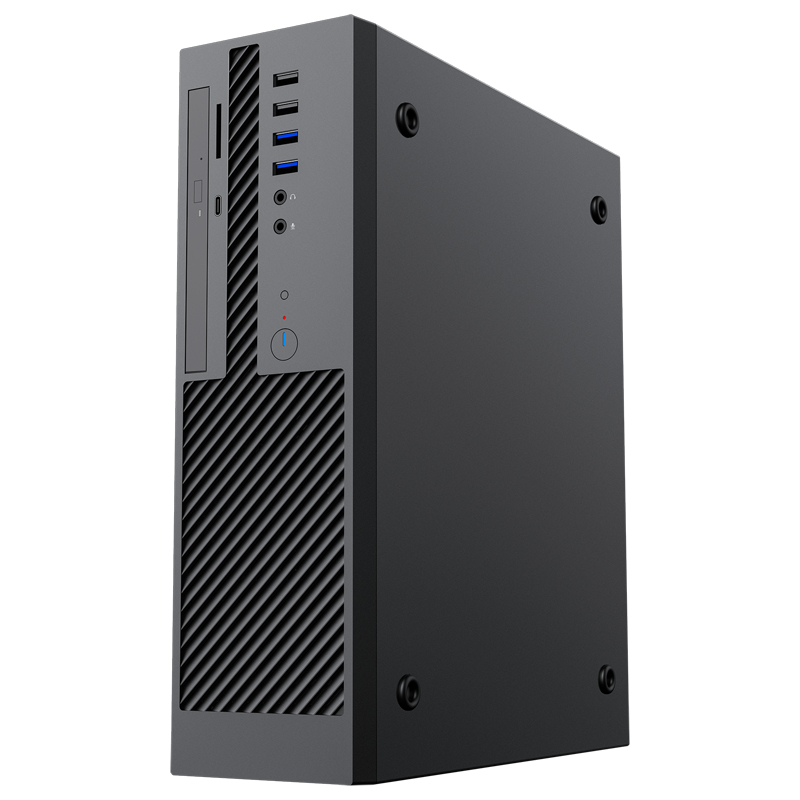

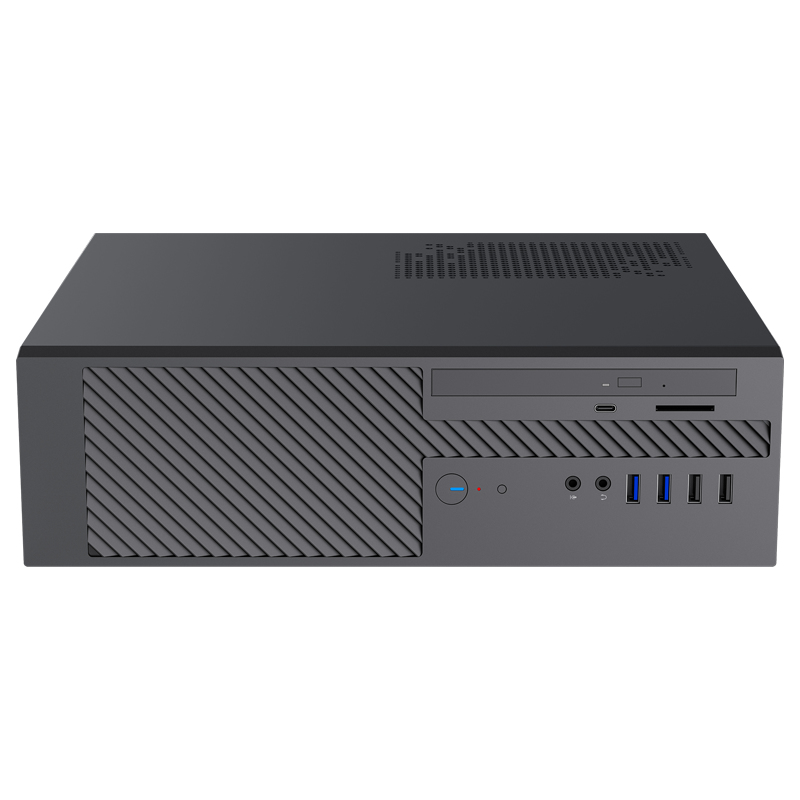

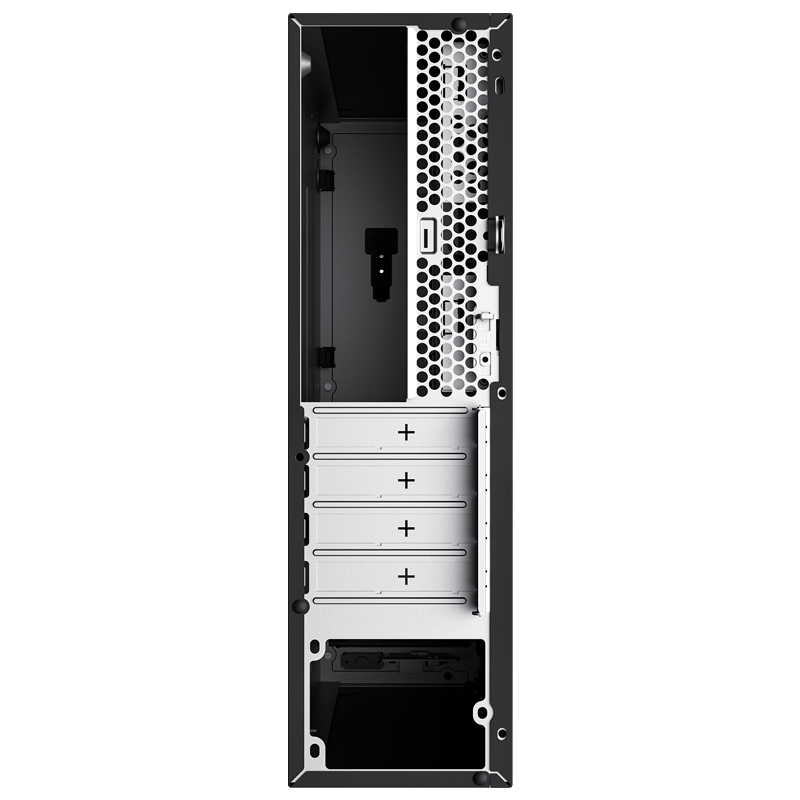

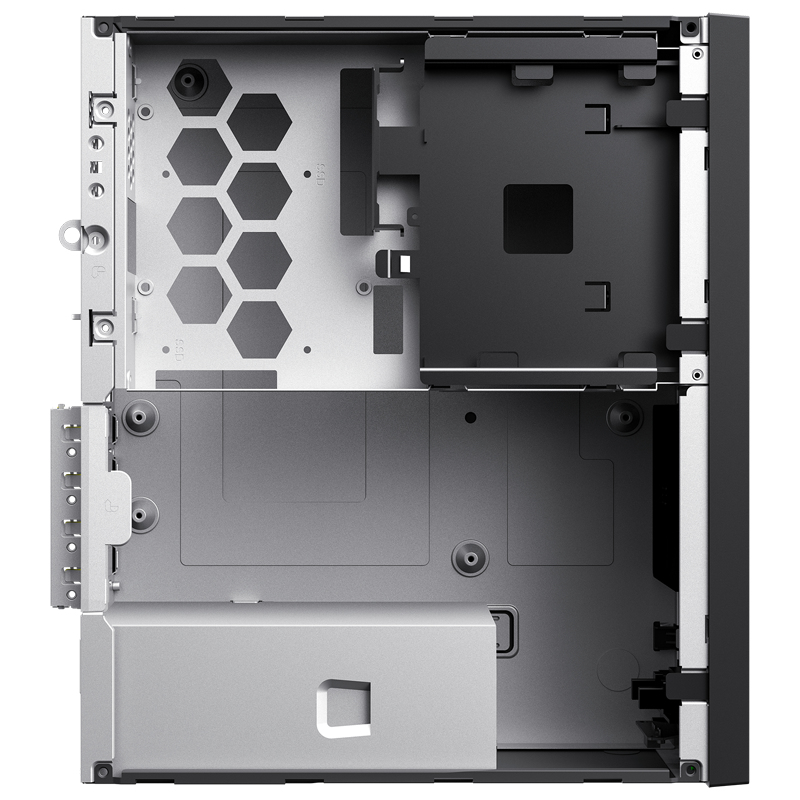

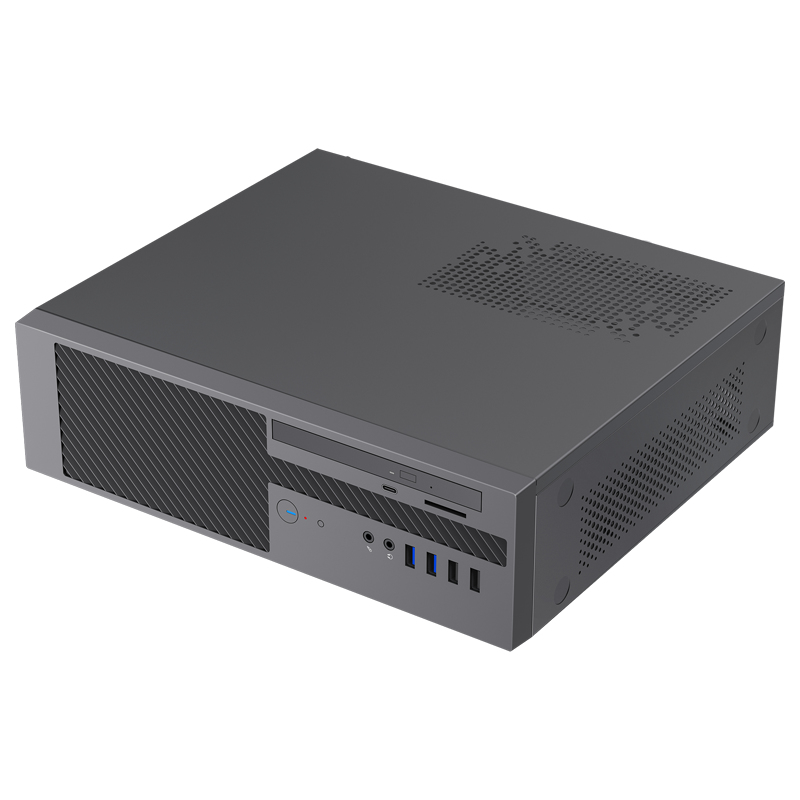

PILOT Z8
Model PILOT Z8Part no. ITOCPZ8EAN 8056157882992
25 specifications
- TypeSmall Form Factor (SFF)
- Weight3.5 kg
- ColourBlack
- Power supply includedYes
- USB 2.0 ports quantity2
- Front fans installed1x 80 mm
Overview
- Type
- Small Form Factor (SFF)
- Weight
- 3.5 kg
- Colour
- Black
- Power supply included
- Yes
- USB 2.0 ports quantity
- 2
- Front fans installed
- 1x 80 mm
- Brand
- itek
- Category
- Computer Case
- Model
- PILOT Z8
- Part number
- ITOCPZ8
- EAN / UPC
- 8056157882992
- Also known as
- itek PILOT Z8 Small Form Factor (SFF) Black 300 W
Specifications
25 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Small Form Factor (SFF) |
| Type | PC |
| Material | SGCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 1 |
| Maximum CPU cooler height | 4.5 cm |
| Maximum graphics card length | 22 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | Yes |
| Power supply | 300 W |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 1x 80 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 95 mm |
| Depth | 283 mm |
| Height | 327 mm |
| Weight | 3.5 kg |
| Material thickness | 0.6 mm |
