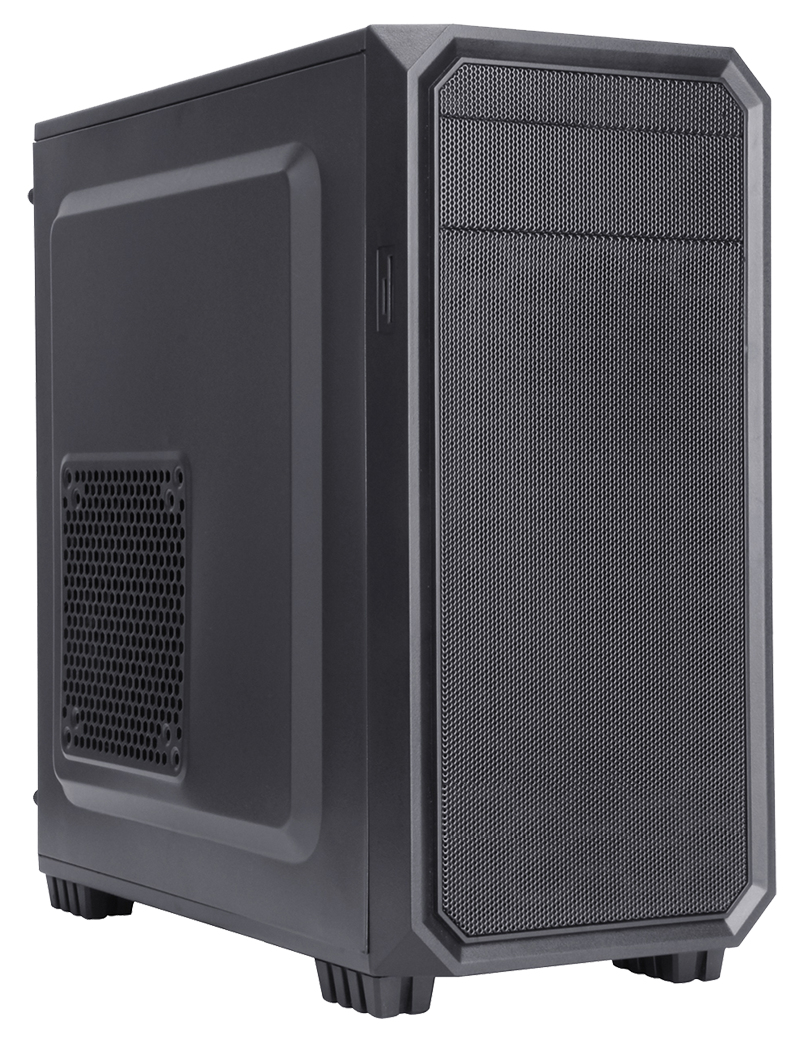

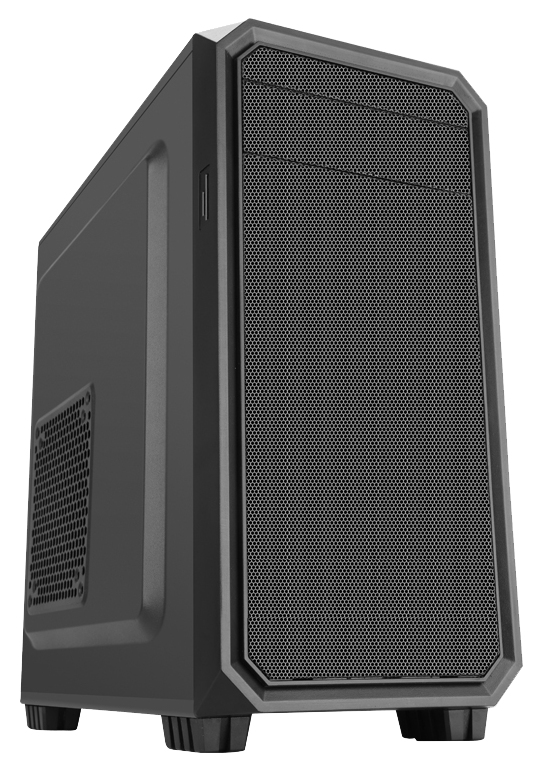

PATRIOT MINI EVO
Model PATRIOT MINI EVOPart no. ITOCPAMIEEAN 8056157881384
33 specifications
- TypeMini Tower
- Weight3 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Mini Tower
- Weight
- 3 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Supported HDD sizes
- 2.5,3.5"
- Brand
- itek
- Category
- Computer Case
- Model
- PATRIOT MINI EVO
- Part number
- ITOCPAMIE
- EAN / UPC
- 8056157881384
- Also known as
- itek PATRIOT MINI EVO Mini Tower Black
Specifications
33 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Side window | No |
| Cable management | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 35 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |

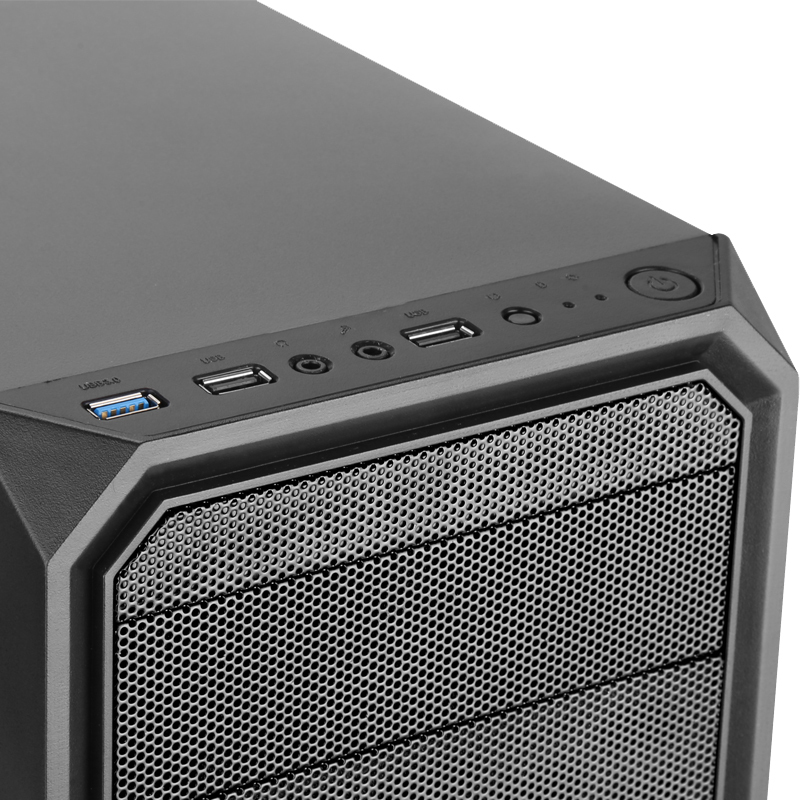

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 2 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 183 mm |
| Depth | 375 mm |
| Height | 350 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.8 kg |
