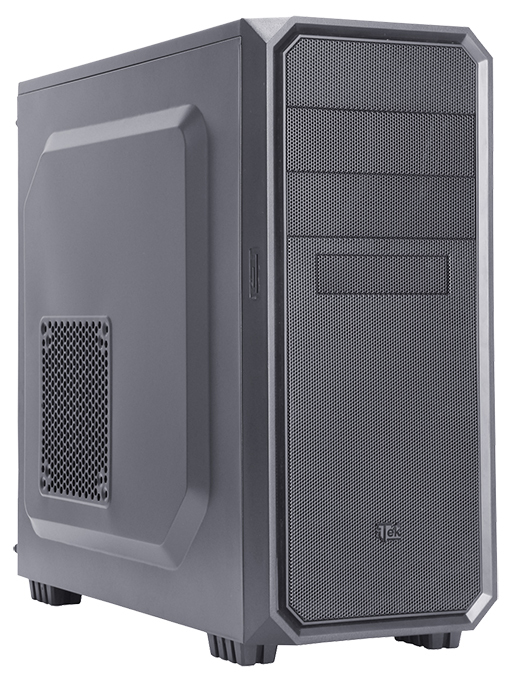

itek Patriot B1
Model Patriot B1Part no. ITOCPA01BEAN 8032539914031
45 specifications
- TypeMidi Tower
- Weight3.8 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Number of front fans supported (max)1
Overview
- Type
- Midi Tower
- Weight
- 3.8 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 1
- Brand
- itek
- Category
- Computer Case
- Model
- Patriot B1
- Part number
- ITOCPA01B
- EAN / UPC
- 8032539914031
- Also known as
- itek Patriot B1 Midi Tower Black
Specifications
45 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Metal |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX |
| Number of 3.5" bays | 5 |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of internal 3.5" bays | 4 |
| Number of external 5.25" bays | 2 |
| Number of expansion slots | 7 |
| Side window | No |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 42 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Redundant power supply (RPS) support | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of side fans supported (max) | 1 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 183 mm |
| Depth | 420 mm |
| Height | 420 mm |
| Weight | 3.8 kg |
| Material thickness | 0.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 203 mm |
| Package depth | 437 mm |
| Package height | 475 mm |
| Package weight | 4.8 kg |
