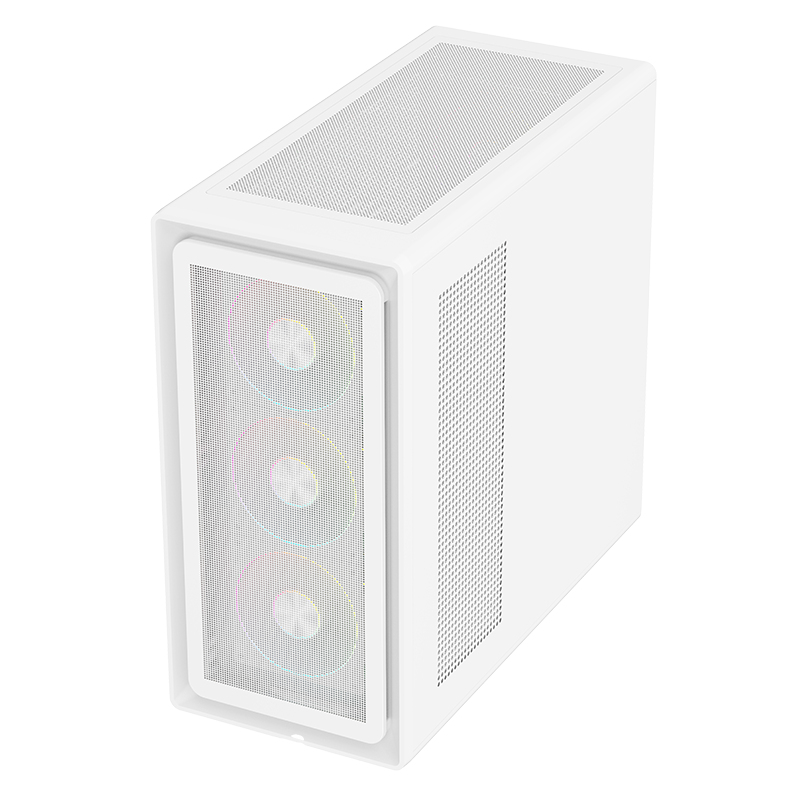

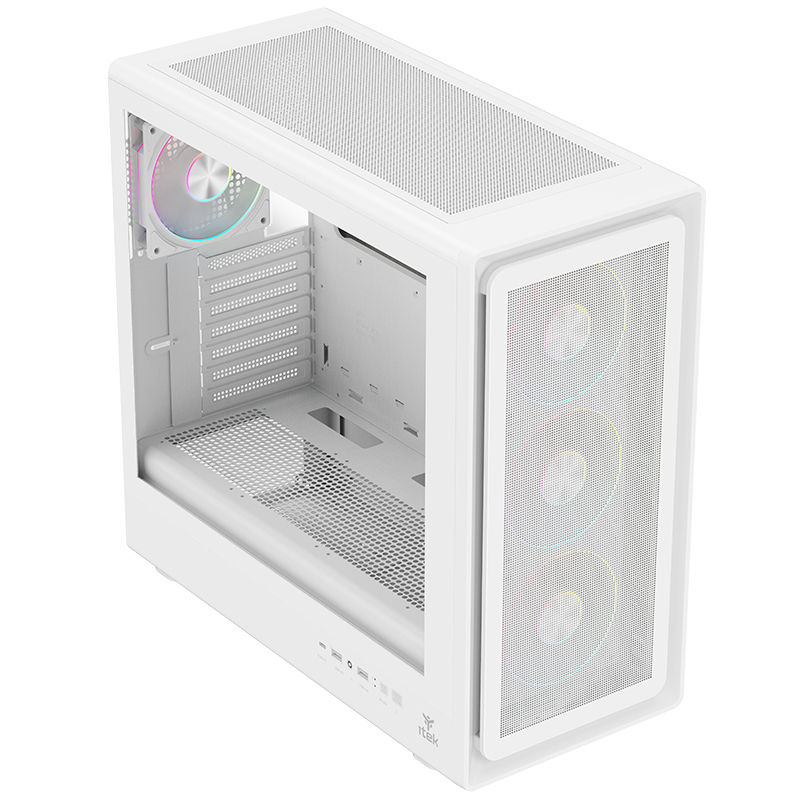

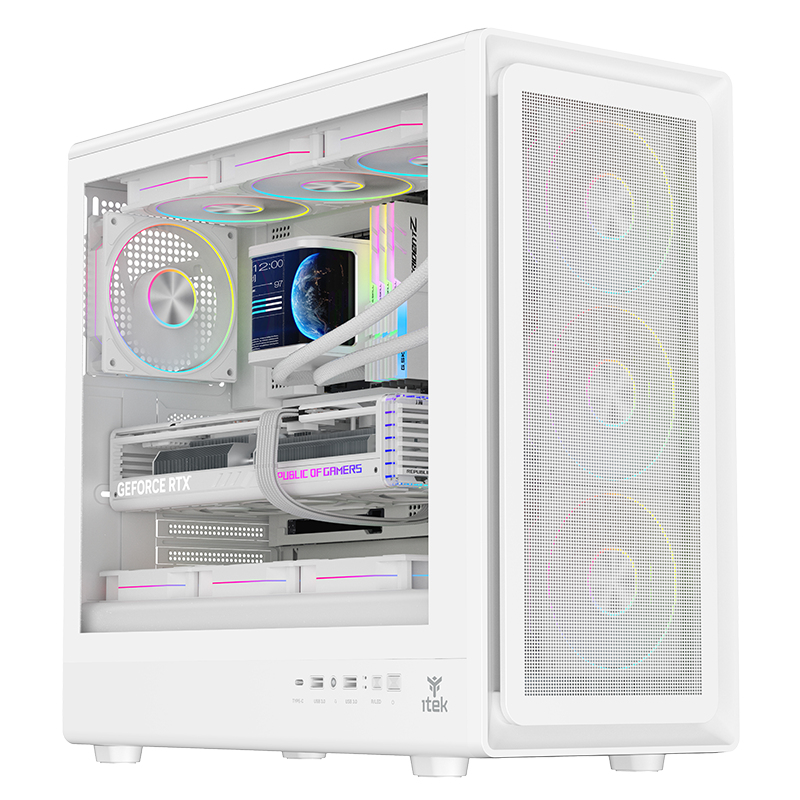

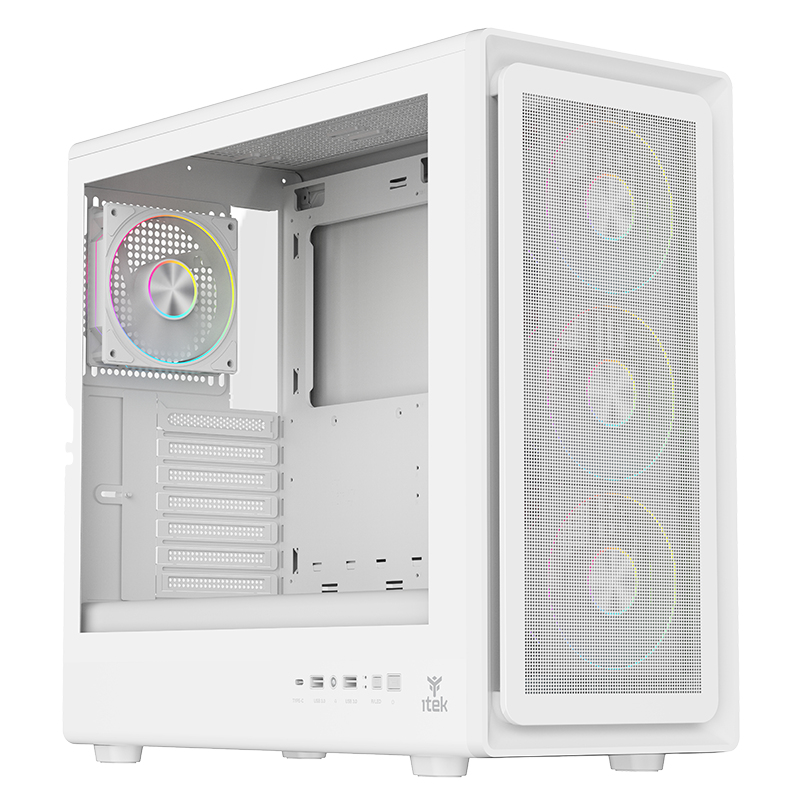

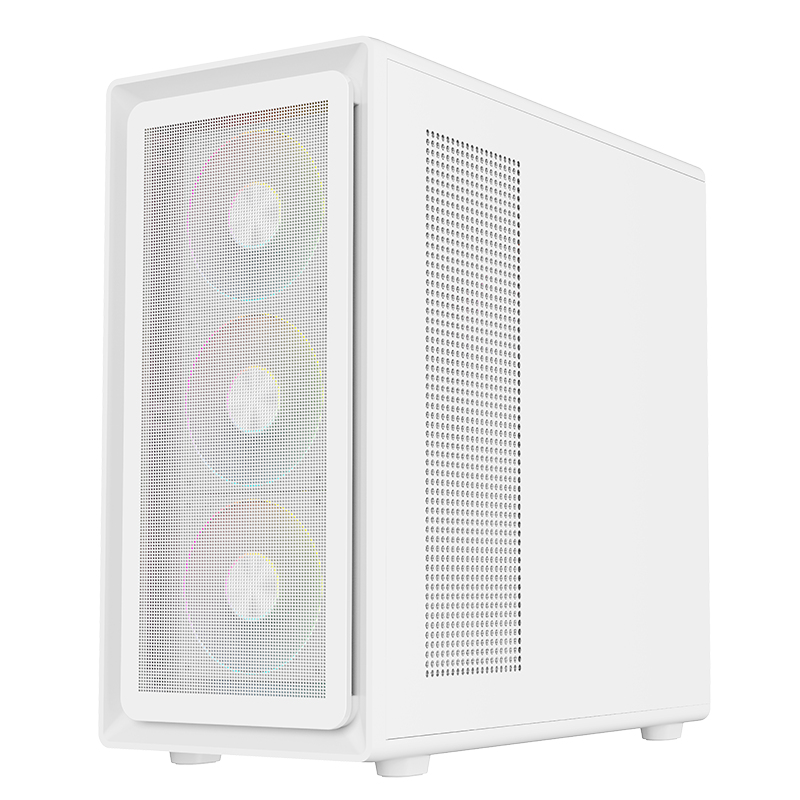

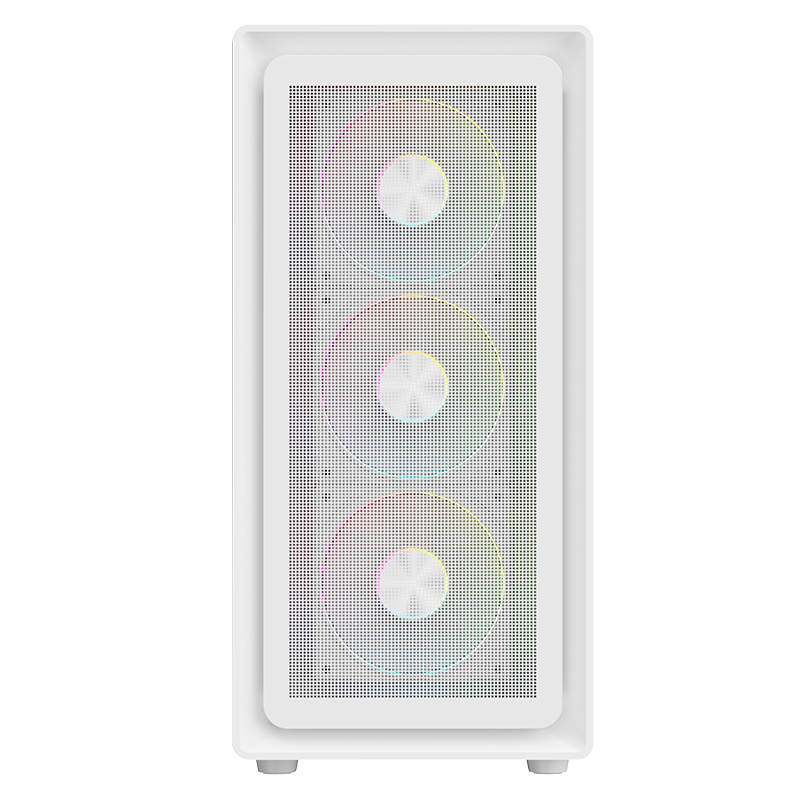

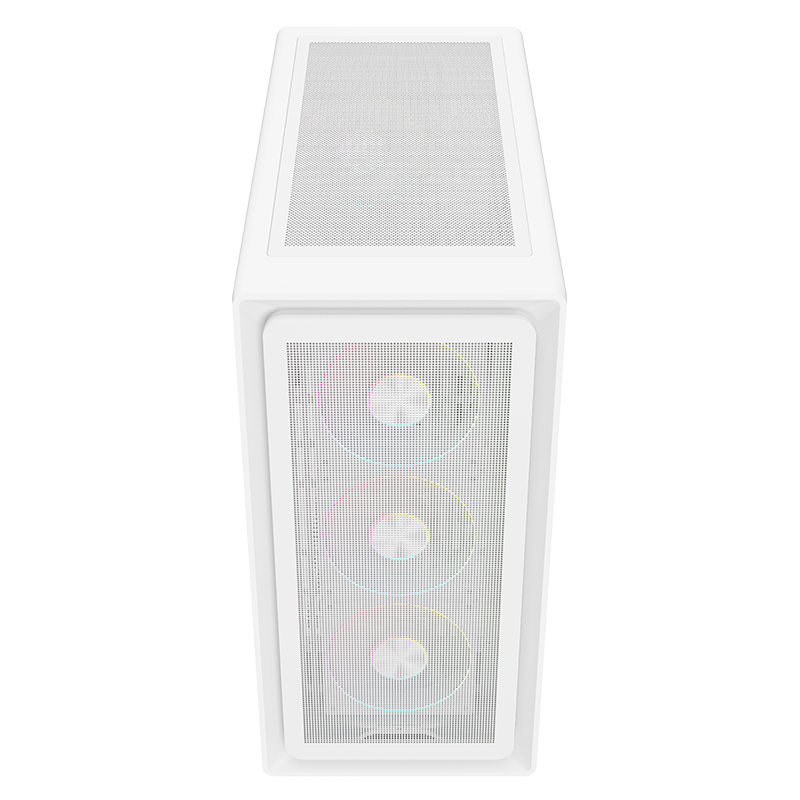

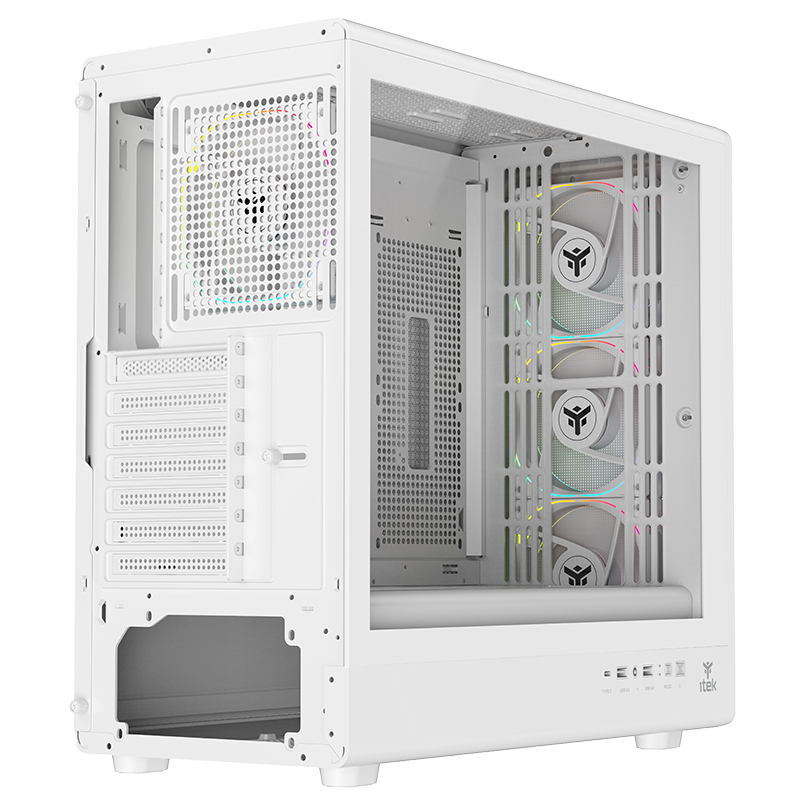

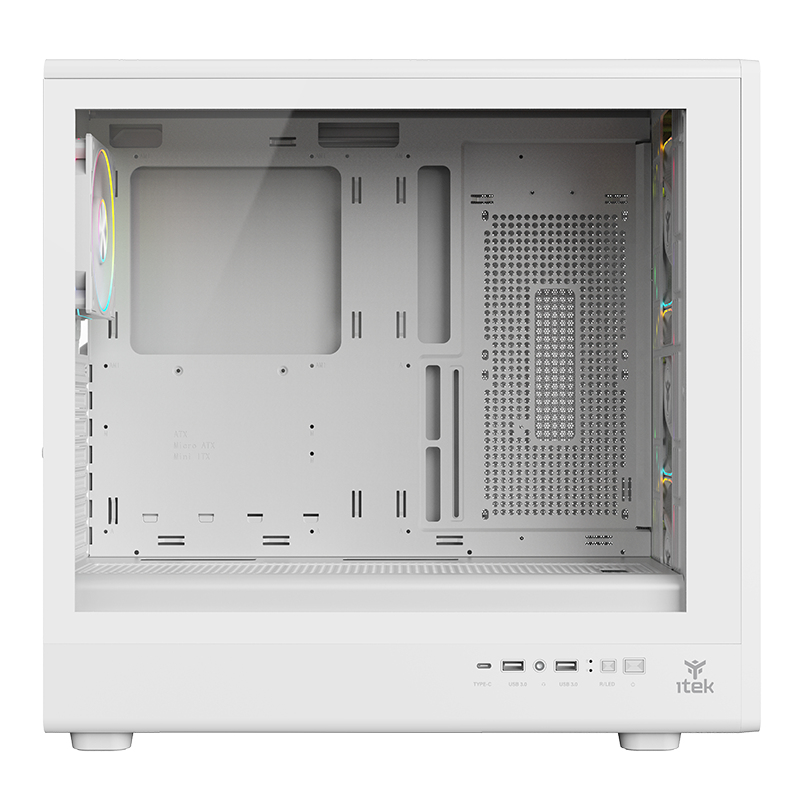

MESHCORE 36W
Model MESHCORE 36WPart no. ITGCAMC36WEAN 8056157884408
44 specifications
- TypeTower
- ColourWhite
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 120 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Tower
- Colour
- White
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 120 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- itek
- Category
- Computer Case
- Model
- MESHCORE 36W
- Part number
- ITGCAMC36W
- EAN / UPC
- 8056157884408
- Also known as
- itek MESHCORE 36W Tower White
Specifications
44 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Tower |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| Maximum CPU cooler height | 17.4 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 24 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,240,280 mm |
| Side radiator sizes supported | 120 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 470 mm |
| Height | 459 mm |
