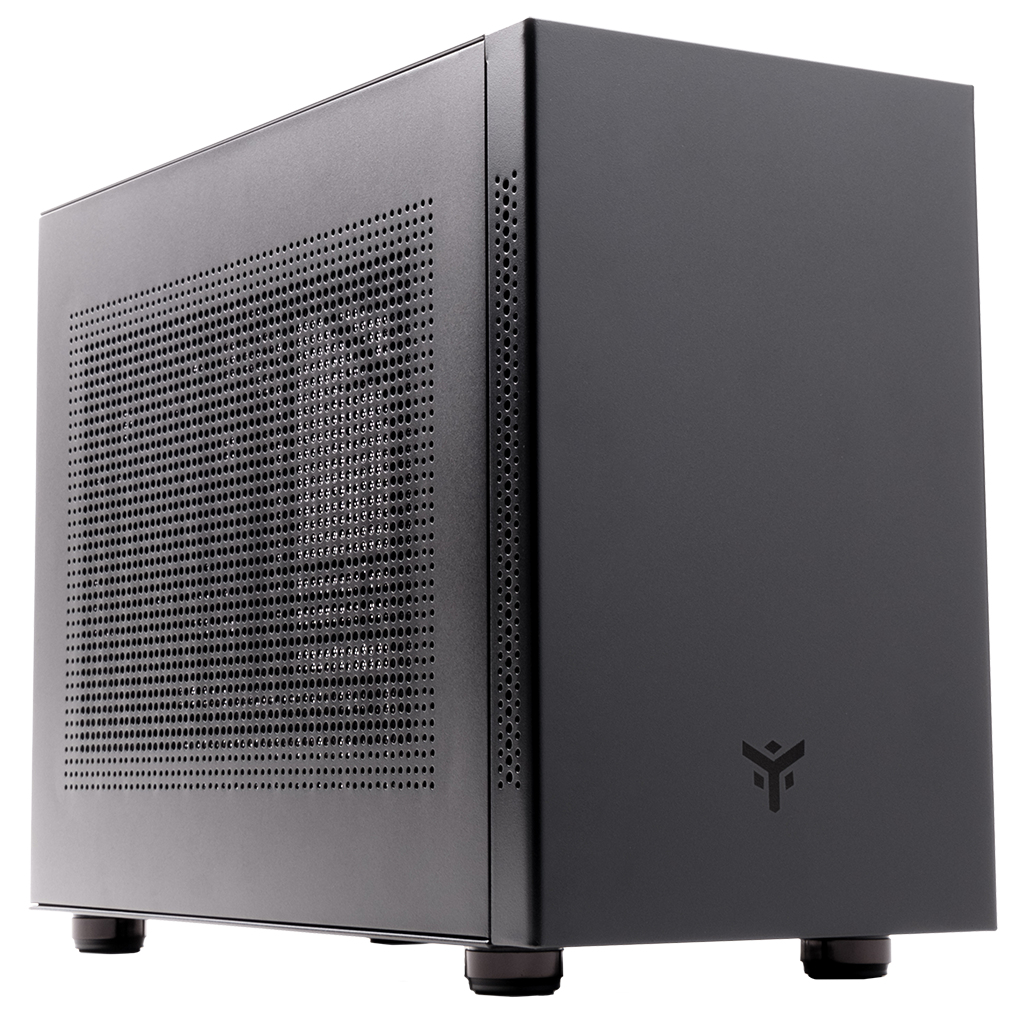

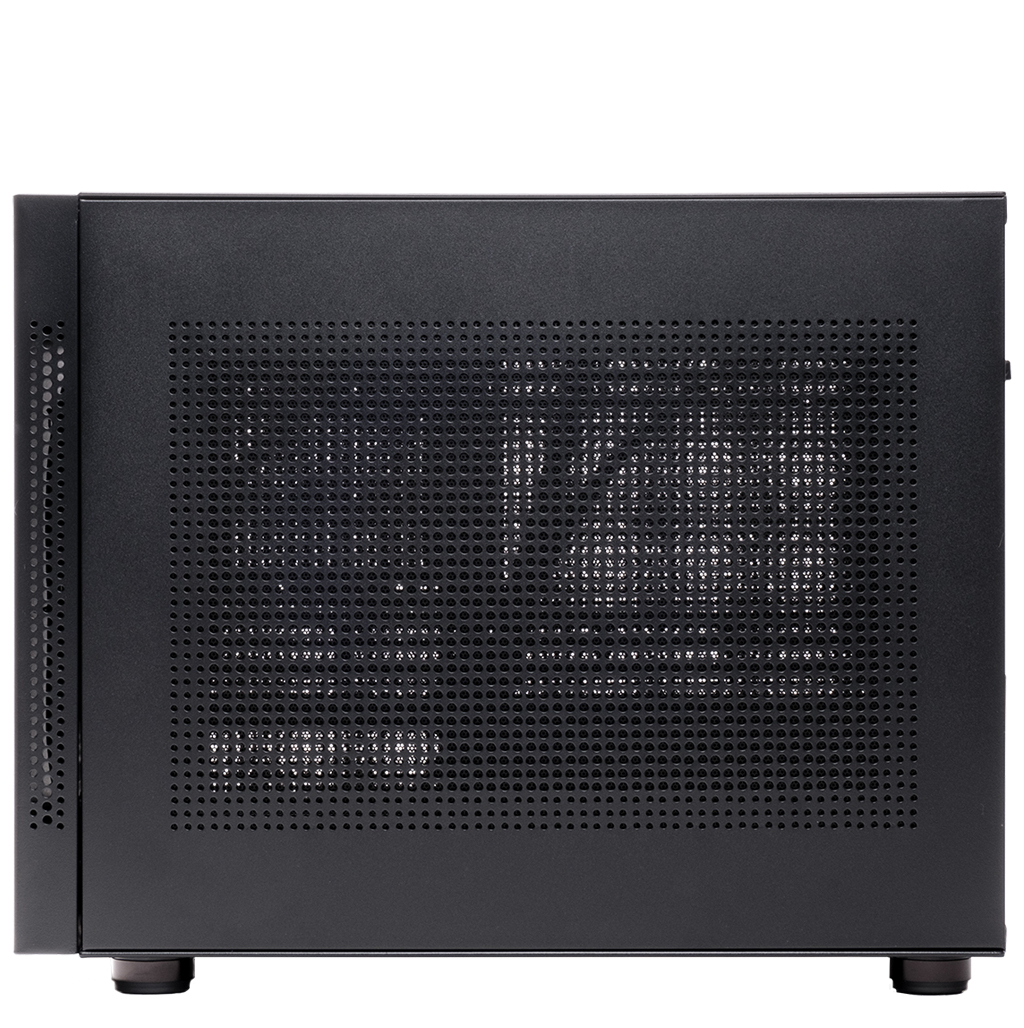

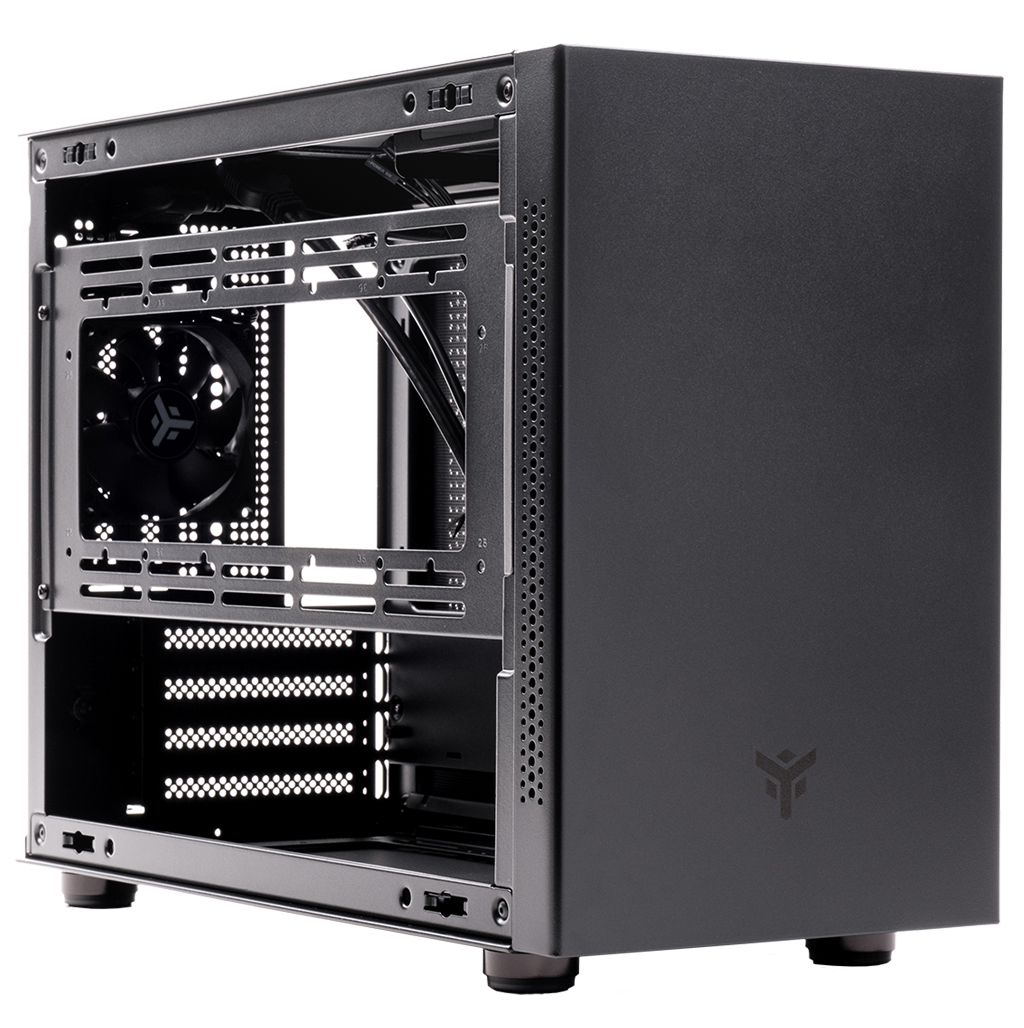

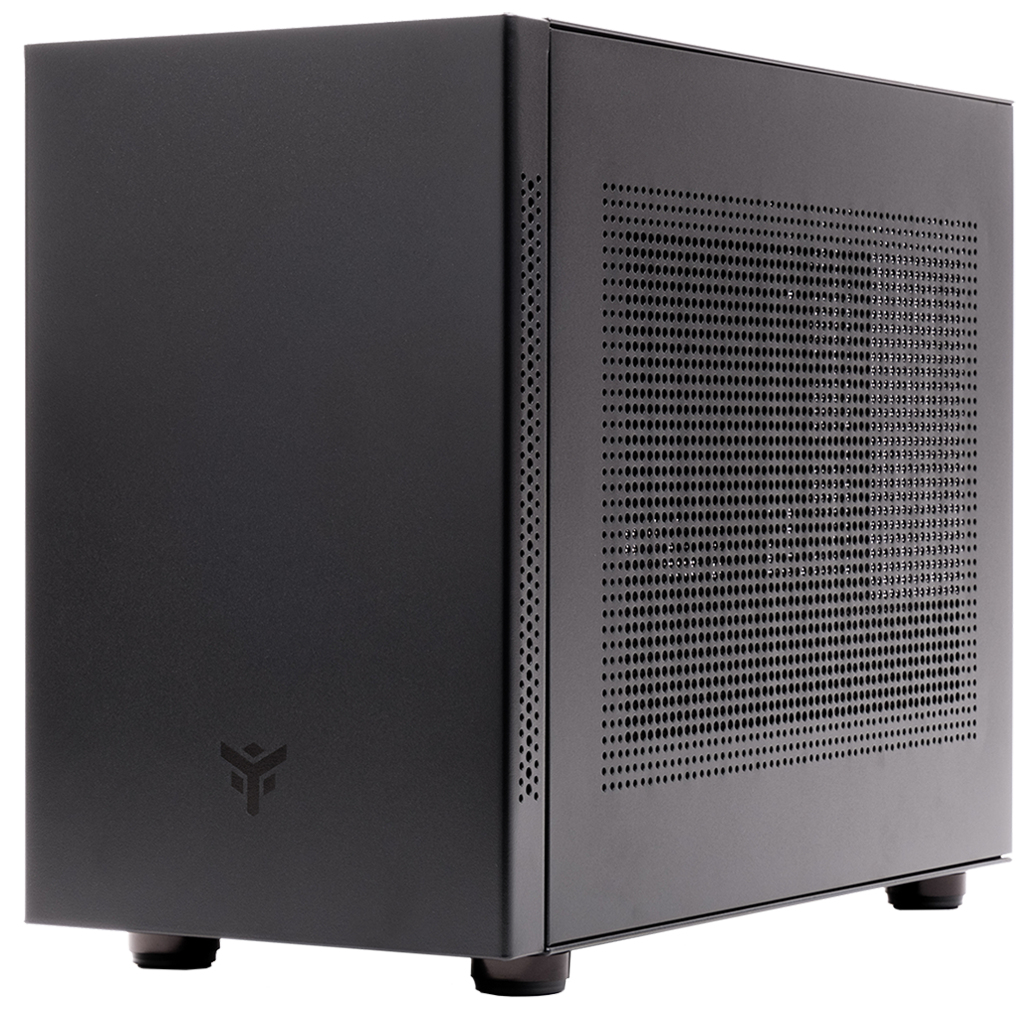

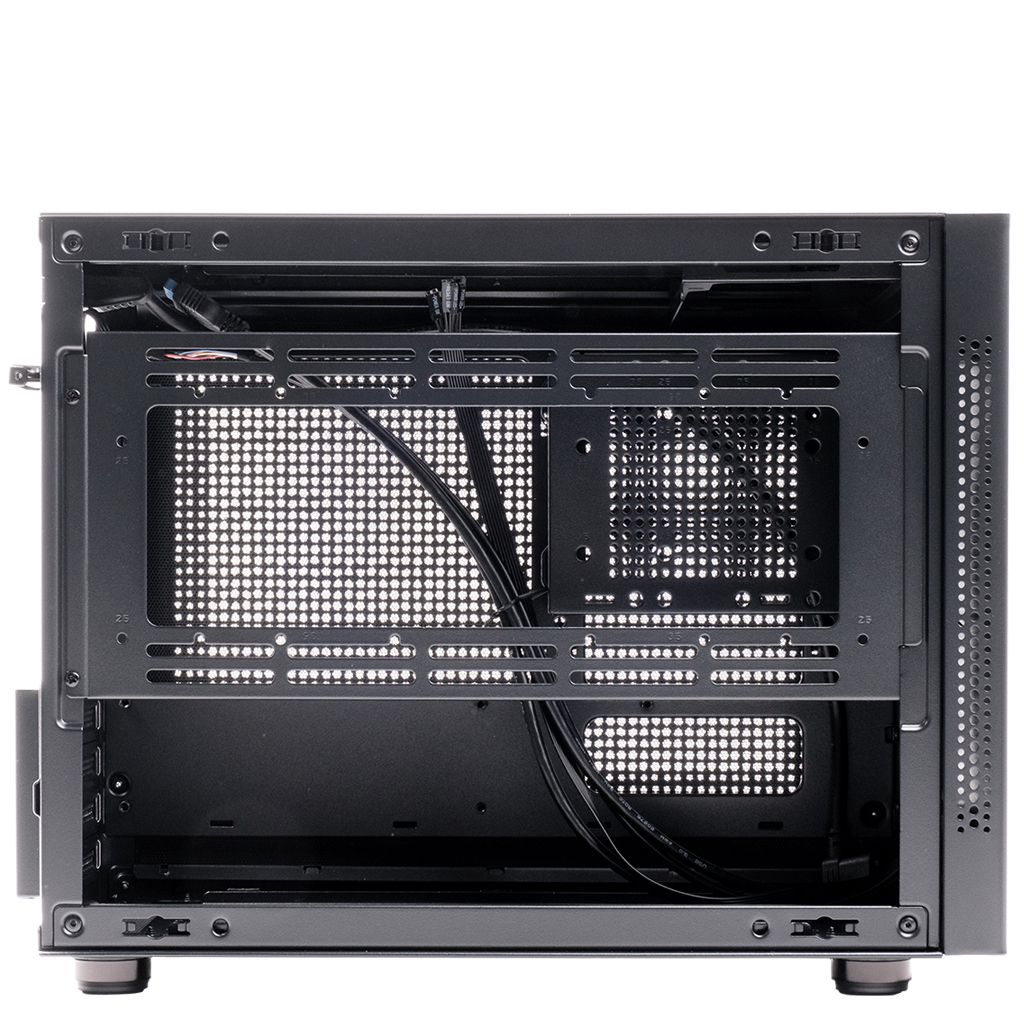

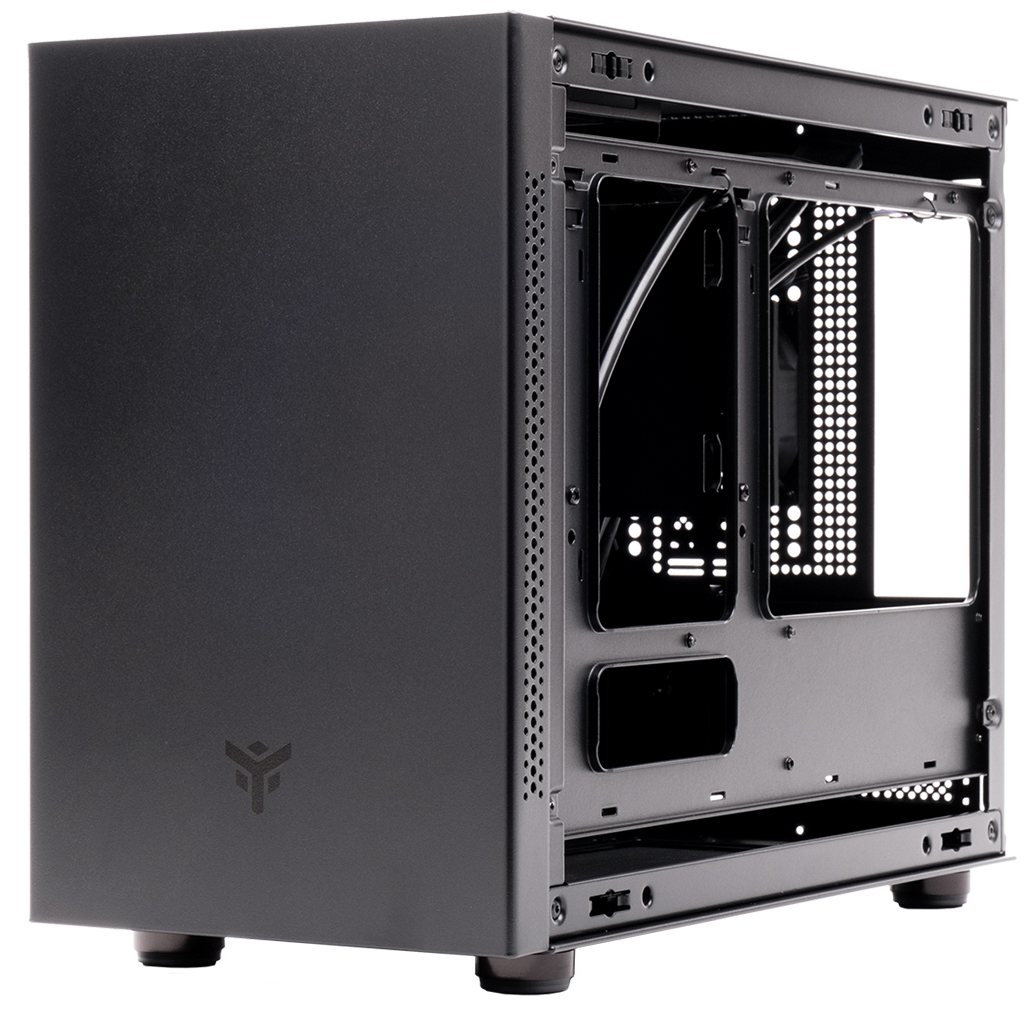

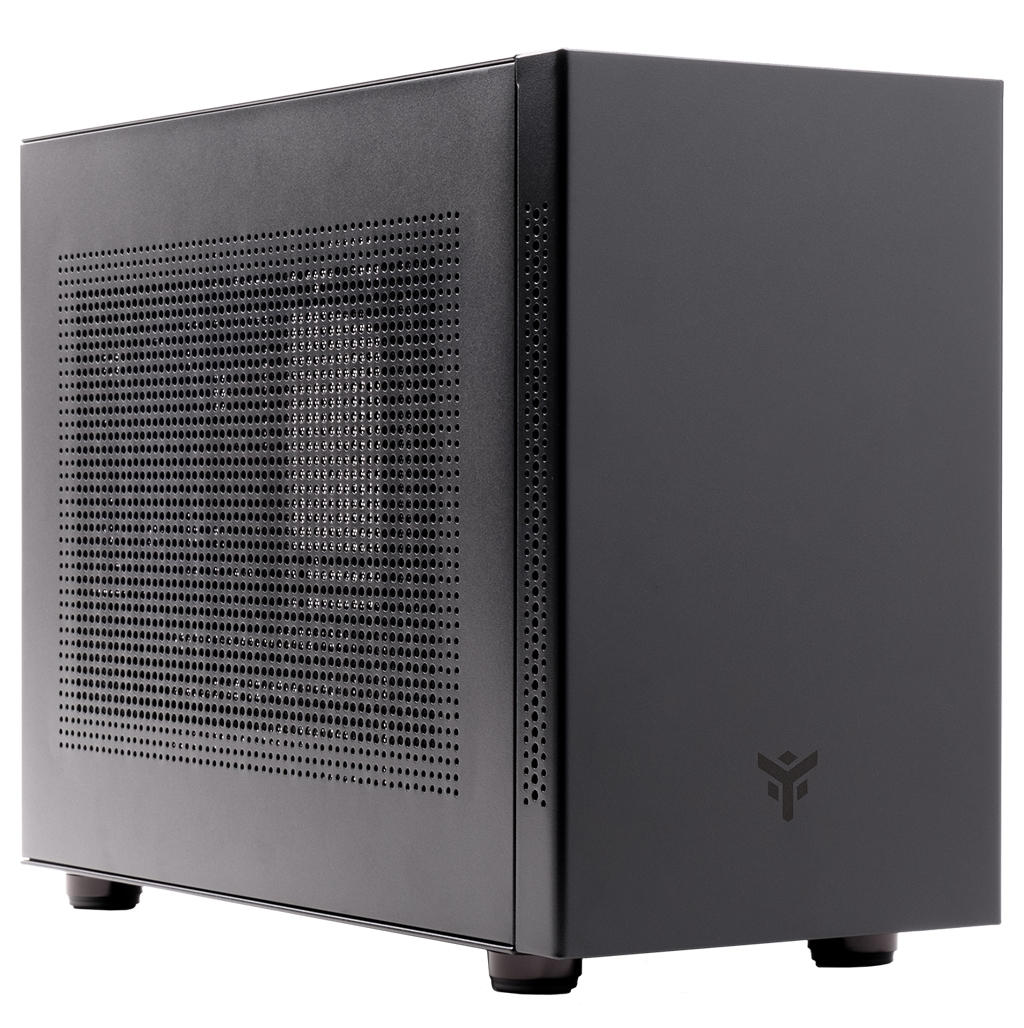

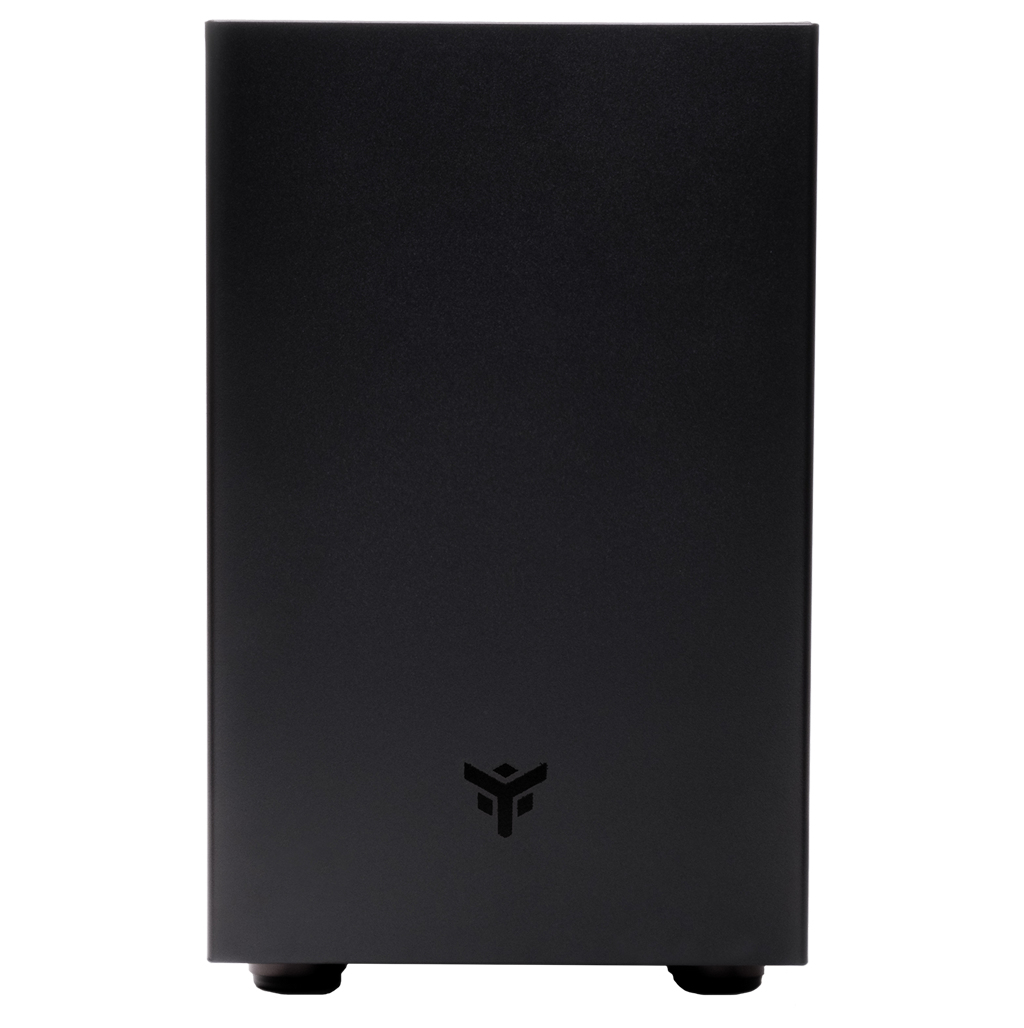

EVOKE Mini Tower Black
Model EVOKEPart no. ITGCAEVKBEAN 8056157881452
28 specifications
- TypeMini Tower
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Side fans diameters supported120,240 mm
- Supported HDD sizes2.5,3.5"
Overview
- Type
- Mini Tower
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Side fans diameters supported
- 120,240 mm
- Supported HDD sizes
- 2.5,3.5"
- Brand
- itek
- Category
- Computer Case
- Model
- EVOKE
- Part number
- ITGCAEVKB
- EAN / UPC
- 8056157881452
- Also known as
- itek EVOKE Mini Tower Black
Specifications
28 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Metal, SPCC |
| Product colour | Black |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Side window | No |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 8.8 cm |
| Maximum graphics card length | 24.5 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |

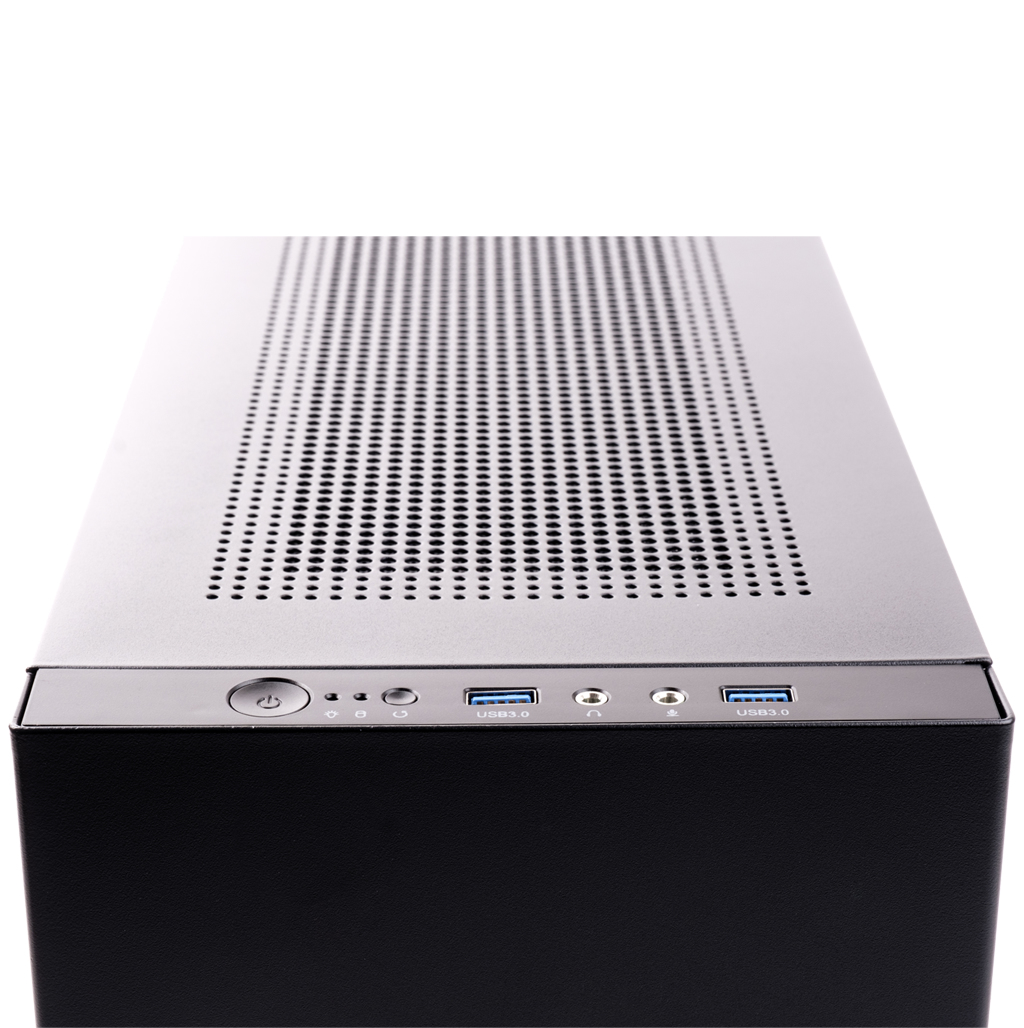

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Side fans diameters supported | 120,240 mm |
| Rear fans installed | 1x 80 mm |
| Top fans diameters supported | 120,240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 391 mm |
| Height | 303 mm |
| Material thickness | 0.8 mm |
