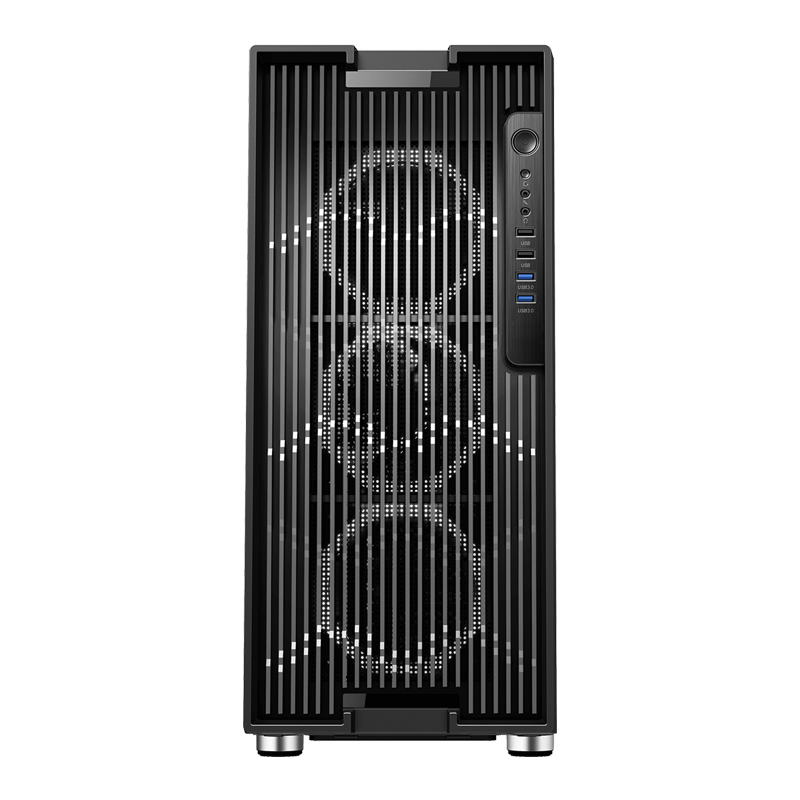

BYZON Advanced
Model BYZON AdvancedPart no. ITGCABZA10EAN 8032539915007
39 specifications
- TypeFull Tower
- Weight9.3 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Full Tower
- Weight
- 9.3 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- itek
- Category
- Computer Case
- Model
- BYZON Advanced
- Part number
- ITGCABZA10
- EAN / UPC
- 8032539915007
- Also known as
- itek BYZON Advanced Full Tower Black
Specifications
39 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Full Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 5 |
| Number of expansion slots | 8 |
| Side window | Yes |
| Illumination | Yes |
| Tempered glass panel(s) | Yes |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 40 cm |
| Maximum PSU length | 19 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans installed | 2x 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Front radiator sizes supported | 240 mm |
| Bottom radiator sizes supported | 240 mm |
| Rear radiator sizes supported | 240 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 233 mm |
| Depth | 517 mm |
| Height | 465 mm |
| Weight | 9.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 11.4 kg |
