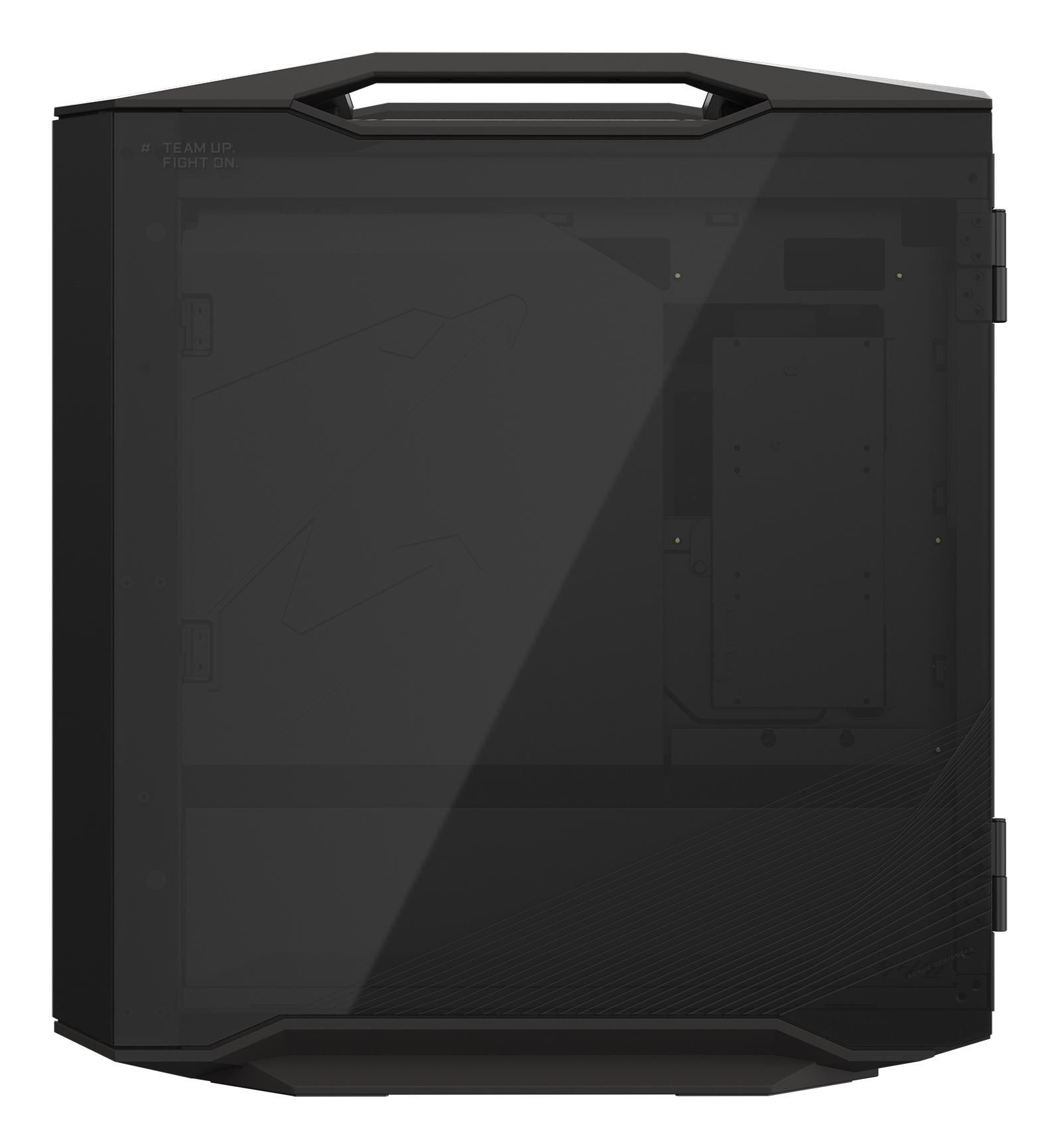

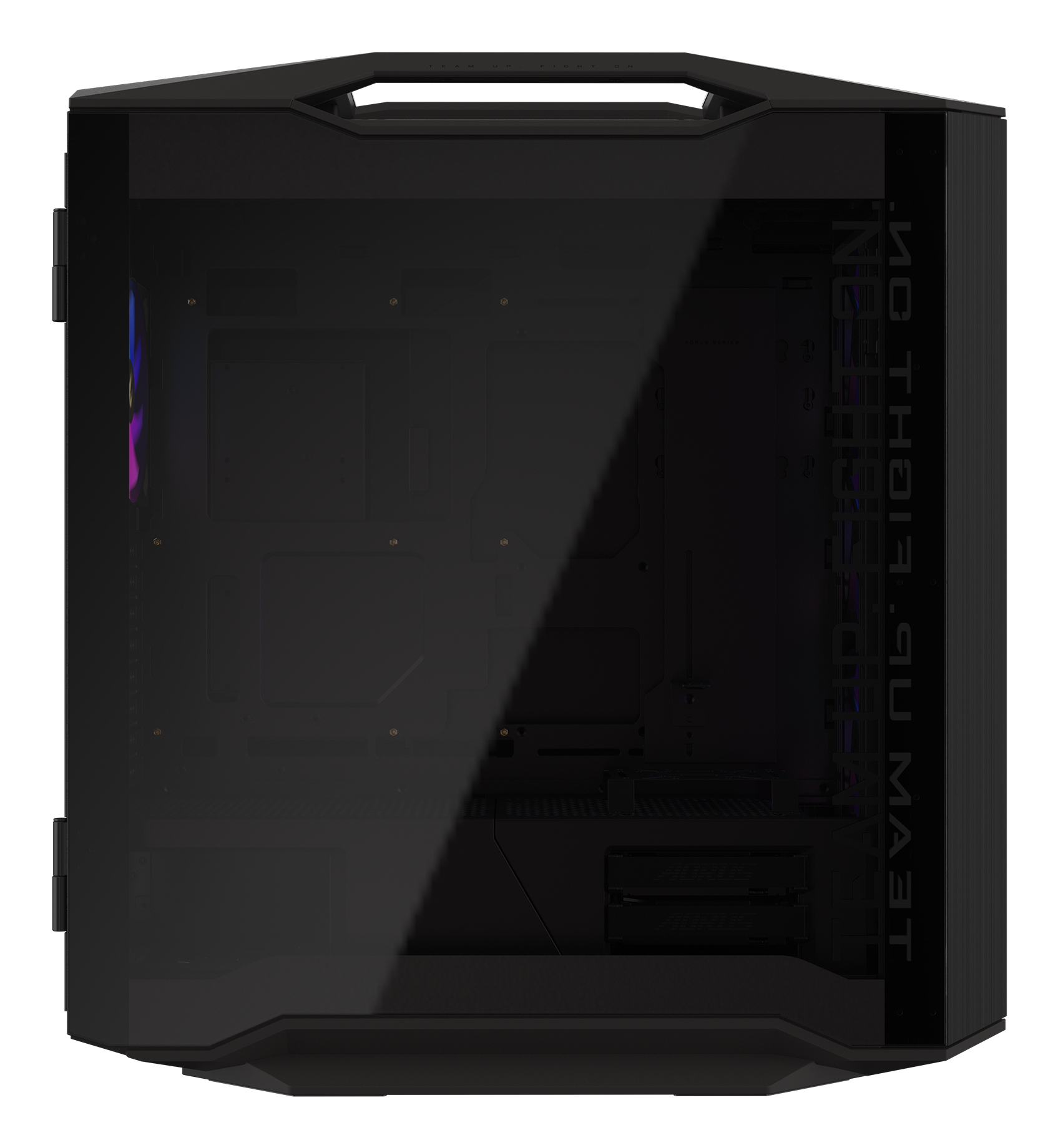

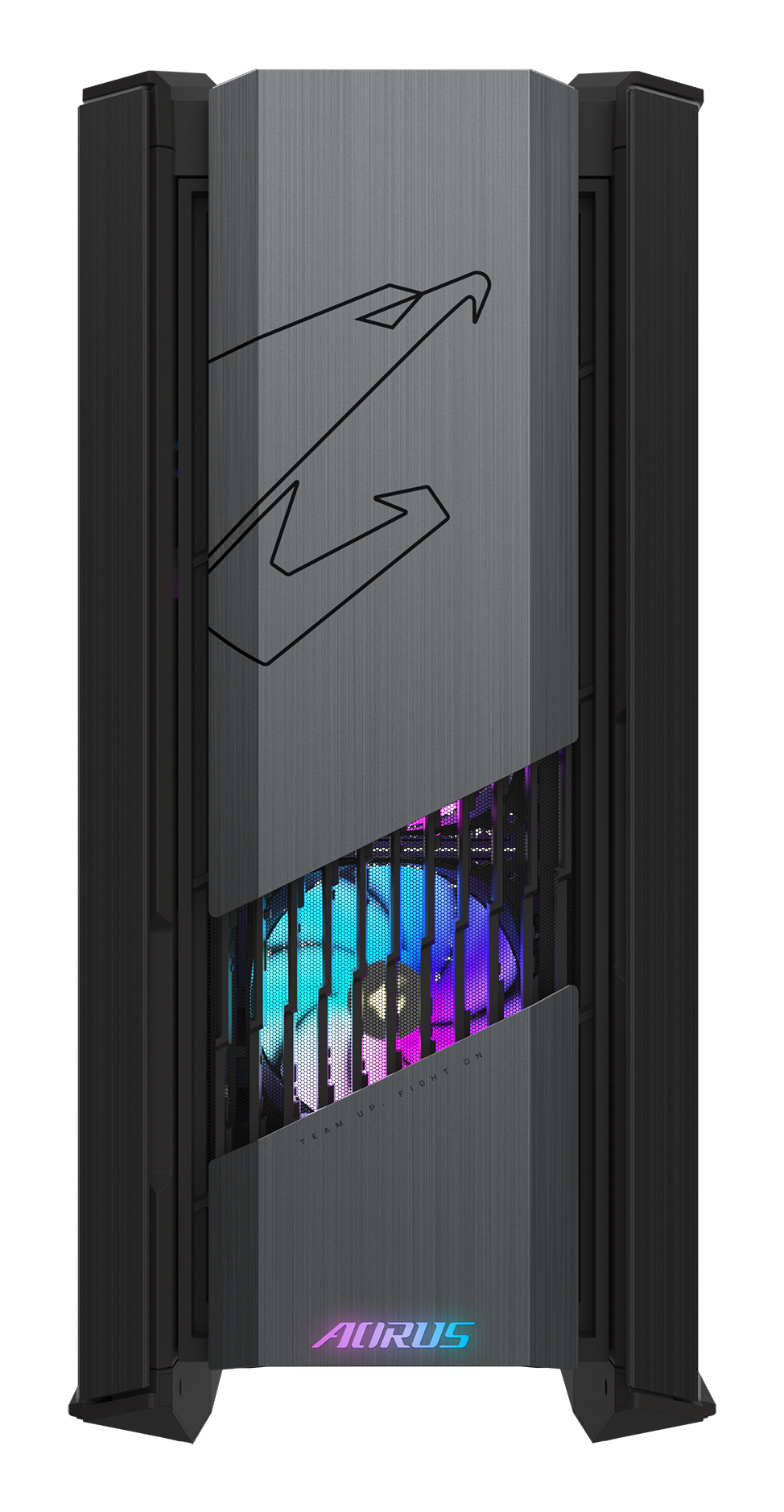

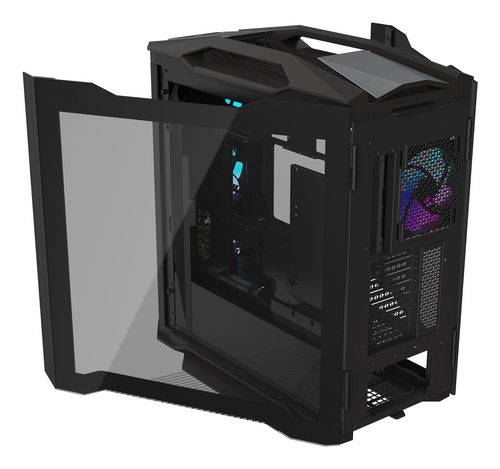

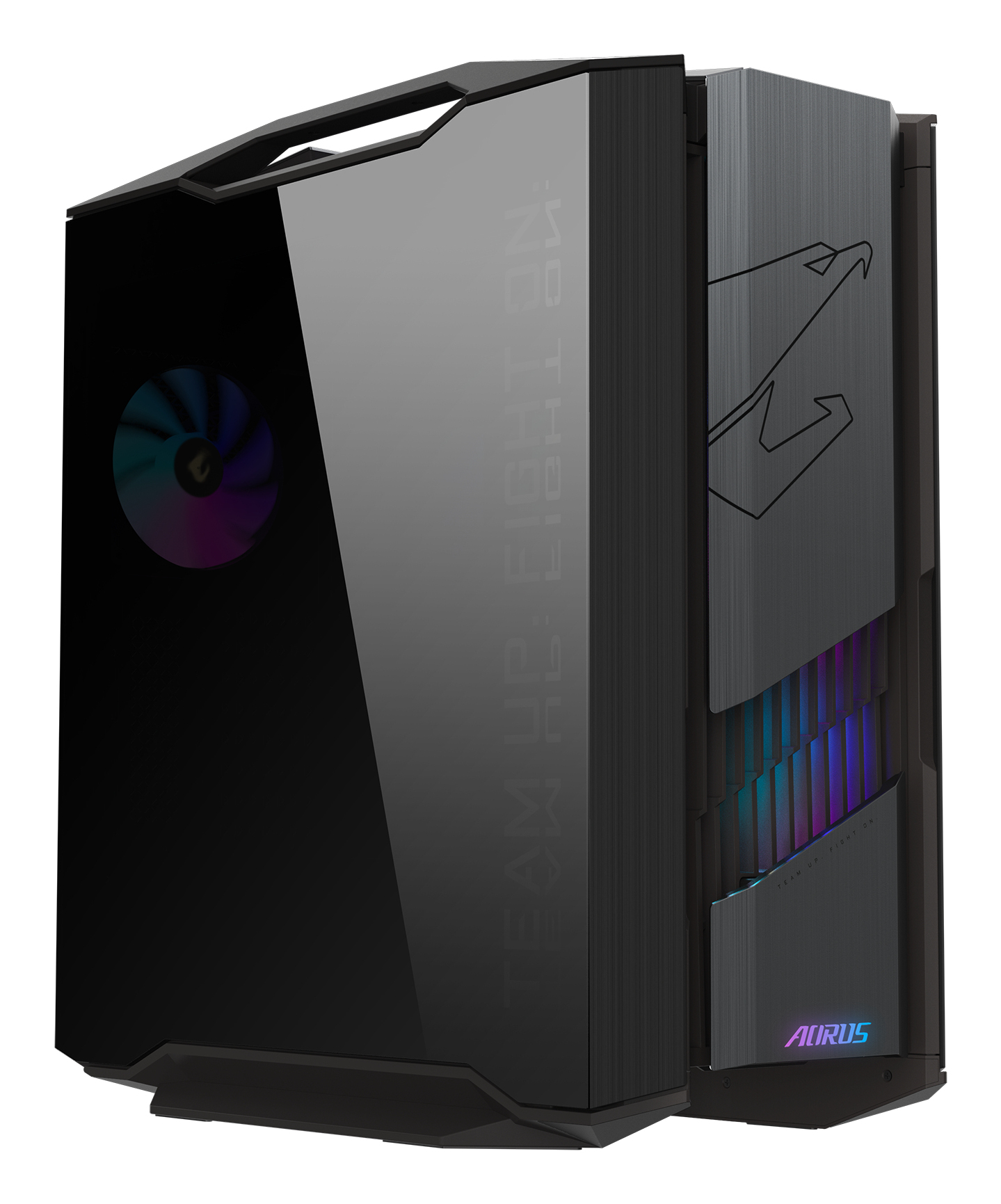

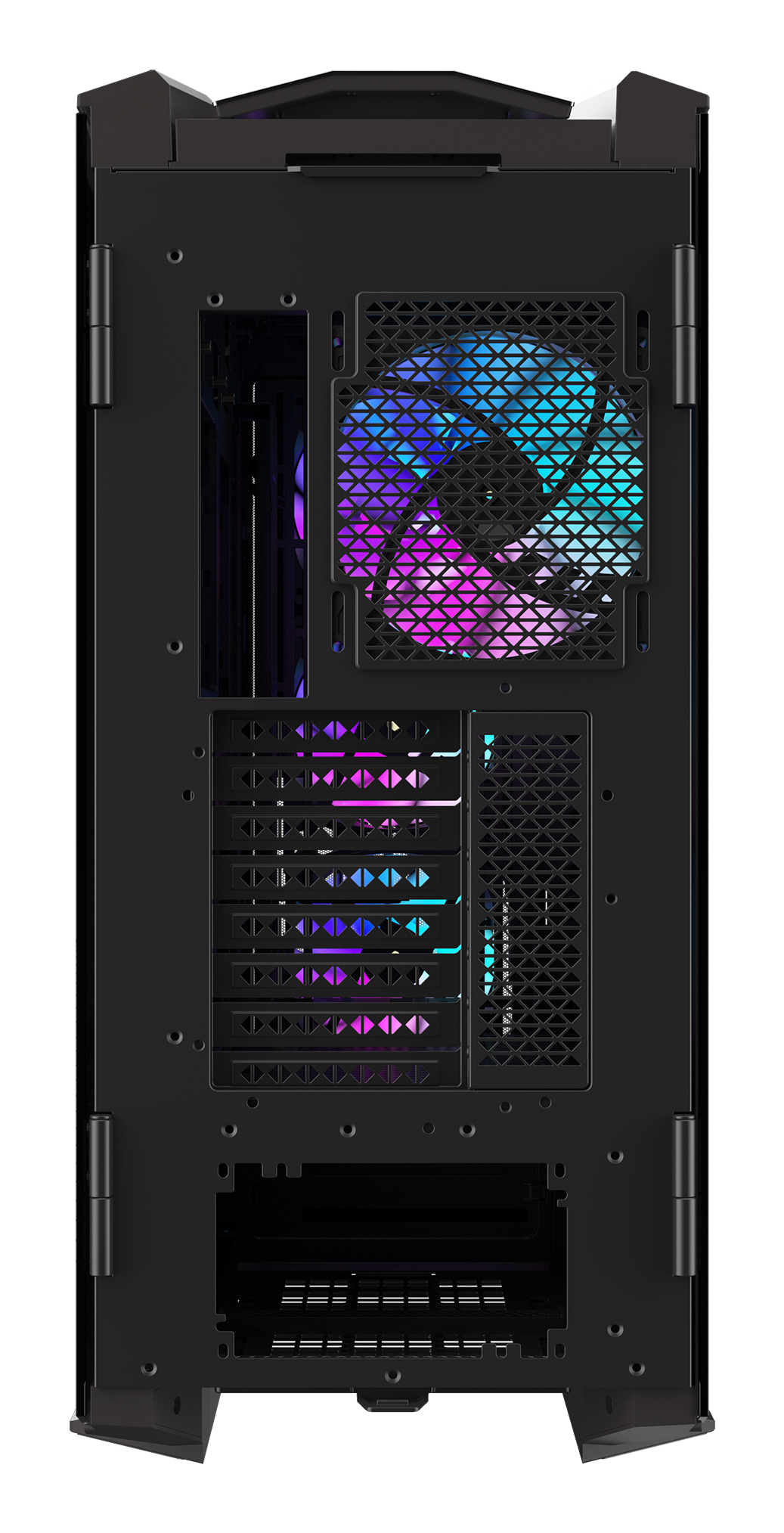

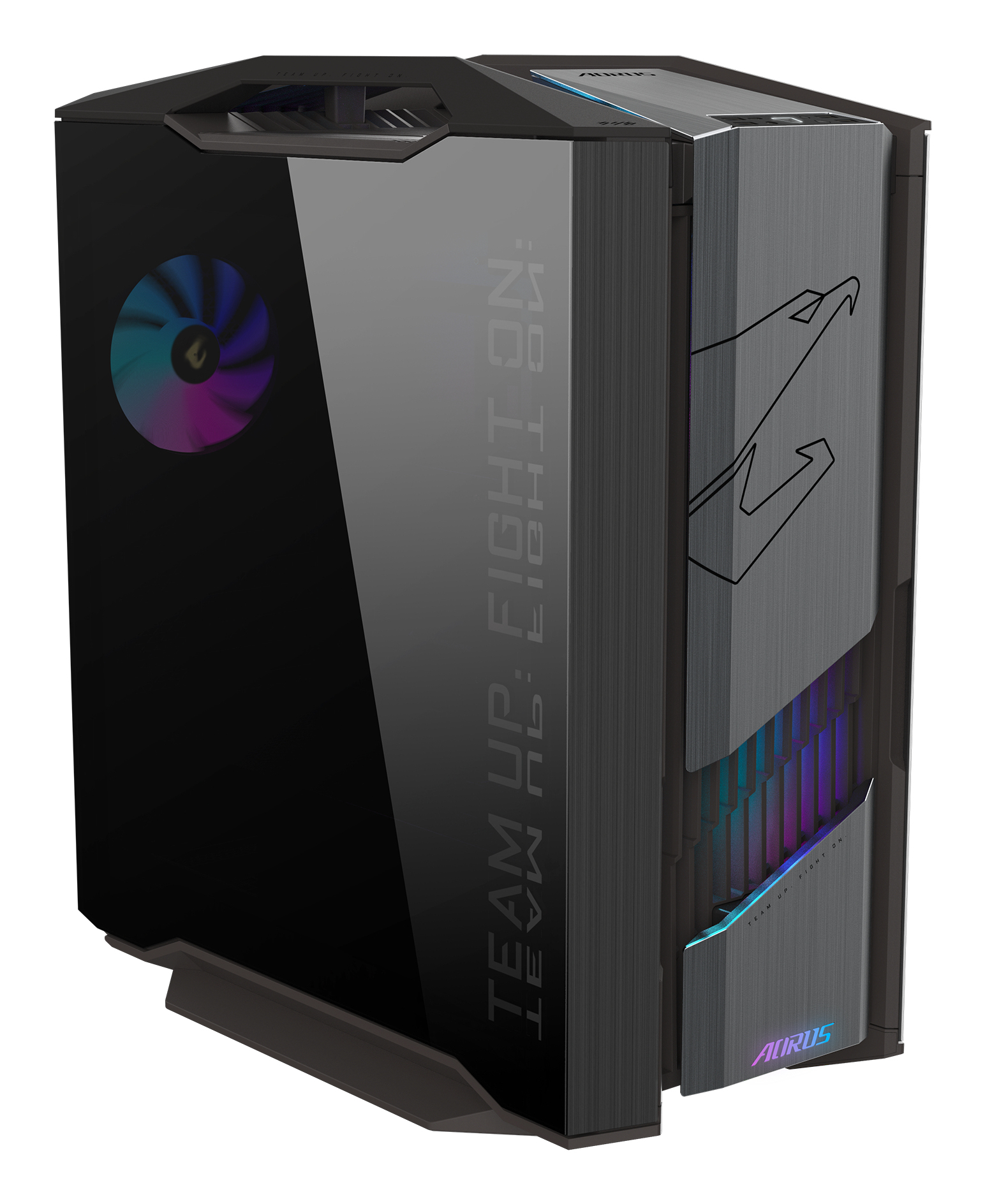

AORUS C601 GLASS GLOBAL
Model AORUS C601 GLASS GLOBALPart no. AC601GEAN 4719331554828
53 specifications
- TypeMidi Tower
- Weight21.5 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Front fans installed3x 140 mm
Overview
- Type
- Midi Tower
- Weight
- 21.5 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Front fans installed
- 3x 140 mm
- Brand
- GIGABYTE
- Category
- Computer Case
- Model
- AORUS C601 GLASS GLOBAL
- Part number
- AC601G
- EAN / UPC
- 4719331554828
- Also known as
- GIGABYTE AORUS C601 GLASS GLOBAL PC Case - Mid Tower, E-ATX, 420mm radiator support, 4 x 140mm Pre-installed Fans, USB 3.1 Gen2, RGB Lighting
Specifications
53 specifications in 8 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Aluminium, Glass, Plastic, Steel |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 4 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of storage drives supported | 7 |
| Number of expansion slots | 8 |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans, Front |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| RGB control button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 19 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 22 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |

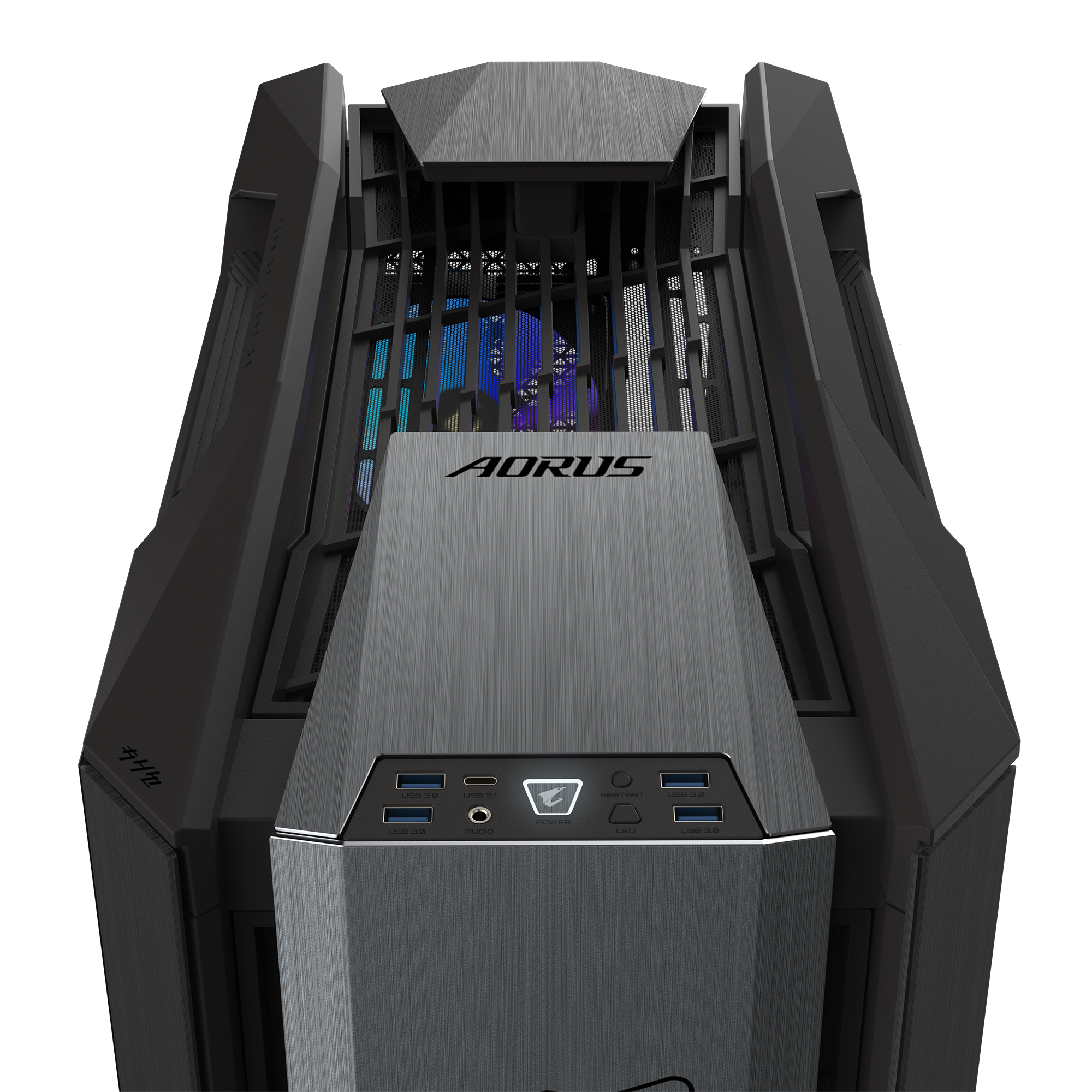

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 420 mm |
| Rear radiator sizes supported | 140 mm |
| Top radiator sizes supported | 420 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 4 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Warranty period | 2 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 565 mm |
| Height | 611 mm |
| Weight | 21.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 407 mm |
| Package depth | 705 mm |
| Package height | 726 mm |
| Package weight | 28.1 kg |
