Irid 505F
Model Irid 505FPart no. NPC-1997EAN 5901969437850
54 specifications
- Noise22.1 dB
- TypeMidi Tower
- Weight7.1 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity2
Overview
- Noise
- 22.1 dB
- Type
- Midi Tower
- Weight
- 7.1 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Brand
- GENESIS
- Category
- Computer Case
- Model
- Irid 505F
- Part number
- NPC-1997
- EAN / UPC
- 5901969437850
- Also known as
- GENESIS Irid 505F Midi Tower Black
Specifications
54 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 7 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 8 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | No |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 19 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |

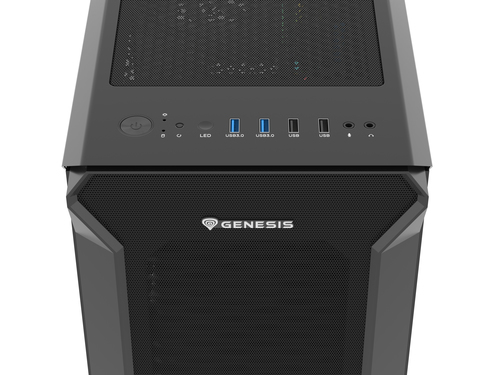

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Top fans installed | 2x 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 1290 - 1300 RPM |
| Maximum air pressure | 1.05 mmH2O |
| Maximum airflow | 46.1 cfm |
| Noise level (high speed) | 22.1 dB |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,140,240,280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,140,240,280,360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 447 mm |
| Height | 510 mm |
| Weight | 7.1 kg |
