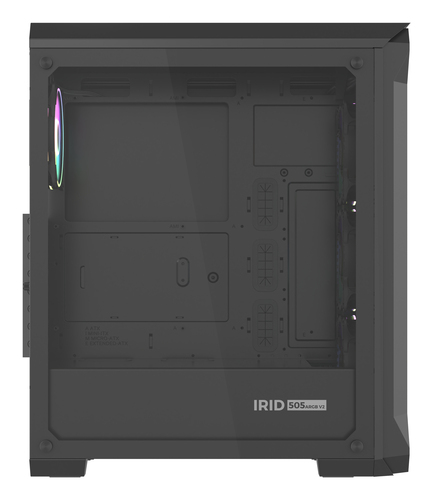

Irid 505 ARGB V2
Model Irid 505 ARGB V2Part no. NPC-1518EAN 5901969420890
48 specifications
- TypeMidi Tower
- Weight6.95 kg
- ColourBlack, Transparent
- Power supply includedNo
- USB 2.0 ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Midi Tower
- Weight
- 6.95 kg
- Colour
- Black, Transparent
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- GENESIS
- Category
- Computer Case
- Model
- Irid 505 ARGB V2
- Part number
- NPC-1518
- EAN / UPC
- 5901969420890
- Also known as
- GENESIS Irid 505 ARGB V2
Specifications
48 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Product colour | Black, Transparent |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 7 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 6 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16.5 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 19 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Maximum air pressure | 0.97 mmH2O |
| Maximum airflow | 39.6 cfm |
| Liquid cooling capability | Yes |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Number of HDDs supported | 9 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 447 mm |
| Height | 510 mm |
| Weight | 6.95 kg |
