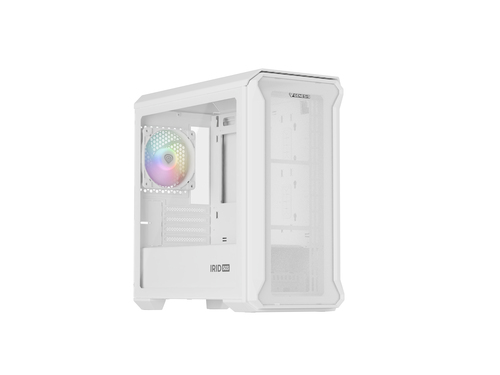

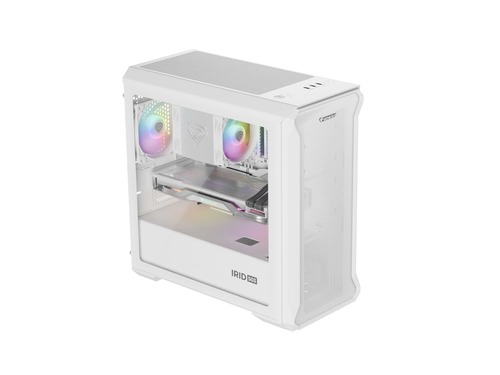

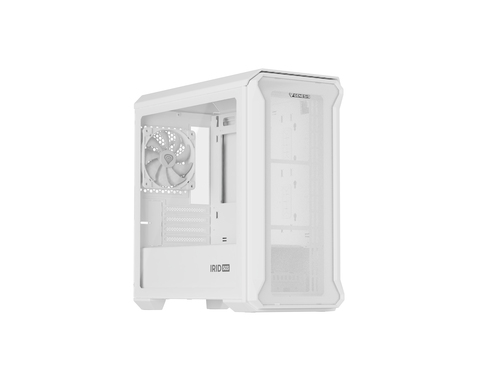

Irid 503
Model Irid 503Part no. NPC-2224EAN 5901969445374
45 specifications
- TypeMini Tower
- Weight6.2 kg
- ColourTransparent, White
- Power supply includedNo
- USB 2.0 ports quantity2
- Number of front fans supported (max)3
Overview
- Type
- Mini Tower
- Weight
- 6.2 kg
- Colour
- Transparent, White
- Power supply included
- No
- USB 2.0 ports quantity
- 2
- Number of front fans supported (max)
- 3
- Brand
- GENESIS
- Category
- Computer Case
- Model
- Irid 503
- Part number
- NPC-2224
- EAN / UPC
- 5901969445374
- Also known as
- GENESIS Irid 503 ARGB Lite
Specifications
45 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Product colour | Transparent, White |
| Supported motherboard form factors | micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16.3 cm |
| Maximum graphics card length | 37.5 cm |
| Maximum PSU length | 19 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Fan speed | 1150 - 1450 RPM |
| Maximum airflow | 46 cfm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| HDD/SSD combo cage | Yes |
| Number of HDDs supported | 5 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 210 mm |
| Depth | 430 mm |
| Height | 430 mm |
| Weight | 6.2 kg |
