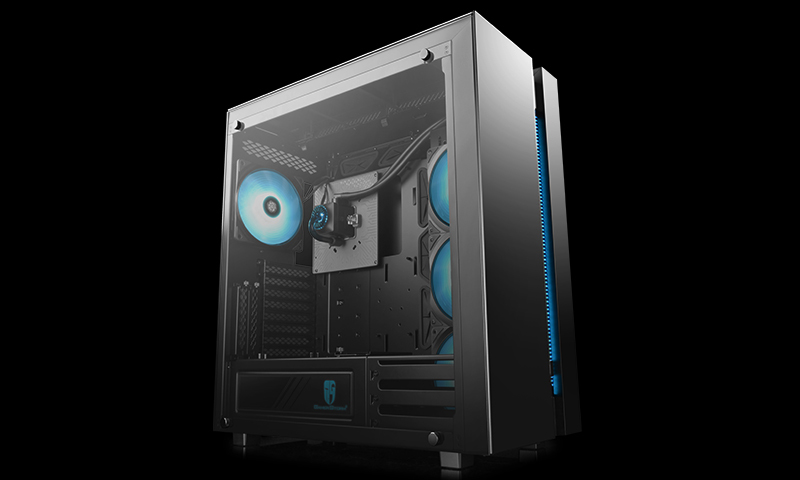

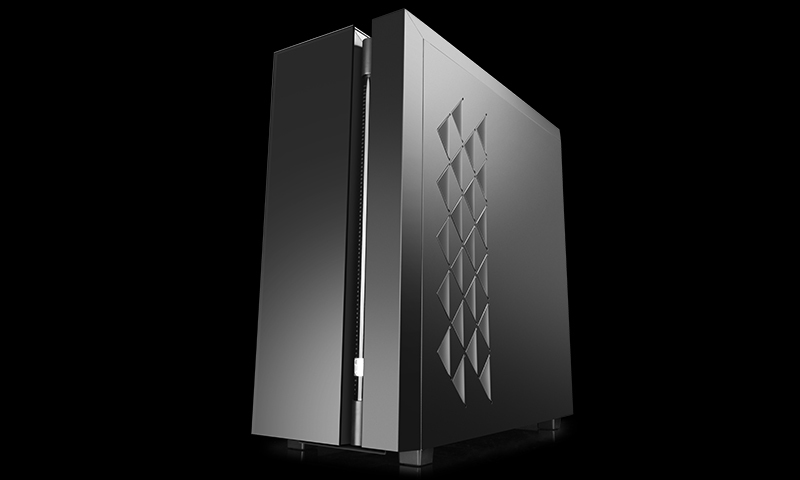

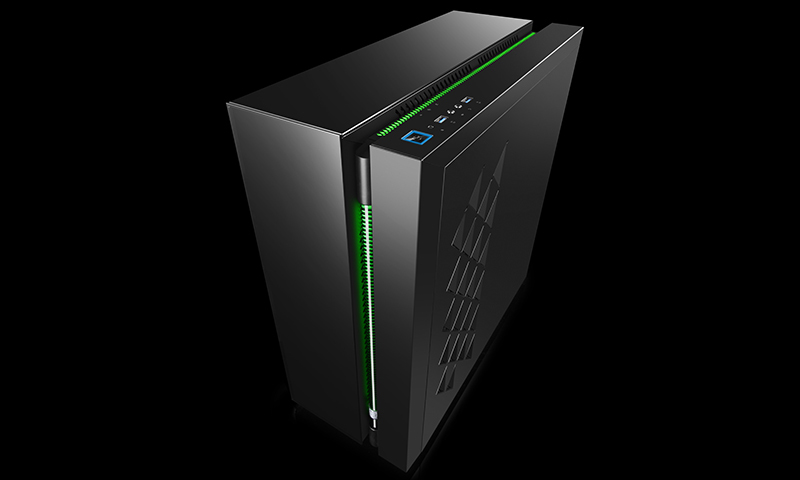

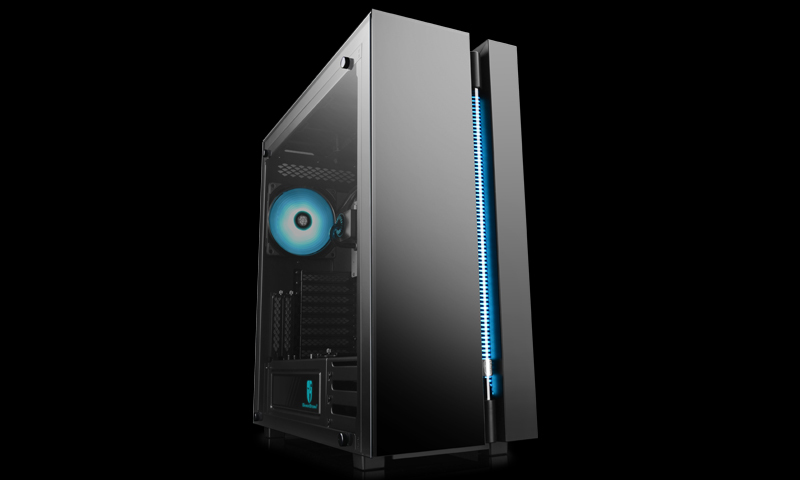

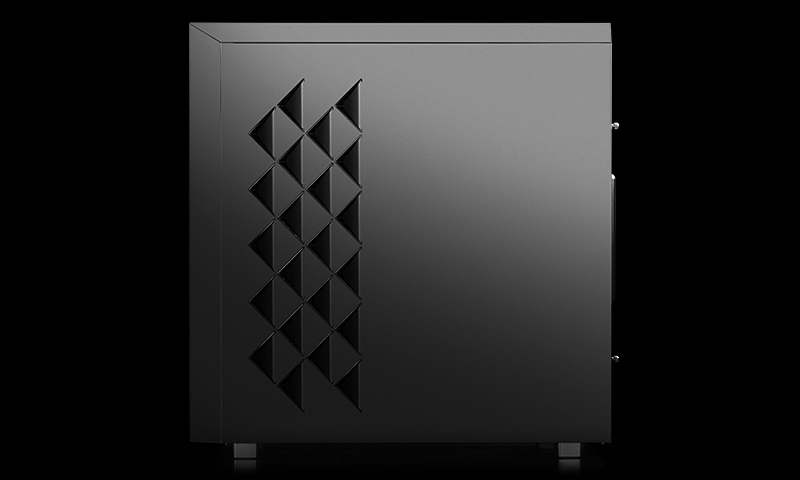

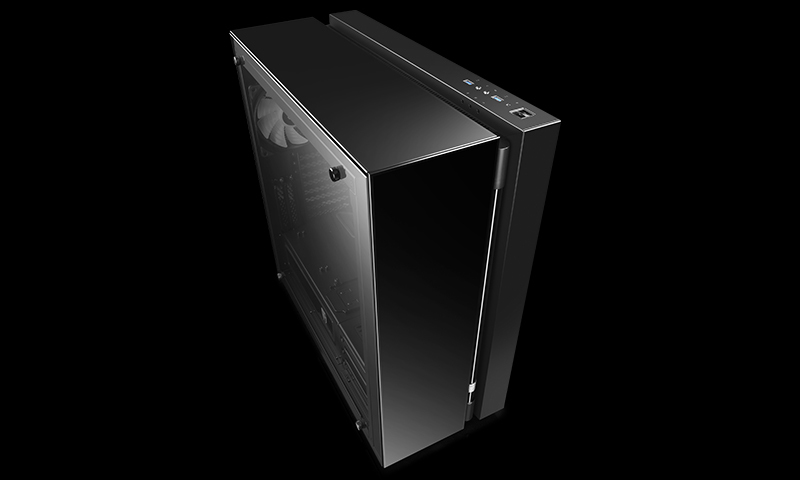

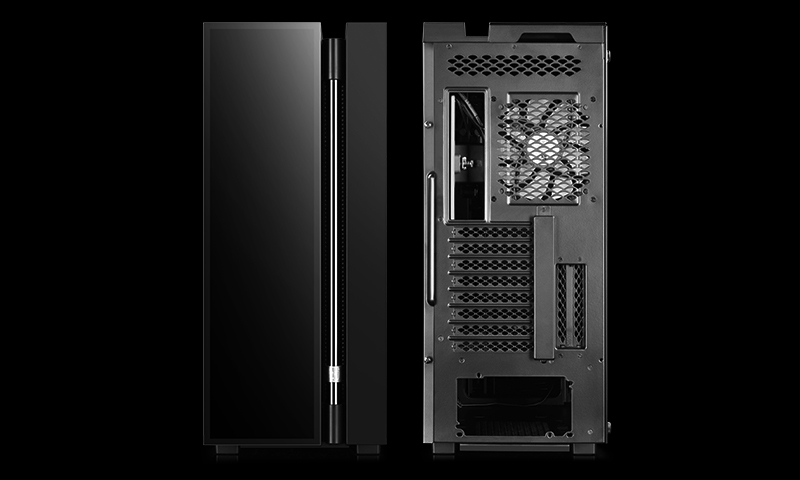

NEW ARK 90MC
Model NEW ARK 90MCPart no. DP-ATXLCS-NARK90MCEAN 6933412713708
42 specifications
- TypePC
- Weight14.3 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)3
Overview
- Type
- PC
- Weight
- 14.3 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 3
- Brand
- Gamer Storm
- Category
- Computer Case
- Model
- NEW ARK 90MC
- Part number
- DP-ATXLCS-NARK90MC
- EAN / UPC
- 6933412713708
- Also known as
- Gamer Storm NEW ARK 90MC Black
Specifications
42 specifications in 7 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Material | ABS, SGCC, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 3 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 6 |
| Number of expansion slots | 10 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| On/off button | No |
| RGB control button | Yes |
| Maximum CPU cooler height | 18.6 cm |
| Maximum graphics card length | 31 cm |
| Maximum PSU length | 20 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | PS2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio input | Yes |
| Audio output | Yes |

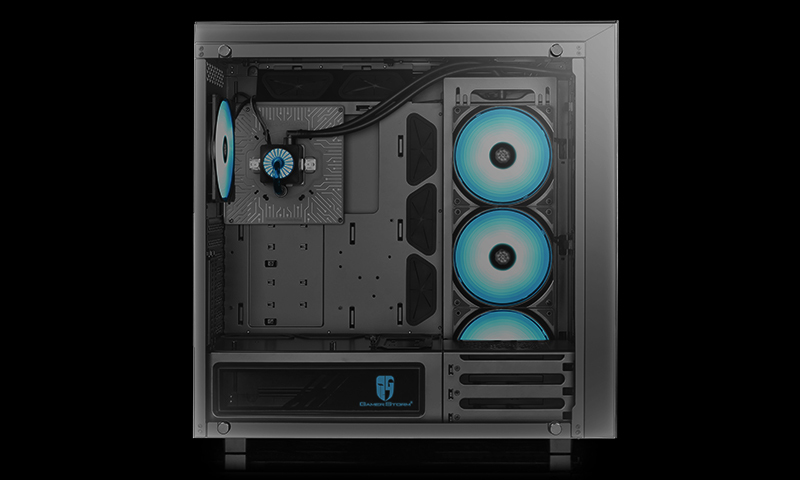

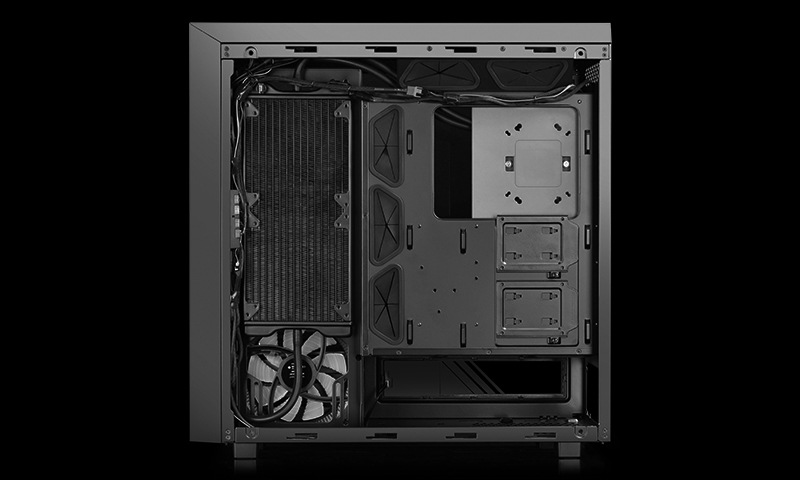

Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Side fans installed | 3x 140 mm |
| Rear fans installed | 1x 140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120 mm |
| Fan speed | 500 - 1800 RPM |
| Liquid cooling capability | Yes |
| Front radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120,140 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 232 mm |
| Depth | 530 mm |
| Height | 545.5 mm |
| Weight | 14.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 335 mm |
| Package depth | 625 mm |
| Package height | 627 mm |
| Package weight | 17.8 kg |
