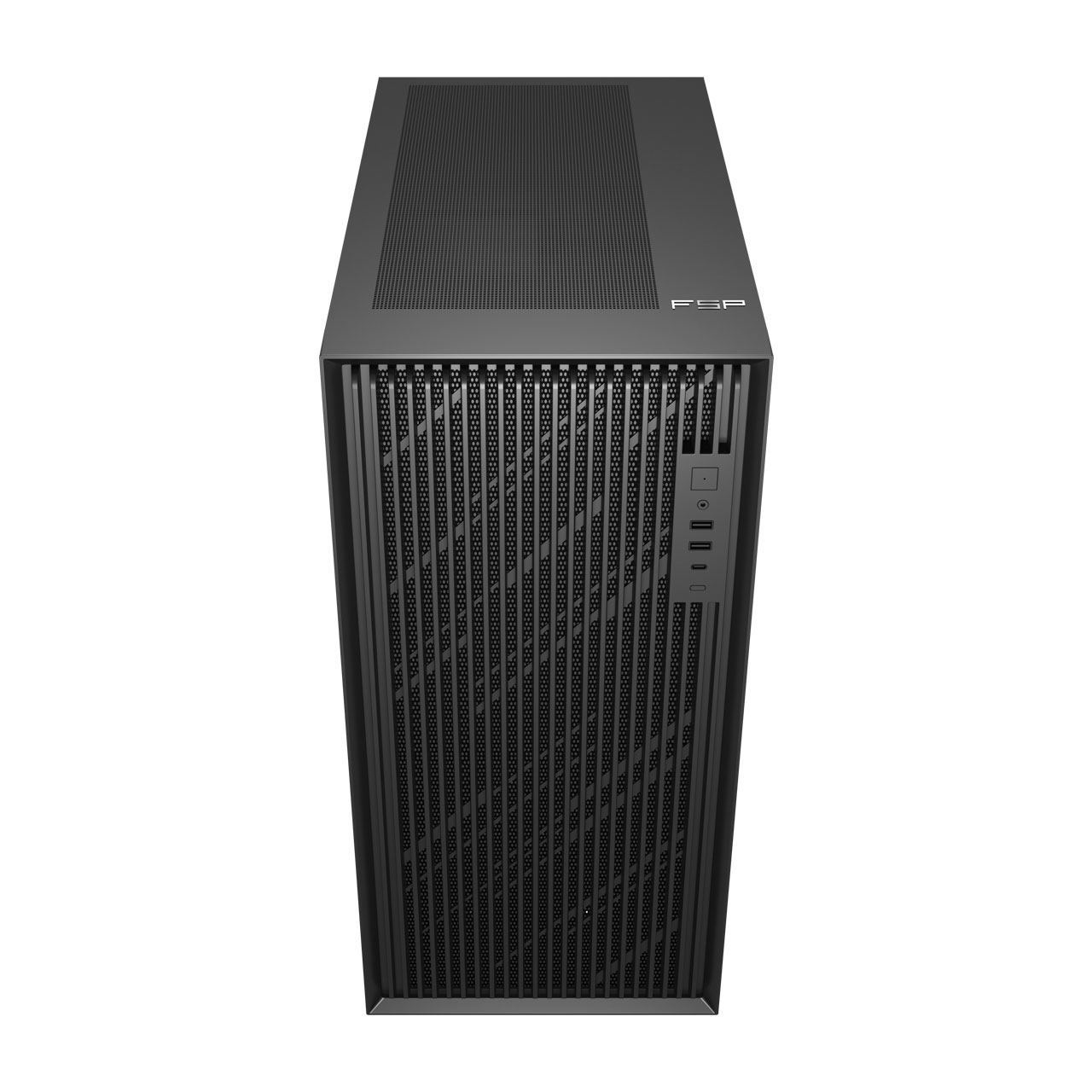

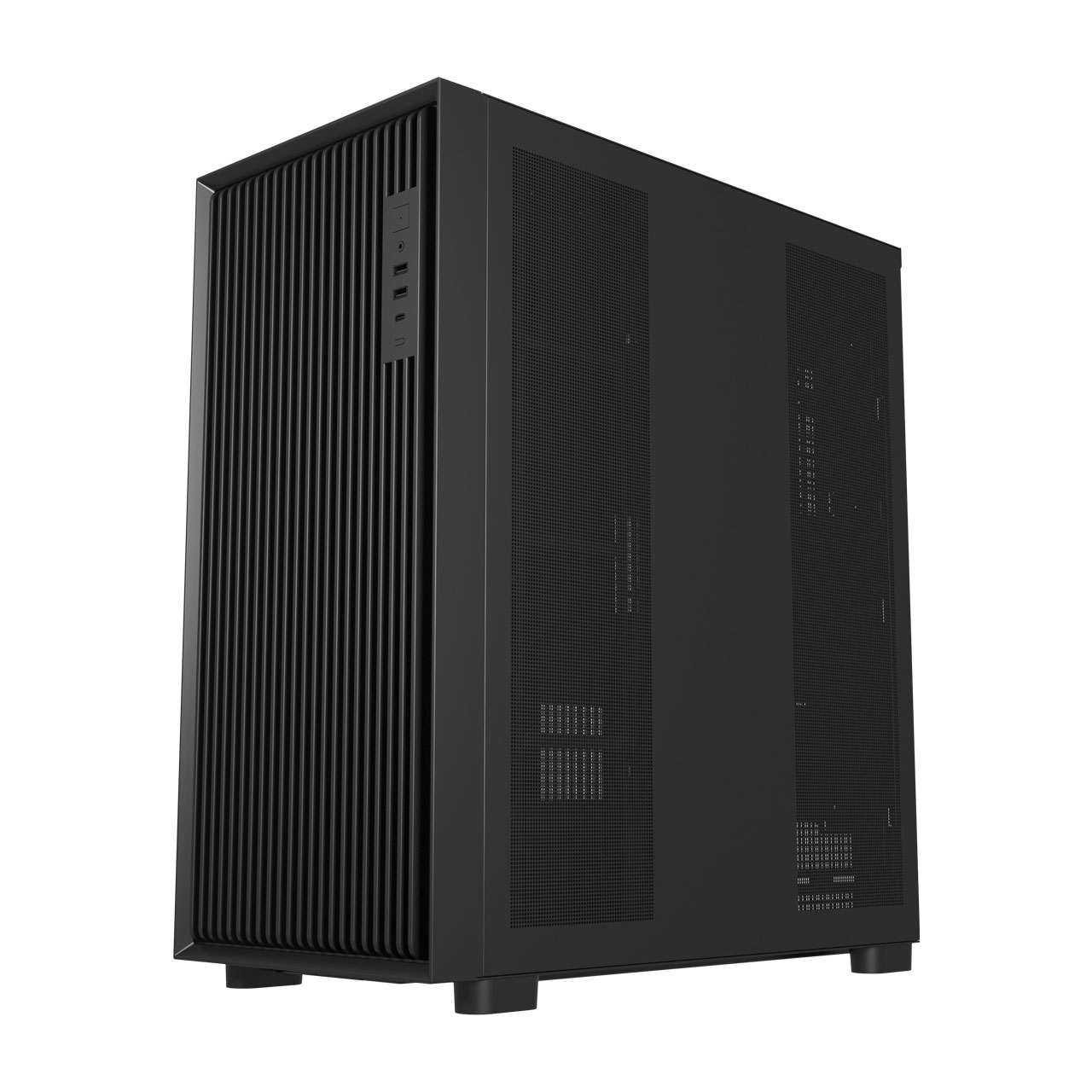

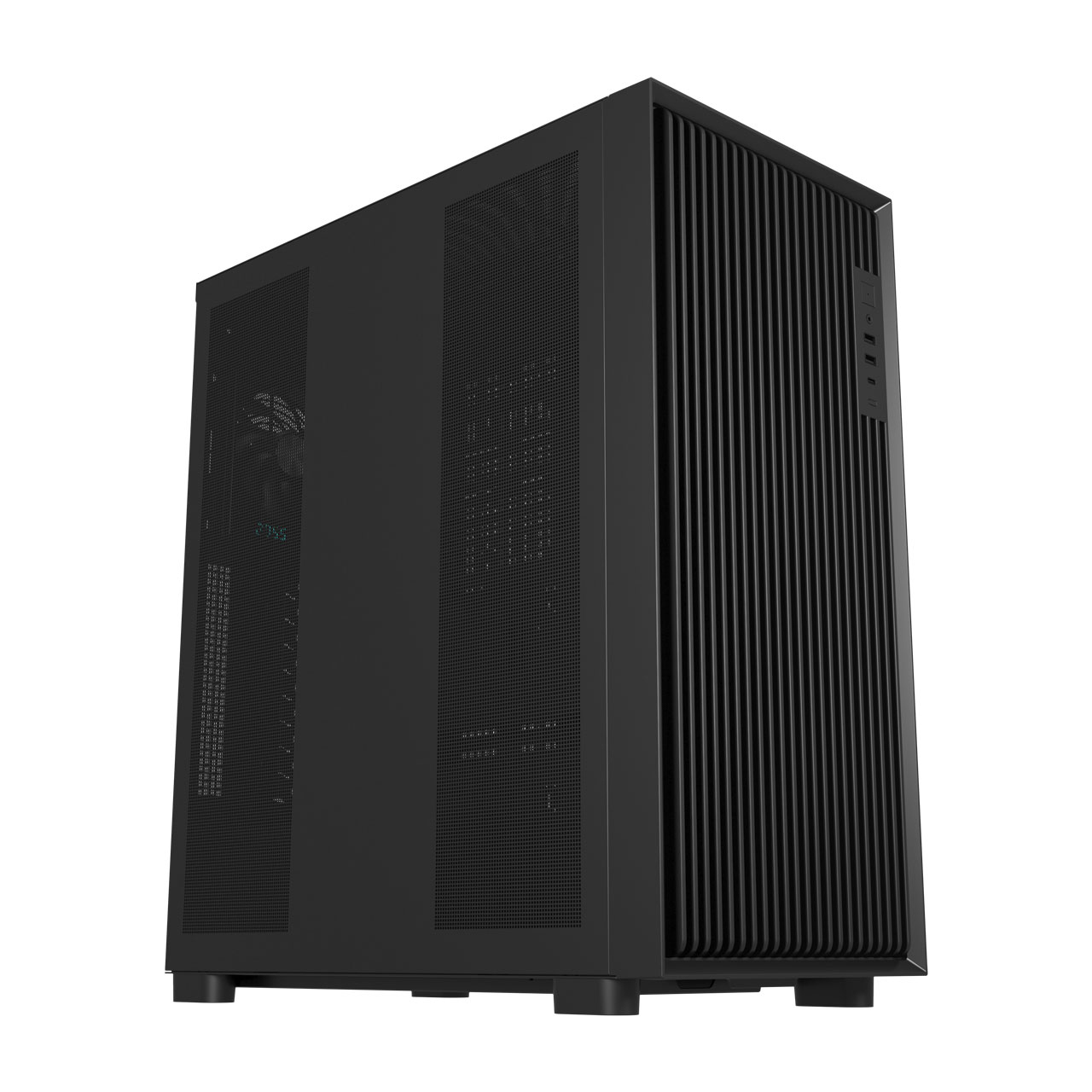

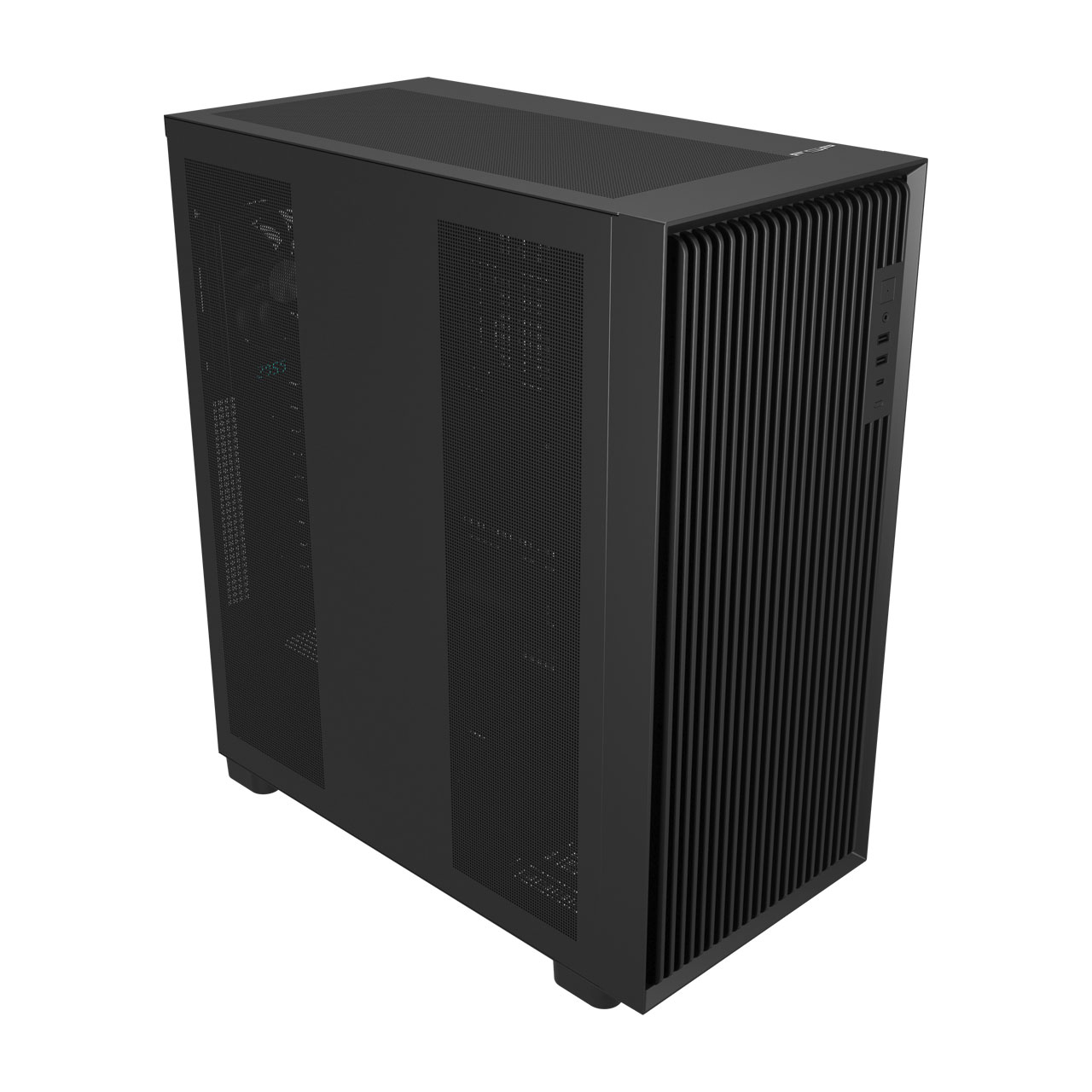

U660-B Case Full Tower mITX, mATX, ATX (BTF), E-ATX, EEB Black
Model U660-B Case Full Tower mITX, mATX, ATX (BTF), E-ATX, EEB BlackPart no. POC0000310EAN 4711498482594
44 specifications
- TypeFull Tower
- Weight11.6 kg
- ColourBlack
- Power supply includedNo
- USB 2.0 ports quantity0
- Number of front fans supported (max)4
Overview
- Type
- Full Tower
- Weight
- 11.6 kg
- Colour
- Black
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Number of front fans supported (max)
- 4
- Brand
- FSP
- Category
- Computer Case
- Model
- U660-B Case Full Tower mITX, mATX, ATX (BTF), E-ATX, EEB Black
- Part number
- POC0000310
- EAN / UPC
- 4711498482594
- Also known as
- FSP U660-B Case Full Tower mITX, mATX, ATX (BTF), E-ATX, EEB Black
Specifications
44 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Full Tower |
| Type | Server |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, Micro-ITX, Mini-ITX, EEB |

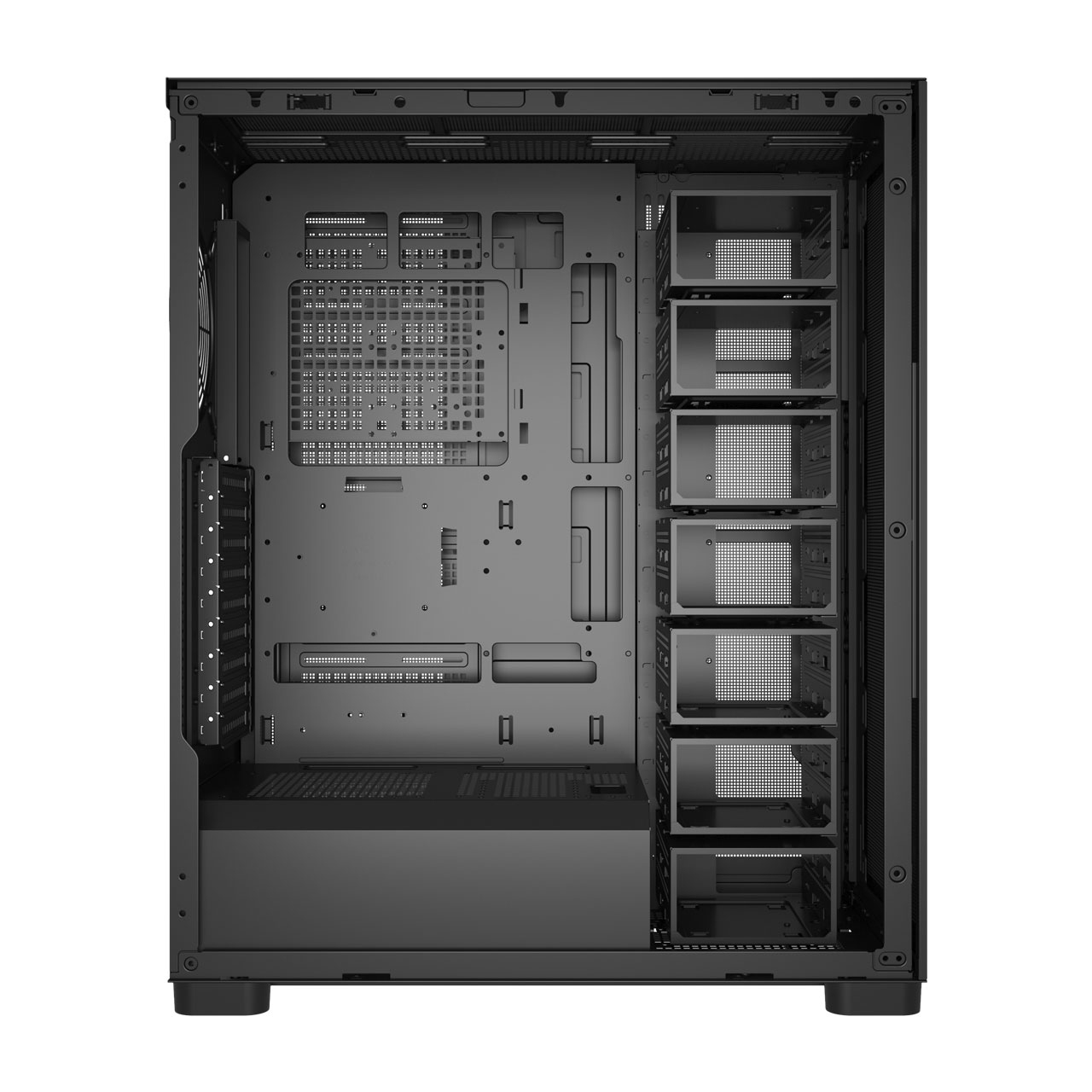

| Number of 3.5" bays | 18 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 4 |
| Number of expansion slots | 9 |
| Illumination | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 18 cm |
| Maximum graphics card length | 42 cm |
| Maximum PSU length | 23 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Power supply location | Rear |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Number of front fans supported (max) | 4 |
| Front fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 4 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Side radiator sizes supported | 360 mm |
| Top radiator sizes supported | 360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5,2.5" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 258 mm |
| Depth | 450 mm |
| Height | 568 mm |
| Weight | 11.6 kg |
| Material thickness | 0.8 mm |
