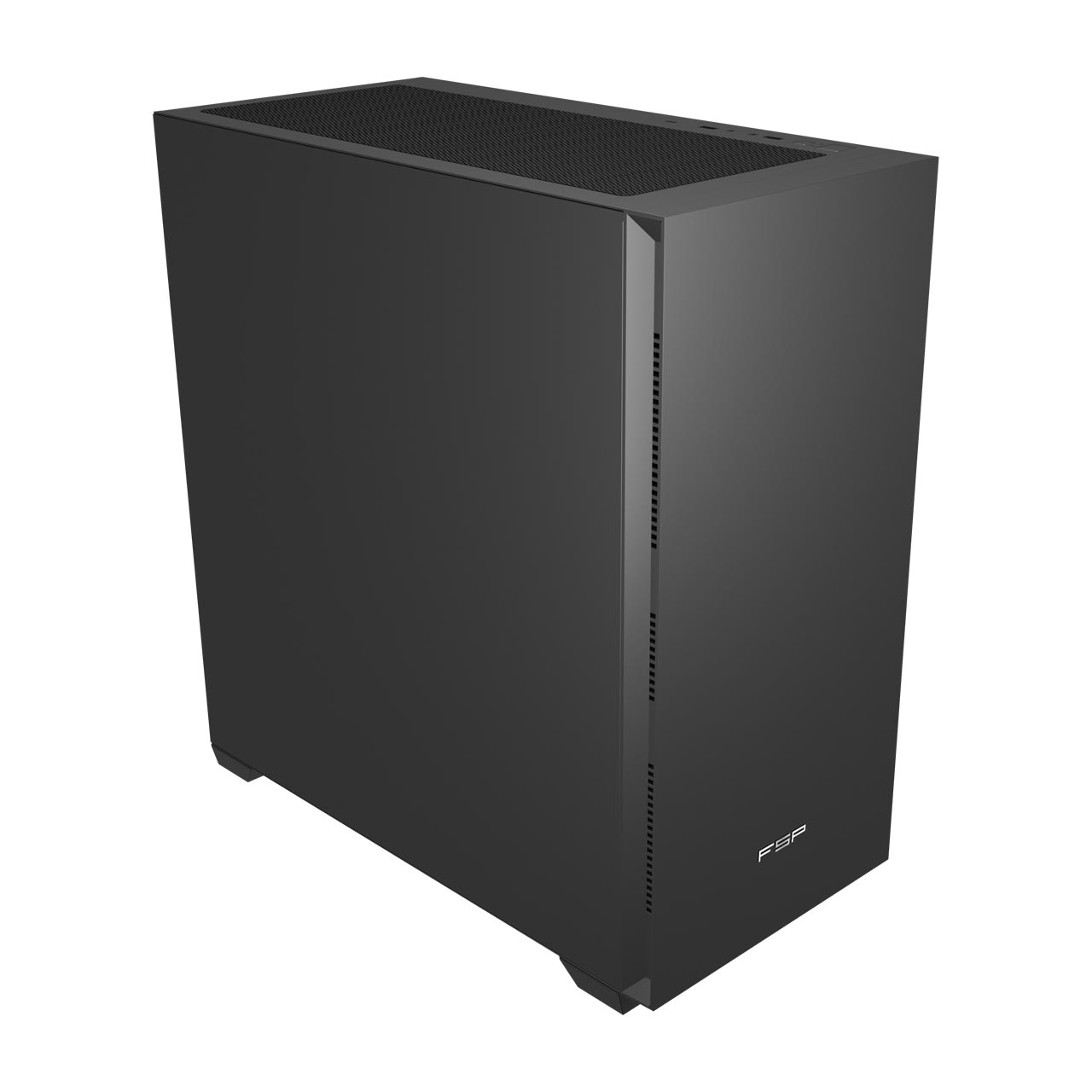

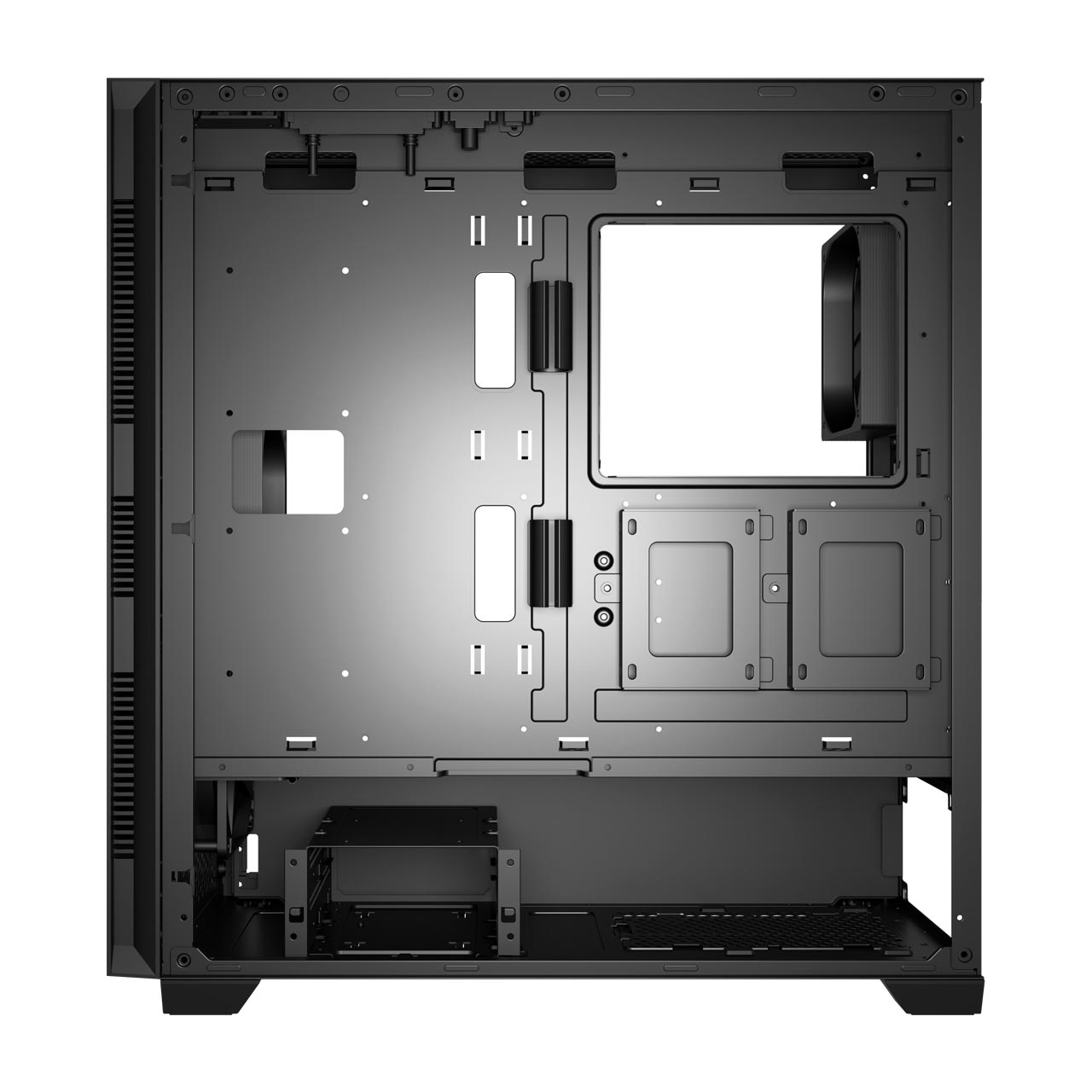

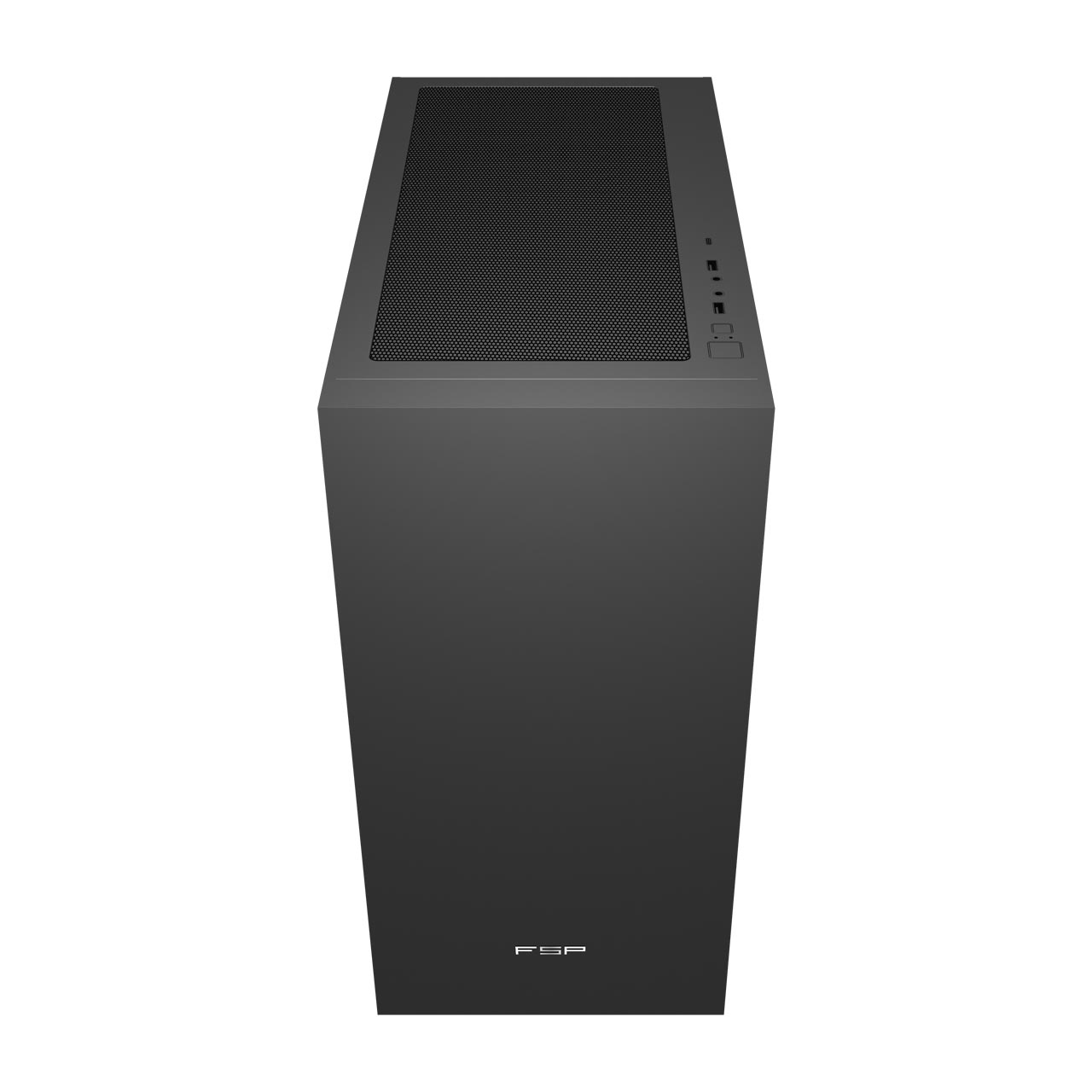

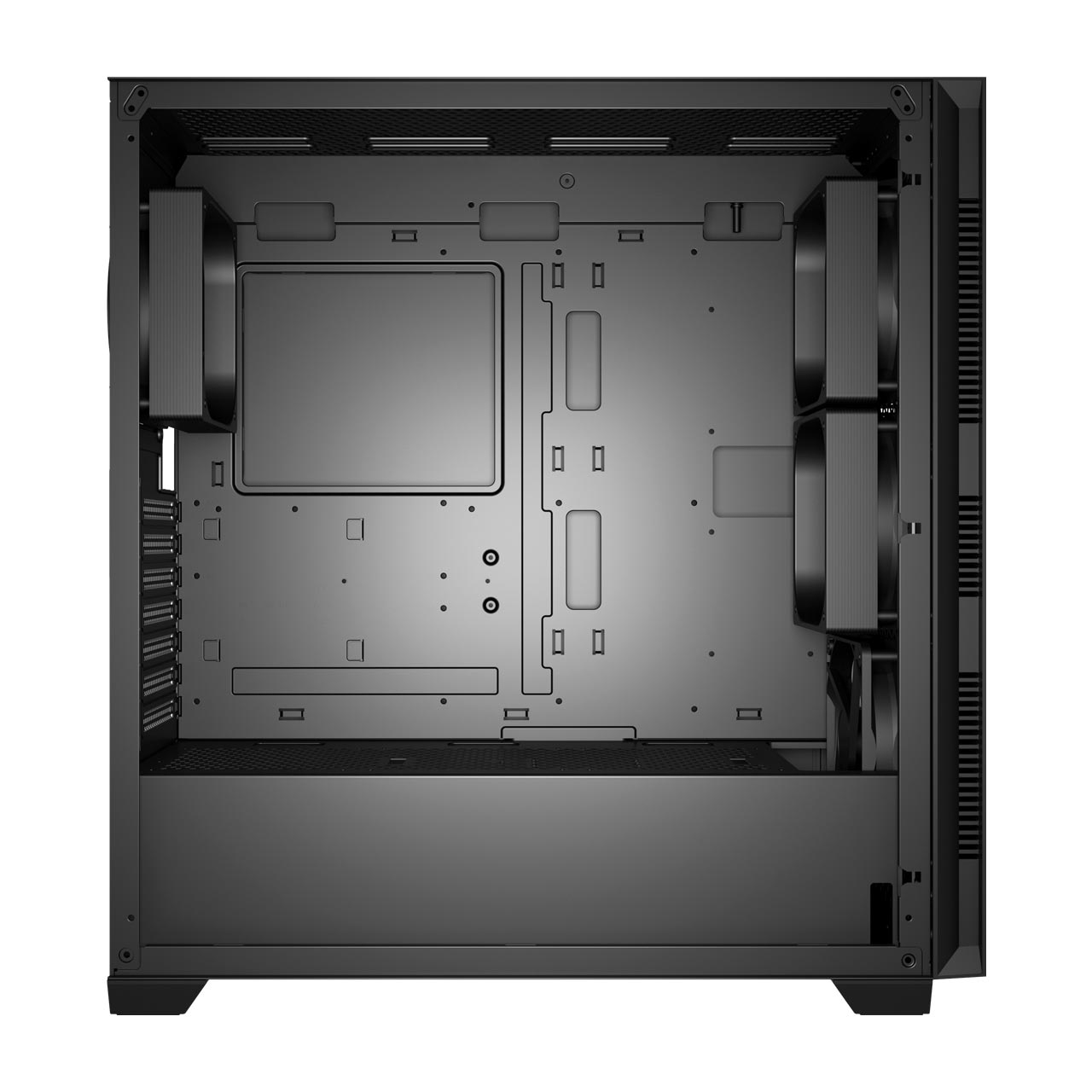

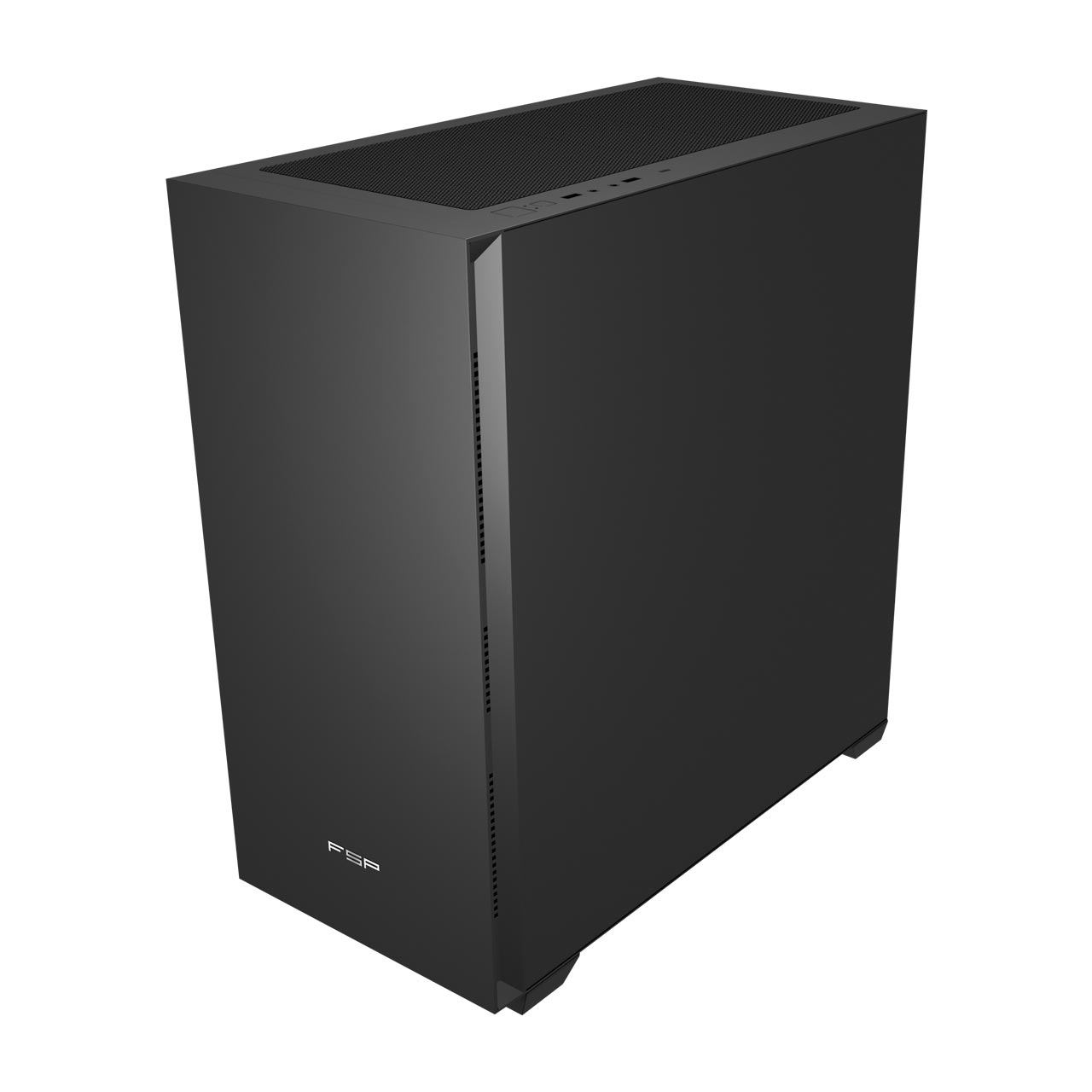

U530-BS Case Full Tower mITX, mATX, ATX, E-ATX, EEB Black
Model U530-BSPart no. POC0000303EAN 4711498481986
34 specifications
- TypeUltra Tower
- Weight8.88 kg
- ColourBlack
- Power supply includedNo
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
- Front fans installed3x 120 mm
Overview
- Type
- Ultra Tower
- Weight
- 8.88 kg
- Colour
- Black
- Power supply included
- No
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Front fans installed
- 3x 120 mm
- Brand
- FSP
- Category
- Computer Case
- Model
- U530-BS
- Part number
- POC0000303
- EAN / UPC
- 4711498481986
- Also known as
- FSP U530-BS Case Full Tower mITX, mATX, ATX, E-ATX, EEB Black
Specifications
34 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Form factor | Ultra Tower |
| Type | PC |
| Material | SPCC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, EEB, micro ATX, Mini-ITX |
| Number of 3.5" bays | 3 |
| Number of 2.5" bays | 5 |
| Number of expansion slots | 7 |
| Maximum CPU cooler height | 17.5 cm |
| Maximum graphics card length | 37.5 cm |
| Maximum PSU length | 23 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
| Supported power supply form factors | ATX |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
Cooling
| Specification | Value |
|---|---|
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 360 mm |
| Top radiator sizes supported | 360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| HDD/SSD combo cage | Yes |
| SSD form factor | 2.5" |
| Number of HDDs supported | 3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 473 mm |
| Height | 490 mm |
| Weight | 8.88 kg |
| Material thickness | 0.7 mm |
