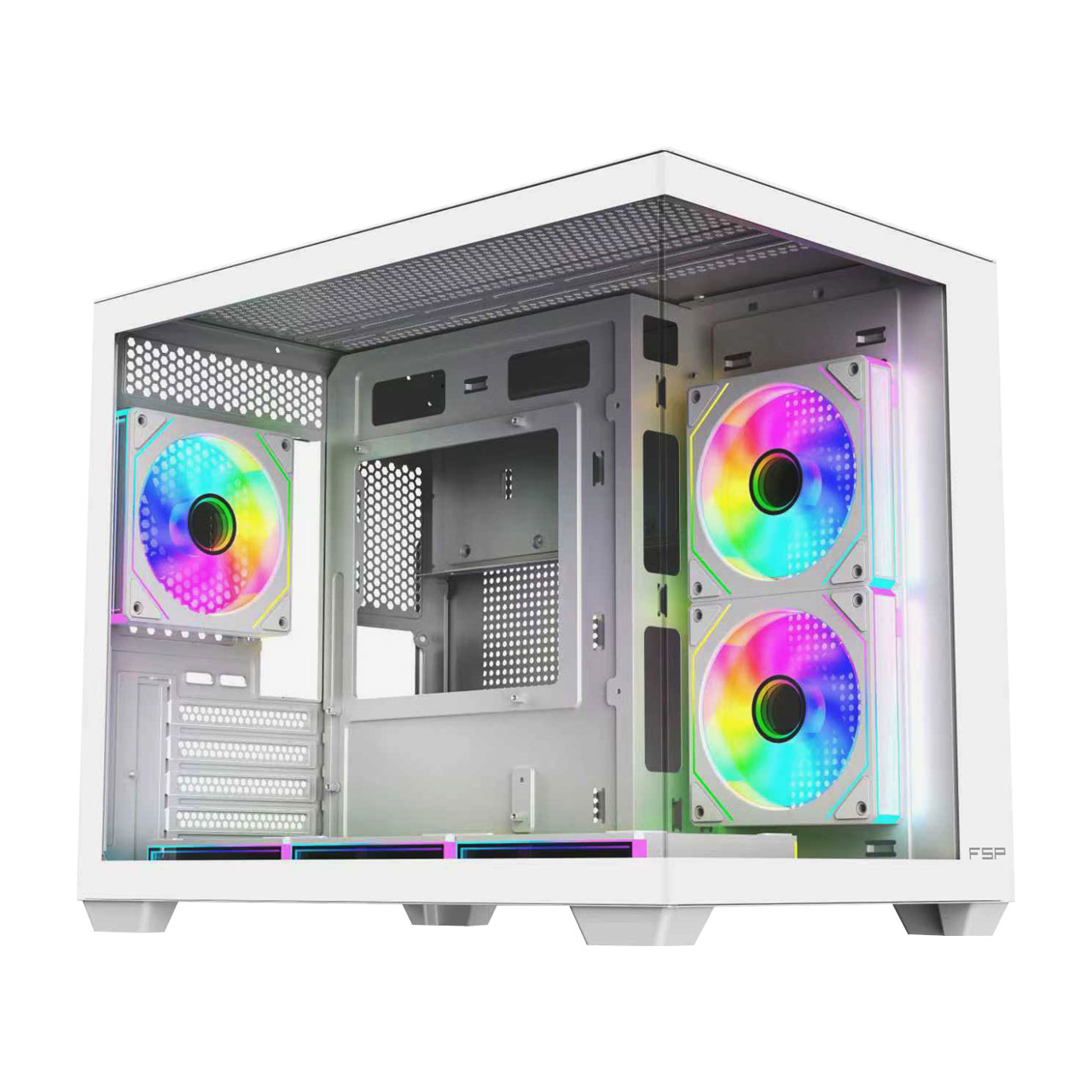

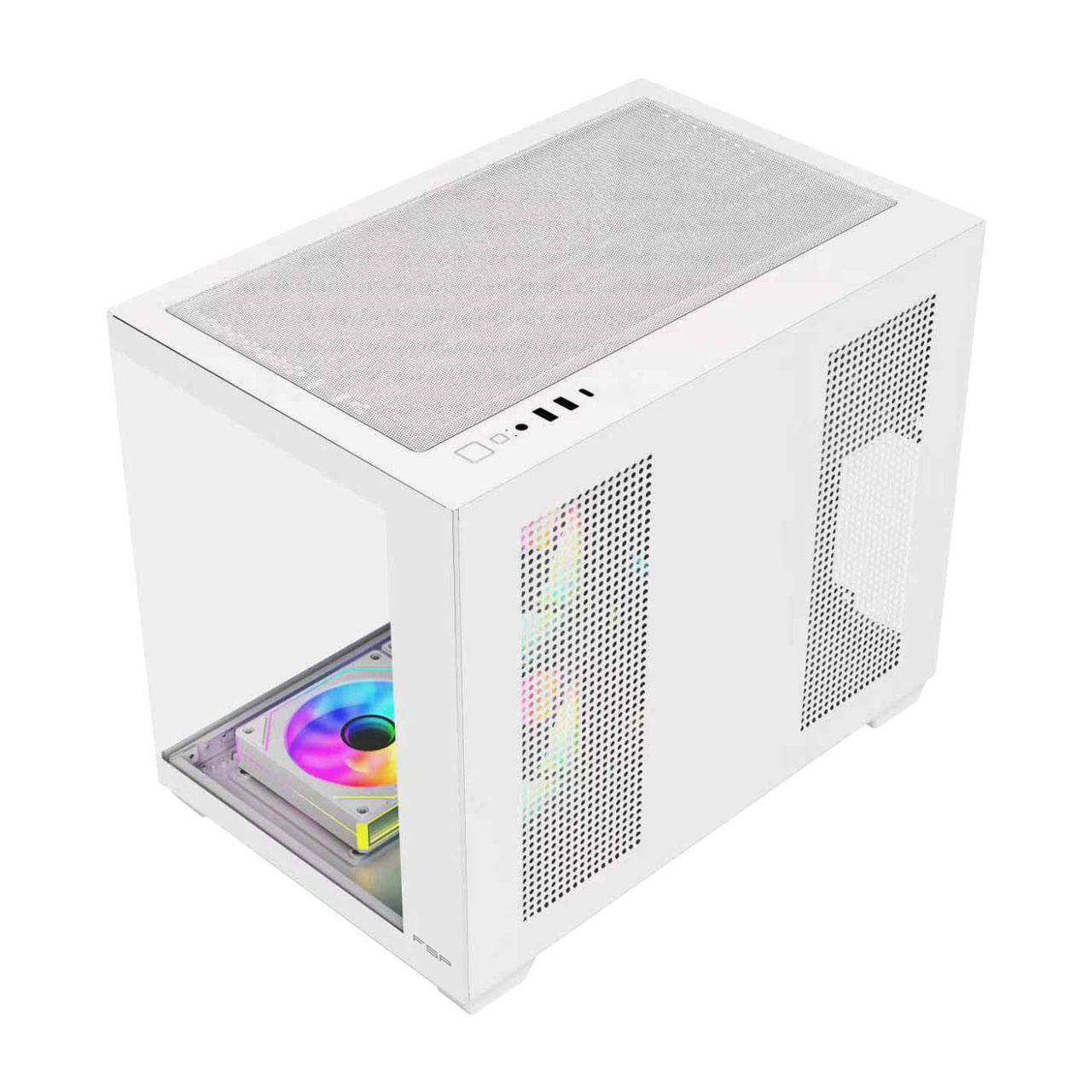

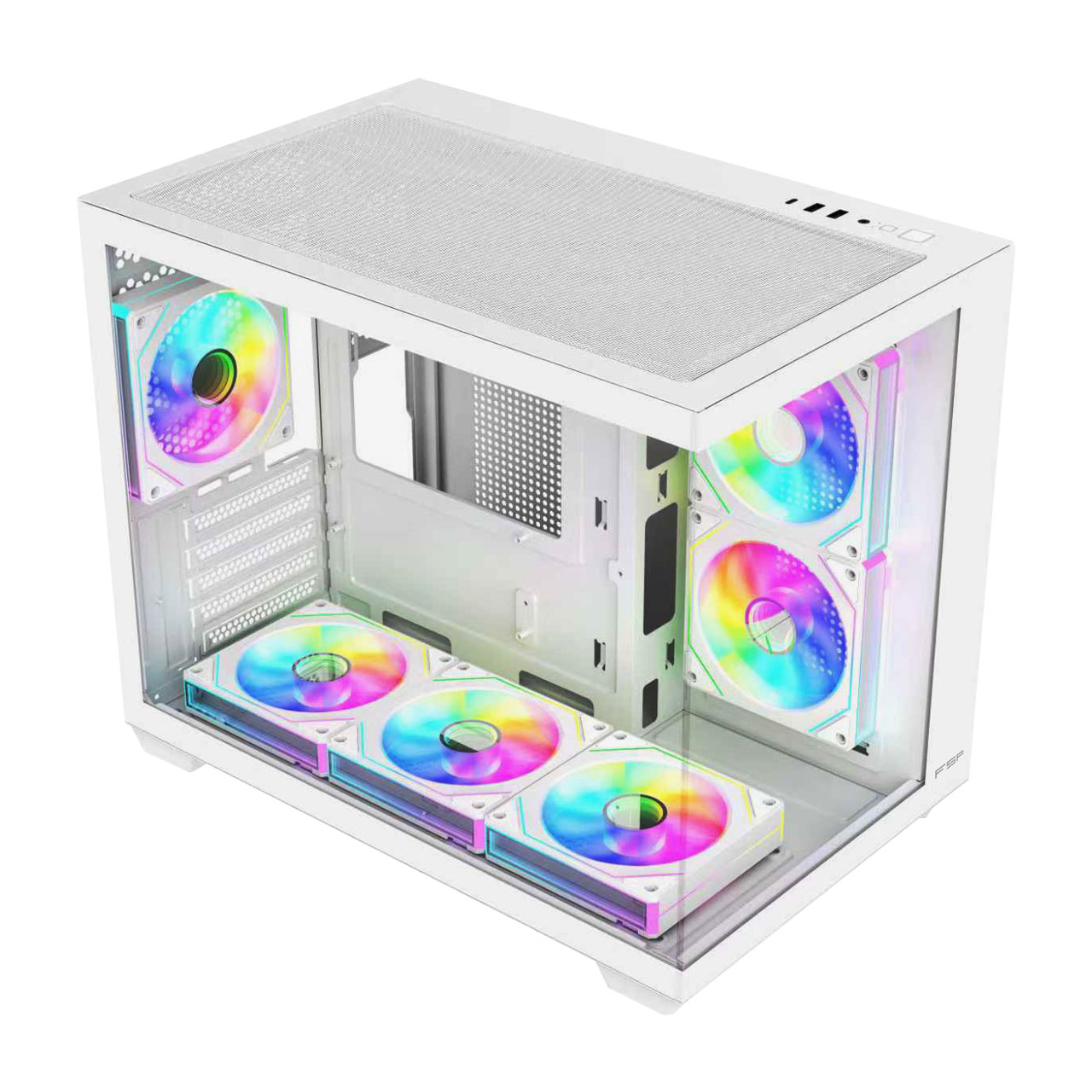

S342-WA computer case White
Model S342-WA
36 specifications
- TypePC
- ColourWhite
- Power supply includedNo
- USB 2.0 ports quantity0
- Side fans installed2x 120 mm
- Supported HDD sizes3.5"
Overview
- Type
- PC
- Colour
- White
- Power supply included
- No
- USB 2.0 ports quantity
- 0
- Side fans installed
- 2x 120 mm
- Supported HDD sizes
- 3.5"
- Brand
- FSP
- Category
- Computer Case
- Model
- S342-WA
- Part number
- S342-WA
- Also known as
- FSP S342-WA computer case White
Specifications
36 specifications in 6 groups
Design
| Specification | Value |
|---|---|
| Type | PC |
| Material | Glass |
| Product colour | White |
| Supported motherboard form factors | micro ATX |
| Number of 3.5" bays | 1 |
| Number of 5.25" bays | 0 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 5 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 16 cm |
| Maximum graphics card length | 41 cm |
Power supply
| Specification | Value |
|---|---|
| Power supply included | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Combo headphone/mic port | Yes |
Cooling
| Specification | Value |
|---|---|
| Side fans installed | 2x 120 mm |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120,240 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140,360 mm |
| Bottom fans installed | 3x 120 mm |
| Number of bottom fans supported (max) | 3 |
| Top radiator sizes supported | 360 mm |
Storage
| Specification | Value |
|---|---|
| Supported HDD sizes | 3.5" |
| SSD form factor | 2.5" |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 275 mm |
| Depth | 425 mm |
| Height | 354 mm |
